Concealed Duct, Mid/High Static, Unit Indoor, 36k Btu

Concealed Duct, Mid/High Static, Unit Indoor, 36k Btu

Concealed Duct, Mid/High Static, Unit Indoor, 36k Btu

ZBNQ36LM3A0

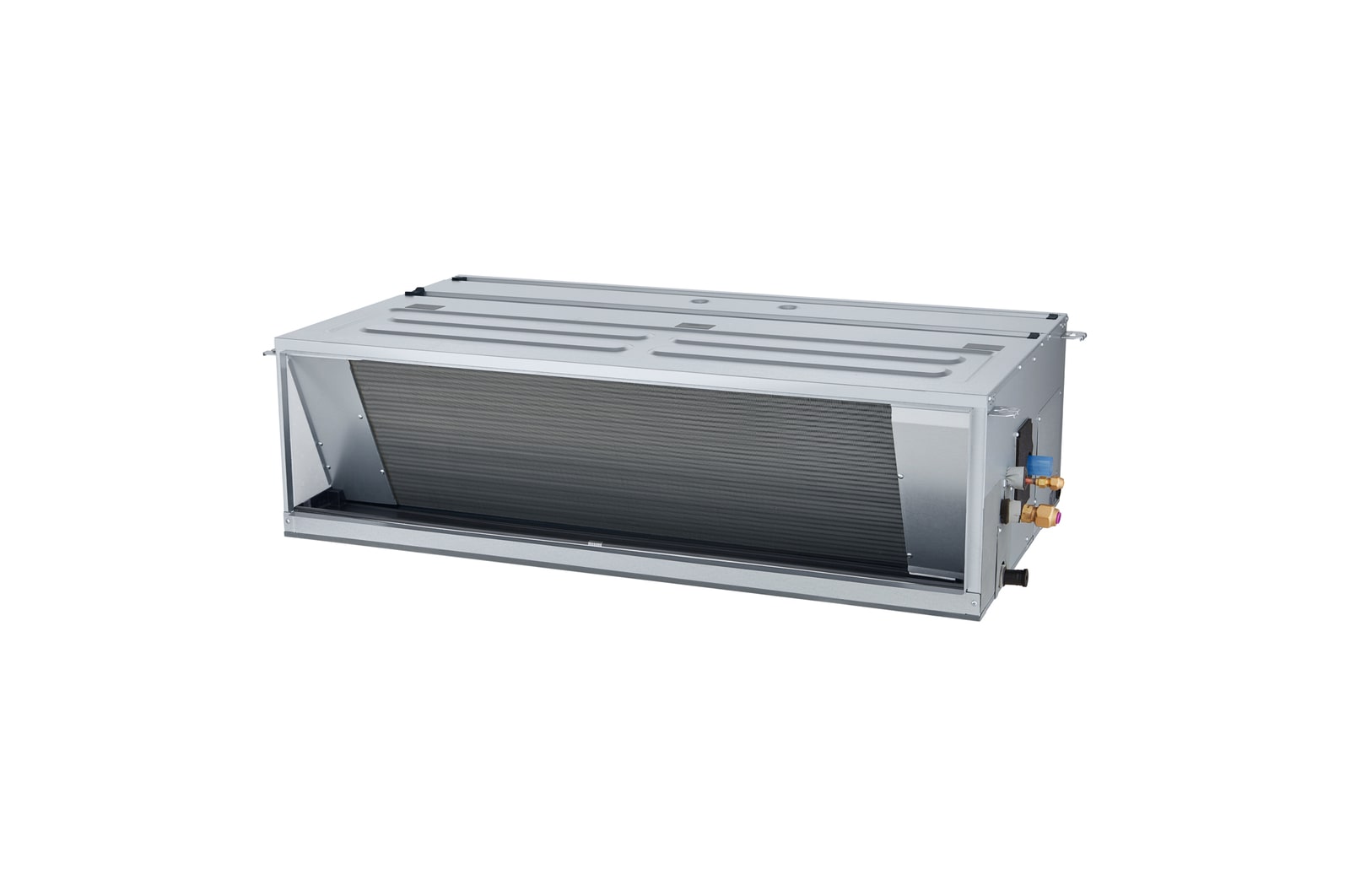

Front view of Concealed Duct, Mid/High Static, Unit Indoor, 36k Btu ZBNQ36LM3A0

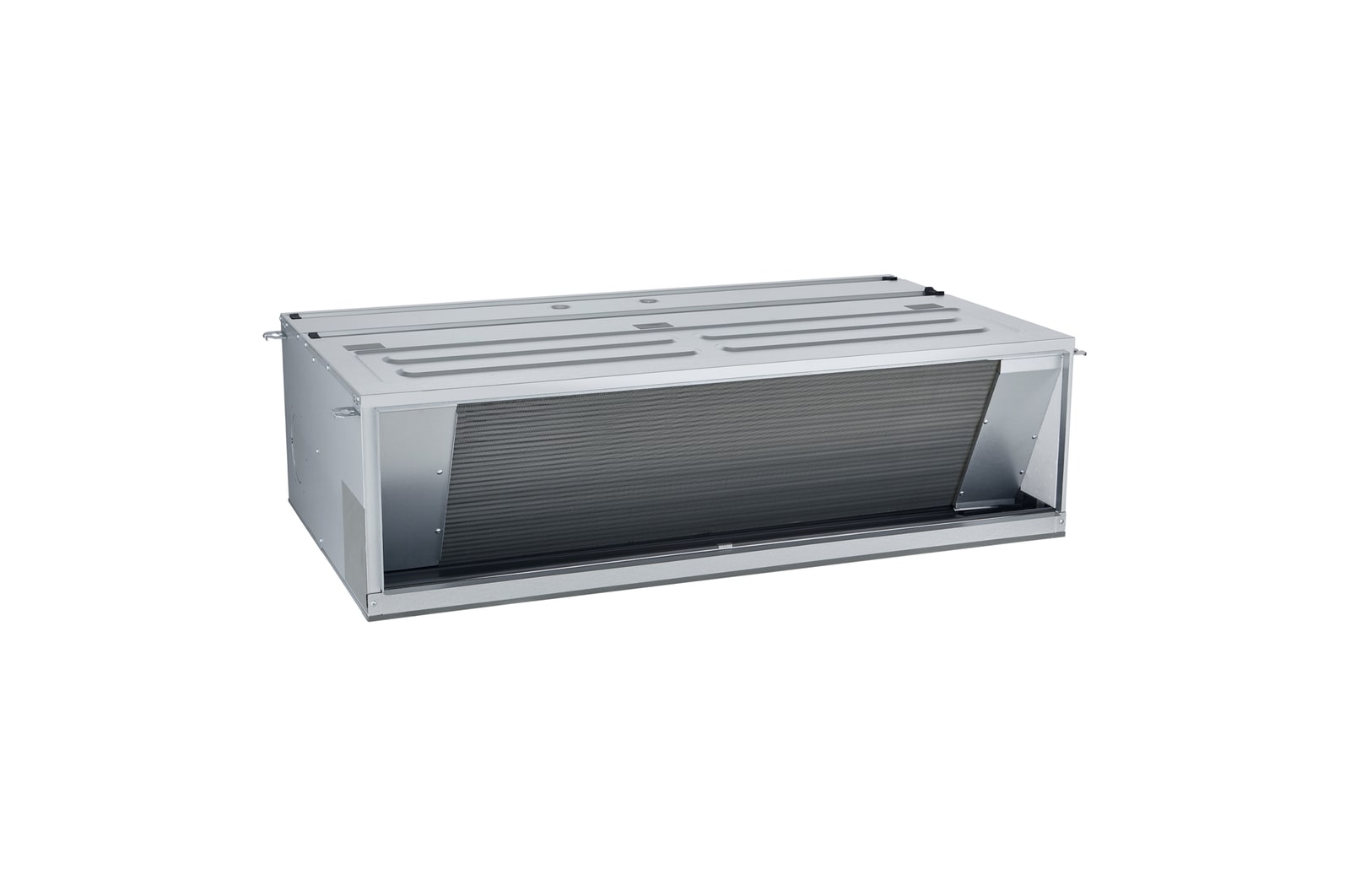

Tampilan perspektif kiri LG Ceiling Concealed Duct

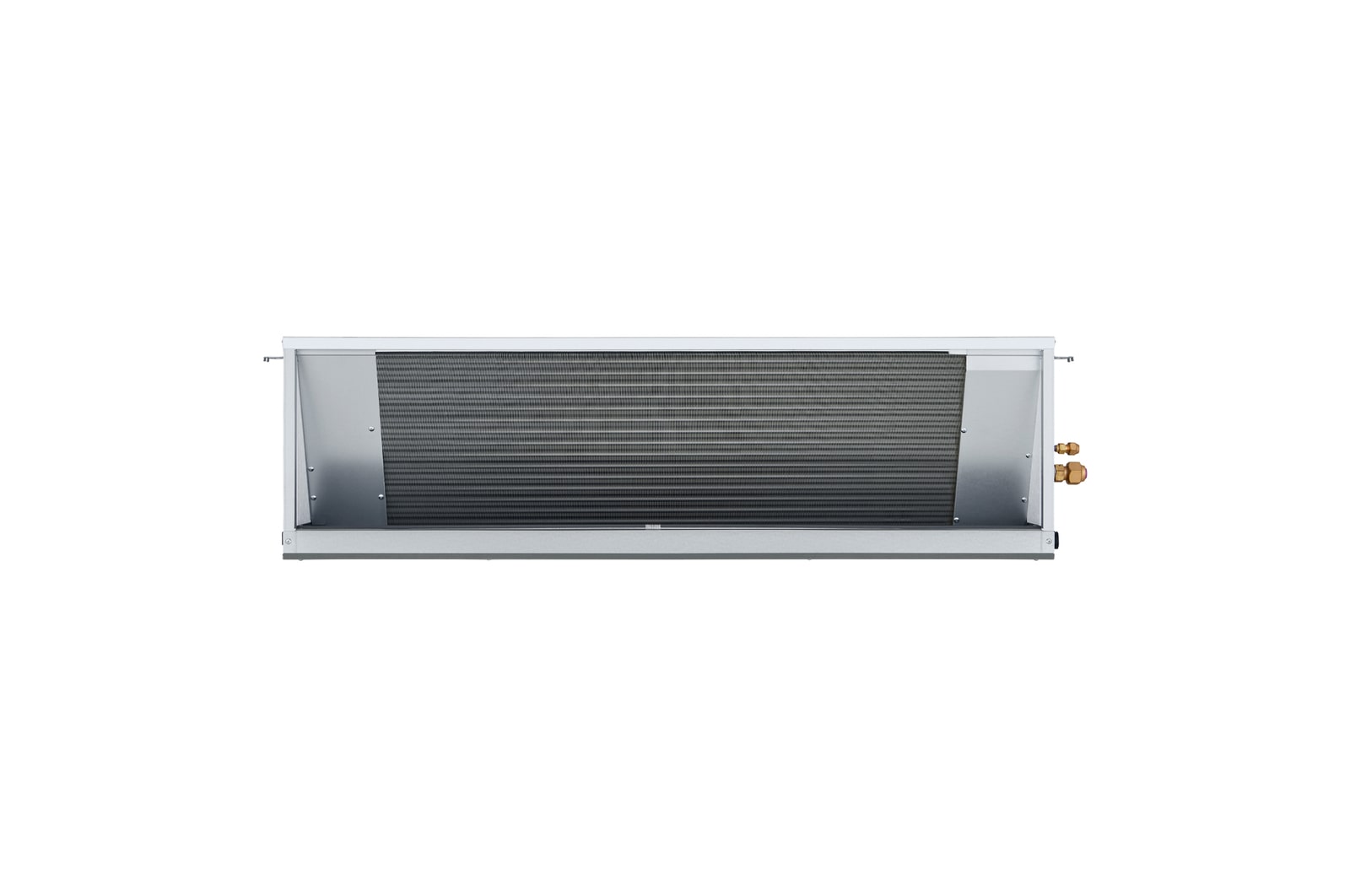

Tampilan depan LG Ceiling Concealed Duct

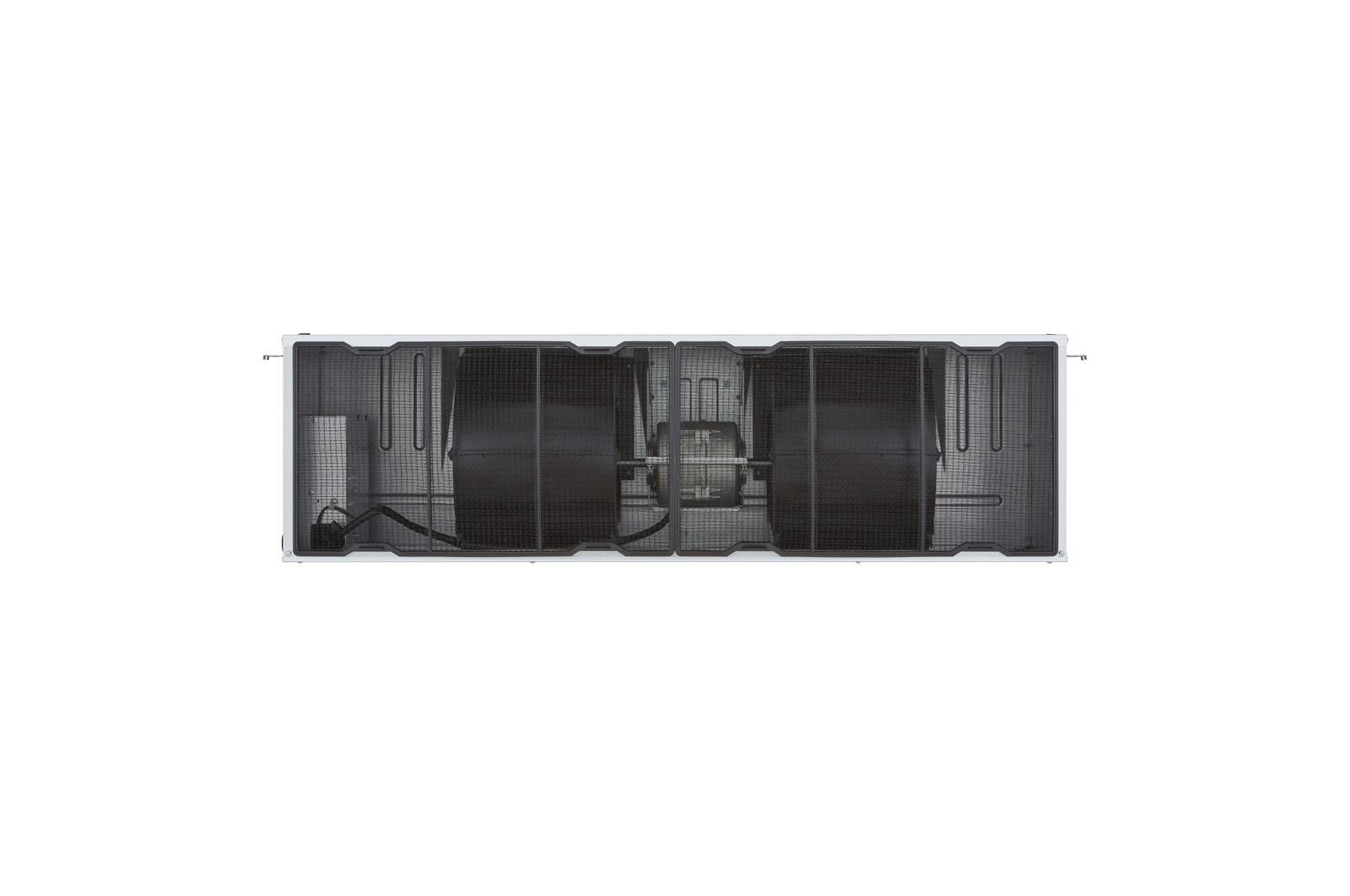

Tampilan belakang LG Ceiling Concealed Duct
Front view of Concealed Duct, Mid/High Static, Unit Indoor, 36k Btu ZBNQ36LM3A0
Tampilan perspektif kiri LG Ceiling Concealed Duct
Tampilan depan LG Ceiling Concealed Duct
Tampilan belakang LG Ceiling Concealed Duct

Fitur Utama

  • Kontrol Tekanan Statis Eksternal (ESP)
  • Kontrol Dua Termistor
  • Servis & Pemeliharaan Mudah
  • Instalasi yang Fleksibel
Lebih banyak
Sebuah ikon dengan huruf “ESP” di dalam pengontrol

Kontrol E.S.P

Fungsi kontrol Tekanan Statis Eksternal memungkinkan pemilihan aliran udara mudah lewat pengontrol.

Sebuah ikon yang menampilkan termometer di dalam rumah, dengan sensor yang diilustrasikan di kedua sisi

Kontrol dua Termistor

Sensor pada remote kontrol dan unit dalam ruangan secara otomatis mengatur suhu optimal.

Ikon roda gigi ditampilkan dengan tanda centang di tengahnya.

Instalasi & pemeliharaan

Concealed duct dirancang untuk instalasi dan pemeliharaan yang fleksibel dan mudah.

Cetak

Semua Spesifikasi

UNIT DALAM RUANGAN (INDOOR)

  • Sumber Listrik (V, Ø, Hz)

    220-230-240, 1, 50/60

  • Dimensi Bersih (W × H × D) (mm)

    1250 x 360 x 700

  • Tekanan statis eksternal Mode Tinggi_Pengaturan Pabrik

    59

  • Laju Aliran Udara Kipas (H/M/L) (m³/min)

    30.0 / 25.0 / 20.0

  • Tipe Motor Kipas

    BLDC

  • Berat Bersih (kg)

    37.2

  • Tingkat Tekanan Suara Pendinginan (H / M / L) (dB(A))

    36 / 33 / 31

UNIT OUTDOOR

  • Tipe Refrigeran

    R32

  • Pipa Pembuangan (Drainase Alami) (mm(inci))

    25.4/20.4

  • Sambungan Pipa Gas (Dia. Luar) (mm (inci))

    Φ15.88 (5/8)

  • Sambungan Pipa Cair (Dia. Luar) (mm (inci))

    Φ9.52 (3/8)

INPUT DAYA

  • Pendinginan (Terukur) (kW) (T1)

    220

ARUS TERUKUR

  • Pendinginan (A)

    2.5

Untuk mengakses lebih banyak dokumentasi teknis dan sumber daya, silakan kunjungi Portal Mitra LG B2B.
