Ceiling Cassette, 4 Way Dual Vane, Unit Indoor, 24kBtu/h

Ceiling Cassette, 4 Way Dual Vane, Unit Indoor, 24kBtu/h

Ceiling Cassette, 4 Way Dual Vane, Unit Indoor, 24kBtu/h

ARNU24GTBB4

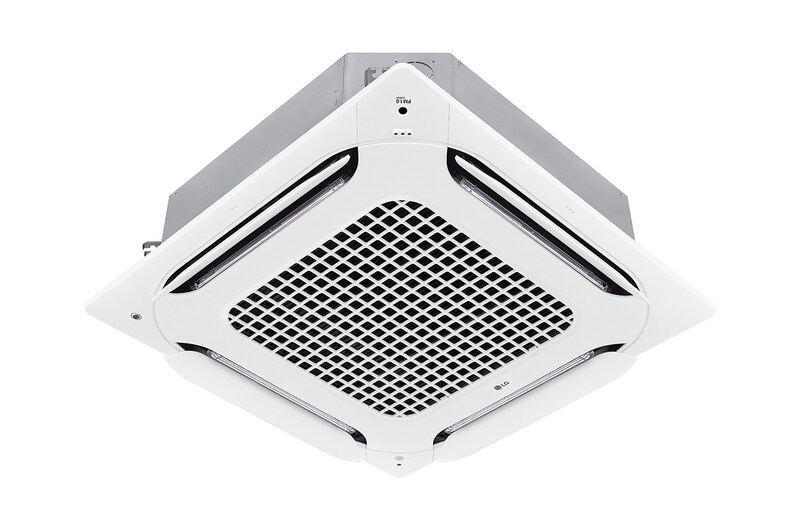

Front view of Ceiling Cassette, 4 Way Dual Vane, Unit Indoor, 24kBtu/h ARNU24GTBB4
Front view of Ceiling Cassette, 4 Way Dual Vane, Unit Indoor, 24kBtu/h ARNU24GTBB4

Fitur Utama

  • Aliran Udara 4 Arah dengan Desain Baru
  • Pemurnian Udara 5 Langkah yang Praktis & Kuat (Opsional)
  • Aliran Udara Deteksi Manusia (Opsional)

Aliran Udara 4 Arah

4-way cassette dual vane baru memungkinkan aliran udara yang nyaman dan mudah. Unit ini mengoperasikan 6 mode aliran udara termasuk mode daya, mode pintar, dan mode penyegaran.

Pemurnian Udara 5 Langkah (Opsional)

Pemurnian udara yang kuat menghilangkan bau, kuman, dan debu halus PM 1.0 yang tidak terlihat. Mudah untuk mengatur sistem pemurnian udara dengan filter pemurnian udara satu sentuhan.

Deteksi Manusia (Opsional)

Deteksi manusia memberi pengguna preferensi aliran udara langsung atau tidak langsung.

Cetak

Semua Spesifikasi

SUMBER LISTRIK

  • Kasus 1

    50/60 Hz 220-240 V~

  • Batas Rentang Tegangan (Kasus 1) (V)

    240 230 220

  • Kasus 2

    50/60 Hz 220-240 V~

KAPASITAS PENDINGINAN

  • Nominal (kW)

    7.10

  • Nominal (Btu/h)

    24200

KAPASITAS PEMANASAN

  • Nominal (kW)

    8.00

  • Nominal (Btu/h)

    27300

INPUT DAYA (INDOOR)

  • H/M/L (W)

    32 / 27 / 20

ARUS OPERASI (INDOOR)

  • H/M/L (A)

    0.31 / 0.26 / 0.21

KIPAS INDOOR

  • Tipe

    3D Turbo Fan

  • Laju Aliran Udara (H/M/L) (m³/min)

    18 / 17 / 15

MOTOR KIPAS INDOOR

  • Tipe

    Brushless DC

  • Penggerak

    Direct

  • Output (W)

    51

  • Output (No.)

    1

PENUKAR PANAS

  • Baris x Kolom x FPI

    3 x 8 x 21

  • No.

    1

  • Area Muka (m²)

    0.33

DIMENSI

  • Net(W x H x D) (mm)

    840 x 204 x 840

  • Shipping(W x H x D) (mm)

    922 x 276 x 917

BERAT

  • Net (kg)

    21

  • Shipping (kg)

    26

EKSTERIOR

  • Warna

    White

  • RAL (Klasik)

    RAL 9003

FILTER UDARA

  • Tipe

    Long life filter

KONTROL SUHU

  • Kontrol Suhu

    Microprocessor, Thermostat for cooling and heating

BAHAN PENYERAP SUARA / ISOLASI TERMAL

  • Bahan Penyerap Suara / Isolasi Termal

    Foamed polystrene

PERANGKAT PERLINDUNGAN

  • Sekring

    Fuse

REFRIGERAN

  • Tipe

    R410A/R32

  • Jumlah Pengisian Tambahan (kg(each))

    0.32 / 0.26

  • Jenis Kontrol

    EEV

PIPA PEMBUANGAN (MENGGUNAKAN POMPA PEMBUANGAN)

  • O.D / I.D (mm(inch))

    32/25

PIPA KONEKTOR

  • Cairan (mm(inch))

    Φ9.52 (3/8)

  • Gas (mm(inch))

    Φ15.88 (5/8)

JENIS KONEKTOR PIPA

  • Cairan

    Flare

  • Gas

    Flare

TINGKAT TEKANAN SUARA (UNIT INDOOR)

  • Pendinginan((SH)/H/M/L) (dB(A))

    - / 39 / 37 / 35

  • Pemanasan((SH)/H/M/L) (dB(A))

    39 / 37 / 35

TINGKAT DAYA SUARA (UNIT INDOOR)

  • Pendinginan((SH)/H/M/L) (dB(A))

    - / 46 / 44 / 42

  • Pemanasan((SH)/H/M/L) (dB(A))

    46 / 44 / 42

KABEL KONEKTOR

  • Kabel Komunikasi (VCTF-SB) (mm² × cores)

    1.0~1.5 x 2

KARAKTERISTIK LISTRIK

  • ‬Ampere Sirkuit Minimum (MCA) (A)‭

    1.23

  • Motor Kipas Indoor_Full Load Ampere (FLA) (A)

    0.98

PRODUK

  • Tipe

    Dual Vane

PRODUCT INFORMATION

Untuk mengakses lebih banyak dokumentasi teknis dan sumber daya, silakan kunjungi Portal Mitra LG B2B.
