Ceiling Suspended, Unit Indoor, 36kBtu/h

Ceiling Suspended, Unit Indoor, 36kBtu/h

Ceiling Suspended, Unit Indoor, 36kBtu/h

ARNU36GV2A4

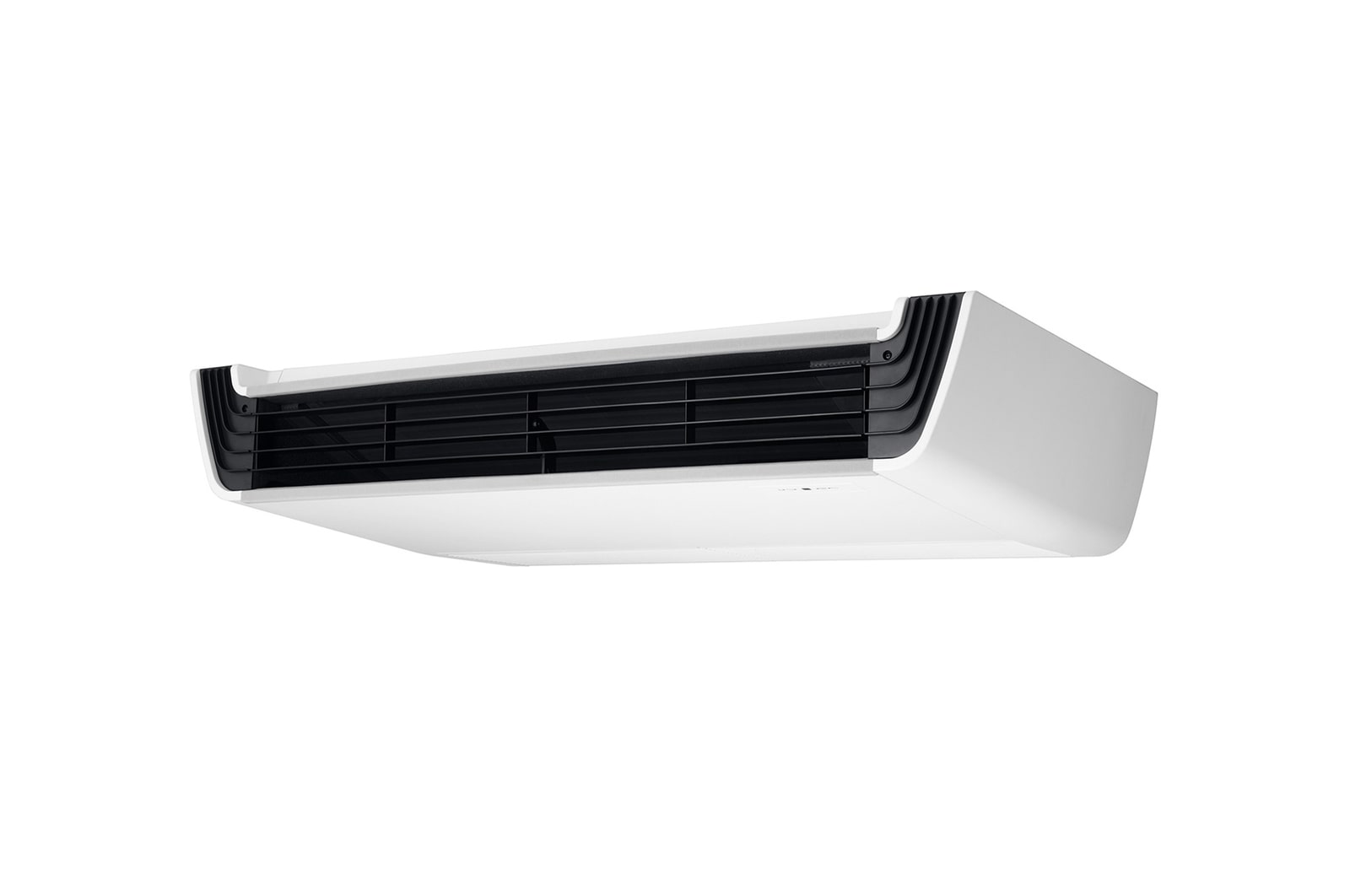

'LG Ceiling Suspended ARNU36GV2A4 memiliki desain berbentuk v dengan grill depan berwarna hitam.
'LG Ceiling Suspended ARNU36GV2A4 memiliki desain berbentuk v dengan grill depan berwarna hitam.

Fitur Utama

  • Desain Unik
  • Pendinginan & Pemanasan yang Kuat
  • Kontrol Arah Aliran Udara

Desain Unik

Keanggunan pemenang Penghargaan iF Design dari unit Ceiling Suspended (plafon gantung) hadir dengan desain berbentuk V yang mengesankan dan vane hitam. Cocok untuk ruang komersial apa pun.

Pendinginan & Pemanasan yang Kuat

Mode plafon tinggi menyediakan pendinginan dan pemanasan yang kuat hingga ketinggian 4,2m dari lantai, 15m dari plafon. Kinerjanya yang kuat memungkinkan pengoperasian di area yang luas.

Kontrol Arah Aliran Udara

Arah aliran udara vertikal dapat diatur menggunakan pengendali jarak jauh, dan arah aliran udara horizontal dapat diatur secara manual.

Cetak

Semua Spesifikasi

SUMBER LISTRIK

  • Kasus 1

    50/60 Hz 220-240 V~

  • Batas Rentang Tegangan (Kasus 1) (V)

    198 - 264

KAPASITAS PENDINGINAN

  • Nominal (kW)

    10.60

  • Nominal (Btu/h)

    36200

KAPASITAS PEMANASAN

  • Nominal (kW)

    11.9

  • Nominal (Btu/h)

    40600

INPUT DAYA (INDOOR)

  • H/M/L (W)

    84 / 77 / 66

ARUS OPERASI (INDOOR)

  • H/M/L (A)

    0.46/0.44/0.42

KIPAS INDOOR

  • Tipe

    Cross Flow Fan

  • Laju Aliran Udara (Pendinginan,(SH)/H/M/L) (m³/min)

    -/27.0/24.0/20.0

MOTOR KIPAS INDOOR

  • Tipe

    BLDC

  • Penggerak

    Direct

  • Output (No.)

    1

  • Output (W)

    125

PENUKAR PANAS

  • Baris x Kolom x FPI

    3 X 18 X 18

  • No.

    1

  • Area Muka (m²)

    0.46

DIMENSI

  • Net(W x H x D) (mm)

    1600 x 235 x 690

  • Shipping(W x H x D) (mm)

    1715 x 320 x 772

BERAT

  • Net (kg)

    37.0

  • Shipping (kg)

    45.5

KONTROL SUHU

  • Kontrol Suhu

    Microprocessor, Thermostat for cooling and heating

BAHAN PENYERAP SUARA / ISOLASI TERMAL

  • Bahan Penyerap Suara / Isolasi Termal

    Foamed polystrene

PERANGKAT PERLINDUNGAN

  • Sekring

    Fuse

REFRIGERAN

  • Tipe

    R410A

  • Jumlah Pengisian Tambahan (kg(each))

    0.79

  • Jenis Kontrol

    EEV

PIPA PEMBUANGAN (MENGGUNAKAN POMPA PEMBUANGAN)

  • O.D / I.D (mm(inch))

    25.0 / 16.0

PIPA KONEKTOR

  • Cairan (mm(inch))

    Φ9.52 (3/8)

  • Gas (mm(inch))

    Φ15.88 (5/8)

JENIS KONEKTOR PIPA

  • Cairan

    Flare

  • Gas

    Flare

TINGKAT TEKANAN SUARA (UNIT INDOOR)

  • Pendinginan((SH)/H/M/L) (dB(A))

    - / 48 / 46 / 44

STANDAR PENGUKURAN (TINGKAT TEKANAN)

  • Standar Pengukuran (Tingkat Tekanan)

    ISO 3745

TINGKAT DAYA SUARA (UNIT INDOOR)

  • Pendinginan((SH)/H/M/L) (dB(A))

    - /68 / 66 / 64

STANDAR PENGUKURAN (TINGKAT DAYA)

  • Standar Pengukuran (Tingkat Daya)

    ISO 3741

KABEL KONEKTOR

  • Kabel Komunikasi (VCTF-SB) (mm² × cores)

    1.0 ~ 1.5 × 2C

KARAKTERISTIK LISTRIK

  • ‬Ampere Sirkuit Minimum (MCA) (A)‭

    1.21

  • Motor Kipas Indoor_Full Load Ampere (FLA) (A)

    0.97

PRODUK

  • Tipe

    Ceiling Suspended

Untuk mengakses lebih banyak dokumentasi teknis dan sumber daya, silakan kunjungi Portal Mitra LG B2B.
