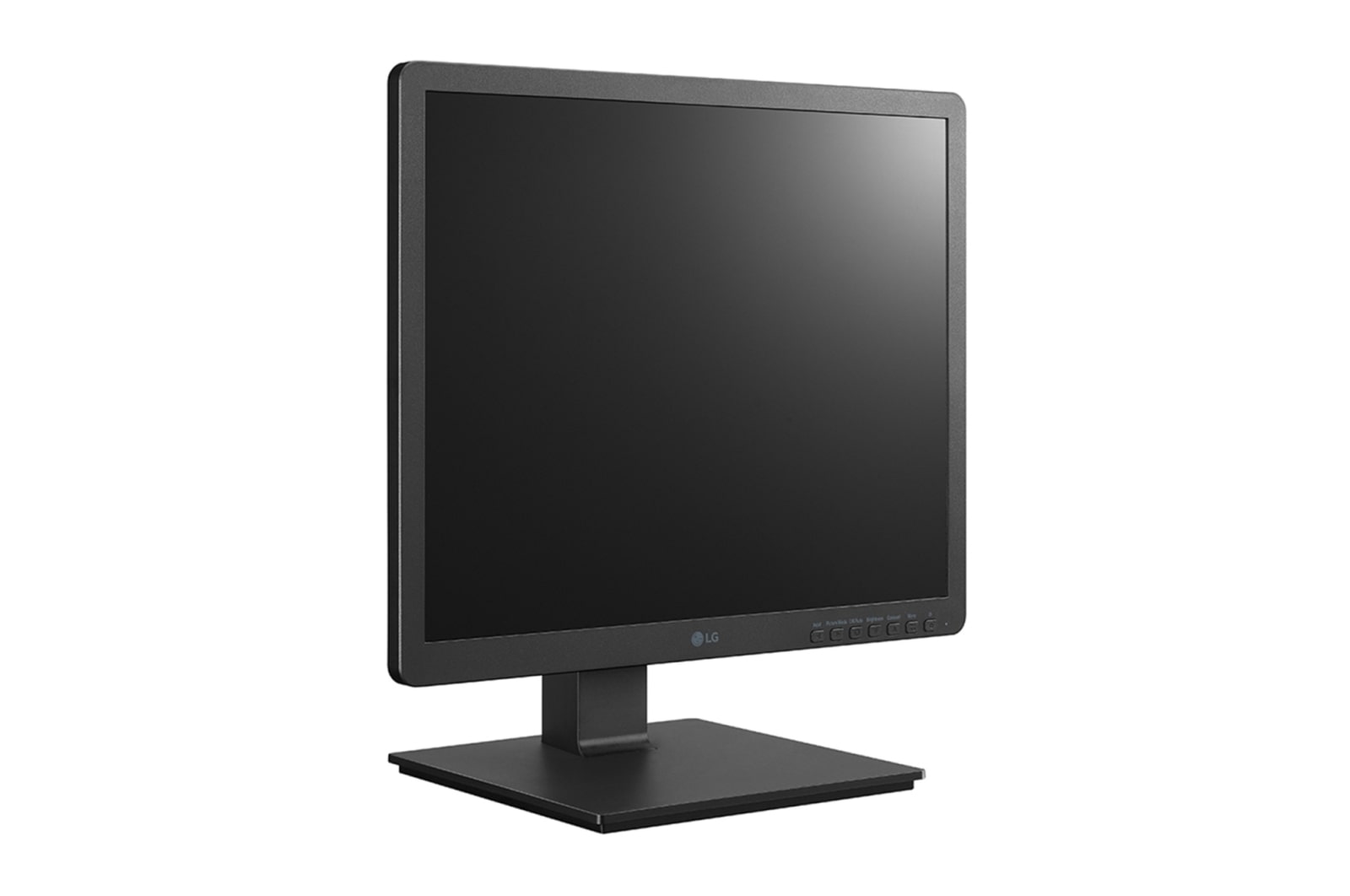

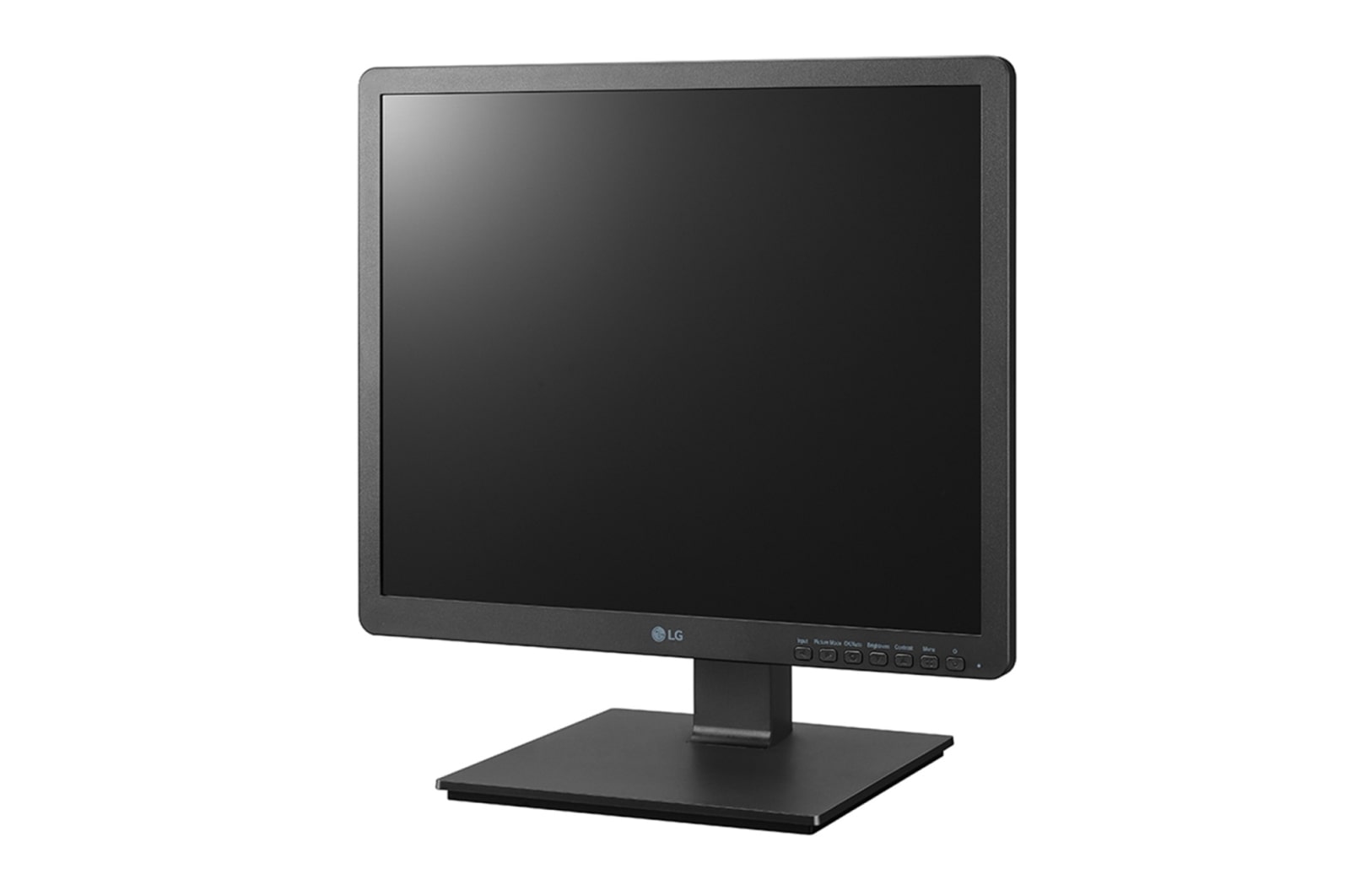

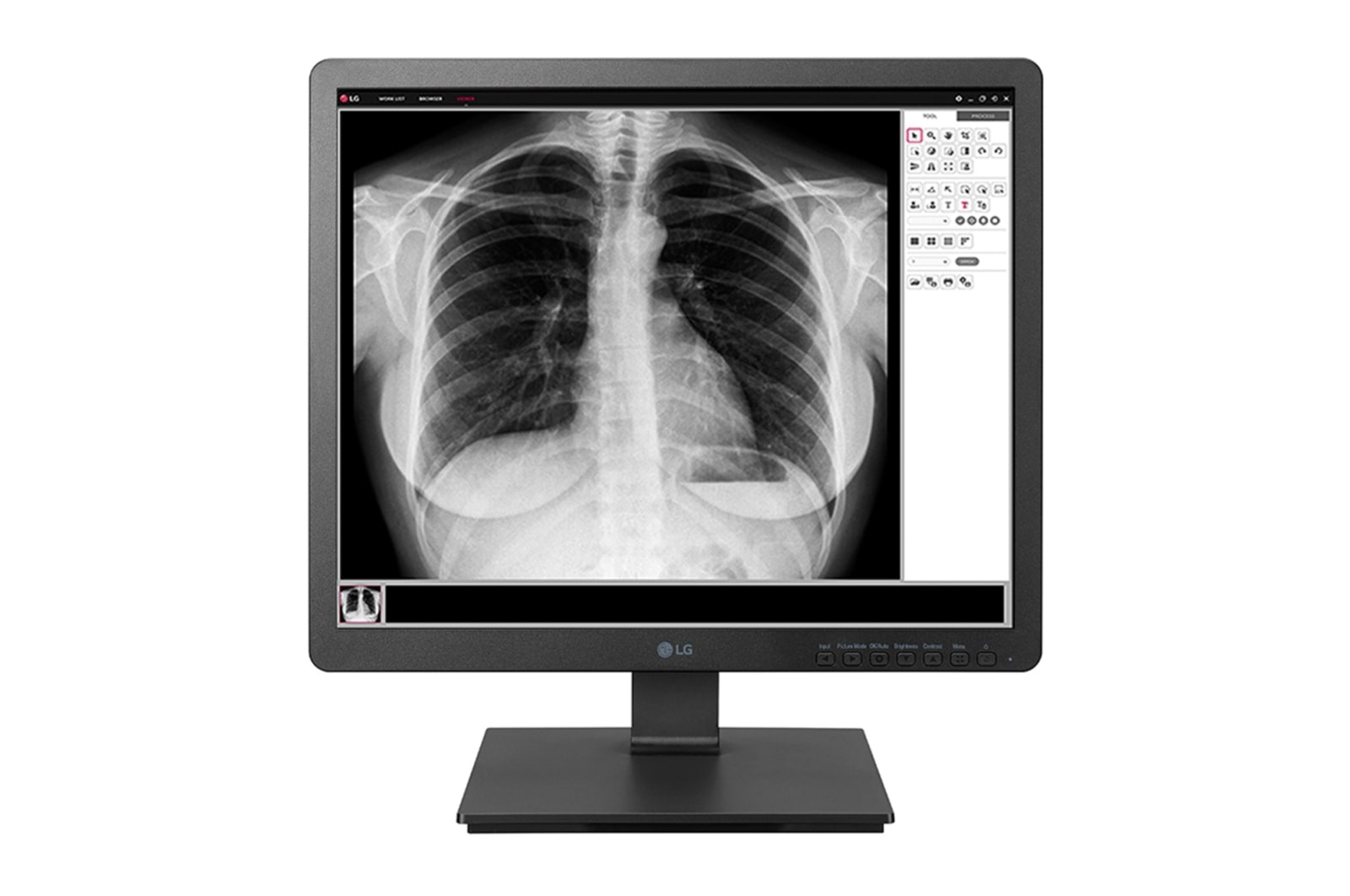

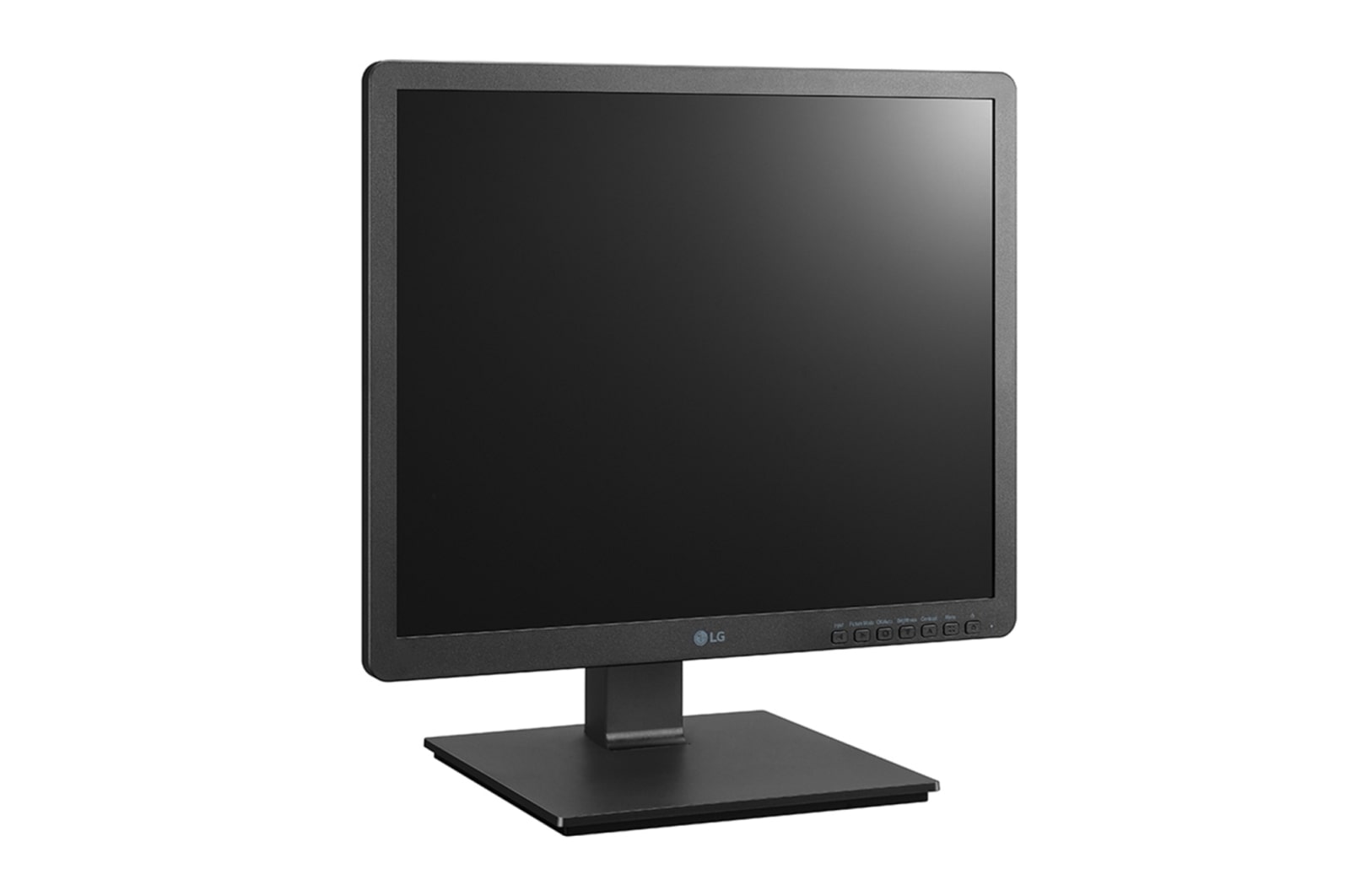

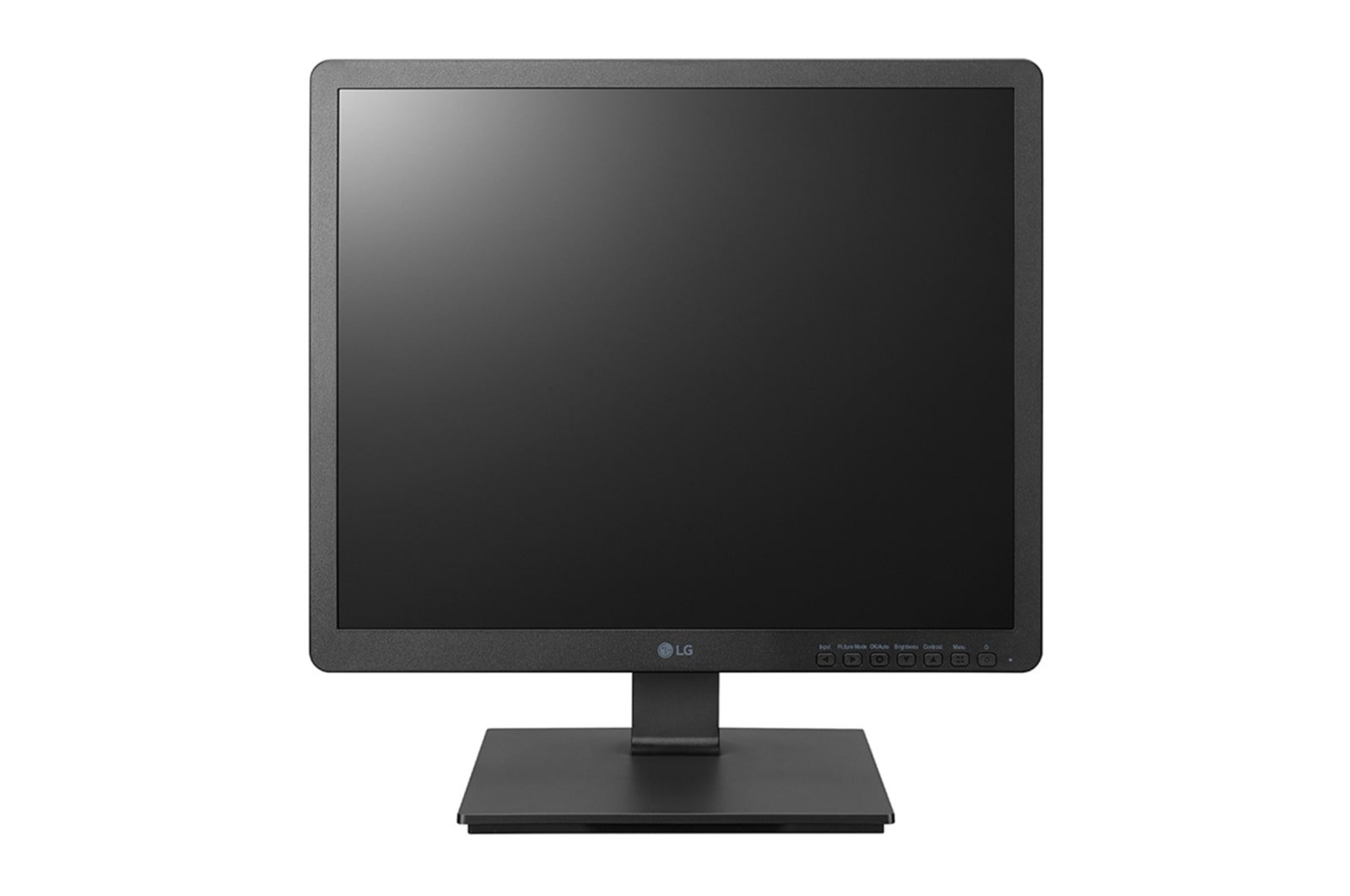

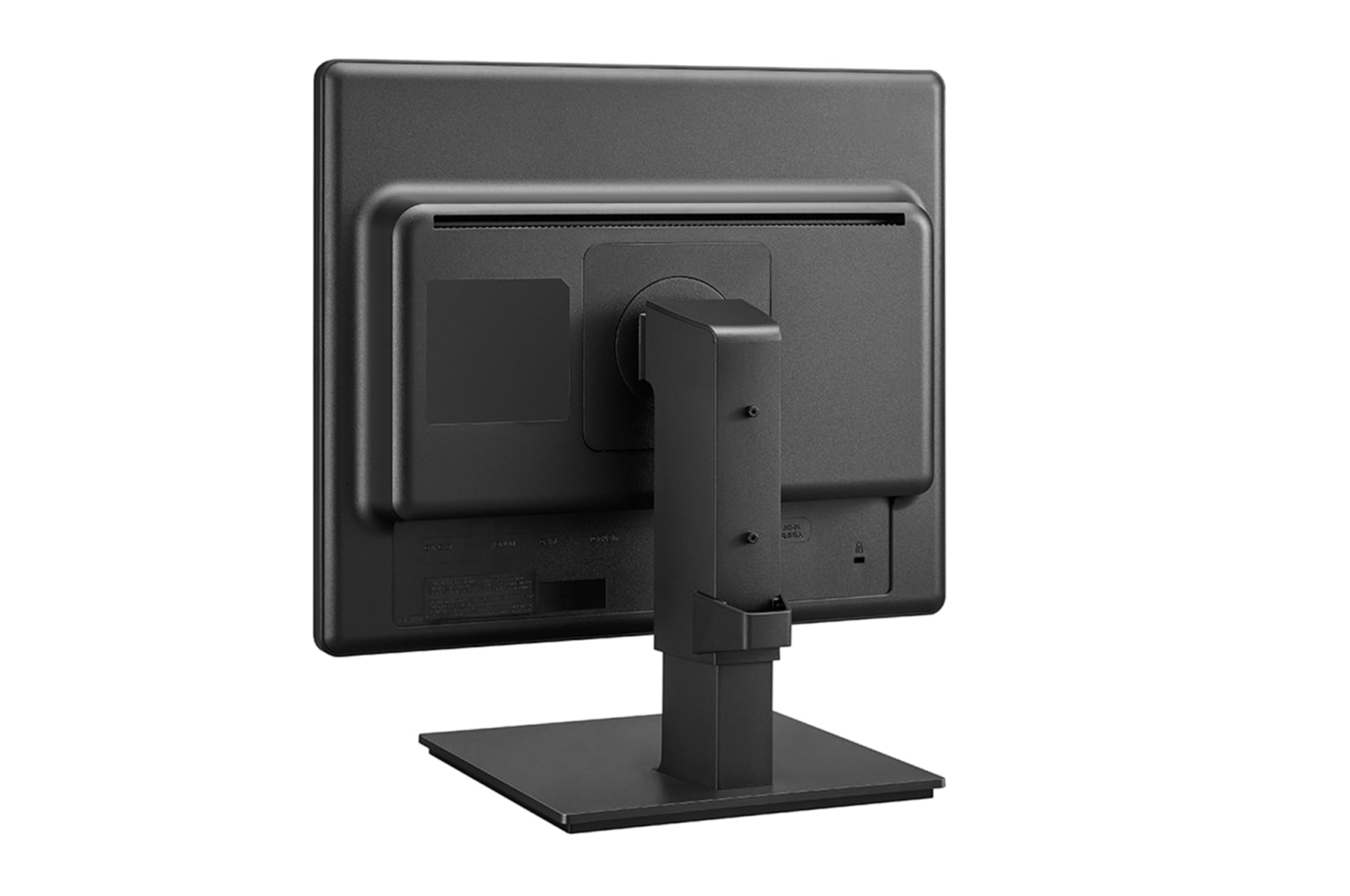

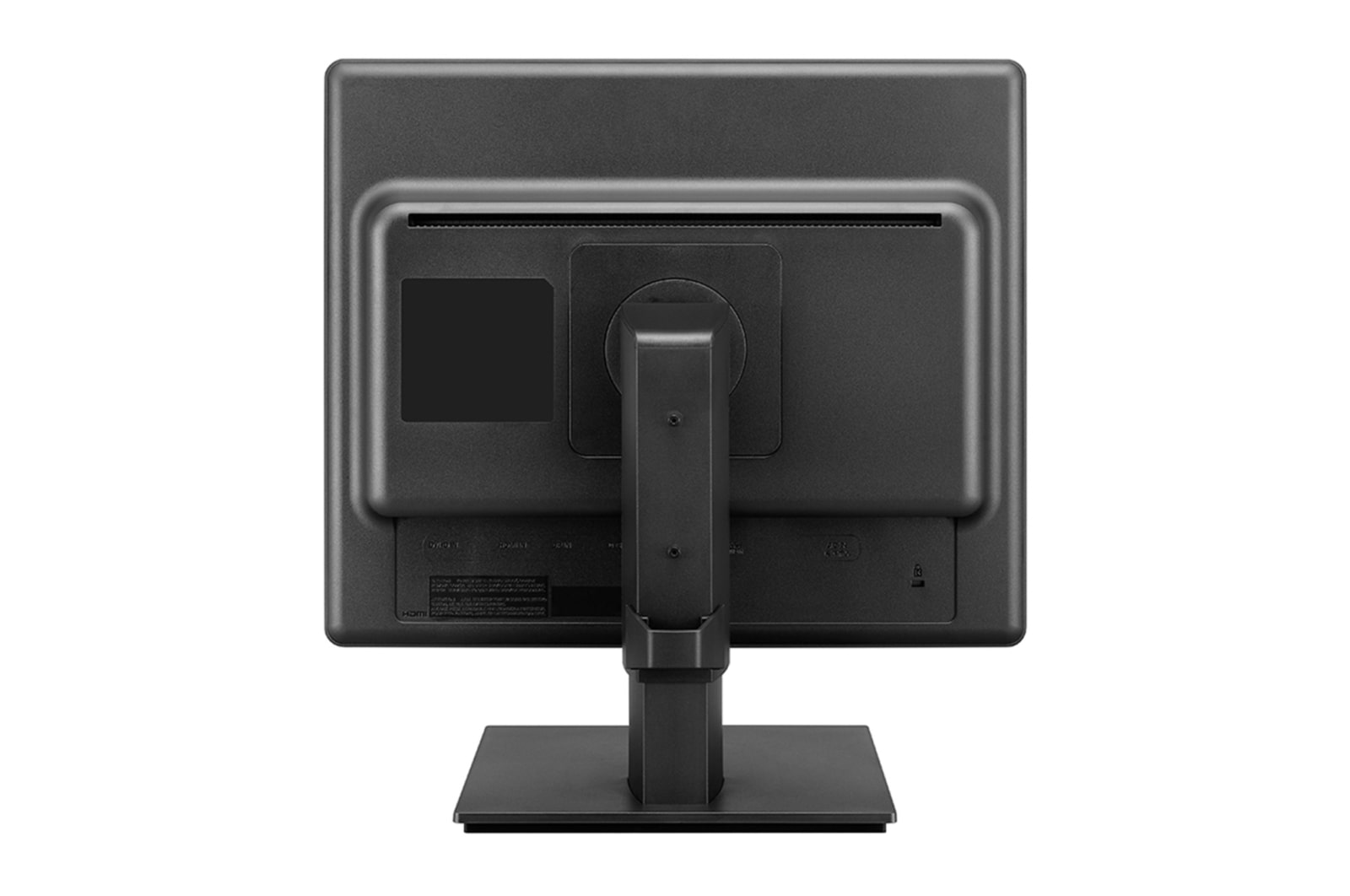

Gallery
All Spec
FEATURE
-
Multi) - Size(Inch / cm)
19"
-
Multi) - Panel Type
IPS
-
Multi) - Color Gamut (CIE1931)
NTSC 72%
-
Multi) - Color Depth(Number of Colors)
16.7M (8bit)
-
Multi) - Pixel pitch(mm)
0.294mm x 0.294mm
-
Multi) - Aspect Ratio
5:4
-
Multi) - Resolution
1280 x 1024
-
Multi) - Brightness(Typ.)
330cd/m2
-
Multi) - Contrast Ratio(Original)(Typ.)
900:1
-
Multi) - (DFC)
Mega
-
Multi) - Response Time_Typ.
18ms (On_11ms / Off_7ms)
-
Multi) - (GTG)
5ms (High)
-
Multi) -Viewing Angle(CR≥10)
178/178
-
Multi) -Surface Treatment
Anti-Glare 3H

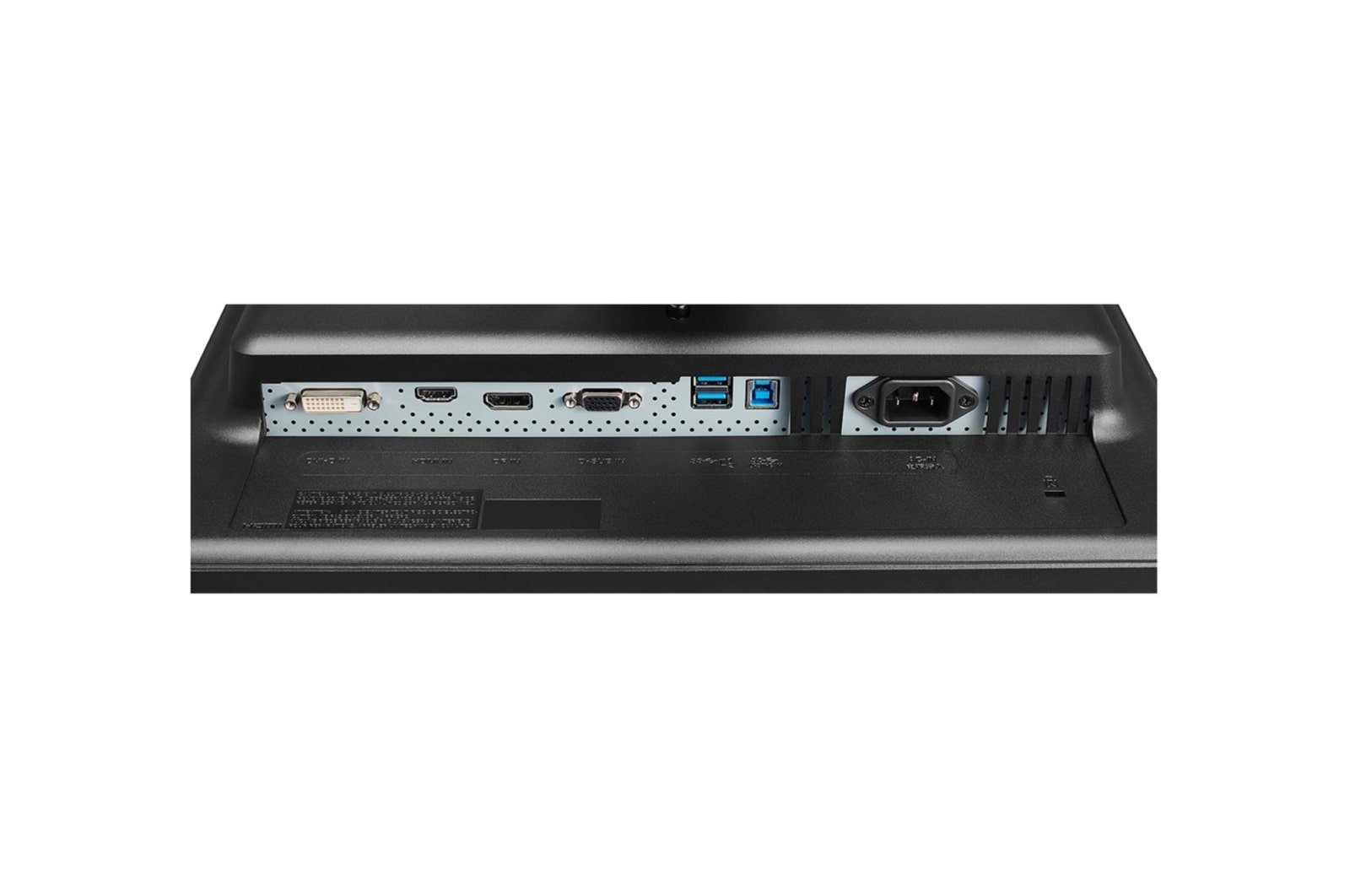

JACK INPUT / OUTPUT
-
Signal Input) - D-Sub
x1
-
Signal Input) - DVI-D
x1
-
Signal Input) - Composite
NO
-
Signal Input) - S-Video
NO
-
Signal Input) - Component
NO
-
Signal Input) - SCART
NO
-
Signal Input) - CI Slot
NO
-
Signal Input) - SDI
NO
-
Signal Input) - HDMI 1.4
x1
-
Signal Input) - DisplayPort 1.2a
x1
-
Signal Input) - USB
USB3.0 1up 2dwon
-
Signal Input) - Others
NO
-
Signal Input) - [ Jack Location ]
Rear
-
Signal Output) - D-Sub
NO
-
Signal Output) - DVI-D
NO
-
Signal Output) - Composite
NO
-
Signal Output) - S-Video
NO
-
Signal Output) - Component
NO
-
Signal Output) - SCART
NO
-
Signal Output) - CI Slot
NO
-
Signal Output) - SDI
NO
-
Signal Output) - HDMI
NO
-
Signal Output) - DisplayPort
NO
-
Signal Output) - Others
NO
-
Audio Input) - RCA
NO
-
Audio Input) - PC Audio In
NO
-
Audio Input) - Mic In
NO
-
Audio Input) - Others
NO
-
Audio Output) - RCA
NO
-
Audio Output) - Headphone Out
NO
-
Audio Output) - Line-out
NO
-
Audio Output) - Optical out
NO
-
Audio Output) - Others
NO
SPEAKER
-
Tipe
NO
-
Audio output (watt)
NO
-
Others
NO
POWER
-
Input/Output) - Type
PSU (Internal Power)
-
Input/Output) - Input
100-240Vac, 50/60Hz
-
Input/Output) - Output
24V 2.1A
-
Consumption) - NOrmal On (Max) (Brightness100 + USB Load)
TBD
-
Consumption) - Sleep Mode (Max)
TBD
-
Consumption) - DC Off (Max)
TBD
FREQUENCY
-
D-sub) - H-Frequency
30 ~ 83 khz
-
D-sub) - V-Frequency
56 ~ 75 hz
-
DVI-D) - H-Frequency
30 ~ 83 khz
-
DVI-D) - V-Frequency
56 ~ 75 hz
-
HDMI - H-Frequency
30 ~ 83 khz
-
HDMI - V-Frequency
56 ~ 75 hz
-
DisplayPort - H-Frequency
30 ~ 83 khz
-
DisplayPort - V-Frequency
56 ~ 75 hz
RESOLUTION
-
PC) - D-sub
1280 x 1024
-
PC) - Digital (DVI-D)
1280 x 1024
-
PC) - Digital (HDMI)
1280 x 1024
-
PC) - Display Port
1280 x 1024
-
Video) - HDMI
1280 x 1024 (max input FHD)
-
Video) - Display Port
1280 x 1024 (max input FHD)
CONTROL KEY
-
Key Number (Power Key Included)
7
-
Key Description
Input ,Picture Mode OK (Auto) Brightness Contrast Menu, Power
-
Key Type
Tact
-
LED Color(On mode)
Green (For a few seconds) (Power LED ON : Green)
-
LED Color(Power save mode)
Off (Power LED ON : Green Blinking)
-
[ Key Location ]
Front
OSD
-
Languange) - Country
Worldwide
-
Languange) - Number of Language
17
SPECIAL FEATURE
-
Picture) - Picture Mode
YES
-
Picture) - ORIGINAL RATIO
YES
-
Picture) - PIP
NO
-
Picture) - PBP
NO
-
Picture) - SIX Axis Control
YES
-
Picture) - Super Resolution+
YES
-
Picture) - Gamma
Gamma 1.8
Gamma 2.0
Gamma 2.2
Gamma 2.4
Gamma 2.6
DICOM Gamma curve -
Picture) - Color Temperature
6500K / 7500K / 9300K Manual (5000K ~ 10000K)
-
Picture) - DICOM Mode
YES (Kδ <= 10%)
-
Picture) - Factory Calibration
YES (Delta E<2, Gamma 1.8 ~ 2.6 / DICOM curve)
-
Picture) - H/W Calibration
YES (Calibration 1-2 Mode)
-
Picture) - Dynamic Sync Mode (Thru Mode)
YES
-
Picture) - Flicker safe
YES
-

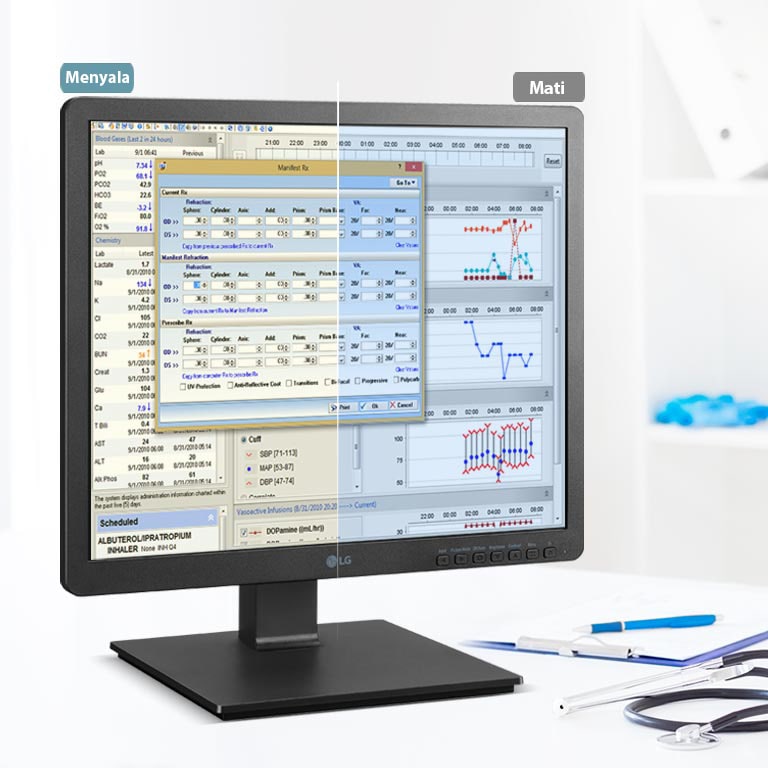

Picture) - Reader Mode
NO
-
Picture) - Brightness Stabilization
YES
-
Picture) - Uniformity Compensation
YES
-
Picture) - Quick Charge
NO
-
Picture) - Others
NO
-
Sound) - SRS
NO
-
Sound) - Dolby Surround
NO
-
Sound) - AVL (Auto Volume)
NO
-
Sound) - Equalizer
NO
-
Sound) - Others
NO
-
General Function) - DDC/CI
YES
-
General Function) - HDCP
YES
-
General Function) - Intelligent Auto (Auto Adjustment)
YES
-
General Function) - Remote Control
NO
-
General Function) - Key Lock
YES
-
General Function) - Plug & Play
YES
-
General Function) - Response Time Control
YES
-
General Function) - Smart Energy saving
YES
-
General Function) - DPM
YES
-
General Function) - User Preset
YES
-
General Function) - Others
NO
-
Special Feature) - Auto Resolution
NO
-
Special Feature) - Color Calibrated
YES
-
Special Feature) - Color Cloning 2.0
NO
-
Special Feature) - Color Weakness
NO
-
Special Feature) - Dual Controller
YES
-
Special Feature) - Dual Smart Solution (Dual web, Dual Display, Smart Resolution )
NO
-
Special Feature) - Flicker safe
YES
-
Special Feature) - Mechanical Switch
NO
-
Special Feature) - Motion Energy Saver
NO
-
Special Feature) - Automatic Standby
YES
-
Special Feature) - Six Axis Control
YES
-
Special Feature) - Smart Energy Saving
YES
-
Special Feature) - Super Resolution+
YES
-
Special Feature) - True Color Finder
NO
-
Special Feature) - True Color Pro
YES
-
Special Feature) - QA software
NO
-
Special Feature) - Calibrator - Internal
NO
-
Special Feature) - Self Calibration
NO
-
Special Feature) - Grayscale Check
NO
-
Special Feature) - 4 screen split
YES
-
Special Feature) - On Screen Control
YES
-
Special Feature) - Environmental brightness Sensor
NO
-
Special Feature) - Presence Sensor
NO
-
Special Feature) - Screen Saver
NO
COLOR
-
Front
Black
-
B/Cover
Black
-
Stand
Black
-
Base
Black

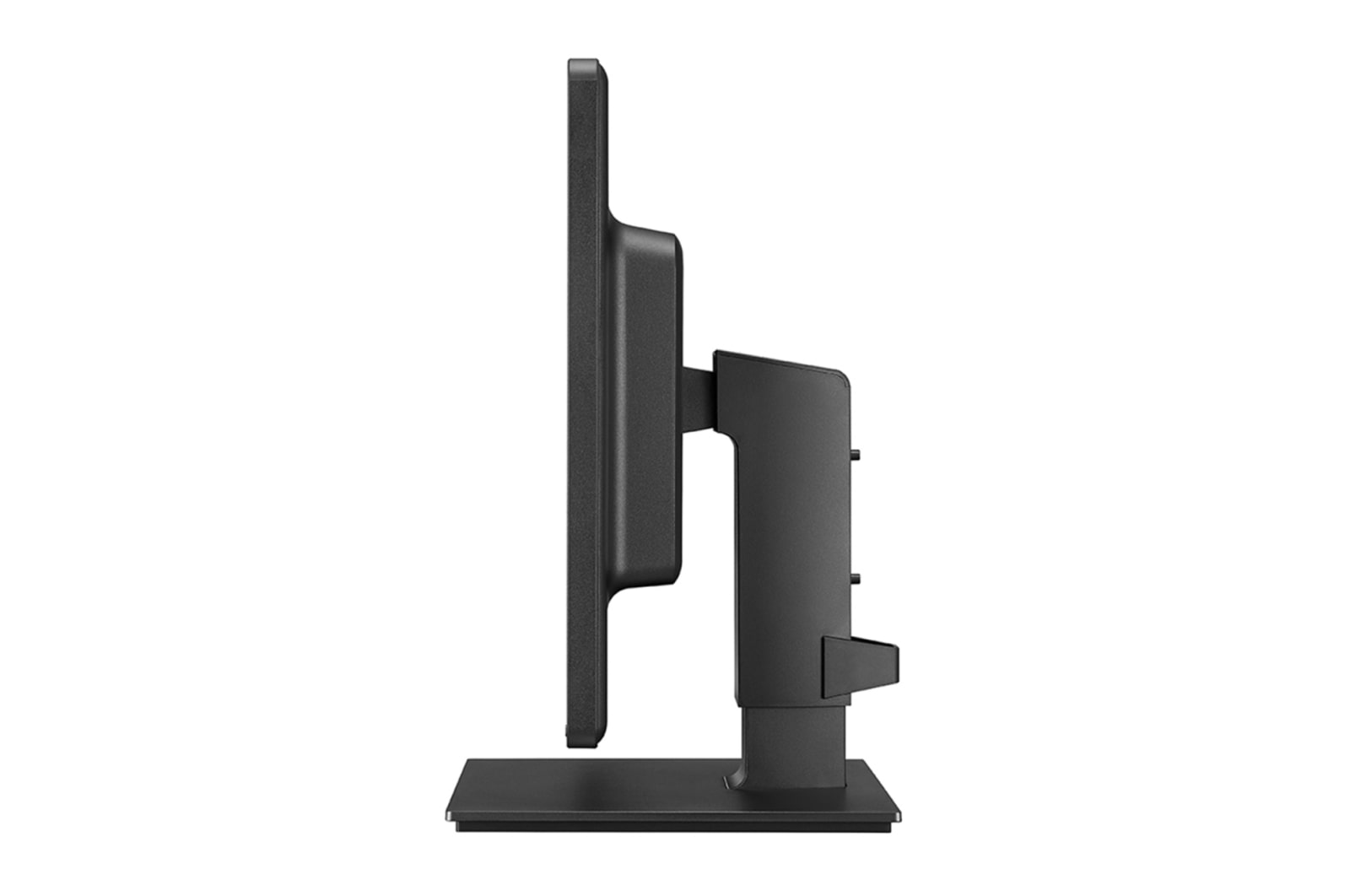

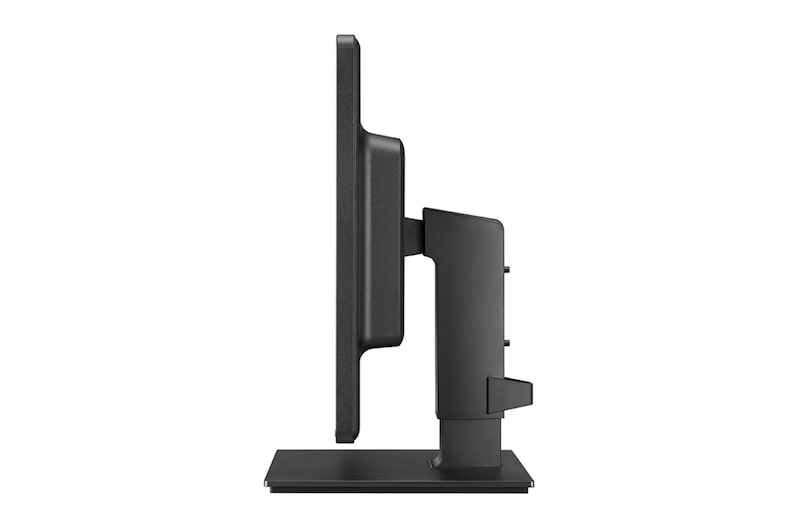

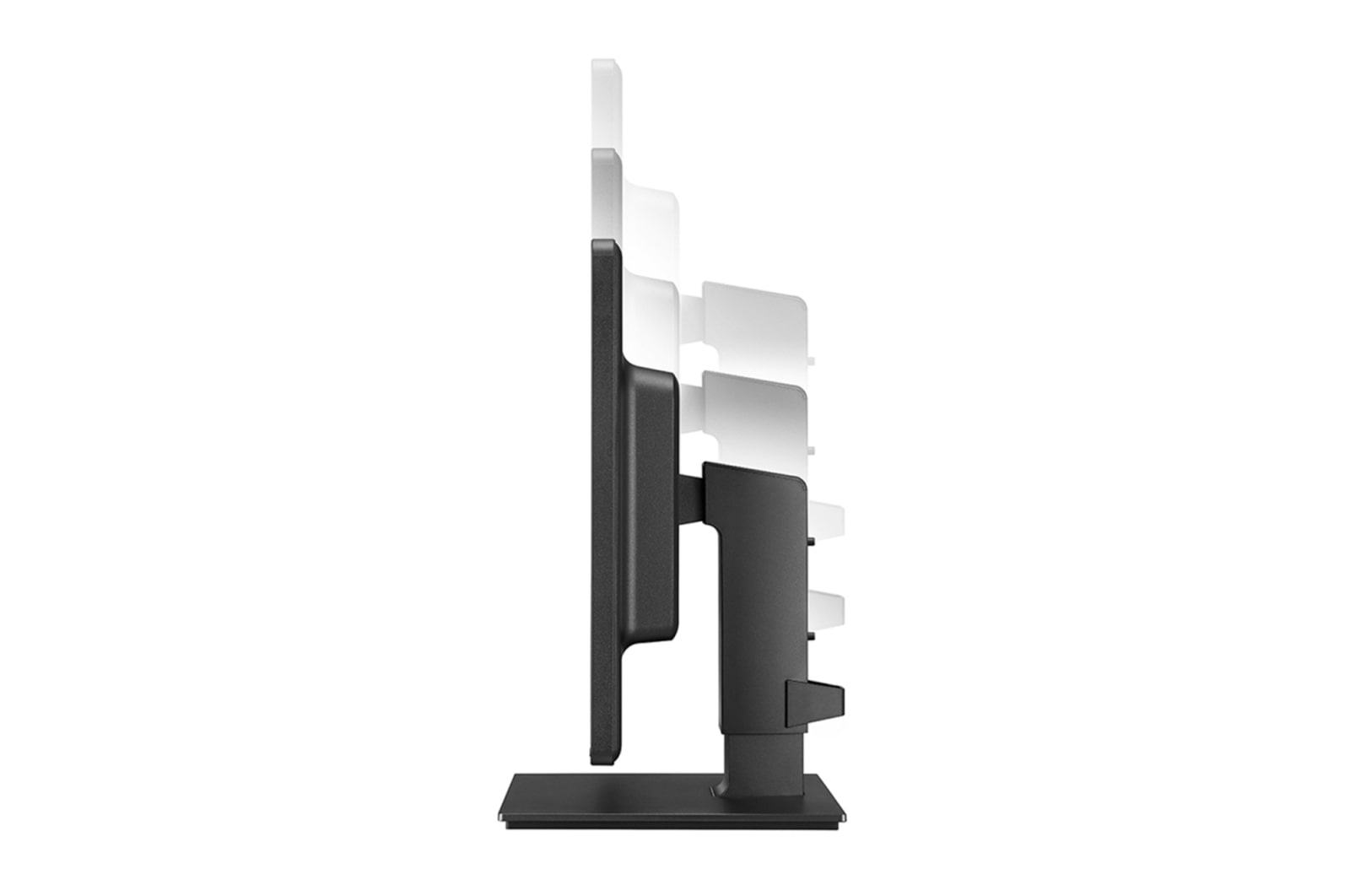

STAND
-
Base Detchable
Yes
-
One Click stand set-up
YES
-
Tilt(Angle)
YES (-5~35˚)
-
Swivel(Angle)
YES (-177.5º ~ +177.5º)
-
Height(mm)
YES (range 130mm)
-

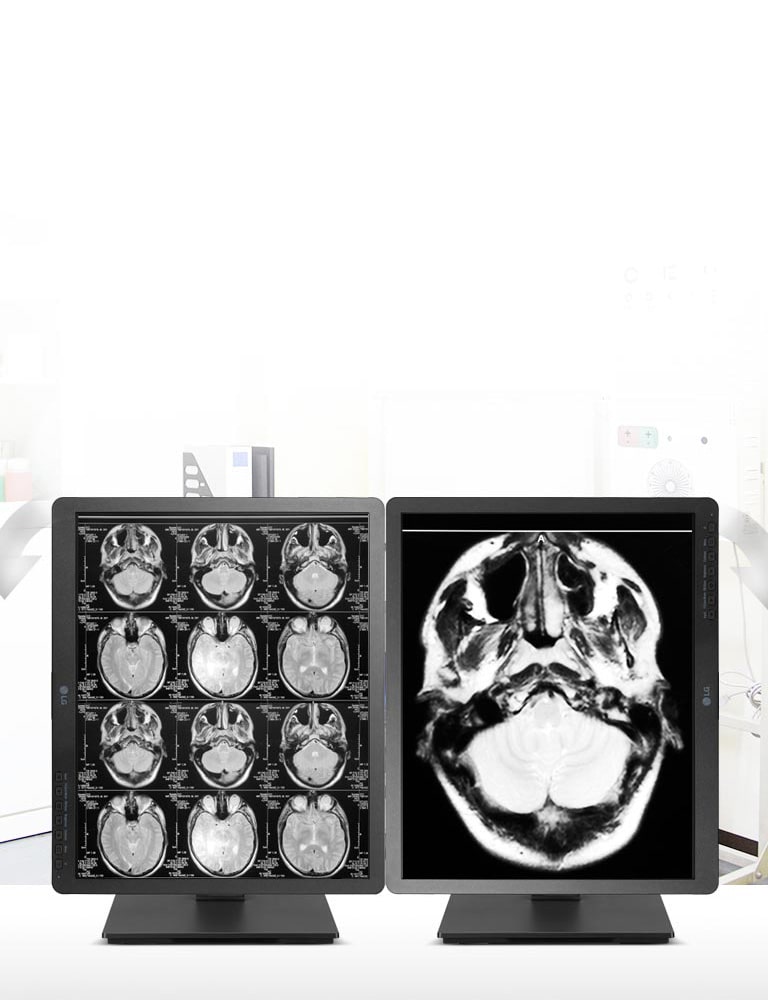

Pivot
YES ( -90 ~ 0 ~ +90)
-
Dual Hinge
NO
-
Others
NO
SIZE / WEIGHT
-
Dimension) - Set (with Stand)
TBD
-
(W*D*H) - Set (without Stand)
TBD
-
(cm) - Box
TBD
-
(cm) - Wall Mount size (mm)
VESA 100x100
-
Weight) - Set (with Stand)
TBD
-
(Kg) - Set (without Stand)
TBD
-
(Kg) - Box
TBD
-
Stuffing) - Individual(20ft/40ft/40ft HC)
TBD
-
Stuffing) - Pallet(20ft/40ft/40ft HC)
TBD
ETC
-
Anti- Bacterial
YES
-
Cheminals for cleaning
EthaNOl 70%
IsopropaNOl 100%
Cidex® OPA
0.9% NaCl solution -
※ Cleaning Available Part
All excluding screen
-
Kensington Lock
YES
WRAP
-
Packing Material
EPS
-
Stacking Type
Face Down
-
Stand Packing Type
None
-
Box Printing Type
Flexo
-
Handle
Hand Hole
STANDARD
-
Medical - FDA (US)
FDA Class I
-
Medical - KFDA (Korea)
KFDA Class I
-
Medical - CE MDD (EU)
CE MDD Class I
-
Medical - CE (EU)
YES
-
Medical - CMDR (Canada)
YES
-
Medical - TGA / RCM (Australia)
TBD
-
Safty - IEC (Global)
IEC 60601-1
-
Safty - cUL (US/Canada)
ANSI/AAMI ES 60601-1
CSA CAN/CSA-C22.2 NO. 60601-1 -
Safty - EN (EU)
EN 60601-1
-
Safty - CB (EU)
EN
-
Safty - EAC (Russia/Kazah)
TBD
-
Safty - CCC (China)
YES
-
Safty - PSE (Japan)
TBD
-
Safty - SASO (Saudi)
TBD
-
Safty - NOM (Mexico)
TBD
-
EMC - CISPR (Global)
YES
-
EMC - FCC (US)
FCC part 15 Class A
-
EMC - ICES-003
YES
-
EMC - CE (Europe)
YES
-
EMC - RCM (Australia)
YES
-
EMC - BSMI (Taiwan)
TBD
-
EMC - VCCI (Japan)
TBD
-
ETC - Waterproof
NO
-
ETC - ISO 13406-2
NO
-
ETC - TCO
NO
-
ETC - TUV
NO
-
ETC - EPA
NO
-
ETC - ErP
NO
-
ETC - EPEAT
NO
-
ETC - EPEAT Gold
NO
-
ETC - Ultra HD (Europe)
NO
-
ETC - DisplayPort
YES
-
ETC - RoHS
YES
-
ETC - REACH
YES
-
ETC - WEEE
YES
-
ETC - Windows
NO
-
ETC - Windows 10
YES
ACCESSORY
-
Power Cord
YES (3 meter)
-
D-Sub
Yes
-
DVI-D
YES
-
SDI
NO
-
HDMI
Yes
-
USB
YES (USB3.0)
-
Display Port (1.2)
YES
-
PC Audio
NO
-
RCA 3Line
NO
-
RCA 5Line
NO
-
Remote Controller
NO
-
Manual
Yes
-
Factory Calibration Report
YES
-
Warranty Card
YES
-
Graphic card guide
YES
-
CD-ROM
YES (User Manual / True Color Pro / Dual Controller / On Screen Control2.0)
WARRANTY
-
Warranty
3 years
-
