Capacity Cooling (Min.∼Rated) - ㎾
14.3 ~ 28.7
Capacity Cooling (Min.∼Rated) - Btu/h
49,000 ~ 98,000
Power Input Cooling (Rated) - ㎾
11.5
Running Current Cooling (Rated) - A
19.5
EER / COP - w/w
2.50 / -
Power Supply - V, Ø, ㎐
220-240, 1, 50
220, 1, 60
Power Input - W
700
Running Current - A
4.0
Casing Color
Middle White
Dimensions Body (W x H x D) - mm
1,050 × 1,880 × 495
Dimensions Body (W x H x D) - inch
41-11/32 × 74-1/32 × 19-1/2
Net Weight Body - ㎏ (lbs)
113.0 (249.0)
Heat Exchanger (Row x Column x Fins per inch) x No.
(3 × 40 × 19) × 1
Heat Exchanger Face Area - ㎡ (ft²)
0.77 (8.29)
Fan Type
Sirocco
Fan Air Flow Rate (SH / H / M / L) - ㎥/min
68 / 61 / - / 50
Fan Air Flow Rate (SH / H / M / L) - ft³/min
2,402 / 2,154 / - / 1,766
Fan Motor Type
BLDC
Fan Motor Output - W x No.
900 × 1
Dehumidification Rate - ℓ/h (pts/h)
12.6 (26.8)
Sound Pressure Level (SH / H / M / L) - dB(A)
58 / 55 / - / 51
Piping Connections Liquid Side - ㎜(inch)
Ø 9.52 (3/8)
Piping Connections Gas Side - ㎜(inch)
Ø 22.2 (7/8)
Piping Connections Drain Pipe (O.D. / I.D.) - ㎜(inch)
Ø 32.0(1-1/4) / 25.0(31/32)
Safety Devices
Fuse
Thermal Protector for Fan Motor
Power and Communication Cable (included Earth) - No. x ㎟ (AWG)
4C x 1.5

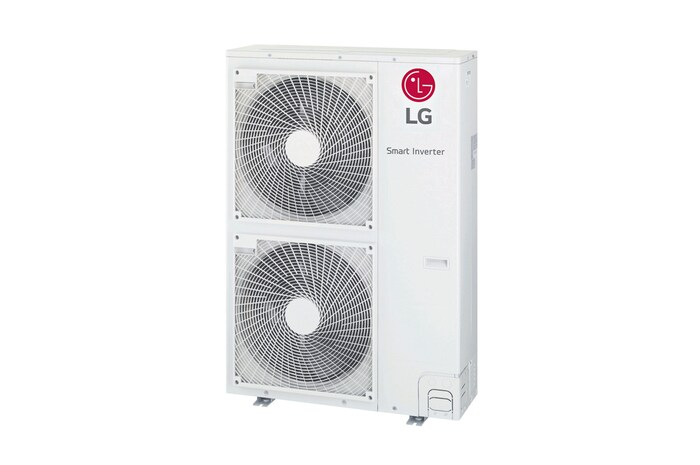

Capacity Cooling (Min.∼Rated) - ㎾
14.3 ~ 28.7
Capacity Cooling (Min.∼Rated) - Btu/h
49,000 ~ 98,000
Power Input Cooling (Rated) - ㎾
11.5
Running Current Cooling (Rated) - A
19.5
EER / COP - w/w
2.50 / -
Power Supply - V, Ø, Hz
380-415, 3, 50
380, 3, 60
Casing Color
Warm Gray
Dimensions Body (W x H x D) - ㎜
1,090 × 1,625 × 380
Dimensions Body (W x H x D) - inch
42-29/32 × 63-31/32 × 14-31/32
Net Weight - ㎏ (lbs)
143.0 (315)
Heat Exchanger (Row x Column x Fins per inch) x No.
(2 x 38 x 14) x 2
Compressor Type
BLDC INV Scroll
Compressor Model - Model x No.
JBA068MAF x 1
Compressor Motor type
BLDC
Compressor Motor Output - W × No.
4,241 x 1
Fan Type
Propeller
Fan Air Flow Rate - ㎥/min x No.
190 x 2
Fan Motor Type
BLDC
Fan Motor Output - W x No.
250 x 2
Sound Pressure Level Cooling (Rated) - dB(A)
58
Piping Connections Liquid Side (Outer Dia.) - ㎜(inch)
Ø 9.52 (3/8)
Piping Connections Gas Side (Outer Dia.) - ㎜(inch)
Ø 22.2 (7/8)
Piping Length (Standard) - m(ft)
5.0 (16.4)
Piping Length (Max.) - m(ft)
50 (164.0)
Refrigerant Type
R410A
Refrigerant Precharged Amount - g(oz)
6,125 (207)
Refrigerant Chargeless-Pipe Length - m(ft)
5.0 (16.4)
Refrigerant Additional Charging Volume - g/m(oz/ft)
61 (0.6)
Refrigerant Control
Electronic Expansion Valve
Refrigerant Oil Type
FVC68D
Refrigerant Oil Charged volume - cc x No.
1400 x 1
Wiring Connections Power Supply Cable (included Earth) - No. x ㎟ (AWG)
5C x 6.0 (10)
Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)
30 (98)
Operation Range (Outdoor Temperature) Cooling (Min. ~ Max.) - ℃ DB(℉ DB)
-10 (14.0) ~ 48 (118.4)
