AP-Q100LFA0

APNQ100LFA0 / APUQ100LFA0

AC Floor Standing

AC kuat dan bergaya yang ideal untuk interior modern

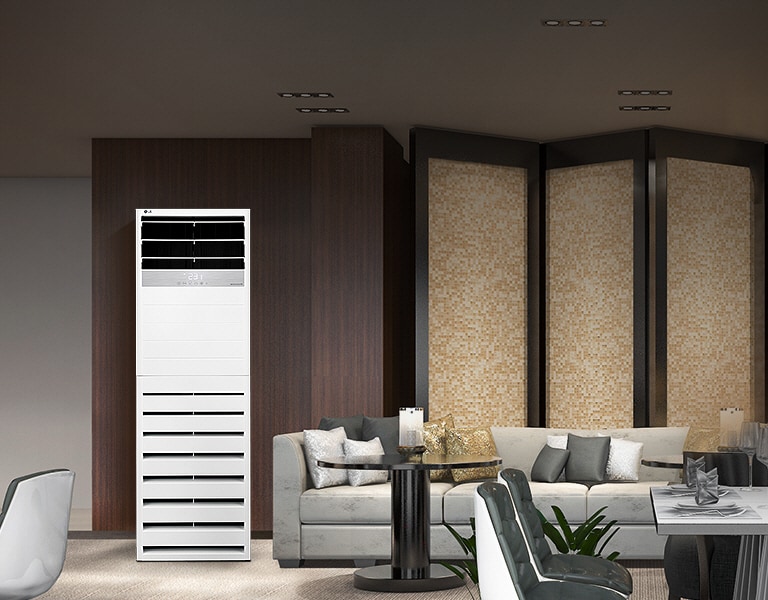

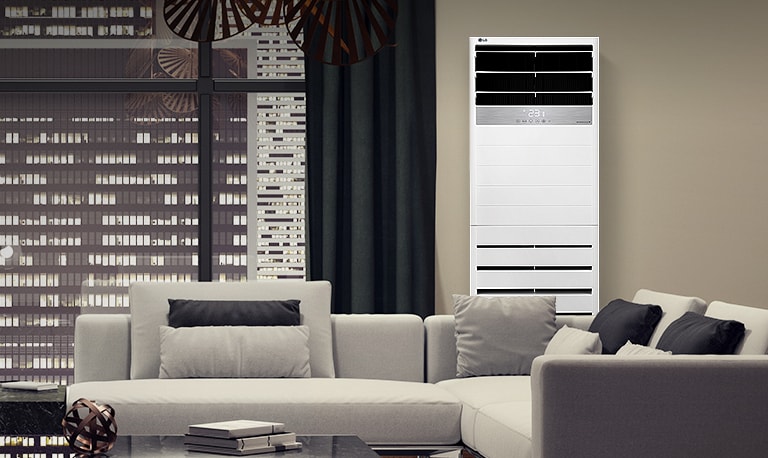

Desain Bergaya

AC floor standing menjadi solusi ideal yang menyatu dengan interior modern rumah atau kantor Anda

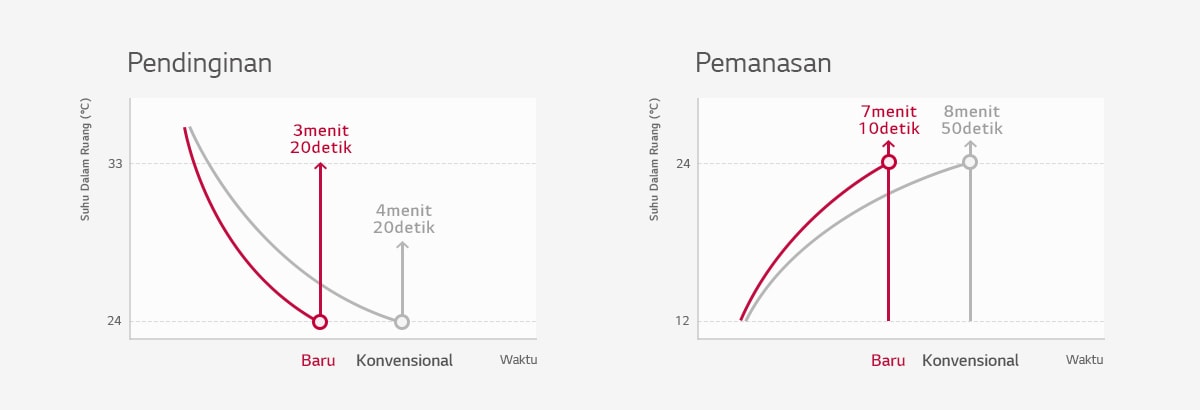

Respon cepat

AC LG Floor Standing dapat mencapai suhu yang ditentukan lebih cepat dengan pendinginan lebih kuat. Di sisi lain, fungsi Power Heating memberikan sudut optimal hembusan udara untuk performa pemanasan lebih cepat

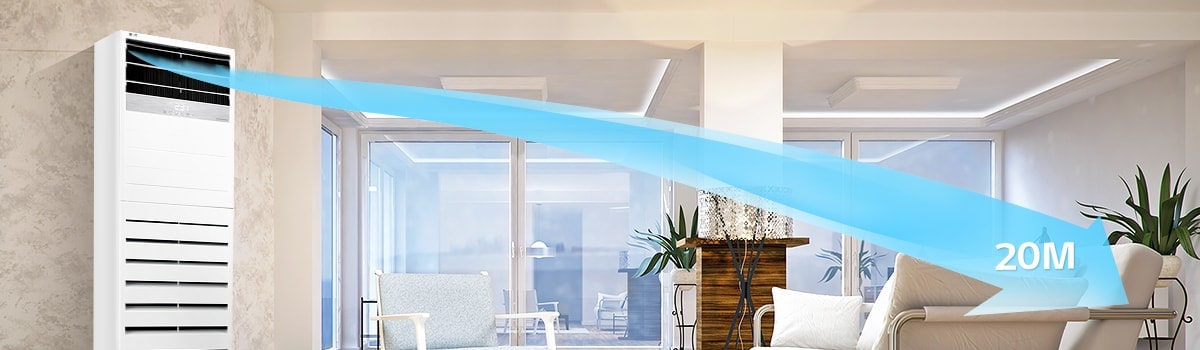

Aliran Udara Kuat

Kecepatan dan volume udara yang kuat memungkinkan aliran udara mencapai hingga 20 meter. Memungkinkan pendinginan yang nyaman lebih cepat
Hubungi Kami1

Hubungi Kami

Hubungi kami untuk informasi lebih lanjut terkait produk dan kami akan menghubungi Anda kembali segera

Semua Spesifikasi

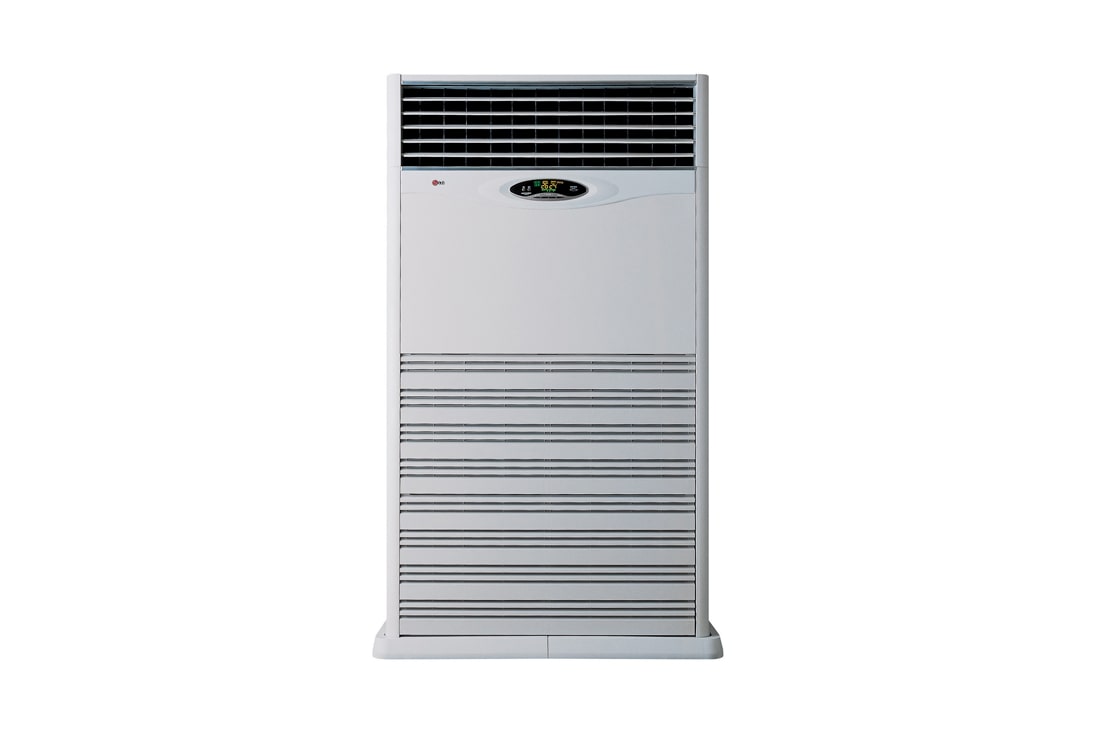

INDOOR SPECIFICATIONS

Capacity Cooling (Min.∼Rated) - ㎾

14.3 ~ 28.7

Capacity Cooling (Min.∼Rated) - Btu/h

49,000 ~ 98,000

Power Input Cooling (Rated) - ㎾

11.5

Running Current Cooling (Rated) - A

19.5

EER / COP - w/w

2.50 / -

Power Supply - V, Ø, ㎐

220-240, 1, 50
220, 1, 60

Power Input - W

700

Running Current - A

4.0

Casing Color

Middle White

Dimensions Body (W x H x D) - mm

1,050 × 1,880 × 495

Dimensions Body (W x H x D) - inch

41-11/32 × 74-1/32 × 19-1/2

Net Weight Body - ㎏ (lbs)

113.0 (249.0)

Heat Exchanger (Row x Column x Fins per inch) x No.

(3 × 40 × 19) × 1

Heat Exchanger Face Area - ㎡ (ft²)

0.77 (8.29)

Fan Type

Sirocco

Fan Air Flow Rate (SH / H / M / L) - ㎥/min

68 / 61 / - / 50

Fan Air Flow Rate (SH / H / M / L) - ft³/min

2,402 / 2,154 / - / 1,766

Fan Motor Type

BLDC

Fan Motor Output - W x No.

900 × 1

Dehumidification Rate - ℓ/h (pts/h)

12.6 (26.8)

Sound Pressure Level (SH / H / M / L) - dB(A)

58 / 55 / - / 51

Piping Connections Liquid Side - ㎜(inch)

Ø 9.52 (3/8)

Piping Connections Gas Side - ㎜(inch)

Ø 22.2 (7/8)

Piping Connections Drain Pipe (O.D. / I.D.) - ㎜(inch)

Ø 32.0(1-1/4) / 25.0(31/32)

Safety Devices

Fuse
Thermal Protector for Fan Motor

Power and Communication Cable (included Earth) - No. x ㎟ (AWG)

4C x 1.5

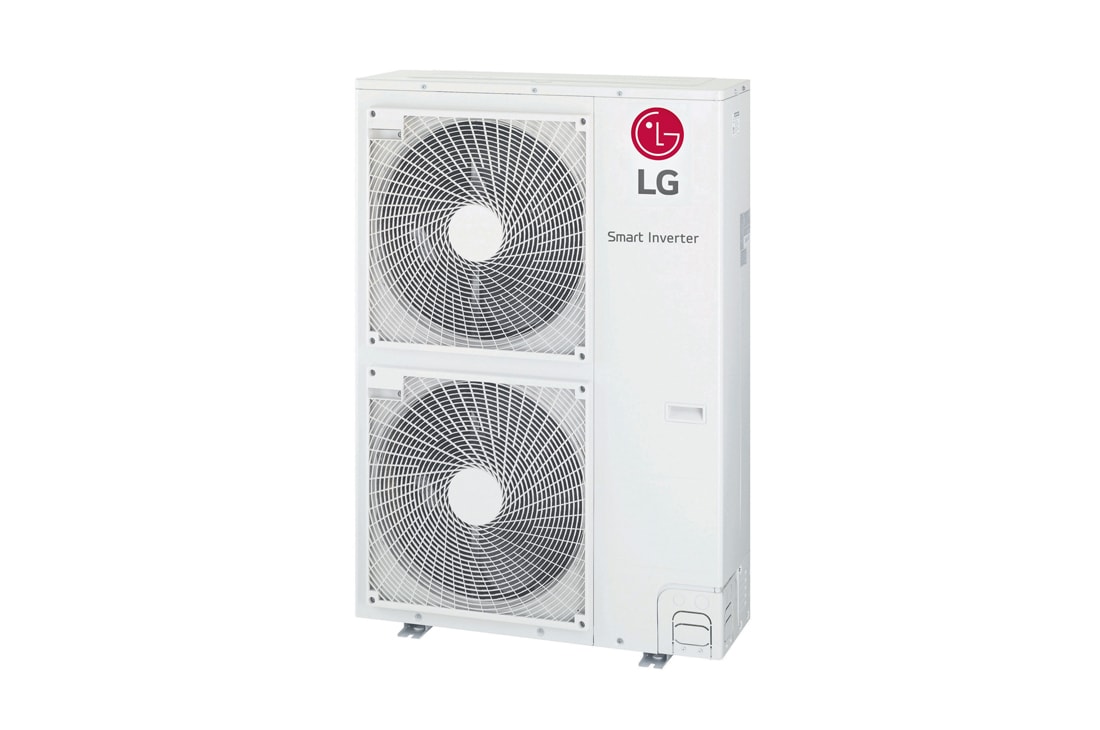

OUTDOOR SPECIFICATIONS

Capacity Cooling (Min.∼Rated) - ㎾

14.3 ~ 28.7

Capacity Cooling (Min.∼Rated) - Btu/h

49,000 ~ 98,000

Power Input Cooling (Rated) - ㎾

11.5

Running Current Cooling (Rated) - A

19.5

EER / COP - w/w

2.50 / -

Power Supply - V, Ø, Hz

380-415, 3, 50
380, 3, 60

Casing Color

Warm Gray

Dimensions Body (W x H x D) - ㎜

1,090 × 1,625 × 380

Dimensions Body (W x H x D) - inch

42-29/32 × 63-31/32 × 14-31/32

Net Weight - ㎏ (lbs)

143.0 (315)

Heat Exchanger (Row x Column x Fins per inch) x No.

(2 x 38 x 14) x 2

Compressor Type

BLDC INV Scroll

Compressor Model - Model x No.

JBA068MAF x 1

Compressor Motor type

BLDC

Compressor Motor Output - W × No.

4,241 x 1

Fan Type

Propeller

Fan Air Flow Rate - ㎥/min x No.

190 x 2

Fan Motor Type

BLDC

Fan Motor Output - W x No.

250 x 2

Sound Pressure Level Cooling (Rated) - dB(A)

58

Piping Connections Liquid Side (Outer Dia.) - ㎜(inch)

Ø 9.52 (3/8)

Piping Connections Gas Side (Outer Dia.) - ㎜(inch)

Ø 22.2 (7/8)

Piping Length (Standard) - m(ft)

5.0 (16.4)

Piping Length (Max.) - m(ft)

50 (164.0)

Refrigerant Type

R410A

Refrigerant Precharged Amount - g(oz)

6,125 (207)

Refrigerant Chargeless-Pipe Length - m(ft)

5.0 (16.4)

Refrigerant Additional Charging Volume - g/m(oz/ft)

61 (0.6)

Refrigerant Control

Electronic Expansion Valve

Refrigerant Oil Type

FVC68D

Refrigerant Oil Charged volume - cc x No.

1400 x 1

Wiring Connections Power Supply Cable (included Earth) - No. x ㎟ (AWG)

5C x 6.0 (10)

Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)

30 (98)

Operation Range (Outdoor Temperature) Cooling (Min. ~ Max.) - ℃ DB(℉ DB)

-10 (14.0) ~ 48 (118.4)

Untuk mengakses lebih banyak dokumentasi teknis dan sumber daya, silakan kunjungi Portal Mitra LG B2B.
