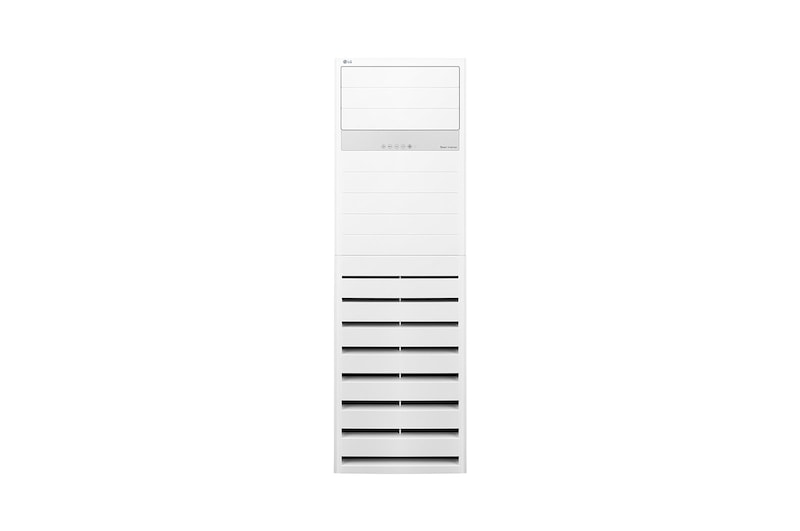

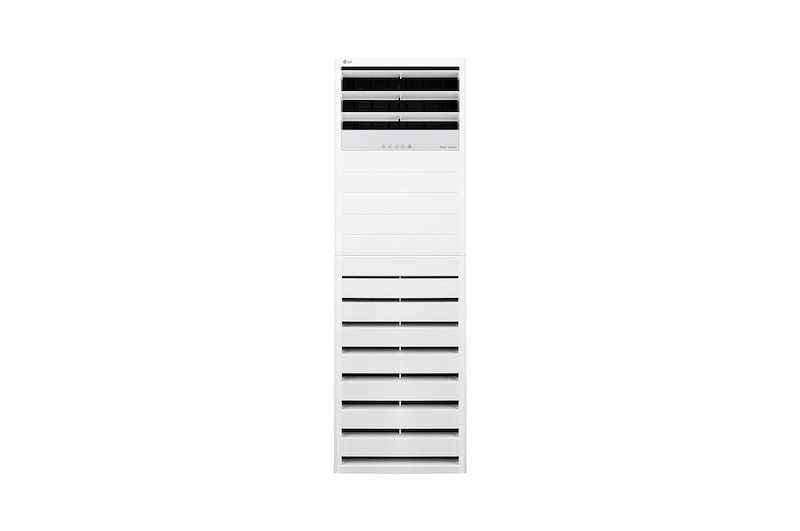

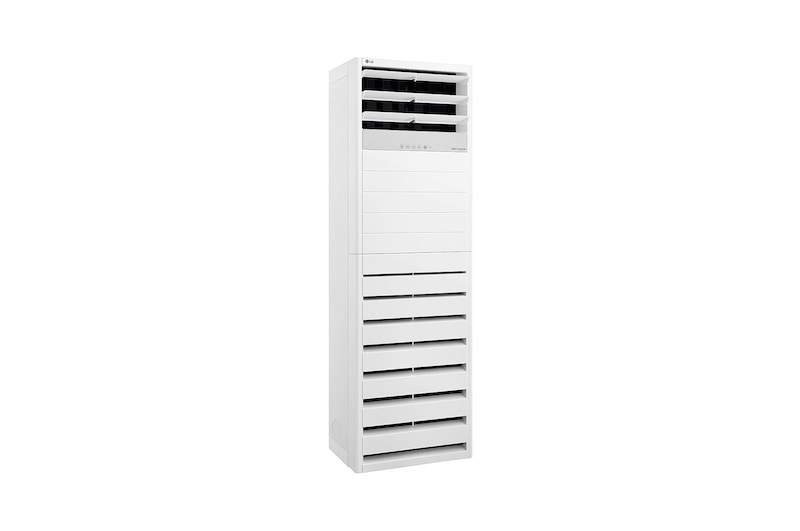

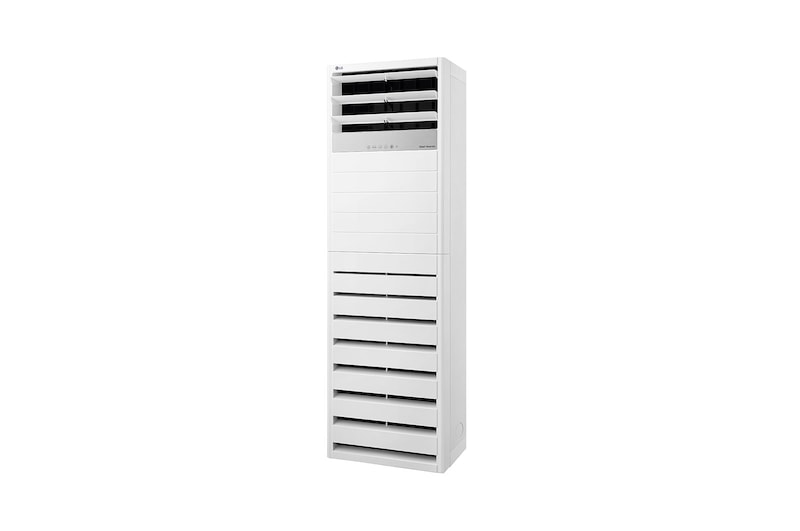

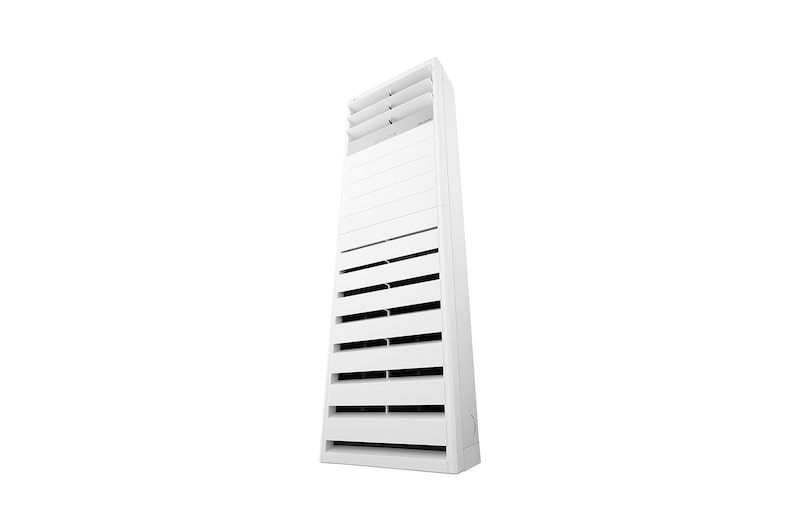

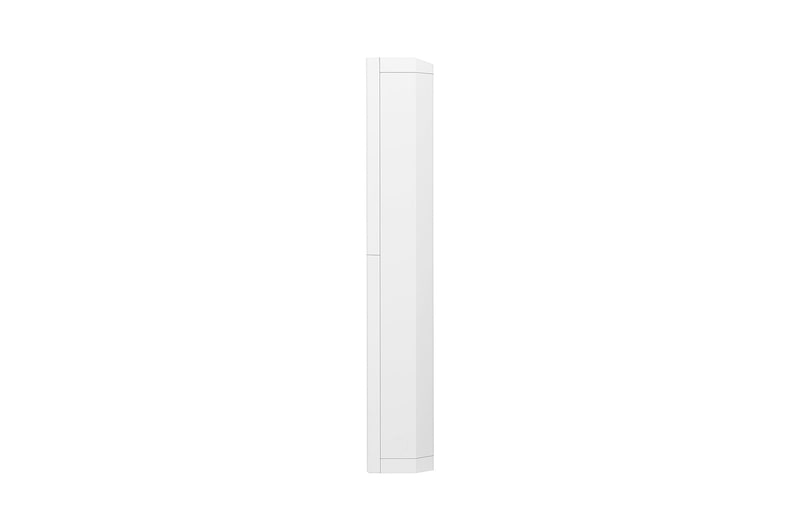

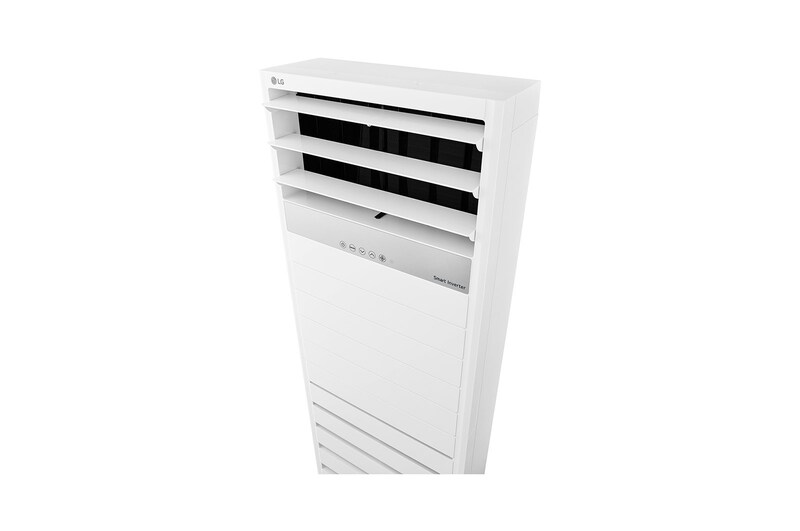

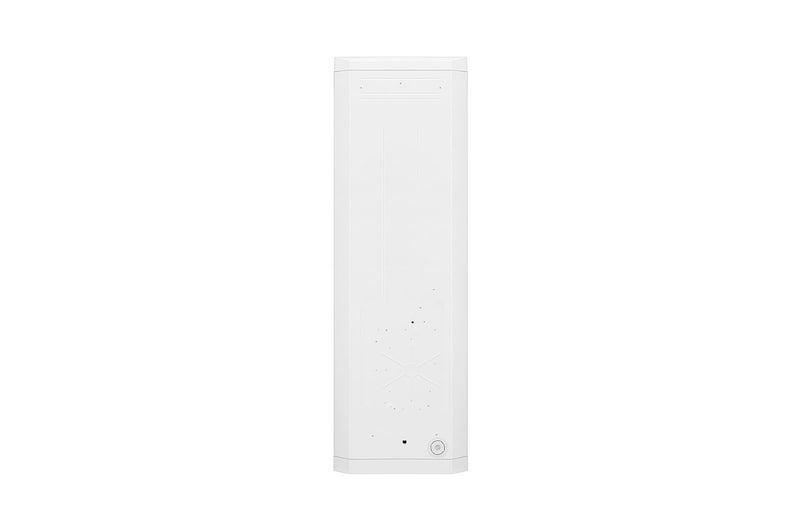

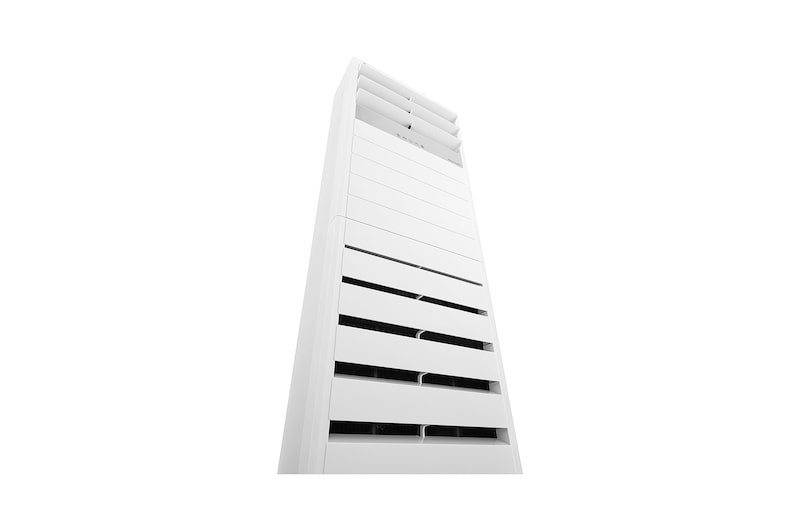

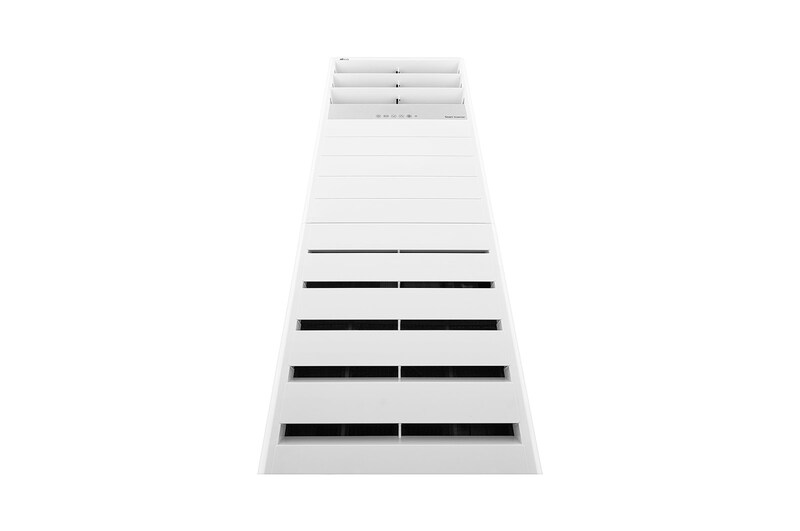

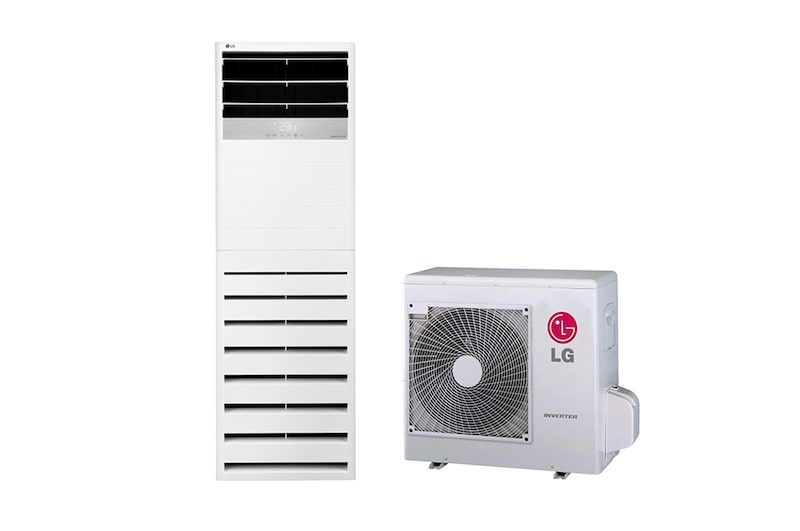

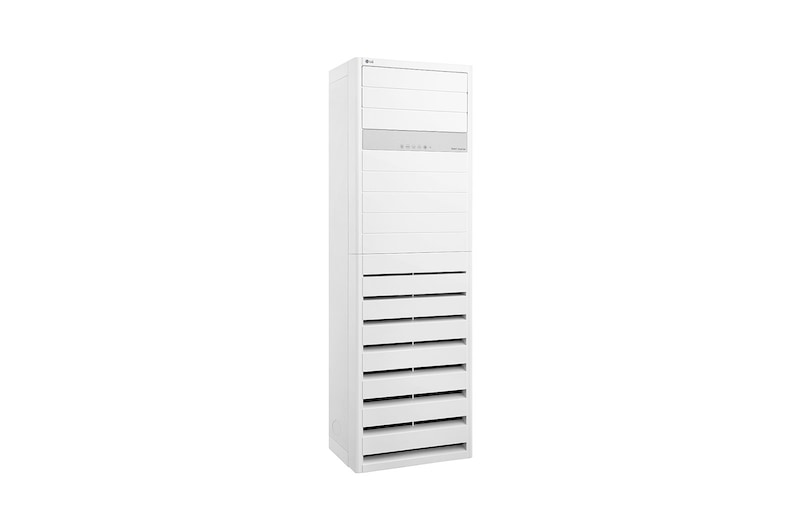

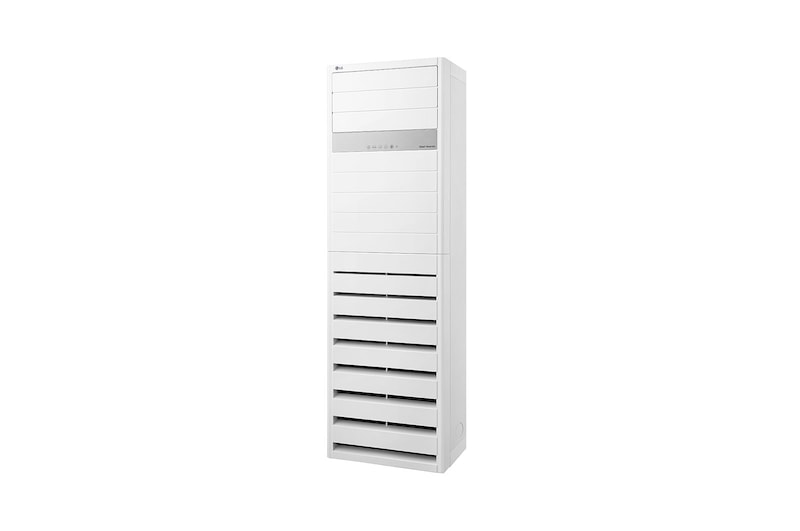

AP-Q48LT3E3

APNQ48LT3E3 / APUQ48LT3E3


AC Floor Standing


AC kuat dan bergaya yang ideal untuk interior modern

Desain Bergaya


AC floor standing menjadi solusi ideal yang menyatu dengan interior modern rumah atau kantor Anda

Respon cepat


AC LG Floor Standing dapat mencapai suhu yang ditentukan lebih cepat dengan pendinginan lebih kuat. Di sisi lain, fungsi Power Heating memberikan sudut optimal hembusan udara untuk performa pemanasan lebih cepat

Aliran Udara Kuat


Kecepatan dan volume udara yang kuat memungkinkan aliran udara mencapai hingga 20 meter. Memungkinkan pendinginan yang nyaman lebih cepat
Hubungi Kami1

Hubungi Kami


Hubungi kami untuk informasi lebih lanjut terkait produk dan kami akan menghubungi Anda kembali segera

Semua Spesifikasi

INDOOR SPECIFICATIONS

  • Capacity Cooling (Min.∼Rated∼Max.) - ㎾

    4.05 ~ 13.5 ~ 14.35

  • Capacity Cooling (Min.∼Rated∼Max.) - Btu/h

    13,800 ~ 46,000 ~ 49,000

  • Power Input Cooling (Rated) - ㎾

    4.49

  • Running Current Cooling (Rated) - A

    6.70

  • EER / COP - w/w

    3.01

  • Power Supply - V, Ø, ㎐

    220-240, 1, 50/60

  • Casing Color

    White

  • Dimensions Body (W x H x D) - mm

    590 × 1,840 × 440

  • Dimensions Shipping (W x H x D) - mm

    686 x 1,932 x 526

  • Weight Body - kg (lbs)

    47.0 (103.6)

  • Weight Shipping - ㎏ (lbs)

    55.0 (121.3)

  • Heat Exchanger (Row x Column x Fins per inch) x No.

    (2 x 53 x 67) x 1

  • Heat Exchanger Face Area - ㎡ (ft²)

    0.44 (4.74)

  • Fan Type

    Sirocco Fan

  • Fan Air Flow Rate (SH / H / M / L) - ㎥/min

    37.0 / 33.0 / 28.0 / 24.0

  • Fan Motor Type

    BLDC

  • Fan Motor Drive

    External

  • Fan Motor Output - W x No.

    140 x 1

  • Dehumidification Rate - ℓ/h (pts/h)

    5.2 (11.0)

  • Sound Pressure Level Cooling (SH / H / M / L) - dB(A)

    52 / 49 / 47 / 45

  • Piping Connections Liquid Side - ㎜(inch)

    Ø 9.52 (3/8)

  • Piping Connections Gas Side - ㎜(inch)

    Ø 15.88(5/8)

  • Piping Connections Drain Pipe (O.D. / I.D.) - ㎜(inch)

    Ø 21.0(13/16) / 17.0(21/32)

  • Safety Devices

    Fuse

  • Power and Communication Cable (included Earth) - No. x ㎟ (AWG)

    4C x 0.75 (18)

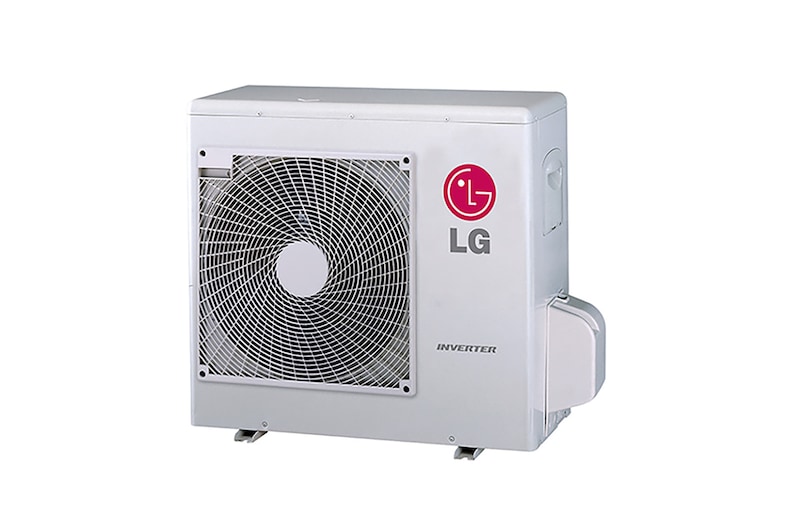

OUTDOOR SPECIFICATIONS

  • Capacity Cooling (Min.∼Rated∼Max.) - ㎾

    4.05 ~ 13.5 ~ 14.35

  • Capacity Cooling (Min.∼Rated∼Max.) - Btu/h

    13,800 ~ 46,000 ~ 49,000

  • Power Input Cooling (Rated) - ㎾

    4.49

  • Running Current Cooling (Rated) - A

    6.70

  • EER / COP - w/w

    3.01

  • Power Supply - V, Ø, Hz

    380-415, 3, 50/60

  • Casing Color

    Warm Gray

  • Dimensions Body (W x H x D) - ㎜

    950 × 834 × 330

  • Net Weight - ㎏ (lbs)

    67.0 (147.7)

  • Heat Exchanger (Row x Column x Fins per inch) x No.

    (3 x 40 x 21) x 1

  • Compressor Type

    Twin Rotary

  • Compressor Model - Model x No.

    GPT442MAB x 1

  • Compressor Motor type

    BLDC

  • Compressor Motor Output - W × No.

    4,000 x 1

  • Fan Type

    Propeller

  • Fan Air Flow Rate - ㎥/min x No.

    70 x 1

  • Fan Motor Type

    BLDC

  • Fan Motor Output - W x No.

    124.2 x 1

  • Sound Pressure Level Cooling (Rated) - dB(A)

    56

  • Piping Connections Liquid Side (Outer Dia.) - ㎜(inch)

    Ø 9.52 (3/8)

  • Piping Connections Gas Side (Outer Dia.) - ㎜(inch)

    Ø 15.88 (5/8)

  • Piping Length (Min./Max.) - m(ft)

    5 (16.4) / 50 (164.0)

  • Refrigerant Type

    R410A

  • Refrigerant Precharged Amount - g(oz)

    2,200 (77.6)

  • Refrigerant Chargeless-Pipe Length - m(ft)

    15.0 (49.2)

  • Refrigerant Additional Charging Volume - g/m(oz/ft)

    20 (0.22)

  • Refrigerant Control

    Electronic Expansion Valve

  • Refrigerant Oil Type

    FVC68D

  • Refrigerant Oil Charged volume - cc x No.

    1,300 x 1

  • Wiring Connections Power Supply Cable (included Earth) - No. x ㎟ (AWG)

    5C x 2.5 (12)

  • Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)

    30 (98.4)

  • Operation Range (Outdoor Temperature) Cooling (Min. ~ Max.) - ℃ DB(℉ DB)

    -5 (23.0) ~ 46 (114.8)
