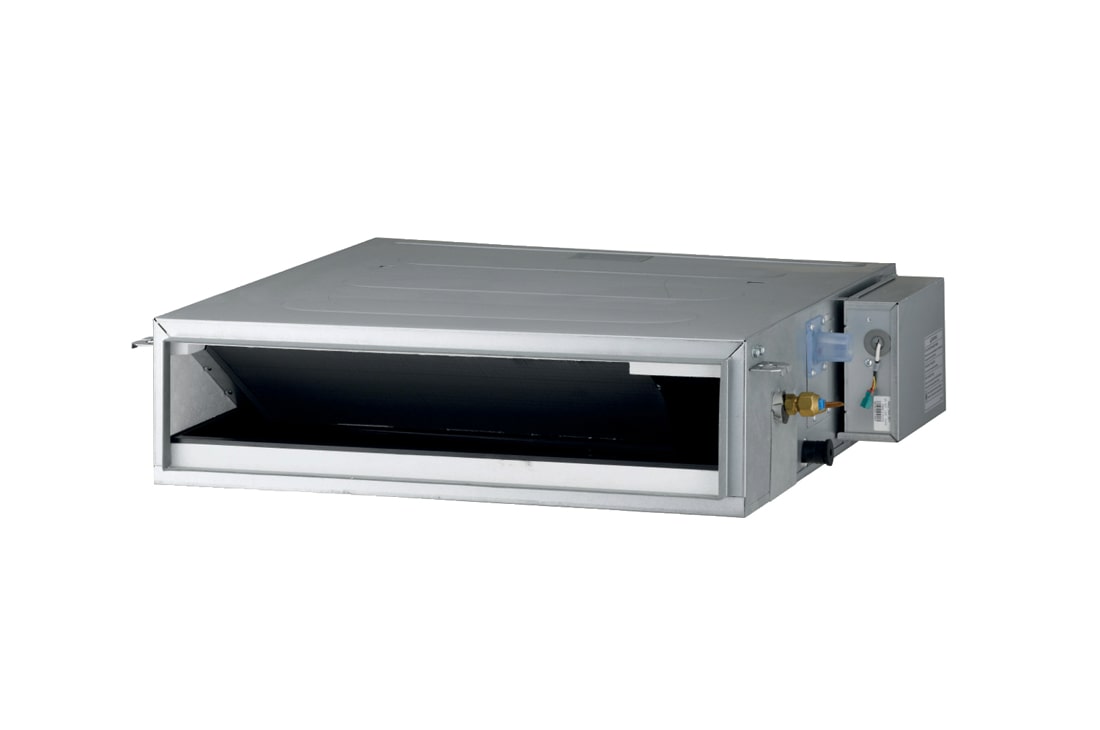

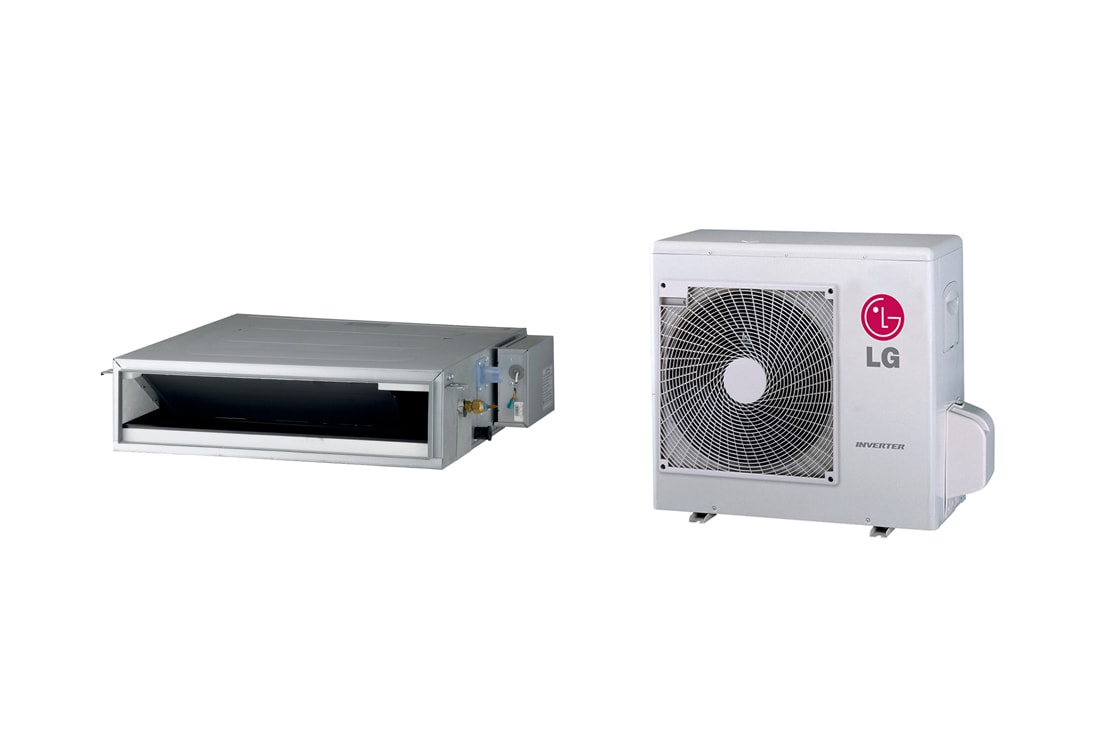

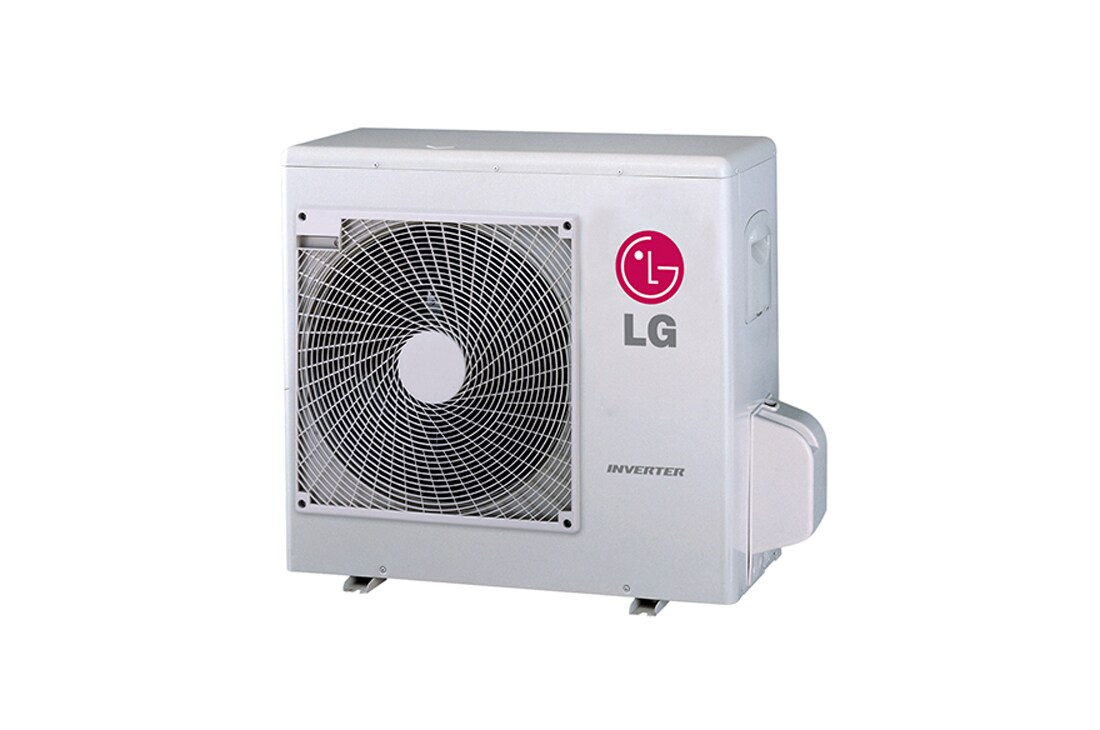

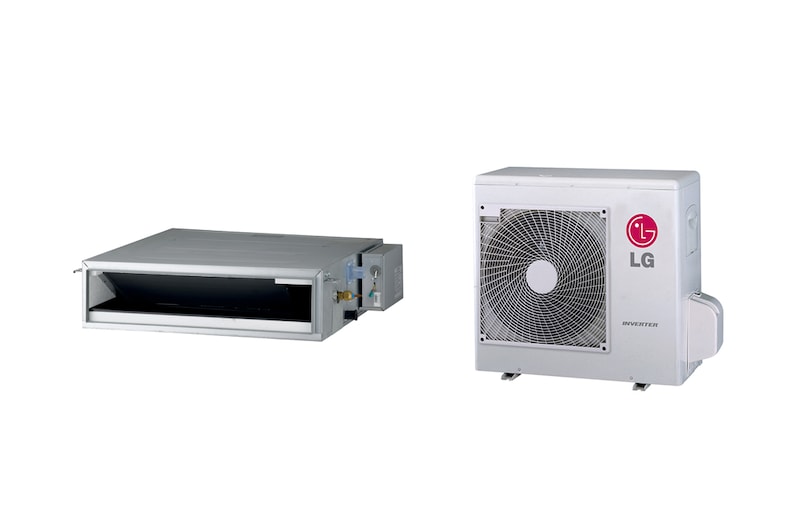

ABNQ12GL2A0 / ABUQ12GL2A0
_09.jpg)
_09_1.jpg)
_09_2.jpg)
_09.jpg)
_09_1.jpg)
_09_2.jpg)
Capacity Cooling (Min.∼Rated∼Max.) - ㎾
1.40 ~ 3.40 ~ 3.70
Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
4,800 ~ 11,600 ~ 12,600
Power Input Cooling (Rated) - ㎾
1.00
Running Current Cooling (Rated) - A
4.30
Running Current - A
1.0
EER / COP - w/w
3.40
Power Supply - V, Ø, ㎐
220-240, 1, 50
Dimensions Body (W x H x D) - mm
820 × 190 × 575
Dimensions Body (W x H x D) - inch
32-9/32 x 7-15/32 x 22-5/8
Net Weight Body - ㎏ (lbs)
20.5 (45.2)
Heat Exchanger (Row x Column x Fins per inch) x No.
(2 x 12 x 21) x 1
Heat Exchanger Face Area - ㎡ (ft²)
0.16 (1.68)
Fan Type
Sirocco Fan
Fan Air Flow Rate (H / M / L) - ㎥/min
9.5 / 8.5 / 7.5
Fan Air Flow Rate (H / M / L) - ft³/min
336 / 300 / 265
Fan Air Flow Rate (External Static Pressure) - Pa (㎜Aq)
39 (4)
Fan Motor Type
BLDC
Fan Motor Output - W x No.
(5 x 1) + (19 x 1)
Sound Pressure Level (H / M / L) - dB(A)
33 / 31 / 26
Piping Connections Liquid Side - ㎜(inch)
Ø 6.35 (1/4)
Piping Connections Gas Side - ㎜(inch)
Ø 9.52 (3/8)
Piping Connections Drain Pipe (O.D. / I.D.) - ㎜(inch)
Ø 32.0(1-1/4) / 25.0(31/32)
Safety Devices
Fuse
Thermal Protector for Fan Motor
Power and Communication Cable (included Earth) - No. x ㎟ (AWG)
4C x 0.75 (18)
Capacity Cooling (Min.∼Rated∼Max.) - ㎾
1.40 ~ 3.40 ~ 3.70
Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
4,800 ~ 11,600 ~ 12,600
Power Input Cooling (Rated) - ㎾
1.00
Running Current Cooling (Rated) - A
4.30
EER / COP - w/w
3.40
Power Supply - V, Ø, Hz
220-240, 1, 50
Casing Color
Warm Gray
Dimensions Body (W x H x D) - ㎜
770 x 540 x 245
Dimensions Body (W x H x D) - inch
30-5/16 × 21-1/4 × 9-21/32
Net Weight - ㎏ (lbs)
32.0 (70.5)
Heat Exchanger (Row x Column x Fins per inch) x No.
(2 x 24 x 17) x 1
Compressor Type
Rotary
Compressor Model - Model x No.
5RS102XAA21 x 1
Compressor Motor type
BLDC
Compressor Motor Output - W × No.
1,300 x 1
Fan Type
Propeller
Fan Air Flow Rate - ㎥/min x No.
32 x 1
Fan Motor Type
BLDC
Fan Motor Output - W x No.
43.0 x 1
Sound Pressure Level Cooling (Rated) - dB(A)
47
Sound Power Level Cooling (Max.) - ㏈(A)
57
Piping Connections Liquid Side (Outer Dia.) - ㎜(inch)
Ø 6.35 (1/4)
Piping Connections Gas Side (Outer Dia.) - ㎜(inch)
Ø 9.52 (3/8)
Piping Length (Max.) - m(ft)
15 (49.2)
Refrigerant Type
R410A
Refrigerant Precharged Amount - g(oz)
1,000 (35.3)
Refrigerant Chargeless-Pipe Length - m(ft)
7.5 (24.6)
Refrigerant Additional Charging Volume - g/m(oz/ft)
20 (0.22)
Refrigerant Control
Electronic Expansion Valve
Refrigerant Oil Type
FV50S
Refrigerant Oil Charged volume - cc x No.
320 x 1
Wiring Connections Power Supply Cable (included Earth) - No. x ㎟ (AWG)
3C x 2.5 (12)
Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)
10 (32.8)
Operation Range (Outdoor Temperature) Cooling (Min. ~ Max.) - ℃ DB(℉ DB)
-10 (14) ~ 43 (109.4)
