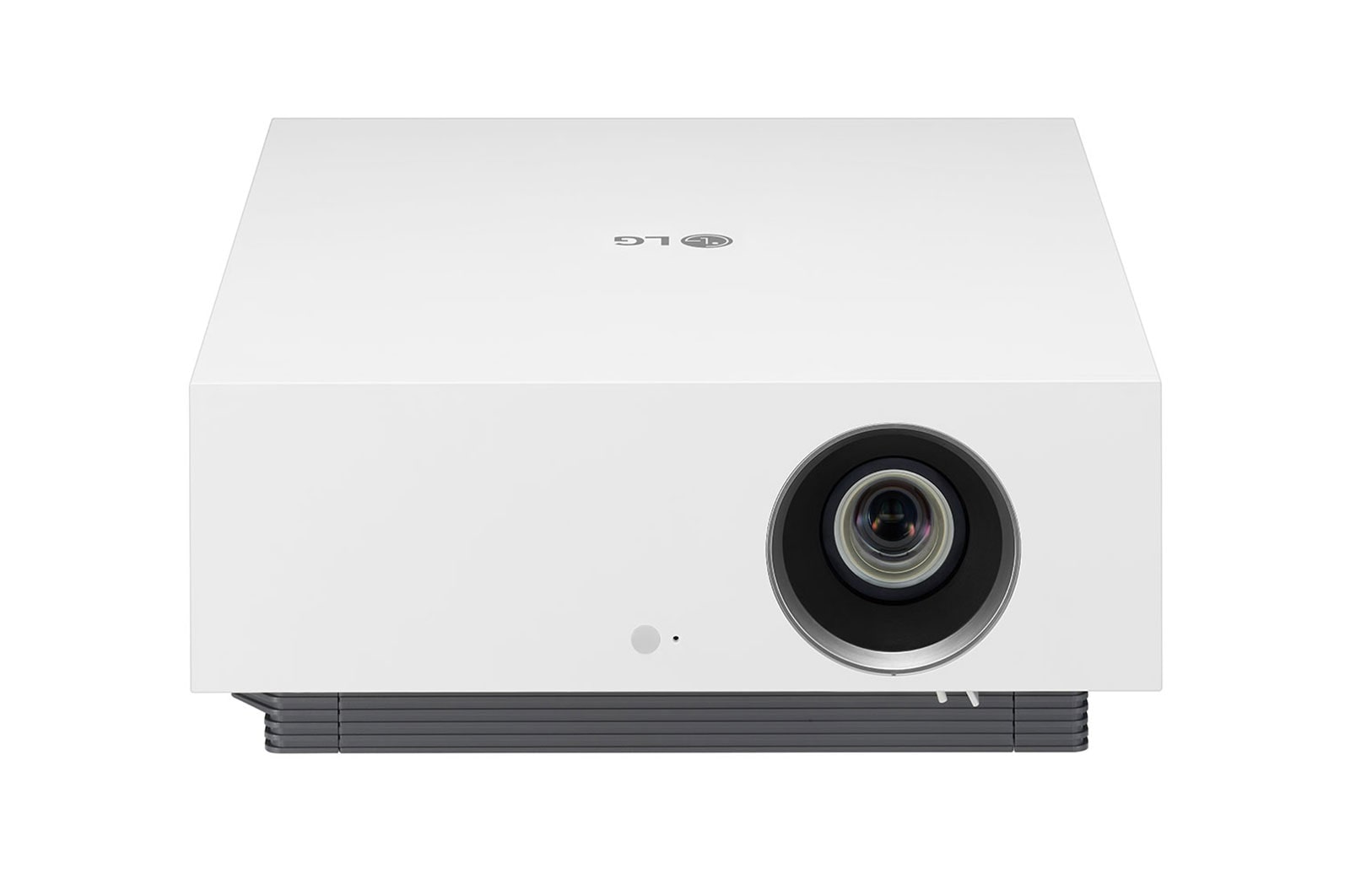

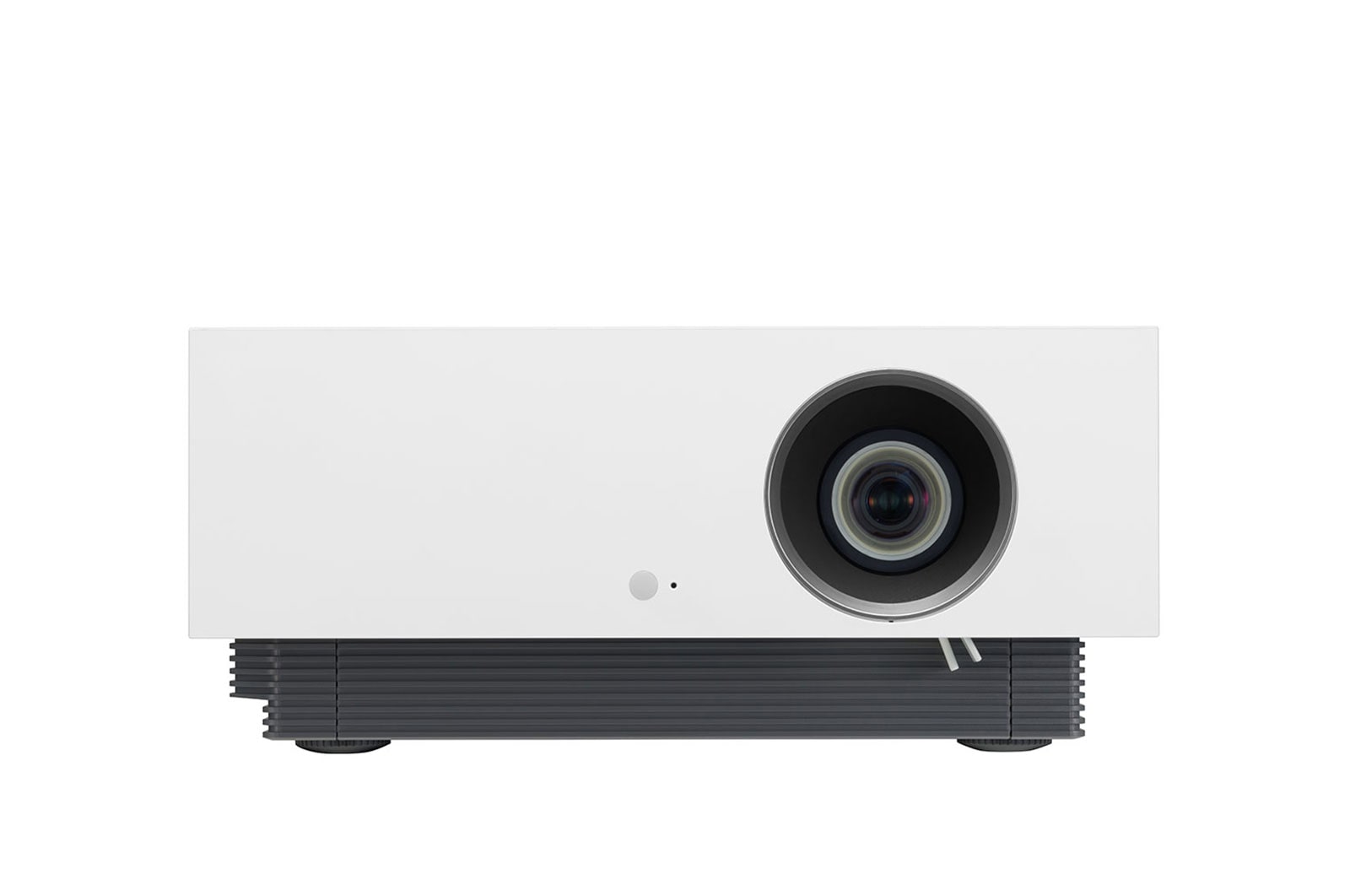

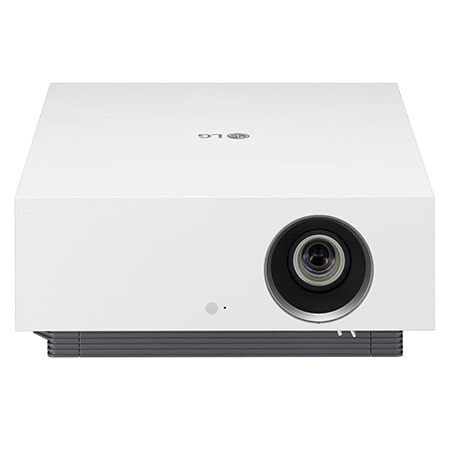

LG AU810P 4K UHD Laser Smart Home Theater CineBeam Projector

AU810PW

Key Features

Laser 4K UHD & 8.3 Mega pixel
DCI-P3 97%
Brightness Optimizer
Lens shift (H ±24%, V ±60%) / Zoom x1.6
Auto Calibration (w/ CalMan)
WiSA

Optimal Quality for Any Image and Any Environment

All-around home cinema projector to consider your surroundings and the type of movie.

Performance

8.3 Mega Pixels Real 4K UHD
DCI-P3 97% Dual Laser (Red & Blue)
2,000,000:1 Contrast Ratio Black Level

Imaging Technology

Brightness Optimizer
- Iris Mode
- Adaptive Contrast

Usability

webOS
WiSA
Auto Calibration (w/ CalMan)

Real 4K UHD Laser Projector

Exceptional Picture Quality

With 8.3 mega pixels utilizing 4K UHD Laser technology, LG CineBeam delivers impeccable precision and detail up to 300 (762cm) screen. With 2,000,000:1 contrast ratio Black level, it can express the deep black. And it accurately represents colors, thanks to a wide color gamut 97% of DCI-P3.

8.3M Pixels

Real 4K UHD

DCI-P3 97%

Dual Laser (Red & Blue)

2,000,000:1

Contrast Ratio Black Level

FULL HD
UHD 4K 8.3 Megapixel

Brightness Optimizer

Iris Mode

Designed for Both Bright and Dark Environment

Depending on lighting condition of viewing environment, you can change iris mode.

Iris’s maximum aperture
Iris‘s minimum aperture

Dark Room Mode

Optimized brightness for dark room. Recommended white brightness + lowest (best) black level with iris’s min. aperture.

Bright Room Mode

White and black goes up together, which makes picture visible and vivid with iris’s max. aperture.

Adaptive Contrast

Fits Laser Output to the Scene

Adaptive Contrast gives more depth to your image by adaptively adjusting the Laser output to image, in order to create a high contrast ratio. Bright scenes appear brighter, while dark scenes remain detailed with deep blacks and shade detail.

Filmmaker Mode

Feel the Emotions of the Original Content Creator

Filmmaker Mode turns off motion smoothing and other video processing setting. So it can faithfully and accurately deliver the creator’s intent.

HDR pro

Covers HDR10, Dynamic Tone Mapping, HLG and HGiG

HDR pro improves quality by making the bright part brighter and the dark part darker while using the dark side details. So it is compatible with almost HDR industry standards.

Dynamic Tone Mapping - using meaningful signal range (frame by frame) instead of simple signal rage.

HDR10 – Individual tone can be adjusted for each color within a scene.

HLG is a backwards-compatible HDR standard and begins with a SDR signal that any TV can use.

HGiG helps you to enjoy HDR console games from PlayStation and Xbox.

*HDR pro covers almost all HDR specifications, including HDR10, Dynamic Tone Mapping, HLG, HGiG and other specifications.

webOS 5.0

The Smart Way to Access Contents

With webOS 5.0, you can explore a variety of TV shows and movies with a simple connect to your Wi-Fi network. Also you can enjoy video contents with built-in apps like YouTube, Amazon Prime and Disney app.

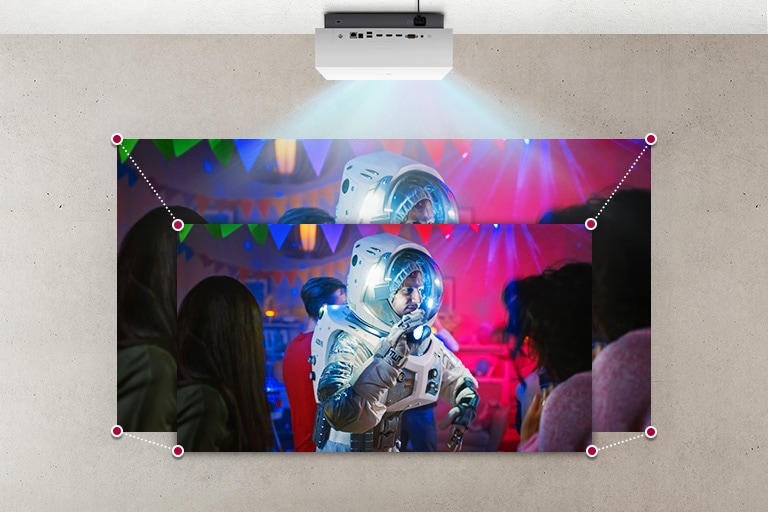

Lens Shift & Zoom x1.6

Flexible and Easy Installation

With Lens Shift (H ± 24%, V ± 60%) & Zoom x1.6 functionality, you can install the device virtually anywhere and set the screen to the exact size and location.

Lens Shift H ±24%, V ±60%

Zoom x1.6

Introduce the Latest Technologies for Home Cinema Specialists

WiSA

WiSA delivers hi-resolution digital audio wirelessly from a source device to a maximum of eight powered speakers using 24-bit 48kHz or 96kHz signals, and can support 3D audio formats.

HDMI 2.1

The projector displays hi-resolution and hi-information images by HDMI 2.1 connection, can output 10-bit images with 444RGB specifications. And it supports eARC.

Auto Calibration (w/ CalMan)

Generally manual calibration requires about 3 hours of setting by professional calibrators using CalMan software. By adopting pre-set CalMan software in AU810PW, Auto Calibration with laptop and program connected calibration can be done in 30 min only.

12v Trigger

You can connect your projector to a external devices that support a trigger signal, then unify power operating. When the projector is on, the connected device, such as motorized screens, power is on at the same time.

AirPlay + Miracast® + Bluetooth

Advanced Wireless Connection

You can share the screen and sound conveniently with AirPlay (for iOS devices), Screen Share (for wireless Miracast® supporting devices) and Bluetooth pairing.

All Spec

PROJECTION SYSTEM

Native Resolution
4K UHD (3840 x 2160)
Brightness (ANSI Lumen)<sup>2)</sup>
2700
Contrast Ratio (Full On Full Off)
2,000,000:1
Noise (typical) - Energy Saving Min. (Bright)
28 dB(A)↓
Noise (typical) - Energy Saving Med.
27 dB(A)↓
Noise (typical) - Energy Saving Max. (Eco)
26 dB(A)↓
Uniformorty (JBMMA 9point)
85%↑
Projection Lens - Focus (Auto/Manual)
Manual
Projection Lens - Zoom
1.6x
Projection Image - Screen Size
101.6cm (40) ~ 762cm (300)
Projection Image - Standard/254cm (100) (lens to wall)
381cm (150) @4.3~6.9m254cm (100) @2.9~4.6m101.6 (40) @1.1~1.8m
Projection Image - Throw Ratio
1.3 - 2.08
Lens Shift
V +-60% / H +-24%
Projection Offset
0% (+110% ~ -110%)
Light source - Type
Dual Laser (B LD+G-rap Phophor, R LD)
Light source - Life High Brightness
20,000 Hrs
Light source - Life Economic
30,000 Hrs

GENERAL SPECIFICATION

OSD Language
English(UK)/French/Spanish/German/Portuguese/Dutch/Russian/Polish/Hungarian/Romanian/Slovenian/Croatian/Bulgarian/Serbian/Italian/Czech/Turkish/SlovakArabic/ChineseSimplified/Indonesian/L-Spanish/India/English
Aspect Ratio Control
16:9/Original/Full Wide/4:3/Vertical Zoom
Sound - Output
5W + 5W Stereo
Sound - Clear Voice
Yes (Clear Voice lll)
Sound - Dolby Atmos compatible
Yes (Pass through)
Sound - WiSA Ready (dongle)
Yes (EU : up to 5.1ChMEA : 2.0Ch only)(Dongle and Speakers sold separately)
Net Size (mm) (W x D x H)
337 x 410 x 145
Net Weight (kg or g)
11kg
Power Consumption (Max.)
300W
Stand-by Power
<0.5W
Power Supply
100V – 240V @ 50~60 Hz(PSU Built-in)
Operation Temperature
0 ~ 40℃
Input Signal Compatibility - Digital(HDMI)
Up to 4K (4096x2160)(60Hz, 50Hz, 24Hz)

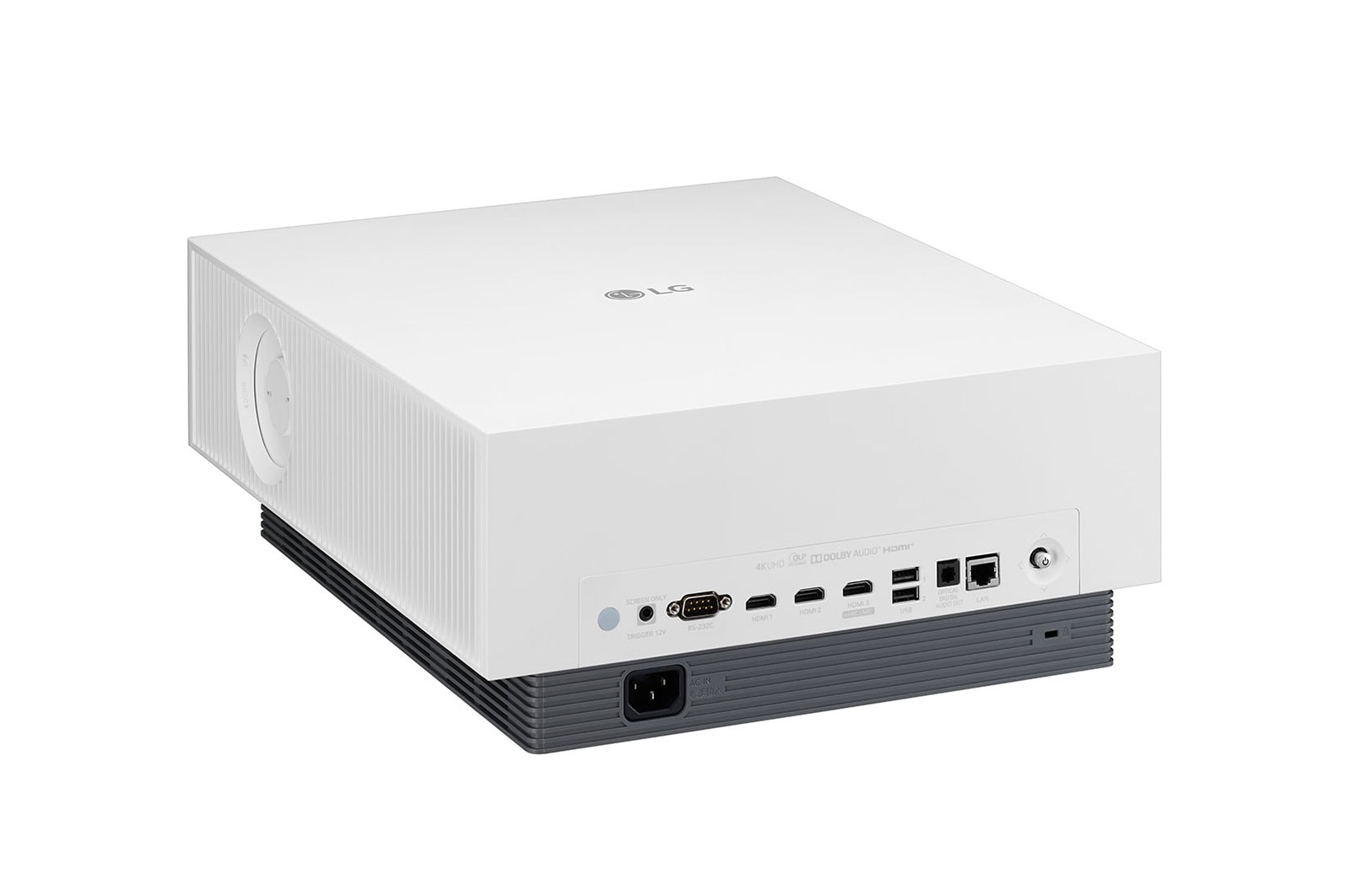

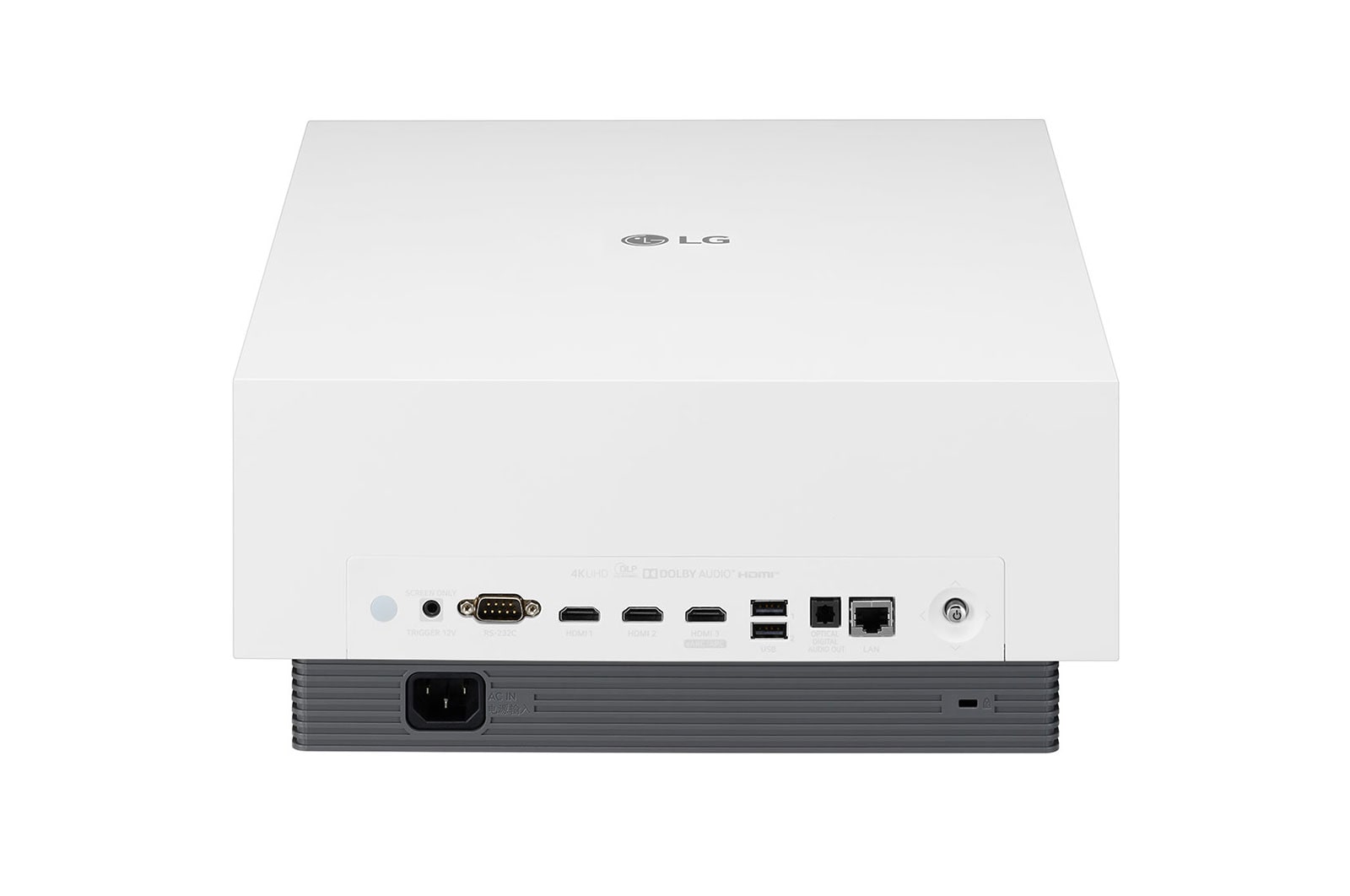

INPUT/OUTPUT TERMINALS

Audio out
S/PDIF 1(Optical)
RS-232C
Yes
IP control
Yes
RJ45
1
HDMI
3 (HDMI2.1* : 1EA / HDMI2.0 : 2EA)*ALLM (Auto Low Latency Mode),eARC (Enhanced Audio Return Channel),up to 24Gbps (input) / 4:4:4/RGB 10 bit (output)
USB Type-A
2 (USB2.0)
12V Trigger
Yes

ADDED FEATURES

Quick(Instant) Power on/off
Yes (on 12 Sec ↓/off 2 Sec)
Store Mode
Yes
Self Diagnosis
Yes

DESIGN

Cabinet Color
White
Local Key
Joystick
Kensington Lock
Yes
Leg-Stand
Yes
Ceiling mount hole (for bracket)
Yes

ACCESSORY

Manual (Full or Simple Book)
Simple Book
Warranty Card
Yes
Remote control (Battery included) - Motion
Yes (Magic Lighting Remote)
Conformances(Regulation)
CE/CB

OS/CONNECTIVITY

Platform (OS, UI)
webOS 5.0 (Smart)
Home Dashboard (Input, IoT with OCF device)
Yes (OCF/UEI IoT not supported)
Background Image
Yes
Premium CP
Yes
Contents Store (LG App Store)
Yes
Contents Suggestion
Yes
Internet Browser
Yes
Voice Recognition - Speaker Compatible (works-with)
Apple Homekit works-with
Screen Share (Wireless Mirroring with MiraCast supporting Android/Window device)
Yes (up to 4K/30Hz)
Airplay 2 (iOS/Mac Video Casting, mirroring, Audio Streaming)
Yes (up to 4K/30Hz)
Wireless Contents Share (with Android, iOS)
Yes (Thru TV Plus App)
Contents Sharing (with DLNA supporting device)
Yes
Bluetooth - Bluetooth Sound out
Yes
Bluetooth - Bluetooth AV(Lip) Sync Control
Yes
LG Sound Sync(with Sound Bar)
Yes
HDMI ARC(Audio Return Channel)
Yes (eARC)
HDMI simplink(CEC)
Yes
HDCP
HDCP2.2 (HDCP2.3)
Plug & Play(RGB/DVI/HDMI Auto Source Detection)
Yes
USB Host (Movie, Music, Photo)
Yes
Setting Guide
Yes (Bean Bird)
LG TV Plus App support
Yes
iPhone Home App control (Remote Fuction) (LG TV Plus App)
Yes
HID (Keyboard/Mouse/GamePad Connection Thru USB)
Yes
Eco Function - Energy Saving Mode
Yes (Min/Med/Max)
Eco Function - Sleep Timer
Yes
Eco Function - Auto Off / Auto Sleep
Yes
Eco Function - Time Power On/Off (On Time / Off Time)
Yes (On / Off)
Eco Function - Automatic Standby / Auto Power Off
Yes
Eco Function - HDD Eco Mode
Yes

PICTURE QUALITY AND SETTING

Processor
Quad Core
HDR
HDR10, HLG
HDR Effect
Yes
HDR Tone Mapping
Yes (Auto, Dynamic/frame by frame)
Brightness Optimizer - Iris Mode
Yes (BrightRoom/Medium/Darkroom/User
Brightness Optimizer - Adaptive Contrast
Yes (High/Medium/Low/Off)
TruMotion
Yes (up to 4096 x 2160)
Real Cinema
Yes (up to 4096 x 2160)
Upscaler
Yes (4K)
Super Resolution (Expert Control)
Yes (4K)
FILMMAKER mode
Yes
HGiG (HDR Gamming Interest Group) mode
Yes
Digital Keystone Correction
V-Keystone
Image Flip
Yes (Horizontal/Vertical)
Callibration II (Auto Calibration / CalMan)
Yes
Smooth Gradation
Yes
Black Level Control
Yes
Noise Reduction
Yes
Color Temperature Adjustment
Yes
Dynamic Contrast (Expert control)
Yes
Dynamic Color (Expert control)
Yes
Color Management System (Expert control)
Yes
Color gamut setting (Expert control)
Yes
Gamma Correction (Expert control)
Yes
White balance setting (Expert control)
Yes

PRODUCT DETAILS

Net Quantity
1 N
Country of Origin
China
Manufactured By
LG Electronics Nanjing New Technology Co. Ltd, NO.346, YAOXIN ROAD ECONOMIC & TECHNICAL DEVELOPMENT ZONE, NANJING, 210038, PEOPLE'S REPUBLIC OF CHINA
Imported By
LG Electronics India Pvt. Ltd,A-24/6,Mohan Cooperative Industrial Estate, Mathura Road, New Delhi – 110044
