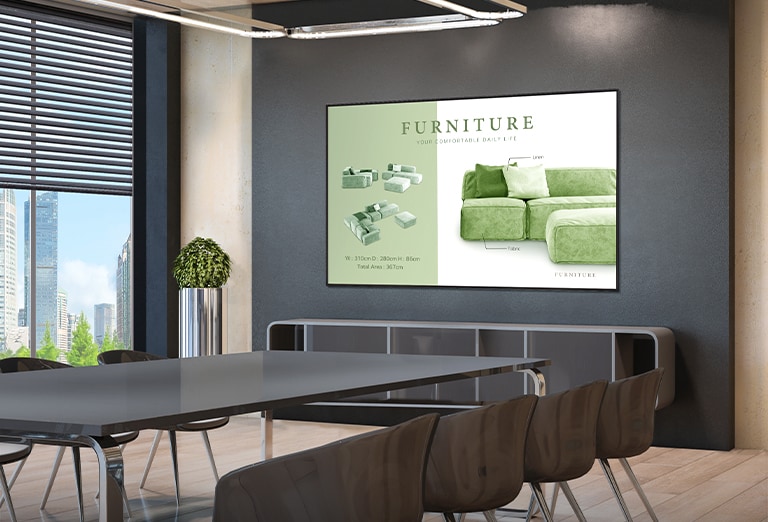

A screen showing the meeting’s contents is installed on the meeting room’s wall.
* All images in this page are for illustrative purposes only.
*webOS Signage is a web-based platform and provides an execution environment for web apps — Internet access is required to access the platform.

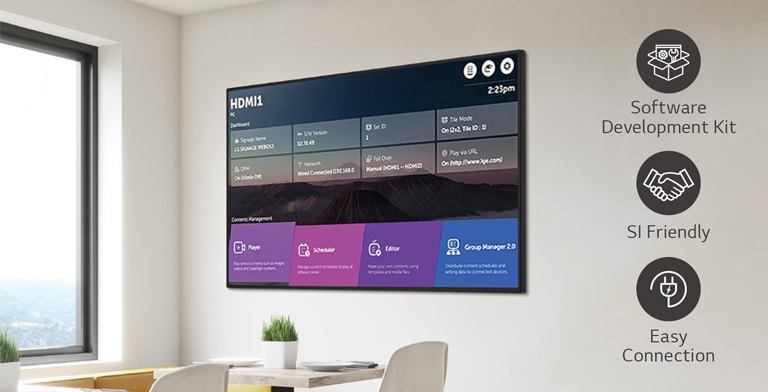

** GUI (Graphic User Interface) is a form of graphics-based operating system interface that uses icons, menus and a mouse (to click on the icon or pull down the menus) to manage interaction with the system.

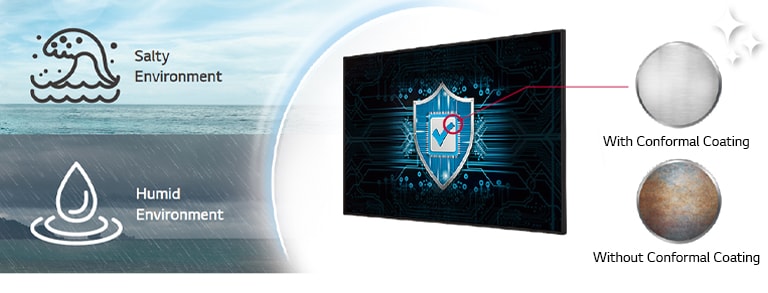

The UM5N-H has Conformal Coating on the power board to protect display even in a salty or humid environment.

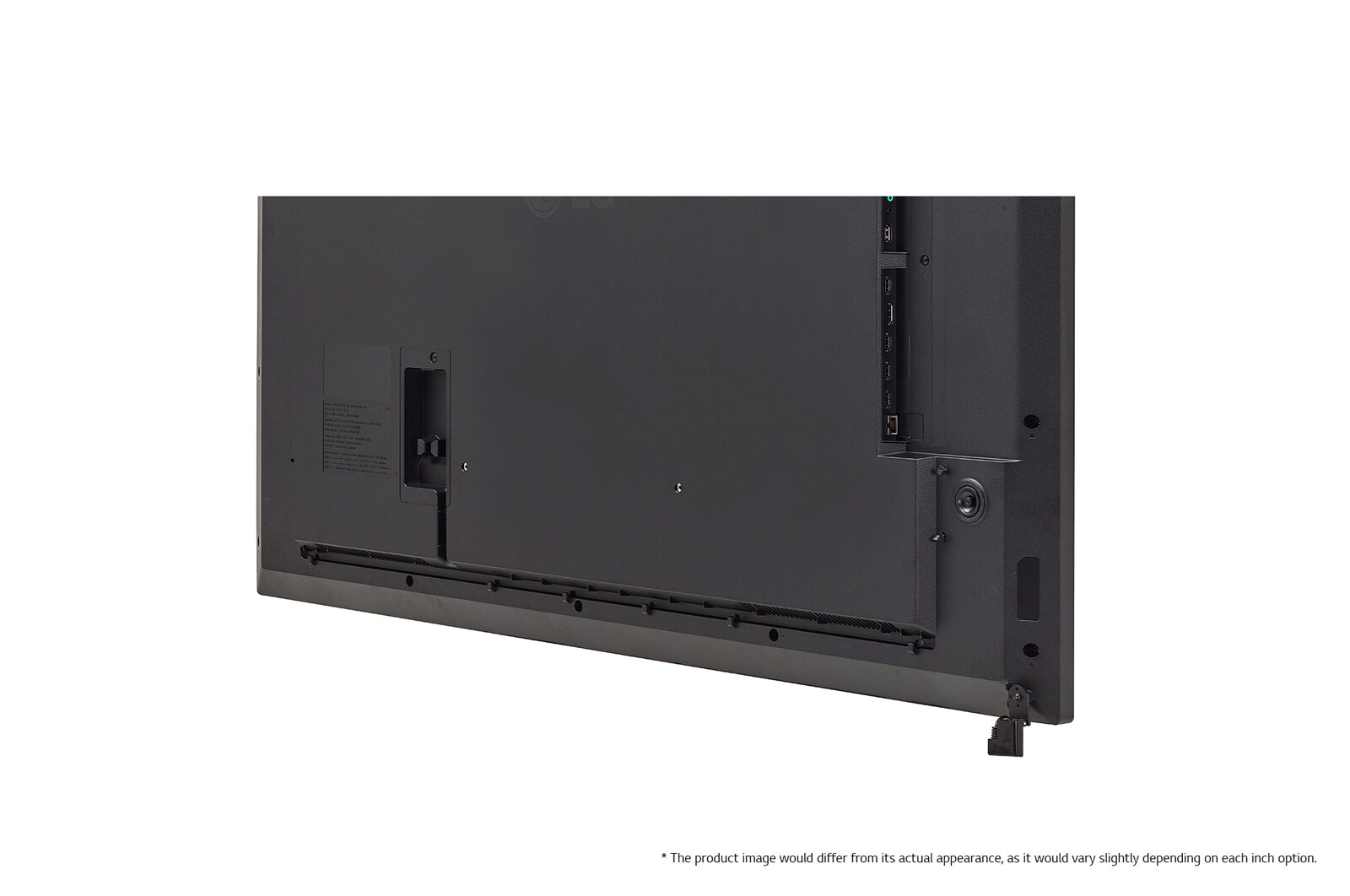

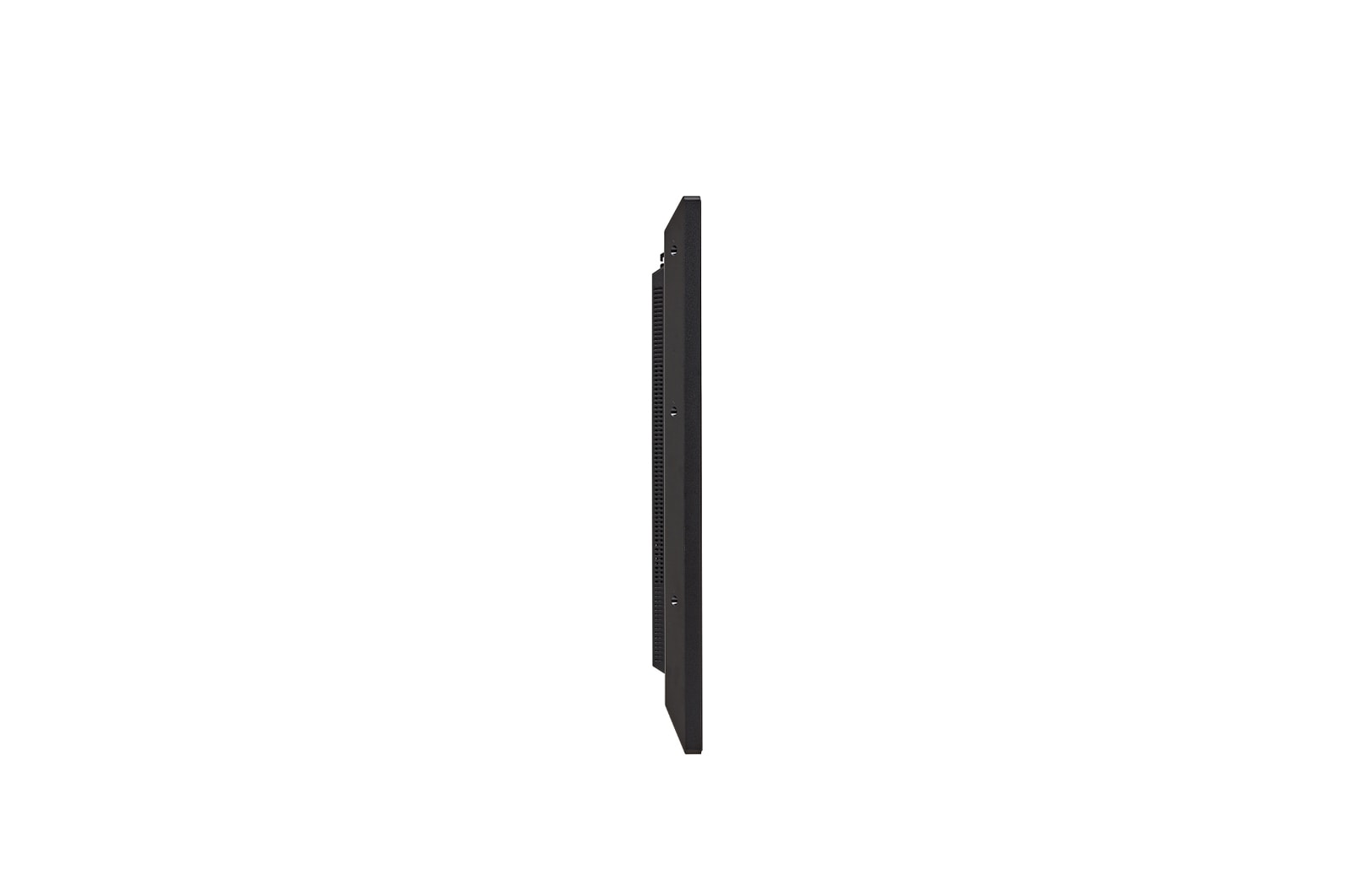

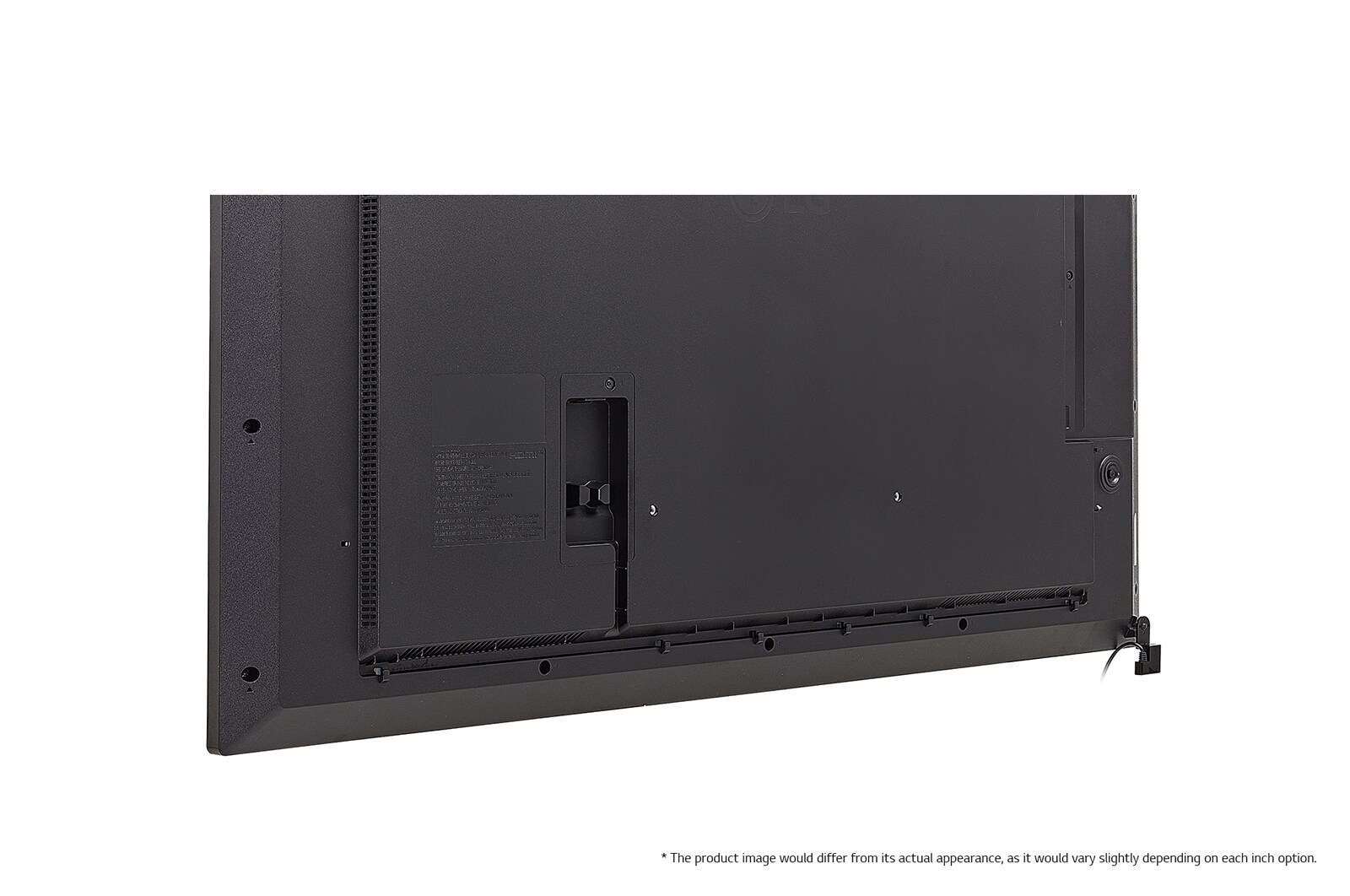

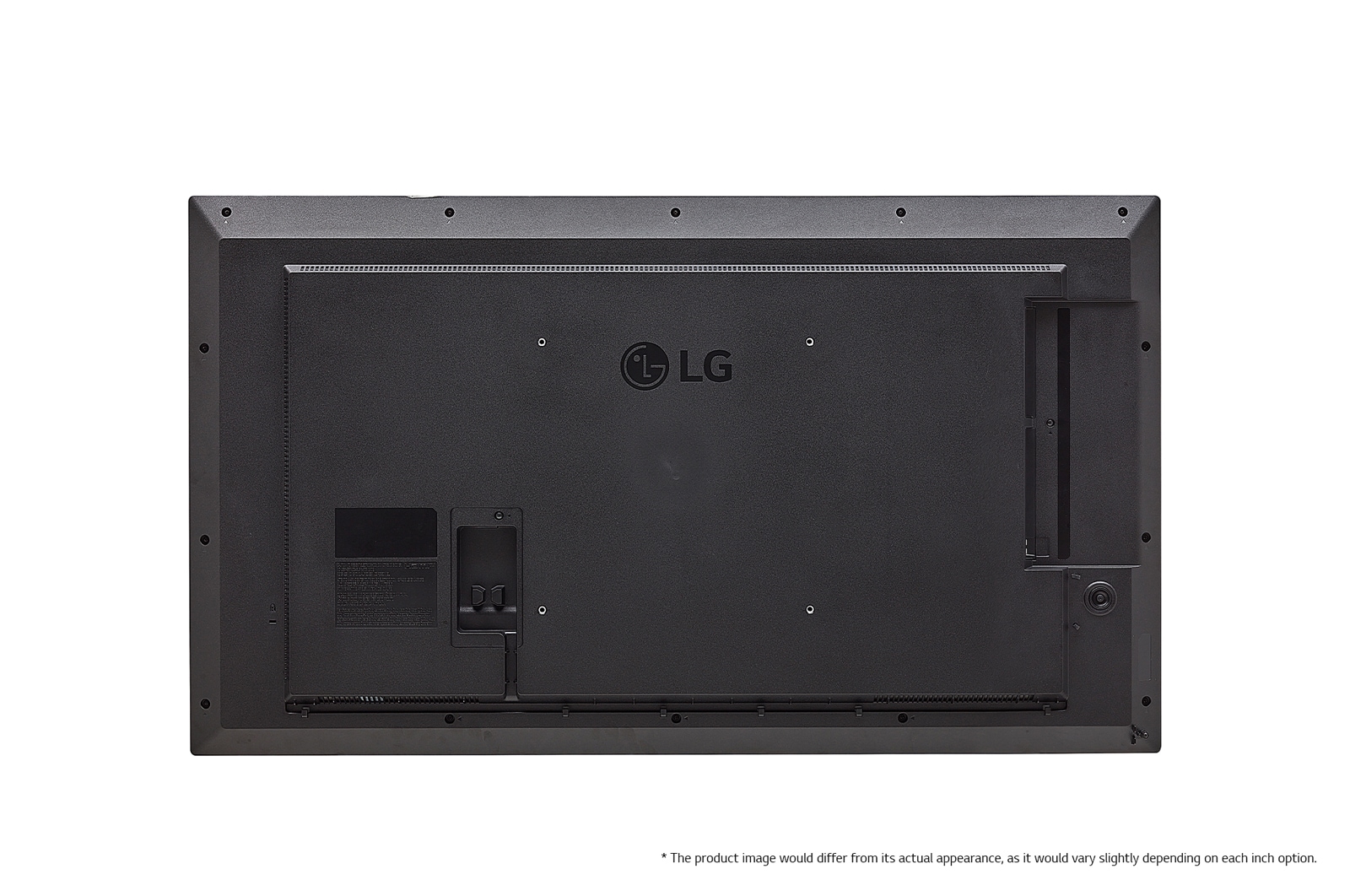

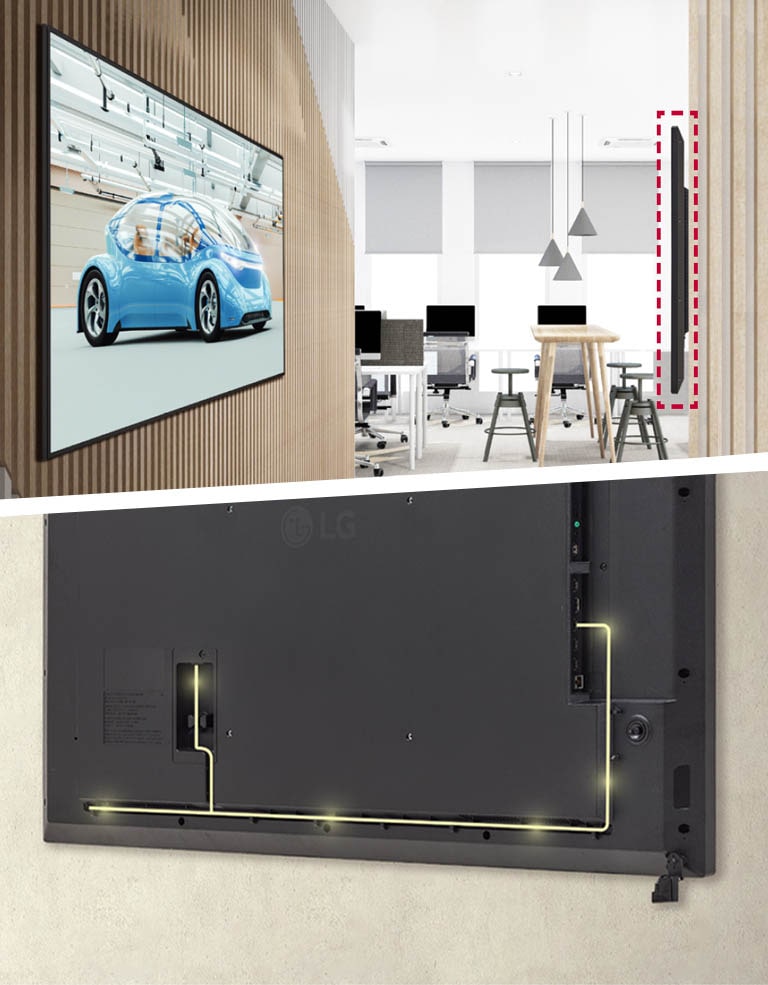

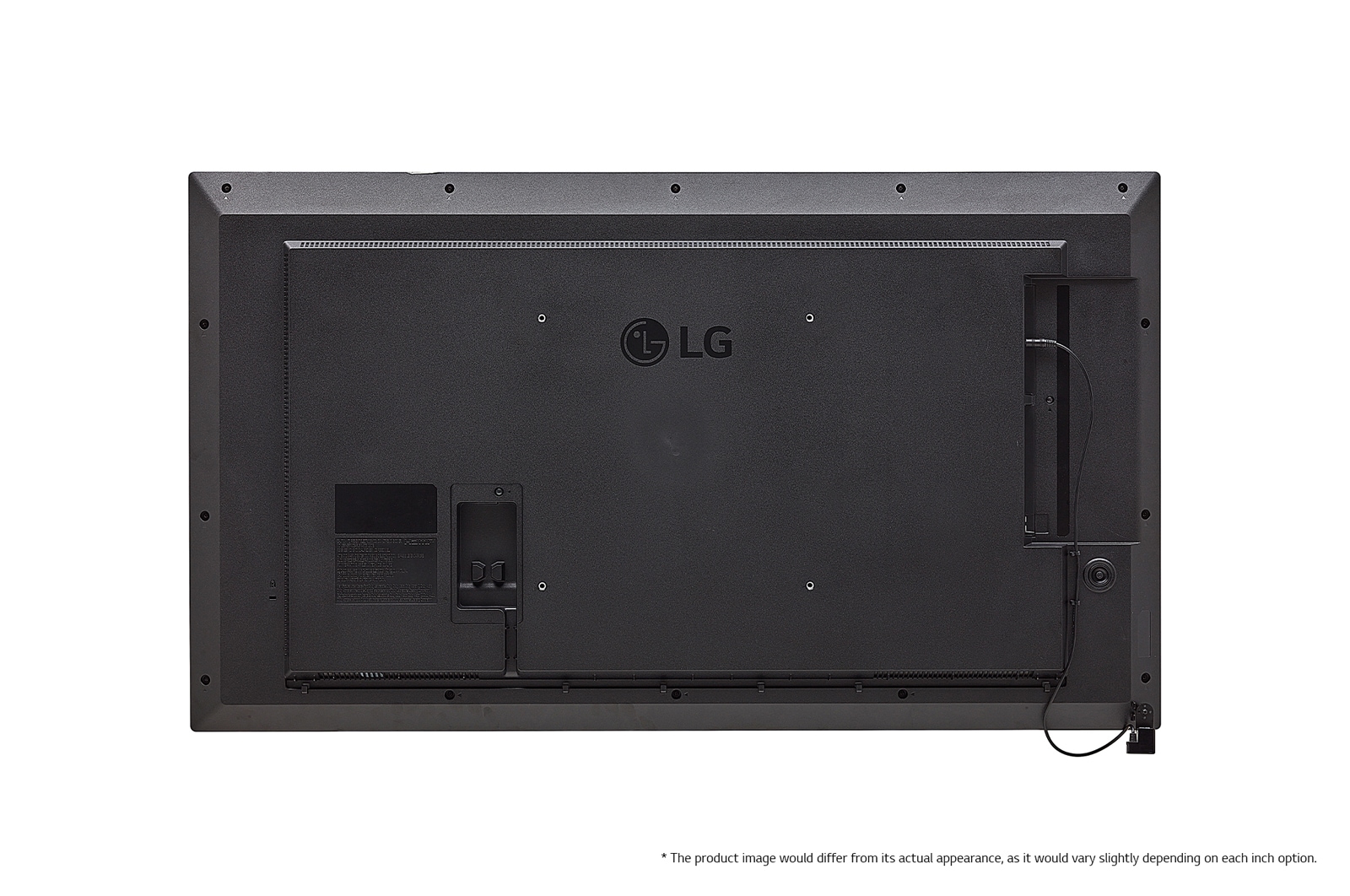

The UM5N-H with slim bezels is mounted close to the wall, showcasing a rear design that is optimized for space-saving with a simple cable management system.
*All images in this page are for illustrative purposes only.
* Bezel accessories are sold separately at an additional cost.
Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.
* LG SuperSign CMS provides a service that works with external content (Streaming, Wb page, video, etc), and external content is not included in the solution.
* Annual license fee apply.
Internal Memory (eMMC)
16GB
Acceleration(Gyro) Sensor
Yes
Auto Brightness Sensor
Yes(IR)
Local Key Operation
Yes
Temperature Sensor
Yes
Wi-Fi/BT (Built-in)
Yes
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Arabic
Speaker (Built-in)
Yes
Optional
Slim Wall Mount (WB21LMA/B), Wall Mount (LSW240A/B) Wall Mount Adapter (AM-B220S)
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
EMC
FCC Class "B" / CE / KC
ERP / Energy Star
Yes (NewErP) / Yes
Safety
CB / NRTL
Operation Humidity
10 % to 80 %
Operation Temperature
0 °C to 40 °C
Power Type
Built-In Power
Power Supply
AC 100-240V~, 50/60Hz
DP In
Yes, 3840x2160@60Hz, HDCP2.2/1.3
Audio Out
Yes
Daisy Chain
Yes(Input HDMI, DP / Output HDMI)
HDMI In
Yes, 3840x2160@60Hz, HDCP 2.2/1.4
HDMI Out
Yes, 3840x2160@30Hz, Input : HDMI1/2/3/DP
IR In
Yes
RJ45(LAN) In
Yes
RS232C In
Yes, 4pin Phone-jack
RS232C Out
Yes, 4pin Phone-jack
USB In
USB2.0 Type A
Back Light Type
Direct
Aspect Ratio
16:9
Brightness
500nit (Typ.)
Color Depth (Number of Colors)
8bits + FRC, 1.07Billion colors
Color Gamut
BT709 95%
Contrast Ratio
1,000:1
Dynamic CR
1,000,000:1
Life time
50,000Hrs (Min.)
Native Resolution
3840 x 2160 (UHD)
Operation Hours (Hours/Day)
24/7
Panel Technology
IPS
Portait / Landscape
Yes / Yes
Refresh Rate
60Hz
Response Time
Tr : 8ms / Tf :10ms
Screen Size (Inch)
43"
Surface Treatment (Haze)
25%
Viewing Angle (H x V)
178 x 178
Tilt (Face down)
Yes(Max 30º degree, 40ºC temperature)
Conformal Coating (Power Board)
Yes
IP Rating
IP5X
Monitor Dimensions (W x H x D)
968 x 559 x 57.7mm (Without IR)
Bezel Color
Black
Bezel Width
T/B: 12.1mm R/L: 11.1mm
Carton Dimensions (W x H x D)
1055 x 660 x 142mm
Packed Weight
11.3kg
VESA Standard Mount Interface
200 x 200
Weight (Head)
9.0Kg
Mobile CMS
Yes
Connected Care
Yes
Promota
Yes (Not available for EU/CIS)
SuperSign Cloud
Yes
SuperSign CMS
Yes
SuperSign Control+
Yes / Yes
SuperSign WB
Yes
Local Network Sync
Yes
Auto Set ID
Yes
Beacon
Yes
Booting Logo Image
Yes
Cisco Certification
Yes
Control Manager
Yes
Crestron Connected
Yes
External Input Rotation
Yes
Fail over
Yes
Gapless Playback
Yes
Group Manager
Yes
HDMI-CEC
Yes
ISM Method
Yes
Local Contents Scheduling
Yes
Network Ready
Yes
No Signal Image
Yes
OS Ver. (webOS)
webOS6.0
PBP
Yes
PIP
Yes
Play via URL
Yes
PM mode
Yes
Pro:Idiom
Yes
RS232C Sync
Yes
Screen Rotation
Yes
Screen Share
Yes
Setting Data Cloning
Yes
SI Server Setting
Yes
Smart Energy Saving
Yes
SNMP
Yes
Status Mailing
Yes
Tile Mode Setting
Yes (Max. 15x15)
USB Plug & Play
Yes
Video Tag
Yes
Wake on LAN
Yes
webRTC
Yes
To access more technical documentation and resources, please visit the LG B2B partner portal.
