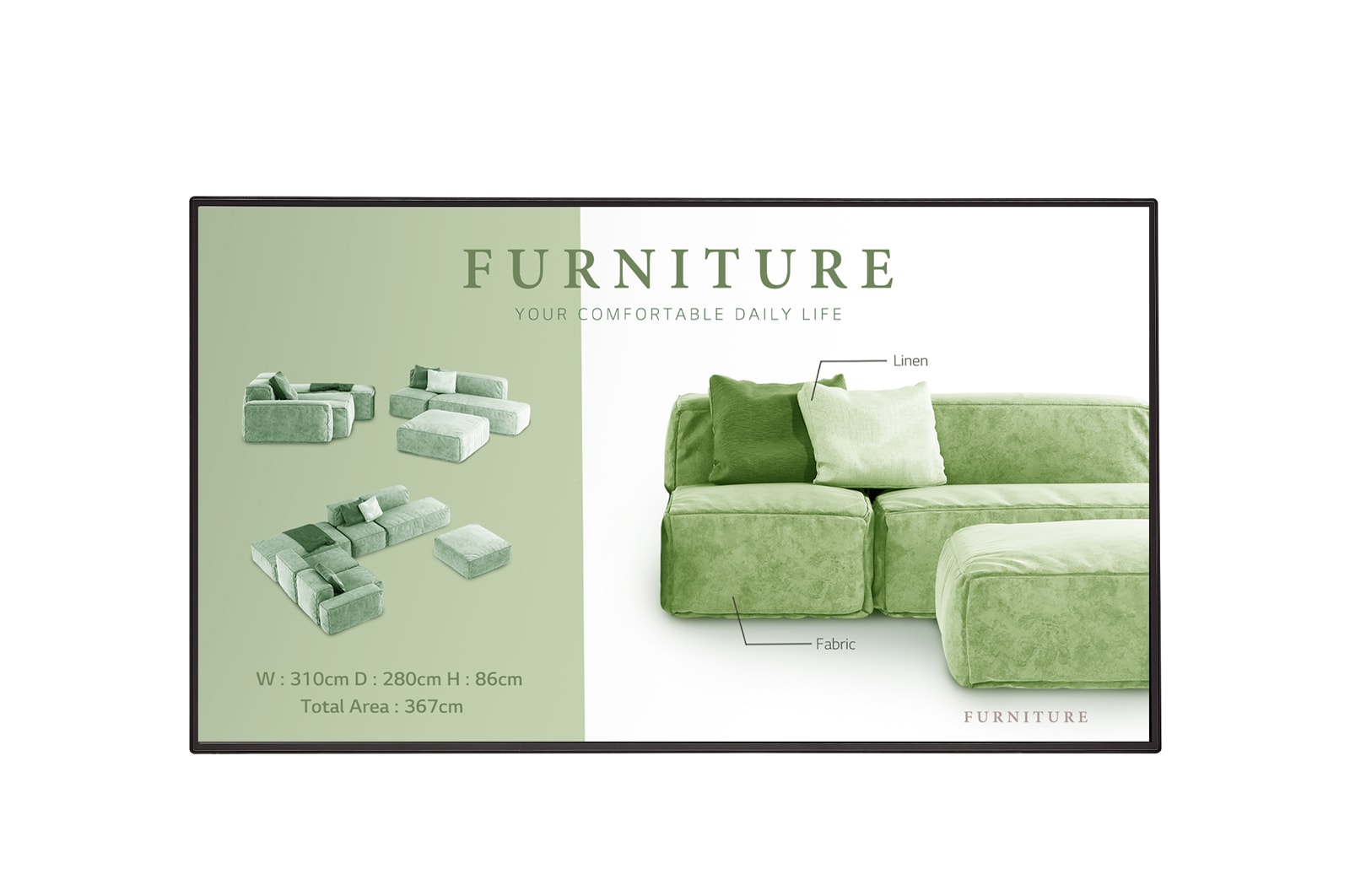

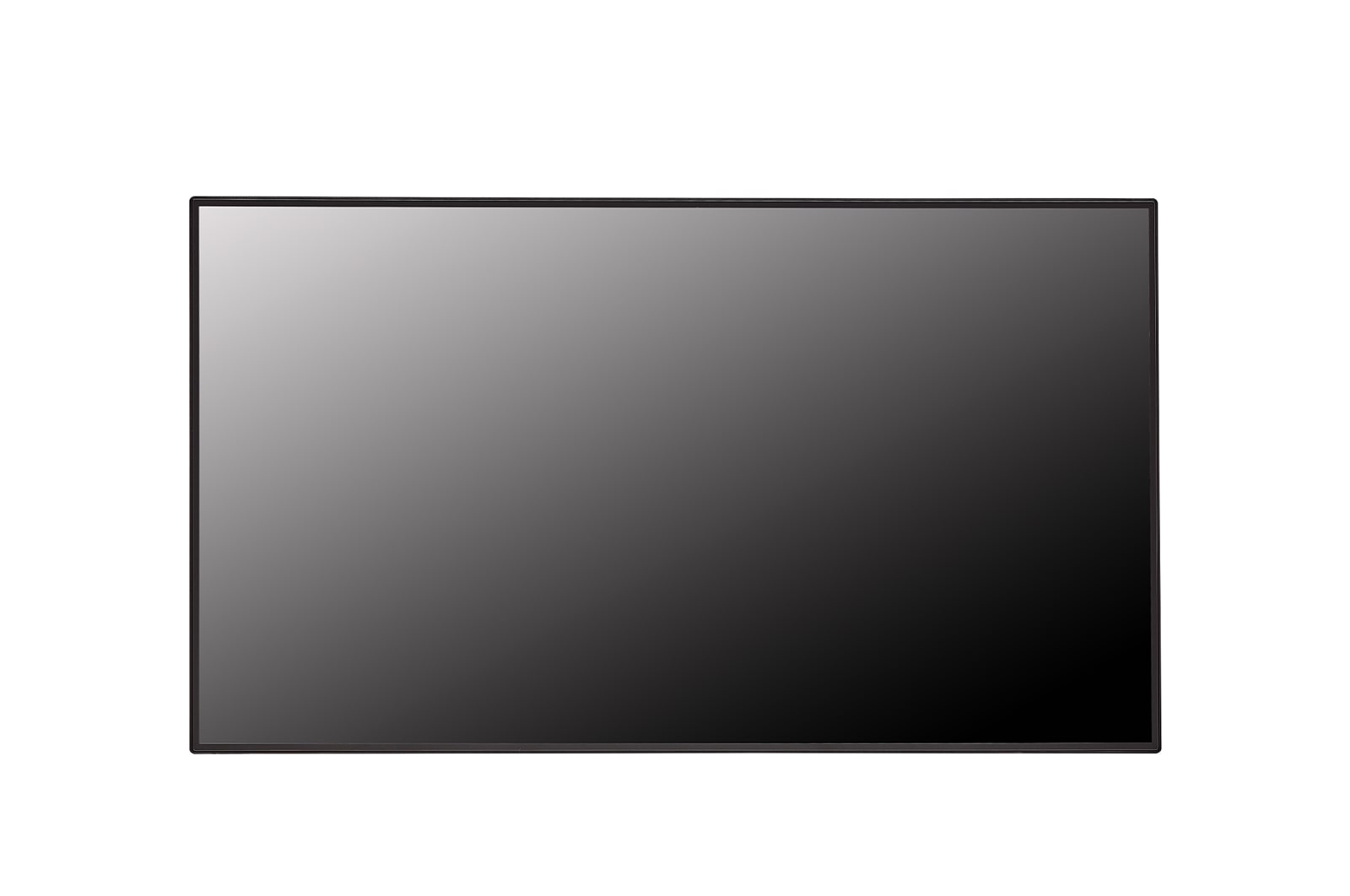

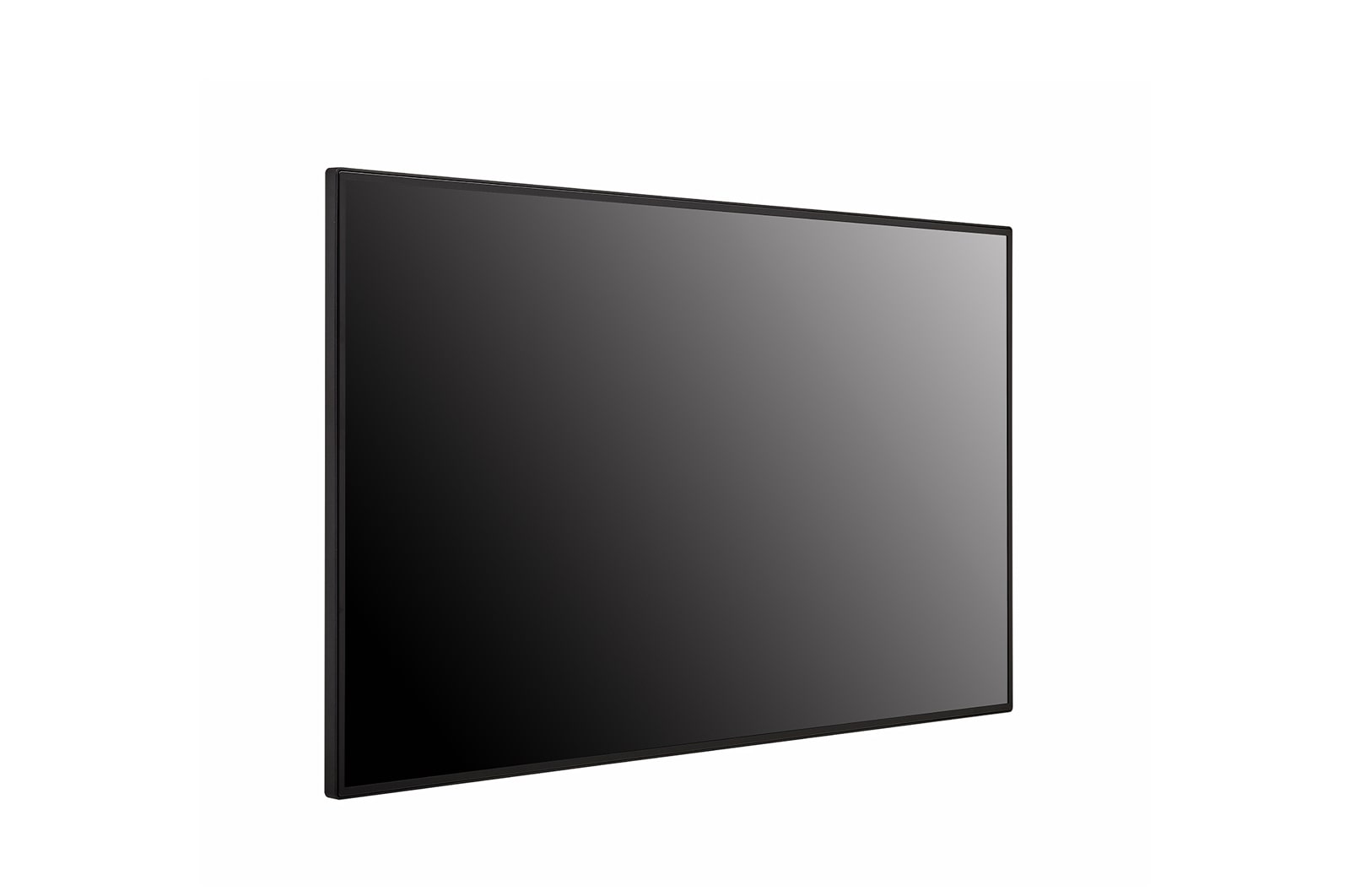

UHD Signage Display

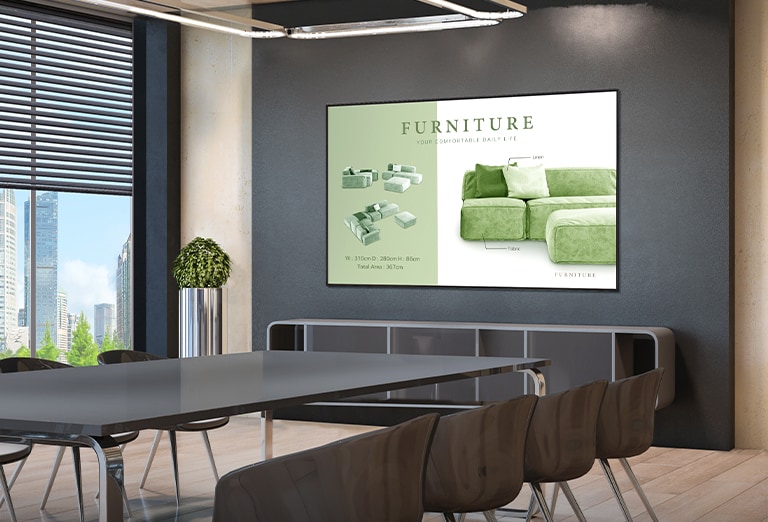

A screen showing the meeting’s contents is installed on the meeting room’s wall.
* All images in this page are for illustrative purposes only.
*webOS Signage is a web-based platform and provides an execution environment for web apps — Internet access is required to access the platform.
** GUI (Graphic User Interface) is a form of graphics-based operating system interface that uses icons, menus and a mouse (to click on the icon or pull down the menus) to manage interaction with the system.

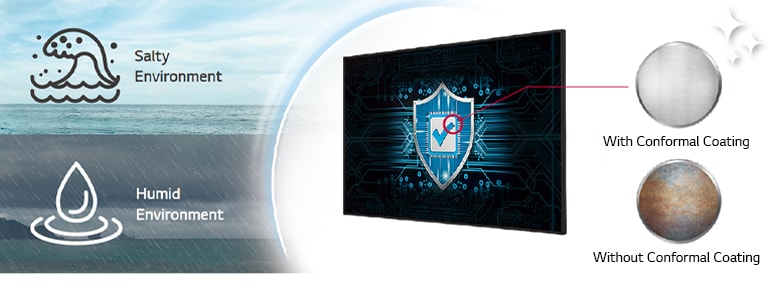

The UM5N-H has Conformal Coating on the power board to protect display even in a salty or humid environment.

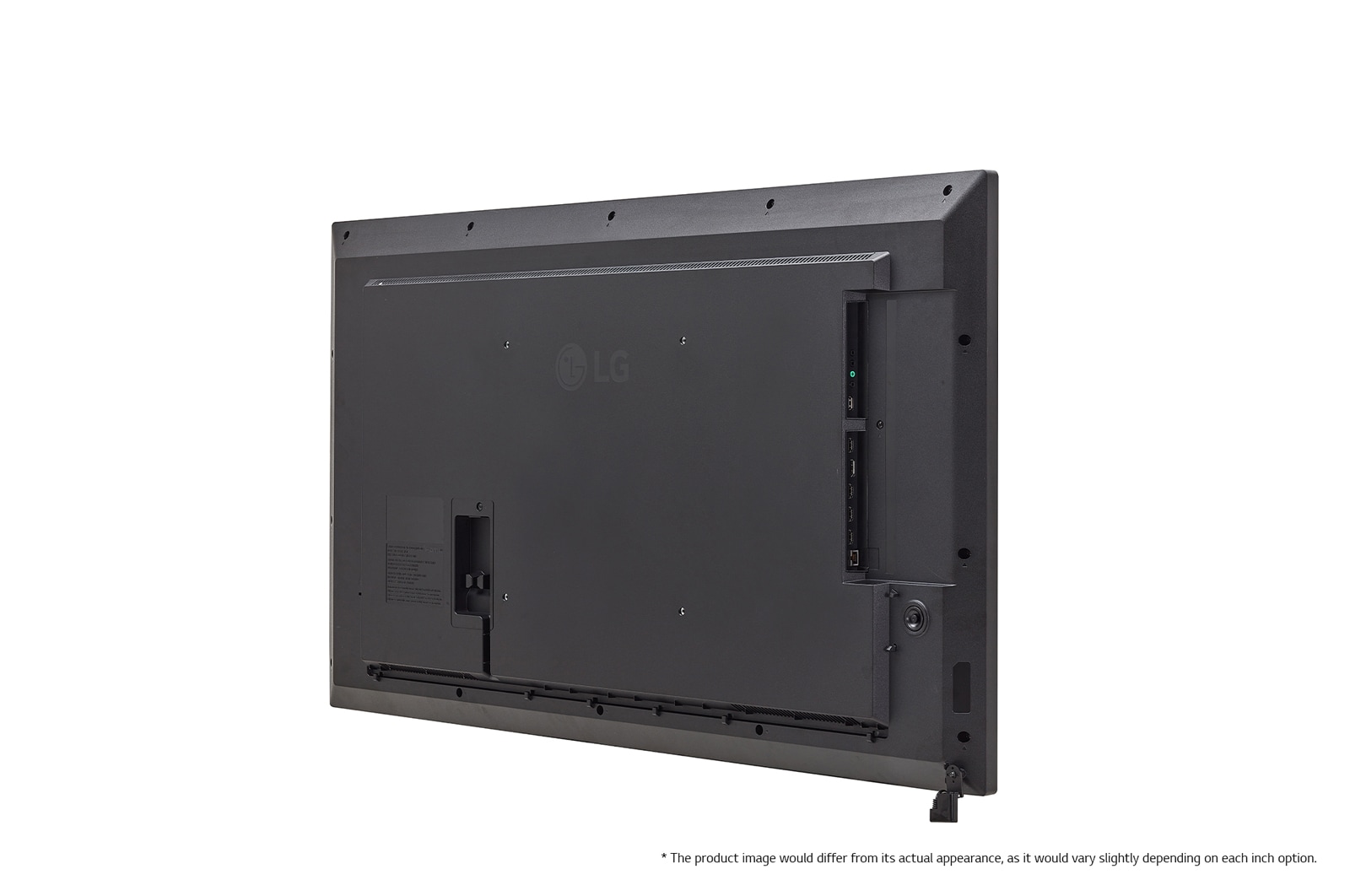

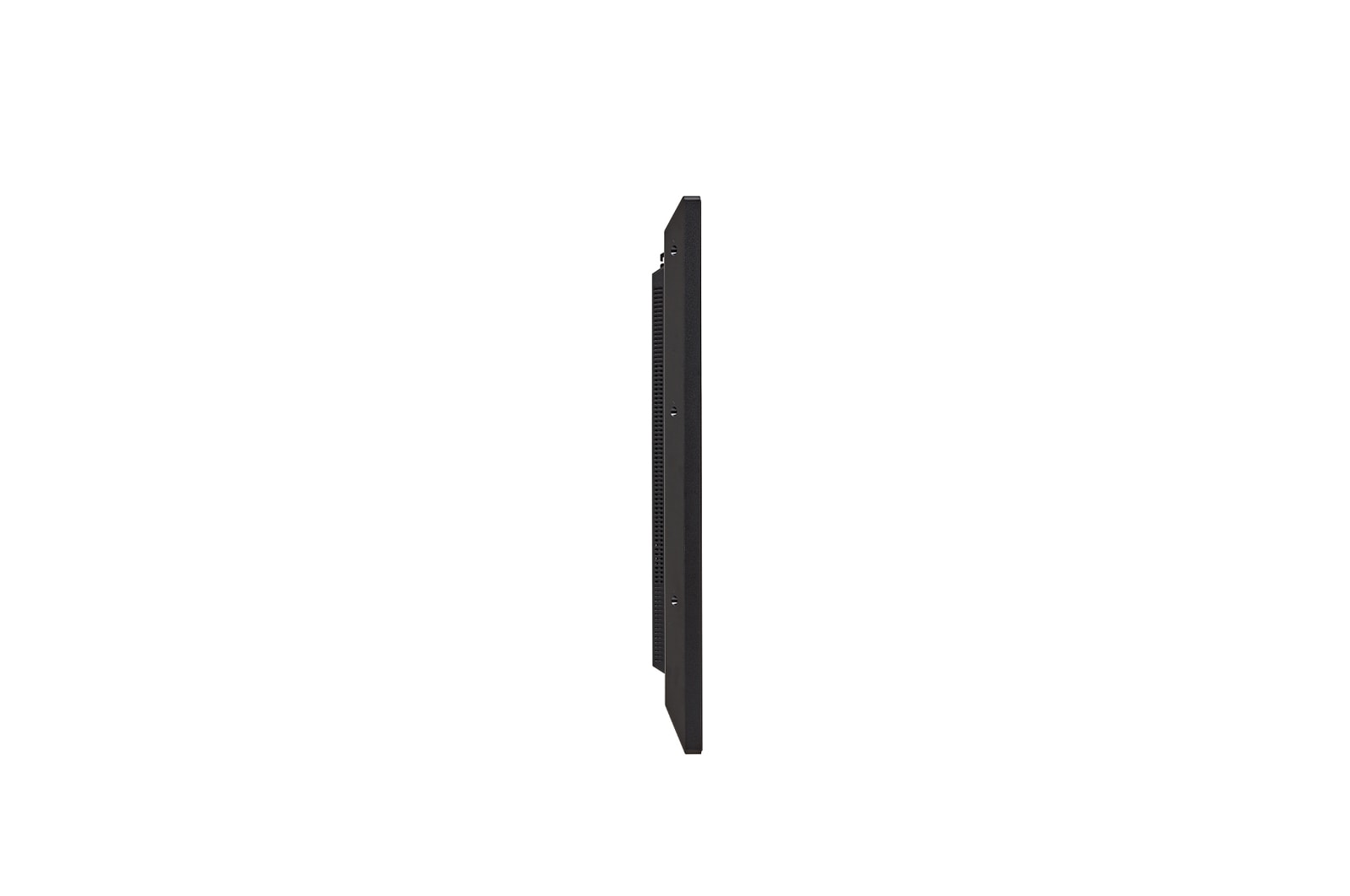

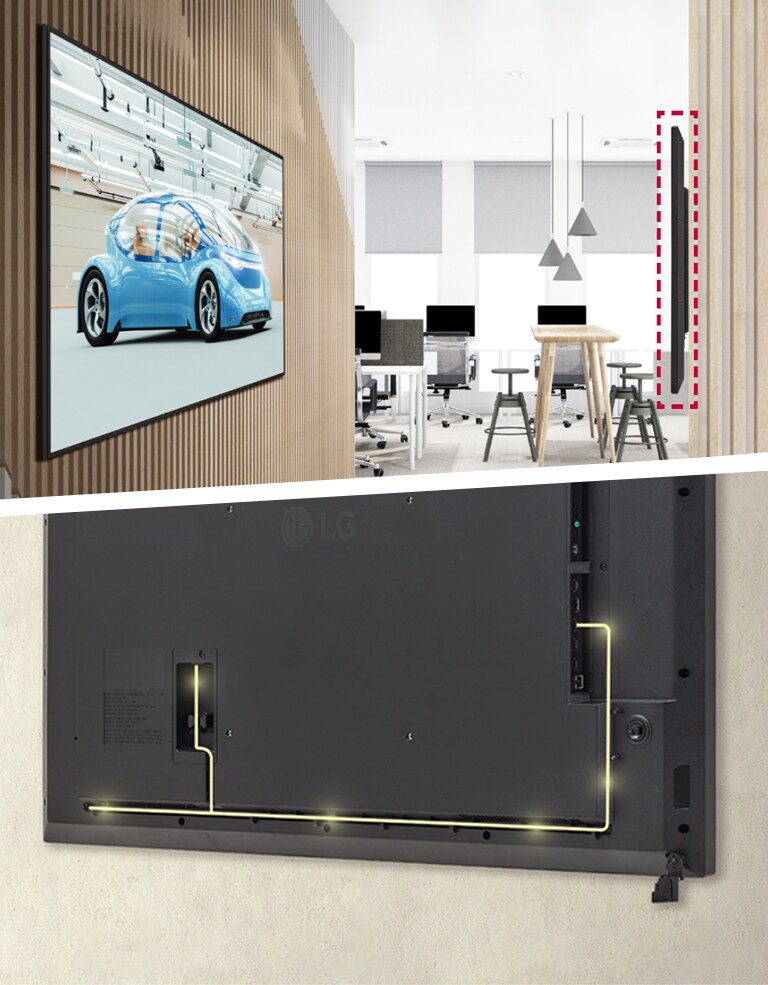

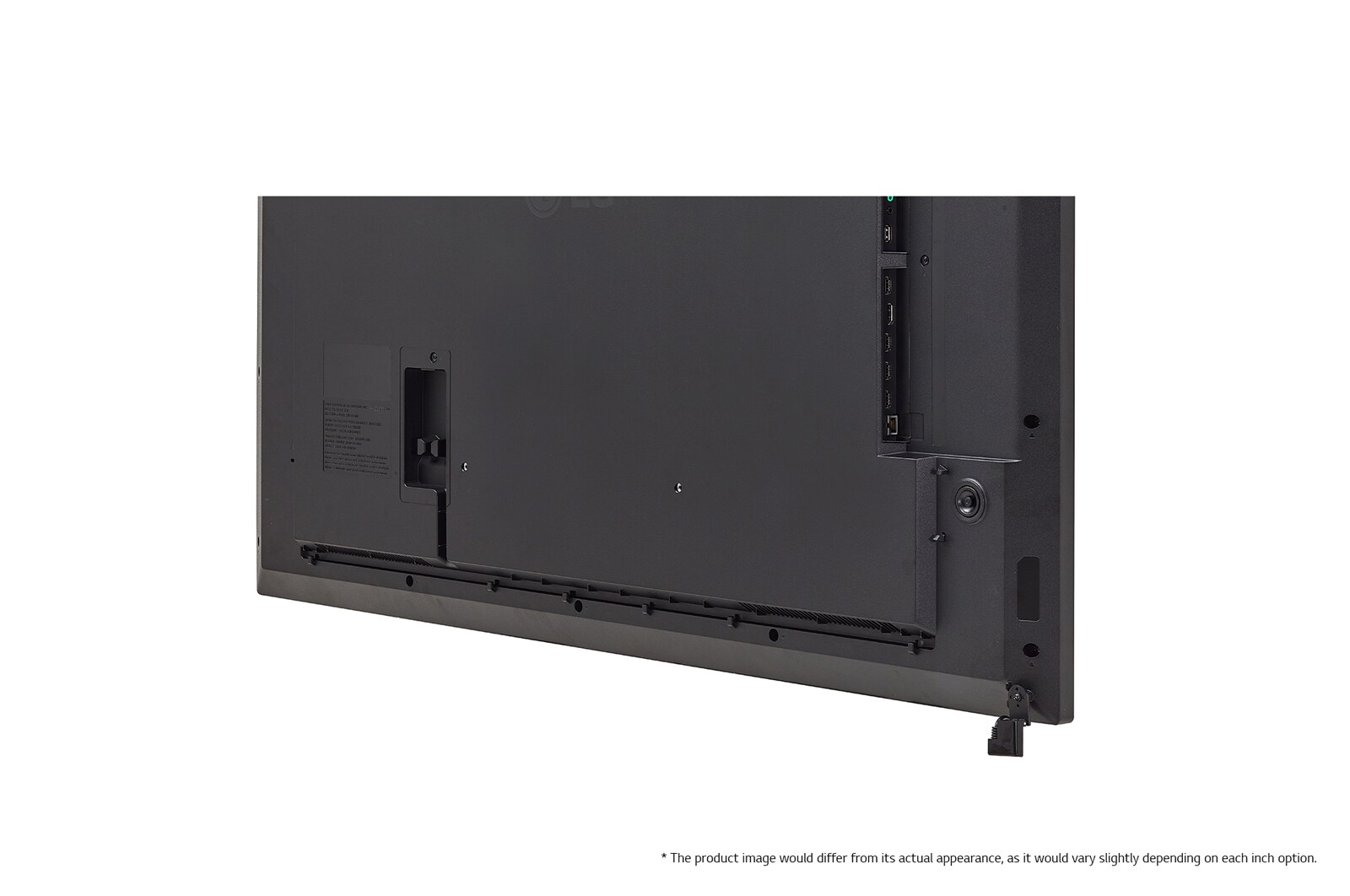

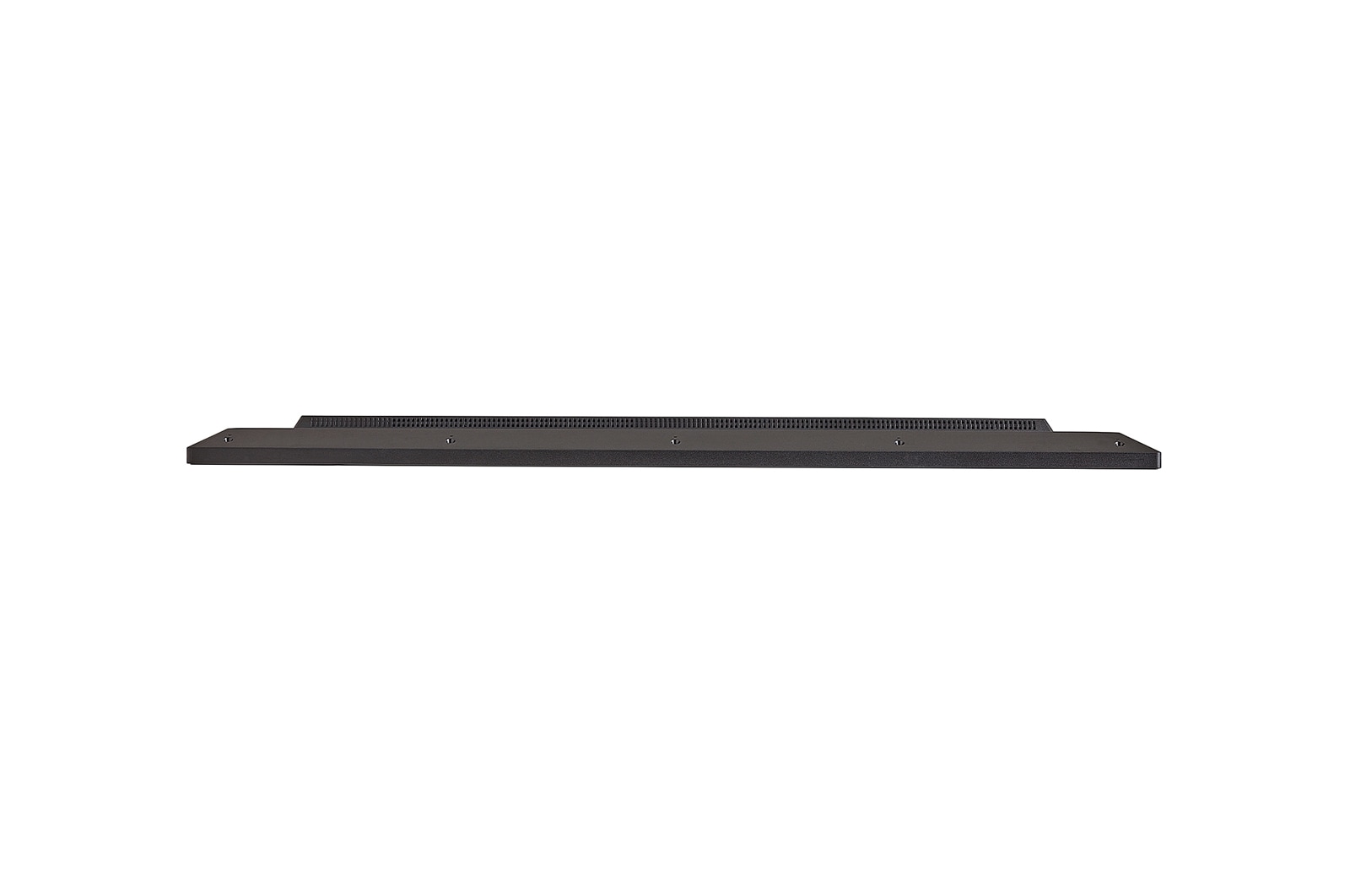

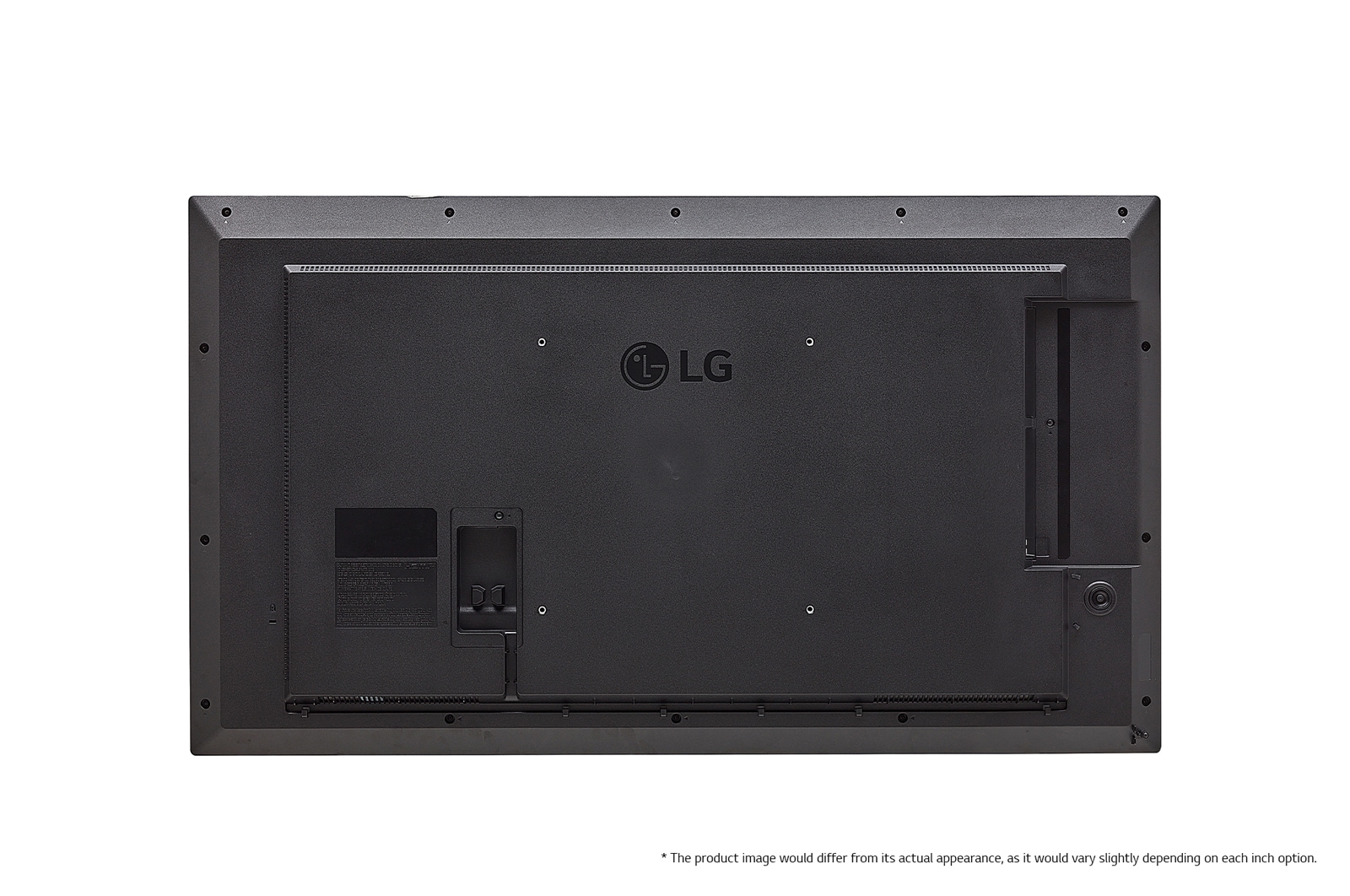

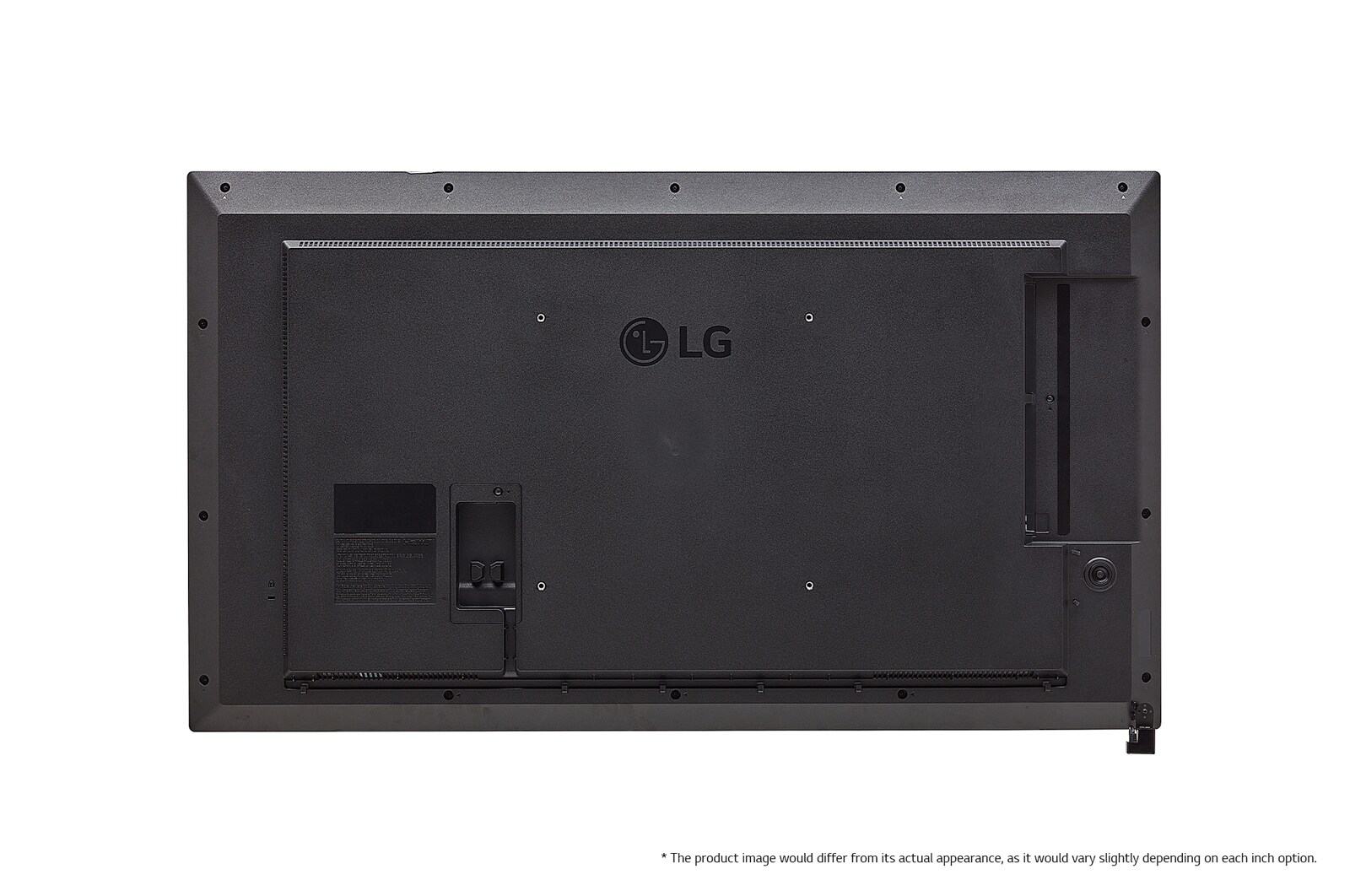

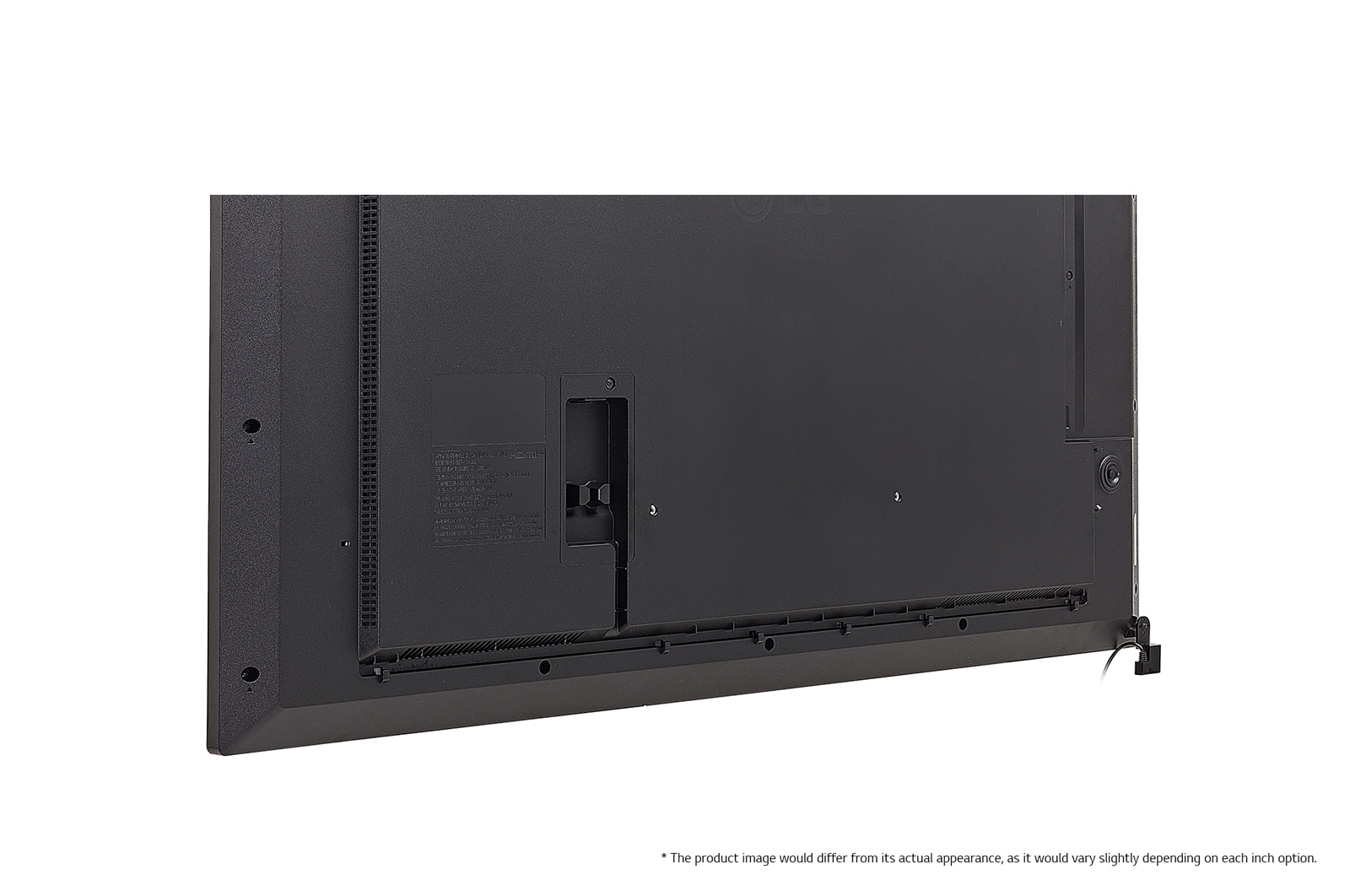

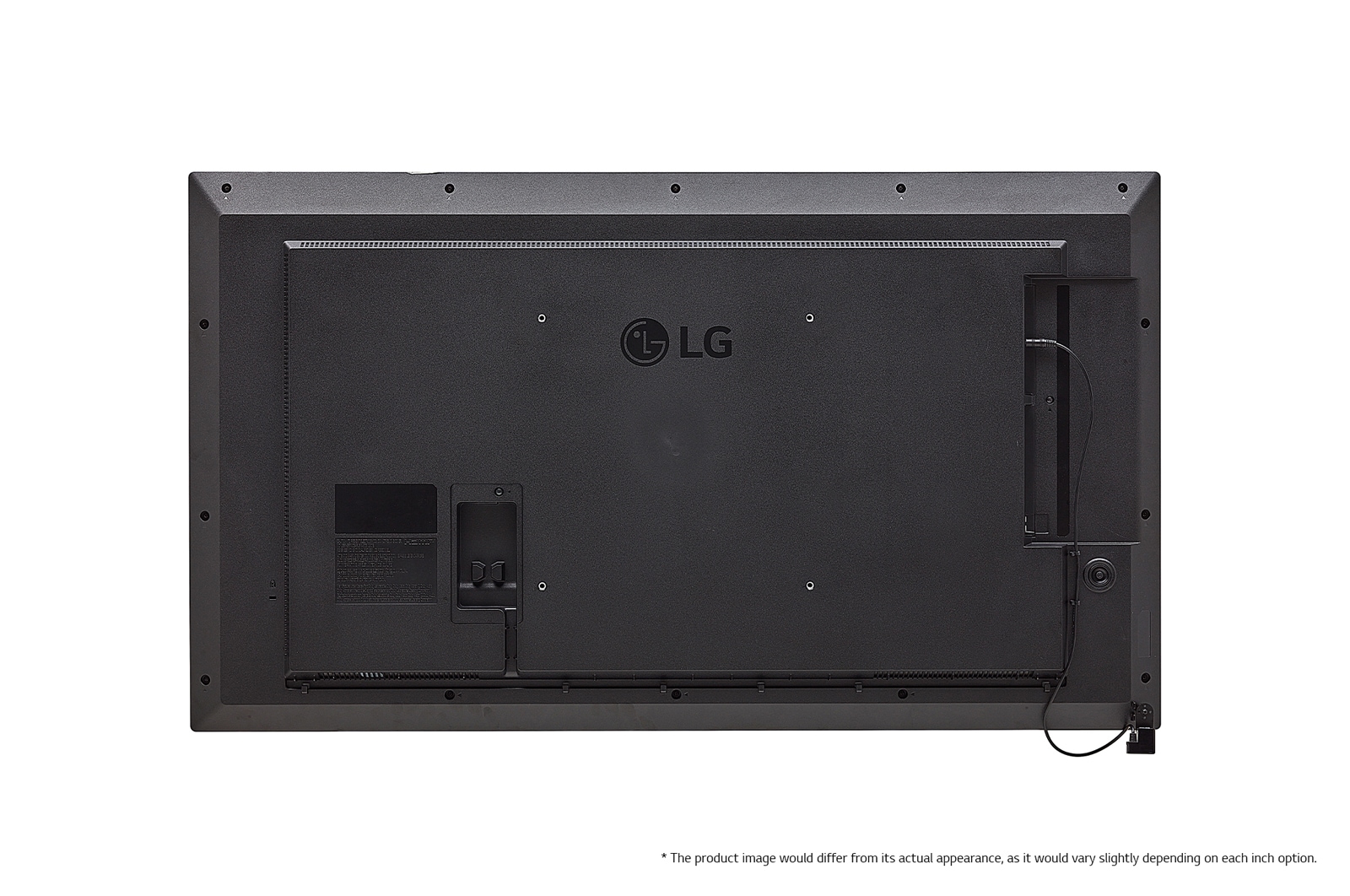

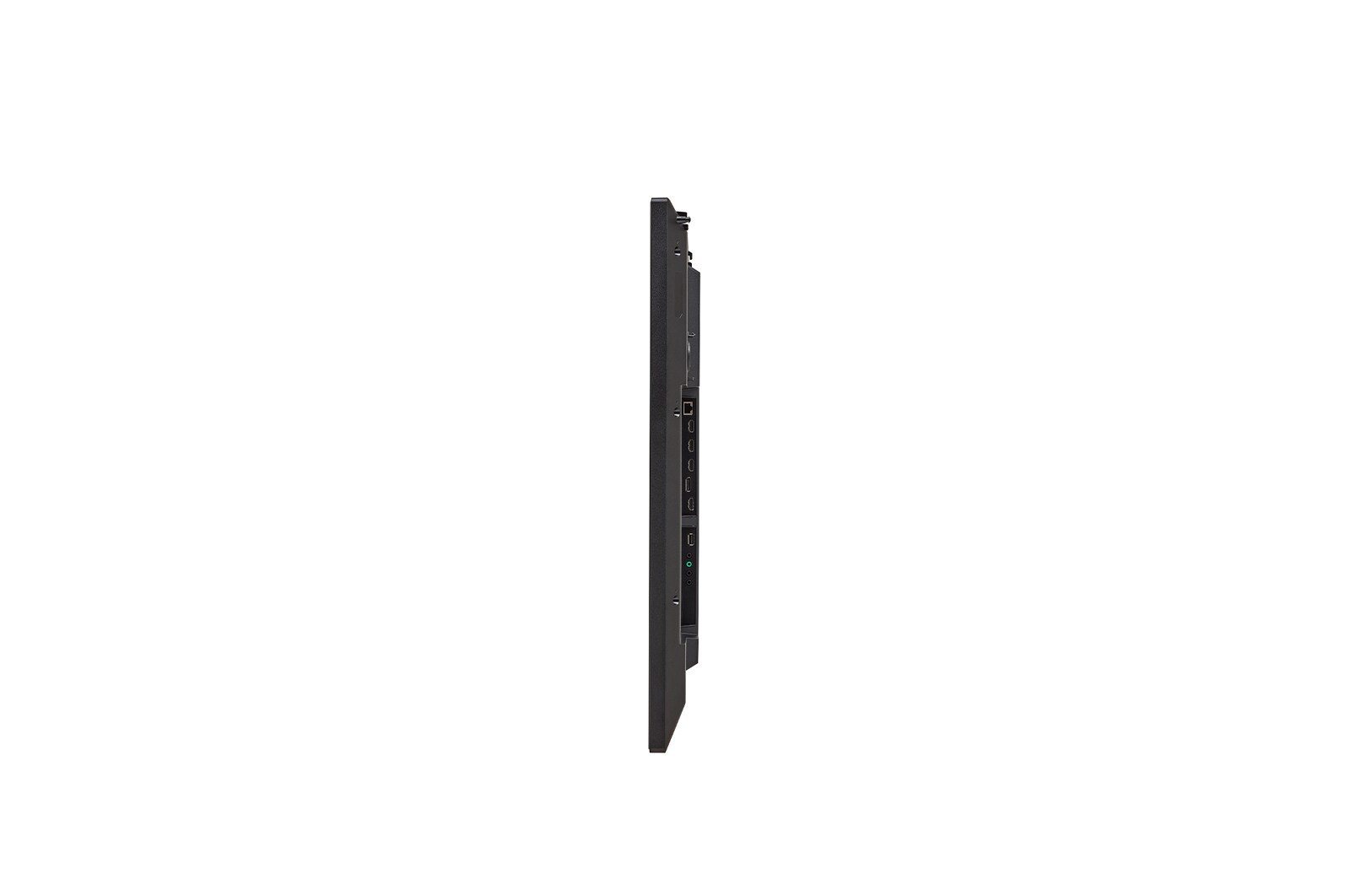

The UM5N-H with slim bezels is mounted close to the wall, showcasing a rear design that is optimized for space-saving with a simple cable management system.
*All images in this page are for illustrative purposes only.
* Bezel accessories are sold separately at an additional cost.

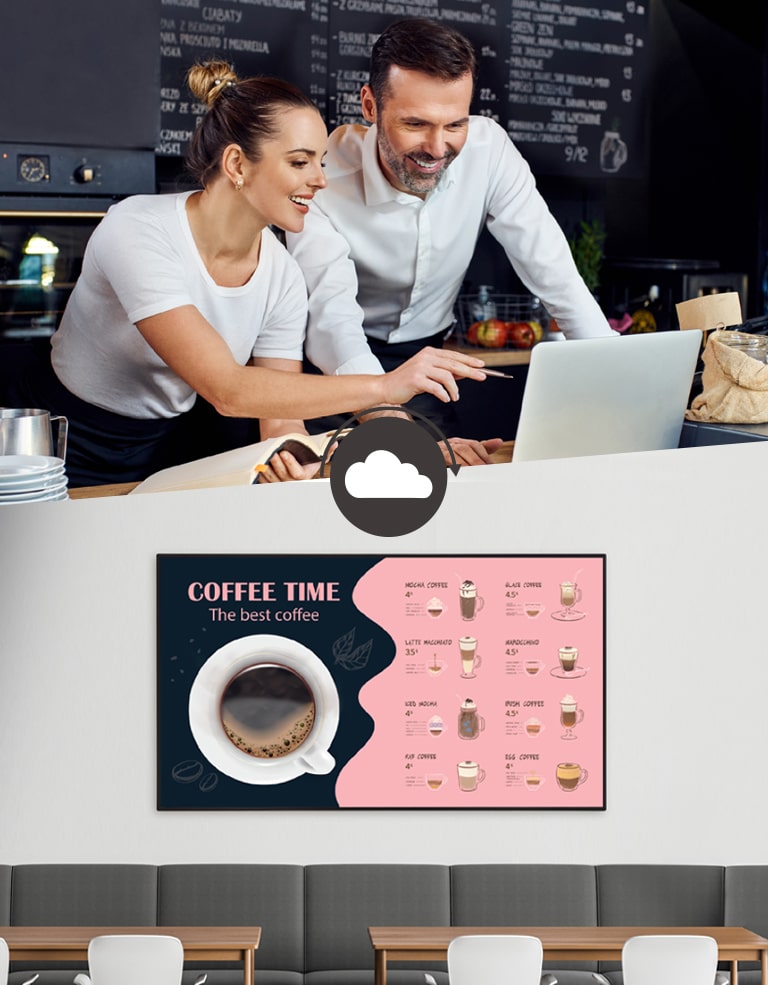

Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.
* LG SuperSign CMS provides a service that works with external content (Streaming, Wb page, video, etc), and external content is not included in the solution.
* Annual license fee apply.
Product
Standard (UHD)
Year
Y23
Month
M06(TBD)
Screen Size (Inch)
55"
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness (Typ.)
500nit (Typ.)
Contrast Ratio
1,100:1
Dynamic CR
1,000,000:1
Color gamut
BT709 95%
Viewing Angle(H x V)
178 x 178
Color Depth
10bit(D), 1.07Billion colors
Response Time
Tr : 8ms / Tf :10ms
Surface Treatment(Haze)
0.28
Life Time
50,000Hrs (Min.)
Operation Hours (Hours/Day)
24/7
Portrait / Landscape
Yes / Yes
HDMI IN
Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4
DP IN
Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
RS232C IN
Yes(1), 4pin Phone-jack
RJ45(LAN) IN
Yes(1)
IR IN
Yes(1)
USB IN
USB2.0 Type A(1)
HDMI Out
Yes(1), 3840x2160@30Hz, Input : HDMI1/2/3/DP
Audio Out
Yes(1)
RS232C Out
Yes(1), 4pin Phone-jack
Daisy Chain
Yes(Input HDMI, DP / Output HDMI)
Bezel Color
Black
Bezel Width
T/B: 12.4mm R/L: 11.4mm
Weight (Head)
14.2Kg
Packed Weight
18.9Kg
Monitor Dimensions (W x H x D)
1237 x 710 x 57.7mm (Without IR)
Carton Dimensions (W x H x D)
1360 x 810 x 162mm
VESATM Standard Mount Interface
300 x 300
Internal Memory
16GB
Wi-Fi (Built-in)
Yes
Temperature Sensor
Yes
Auto Brightness sensor
Yes(외장 IR)
Acceleration(Gyro) Sensor
Yes
Local Key Operation
Yes
Speaker (Built-in)
Yes
OS ver.
webOS6.0
Local Contents Scheduling
Yes
Group Manager
Yes
USB Plug & Play
Yes
Fail over
Yes
Booting Logo Image
Yes
No Signal Image
Yes
RS232C Sync
Yes
Local Network Sync
Yes
PIP
Yes
PBP
Yes(4)
Screen Share
Yes
Video Tag
Yes(4)
External Input Rotation
Yes
Play via URL
Yes
Screen Rotation
Yes
Gapless Playback
Yes
Tile Mode Setting
Yes (Max. 15x15)
Setting Data Cloning
Yes
ISM Method
Yes
SNMP
Yes
Auto Set ID
Yes
Status Mailing
Yes
Control Manager
Yes
Cisco Certi.
Yes
Crestron Inside
Yes
Smart Energy Saving
Yes
PM mode
Yes
Wake on LAN
Yes
Network Ready
Yes
Beacon
Yes
HDMI-CEC
Yes
SI Server Setting
Yes
Pro:Idiom
Yes
webRTC
Yes
Operation Temperature
0 °C to 40 °C
Operation Humidity
10% ~ 80%
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Power Consumption (Typ.)
130 W
Power Consumption (Max.)
180W
Power Consumption (British Thermal Unit)
444 BTU/Hr(Typ.), 614 BTU/Hr(Max)
Power Consumption (Smart Energy Saving, ~70%)
91W
Power Consumption (DPM)
0.5W
Power Consumption (Power Off)
0.5W
Safety
CB / NRTL
EMC
FCC Class "B" / CE / KC
ErP / Energy Star
Yes (NewErP) / Yes
ISTA6
Yes(~'23.9월, US Suffix Only)
Carbon Trust
Yes(~'23.9, CO2 Measured)
SuperSign CMS
Yes
SuperSign Control / Control+
Yes / Yes
SuperSign WB
Yes
SuperSign Cloud
Yes
Promota
Yes (Not available for EU/CIS)
Mobile CMS
Yes
Connected Care
Yes
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Arabic
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
Optional
Slim Wall Mount (WB21LMA/B), 일반 Wall Mount (OLW480A/B) Wall Mount Adapter (AM-B330S)
Tilt (Face Down)
Yes(Max 30º degree, 40ºC temperature)
IP Rating
IP5X
Conformal Coating (Power Board)
Yes
To access more technical documentation and resources, please visit the LG B2B partner portal.
