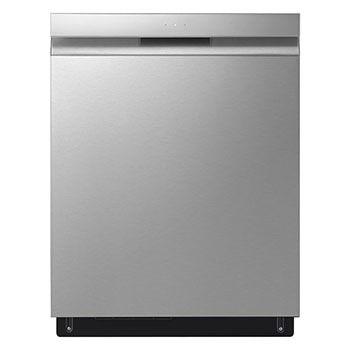

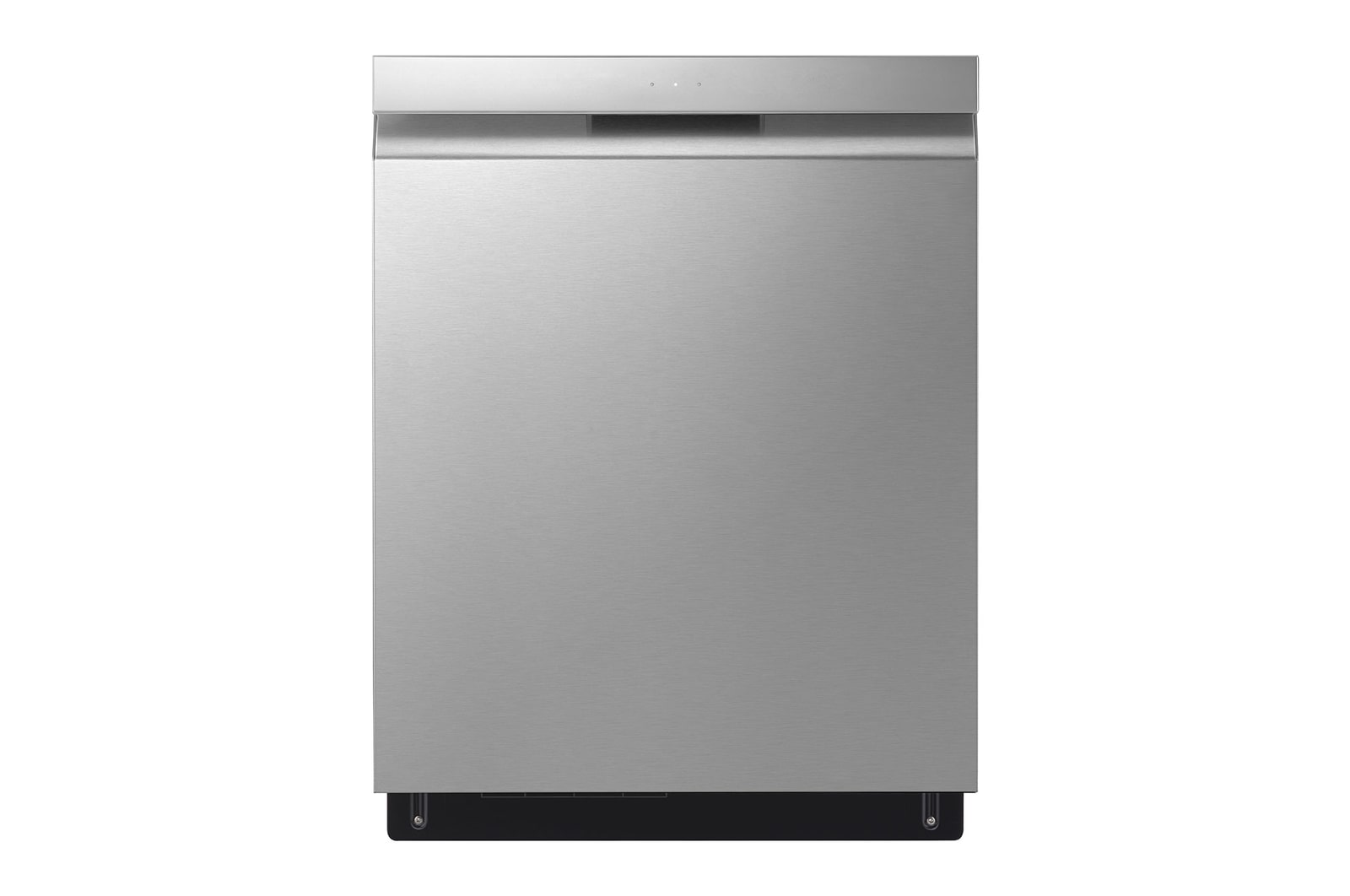

Key Features
NFC
Yes
Proactive Customer Care
No
Remote Control
No
Remote Monitoring
No
Smart Diagnosis
Yes
ThinQ(Wi-Fi)
No
Child-Lock Indicator
No
Fingerprint Resistant
Yes
Rinse Refill Indicator
Yes
Salt Refill Indicator
No
SignaLight™ Cycle Indicator Lights
3
Status Indicators
3 Indicator Lights
Temperature Display
No
Time Remaining Indicator
LED
Tub Light(Tub Lamp)
No
Tub Material
NeveRust™ Stainless Steel
Bar Code
195174085097
Control Panel(Material)
ABS
Display Type
LED
Handle Type
Pocket Handle
Panel Type
Top Control
Total Place Settings
15
Number of Wash Cycles (Program)
9
1 Hour
No
Auto
Yes
Cancel
Yes
Control Lock
Yes
Delay Start
Yes
Delicate
Yes
Download Cycle
Yes
DryBoost
No
Dual Zone
Yes
Eco
No
Energy Saver
Yes
Express
Yes
Extra Dry
Yes
Half Load
Yes
Heavy
Yes
High Temp.
Yes
Intensive
No
Machine Clean
Machine Cleaen(Nonsteam)
Normal
Yes
Number of Options
7
Refresh
No
Rinse
Yes
Steam
No
Turbo
Yes
Packing Dimensions - WxHxD (in)
28 1/32 x 34 7/8 x 29 5/8
Packing Weight (lbs)
93
Product Dimensions - WxHxD (in)
23 3/4 x 33 5/8 x 24 5/8
Product Weight (lbs)
82
CEE Tier Level
1
Energy Star
Yes
Energy Use (kWh/Year)
238
Water Use (Gallons/Cylce)
2.9
Manufacturer
KOR
Aqua-Stop
No
Detergent and Rinse-Aid Dispenser
Yes
DirectDrive Motor™
Yes
Drying System
Dynamic Dry
Hidden Water Heater
Yes
Inverter Direct Drive Motor
Yes
LoDecibel Quiet Operation (dBA)
48
Number of Spray Arms
3
QuadWash™
Yes
Safety Float Switch (Leaks)
Yes
SenseClean Wash System
Yes
Soil (Turbidity) Sensor
Yes
TrueSteam™
No
Vario Washing System
Yes
Water Softner
No
Cutlery Baskets
Yes
EasyRack™ Plus System
Yes
Gliding Type_Lower
No
Gliding Type_Upper
No
Height Adjustable 3rd Rack
Yes(Fixed)
Maximum Height of Lower Rack (in)
12 1/2
Maximum Height of Upper Rack (in)
9

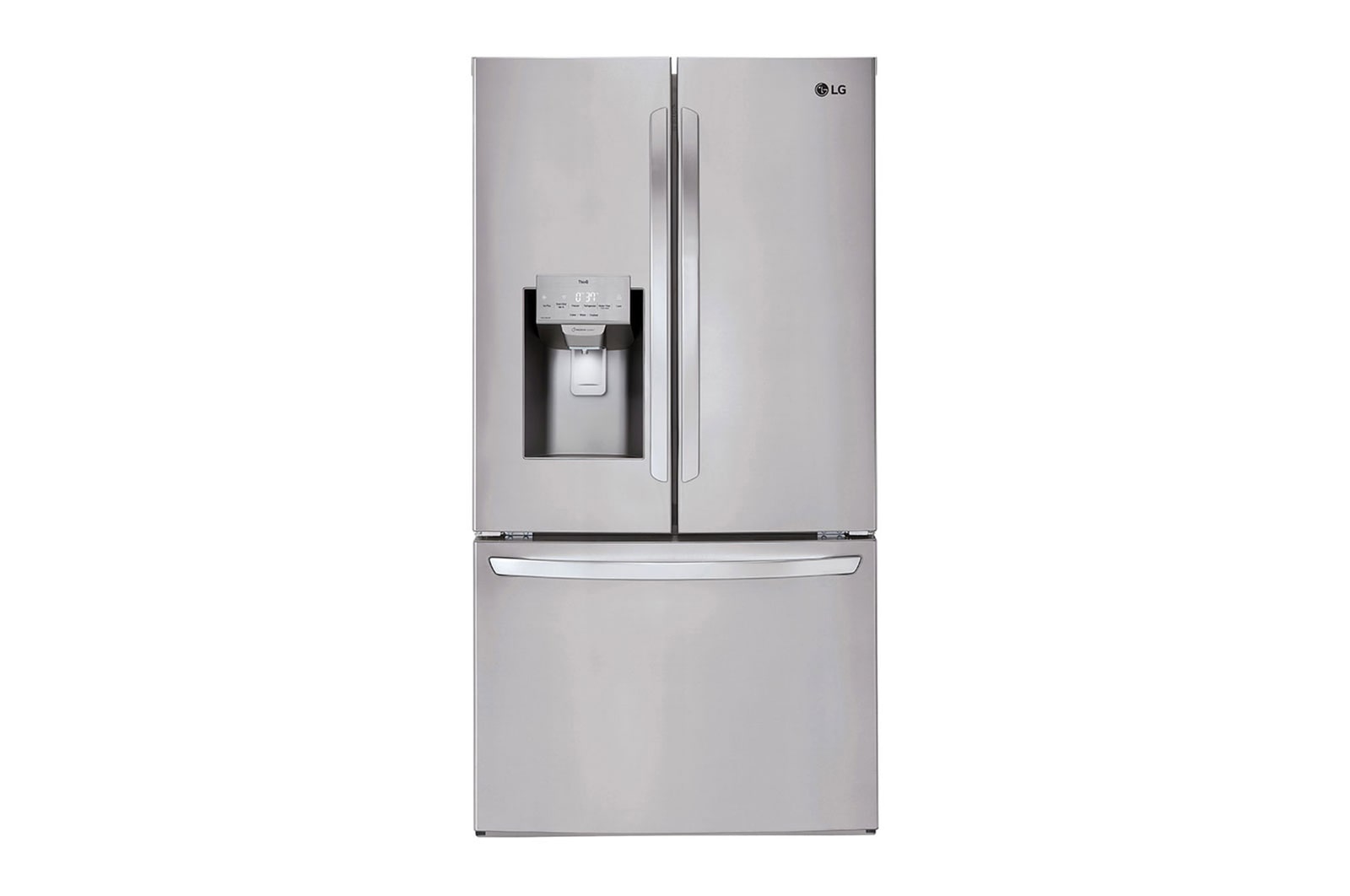

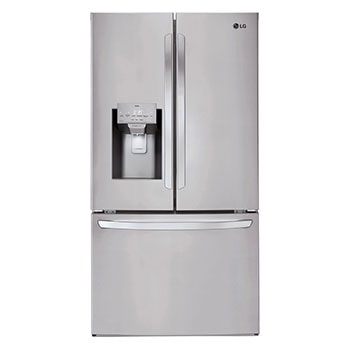

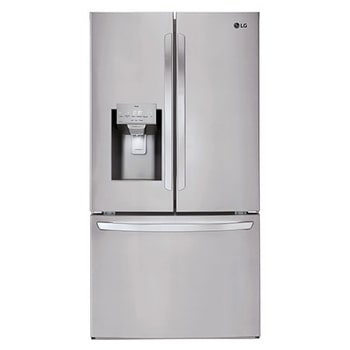

Refrigerator (cu.ft.)
18.4
Freezer (cu.ft.)
9.3
Total Capacity (cu.ft.)
27.7
Energy Consumption (kWh/year)
726
ENERGY STAR® Qualified
Yes
In-door Ice Maker Type
Cubed/Crushed
Ice & Water Dispenser
Yes
In-door Ice Maker
Yes (1)
Daily Ice Production (lbs)
3.5
IcePlus™ Production (lbs)
3.8
Ice Storage Capacity (lbs)
2.5
Ice Plus
Yes
Filtration System
1 stage
Water Filter
LT1000P
Compressor Type
Smart Inverter
Evaporator
Yes (1)
Multi-Air Flow Cooling
Yes
Temperature Sensors
2
Refrigerant
Low GWP, Zero ODP and More Energy Efficient Refrigerant (R600a/55g/1.94 oz)
Display Type
Membrane / White LED
Temperature Controls
Electronic/Digital
Door Alarm
Yes
Child Lock
Yes
Auto Closing Door Hinge
Yes
Sabbath Mode
Yes
ADA Compliant
Yes
No. of Shelves
4 Split (4 Fixed)
Shelf Construction
Spill Protector™ Tempered Glass
Shelf Trim
White decor
No. of Crisper Bins
2
Glide N’ Serve® Pantry Drawer
Yes
Refrigerator Light
Yes
Door Shape
Contour
No. of Bins
3 (Left Door)
3 (Right Door)
Handle Type
Bar
Door Type
Pull Drawer
Handle Type
SmartPull™ Handle
Drawer/Shelves
2-Tier Organization
Freezer Light
LED Lighting
wi-fi Enabled
Yes
ThinQ® Technology
Yes
Works with
Google Assistant and Amazon Alexa
Smart Diagnosis™
Yes
Hidden Hinges
Yes
Insulation
Low GWP and Zero ODP Blowing Agent
Smudge Resistant
Yes
Available Colours
Smudge Resistant Stainless Steel
Smudge Resistant Black Stainless Steel
Product (W x H x D)
35 3/4” x 69 3/4” x 36 1/4”
Depth with Handles
36 1/4"
Depth without Handles
33 3/4"
Depth without Door
29 7/8"
Depth (Total with Door Open)
48 5/8”
Depth (to Hinge Cover)
25 3/8”
Height to Top of Case
68 1/2”
Height to Top of Door Hinge
69 3/4"
Width
35 3/4"
Width (Door Open 90˚ with Handle)
44 1/4"
Width (Door Open 90˚ without Handle)
39 1/4"
Depth (Drawer Open Fully without Handle)
55 1/4”
Installation Clearance
Sides 1/8", Top 1", Back 2"
Weight (Unit/Carton)
292 lbs. / 316 lbs.
Carton Dimensions (WxHxD)
38" x 73" x 39"
Parts & Labour
1 Year
Sealed System (Parts only)
7 Years
Compressor (Parts Only)
10 Years
LRFS28XBS
195174055243
Series
LG

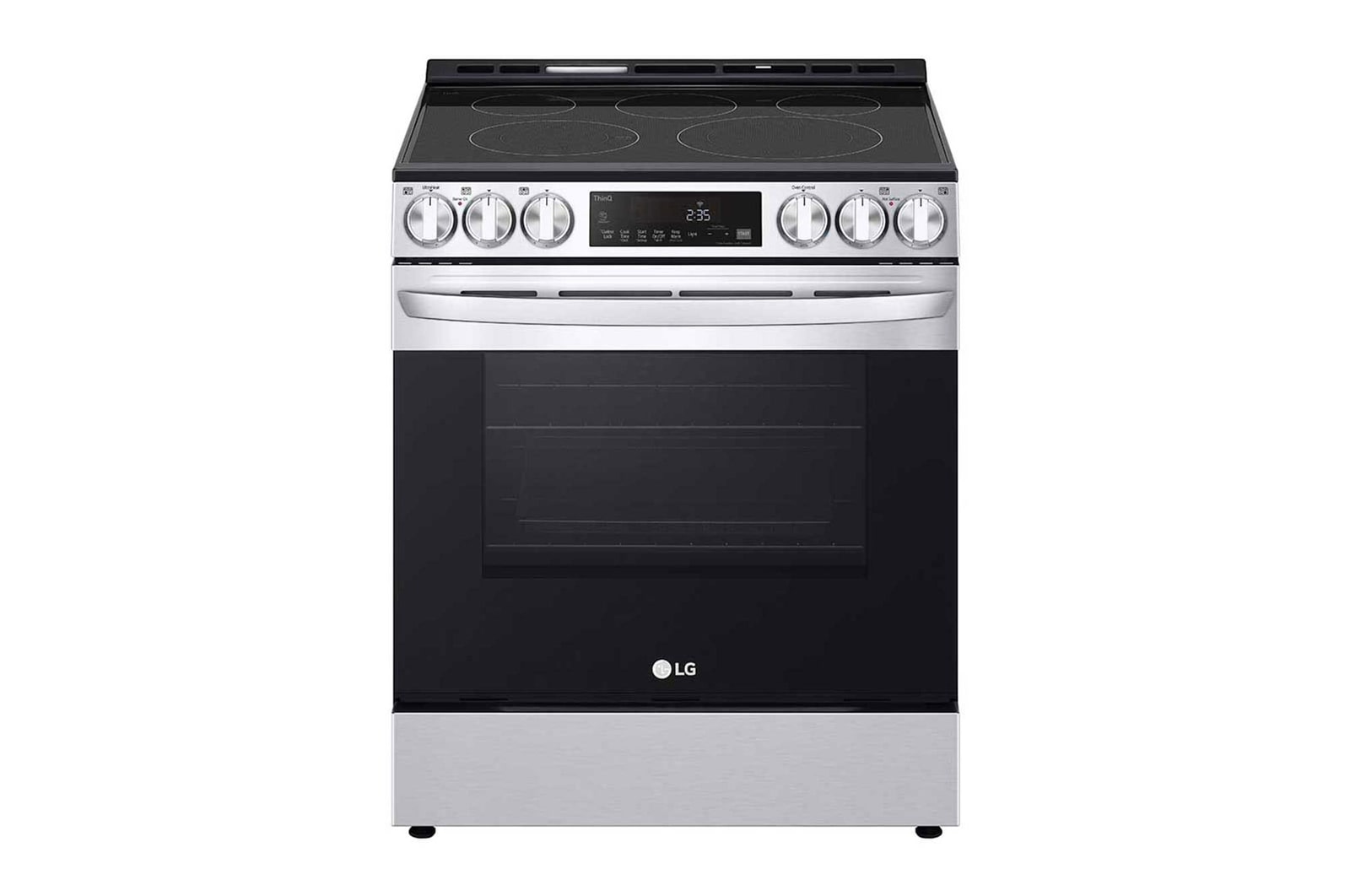

Fuel Type
Electric
Range Type
Slide-In
Colour
PrintProof™ Stainless Steel
Cooktop Type
Radiant, Ceramic Glass
Number of Cooktop Burners
5
Oven Type
Single Oven
Oven Cooking System
Fan Convection
Oven Capacity (cu. ft.)
6.3
Oven Cleaning Type
EasyClean® + Self Clean
Drawer Type
Storage
Size in Width (in.)
30
Colour
PrintProof™ Stainless Steel
Control Type
SmoothTouch™ Glass
Knobs
Stainless Steel Appearance, Weighted
Oven Door Feature
WideView™ Window
Cooktop Finish
Porcelain Enamel
Cooktop Type
Radiant, Ceramic Glass
Number of Cooktop Burners
5
Element/Burner - Left Front
9"/6" Dual, 3200W UltraHeat™
Element/Burner - Left Rear
6" Single, 1200W
Element/Burner - Right Front
12"/9" Dual, 3000W
Element/Burner - Right Rear
6" Single, 1200W
Element/Burner - Center
7" Single, 100W Warming Zone
Hot Surface Indicator Light
Yes
Oven Type
Single Oven
Oven Cooking System
Fan Convection
Convection Conversion Auto-Adjust
Yes
Oven Cleaning Type
EasyClean® + Self Clean
Self-Clean Oven Door Lock
Automatic
Oven Capacity (cu. ft.)
6.3
Broiler Element Power
4200W
Bake Element Power
3400W
Hidden Bake Element
Yes
Number of Rack Positions
7
Number of Oven Racks
2
Oven Rack Type
2 Standard
Drawer Type
Storage
Oven Modes
Bake, Broil, Air Fry, Easy & Self Clean, Convection Bake, Convection Roast, Warm, Keep Warm, Proof, Slow cook, Frozen Meal
Oven Light Type
Halogen
Kitchen Timer
Yes
Timed Cook
Yes
Oven Control Lock
Yes (Cooktop, Key)
Sabbath Mode
Yes
Wi-Fi Connect
Yes
Smart Diagnosis™
Yes
Works with
LG ThinQ®, Amazon Alexa, Google Assistant, SIDECHEF, Innit (*), Nestle (*), Kraft-Heinz (*)
*
These partners may not yet be available at the time of purchase of this product, please continue to check for app updates
Amp Rating at 208V
46.9A
Amp Rating at 240V
54.2A
KW Rating at 208V
9.8kW
KW Rating at 240V
13.0kW
Required Power Supply Amp
40A
Cabinet Width (in.)
30
Overall Depth (in.) - including handle
29 7/32" (742mm)
Overall Height (in.)
37 1/4" (946mm)
Overall Width (in.)
29 7/8" (759mm)
Product Weight (lb)
165
Shipping Weight (lb)
186
Shipping Dimensions (W x H x D) (in.)
32 1/2” x 44” x 30 1/2”
Air Fry Tray
Yes
UPC
048231341905
