Ceiling Cassette, 4 Way Dual Vane, Unit Indoor, 30kBtu/h

Features

Gallery

Specs

Support

Resource

Find a Dealer

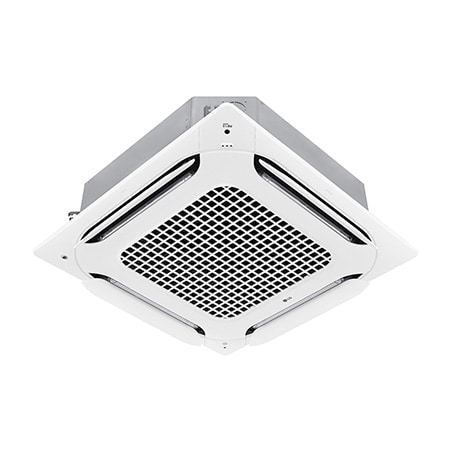

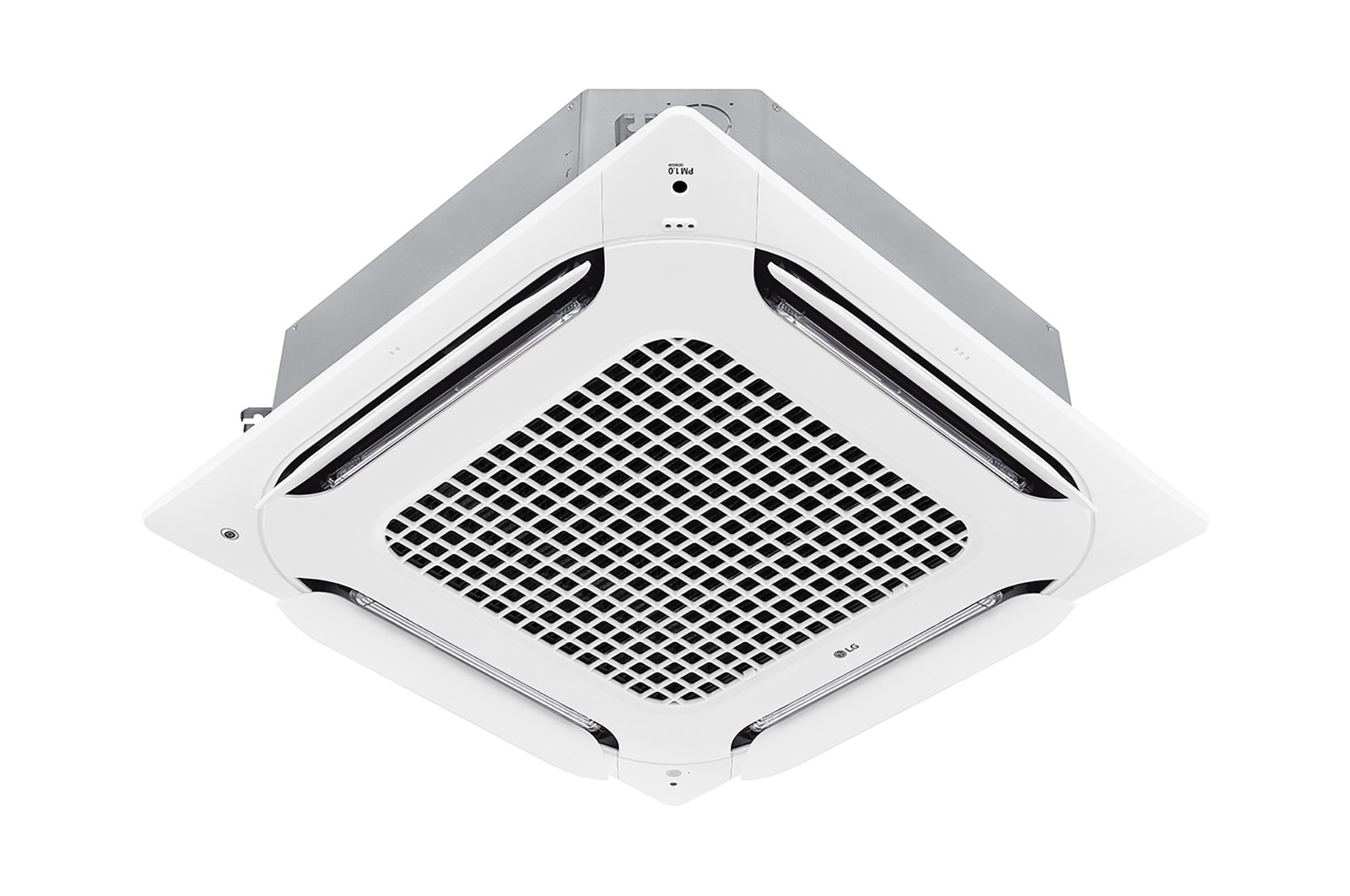

Ceiling Cassette, 4 Way Dual Vane, Unit Indoor, 30kBtu/h

Ceiling Cassette, 4 Way Dual Vane, Unit Indoor, 30kBtu/h

ARNU30GTBB4

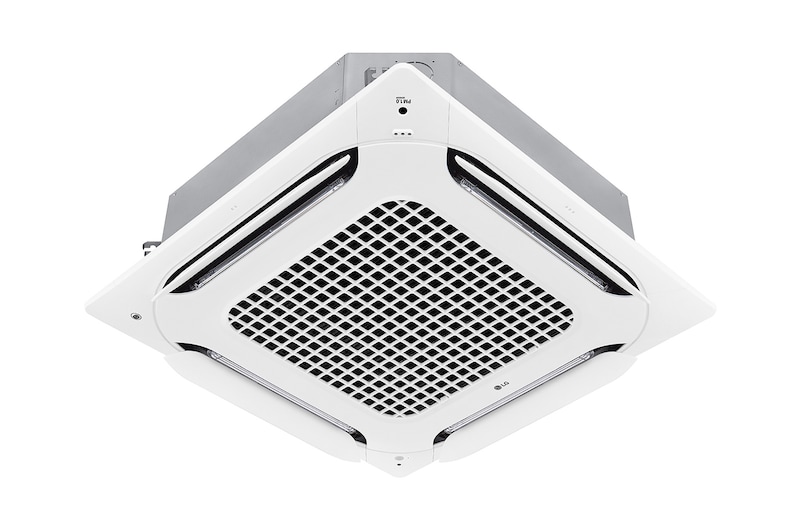

  • LG Dual Vane Cassette, Unit Indoor, ARNU30GTBB4 berbentuk persegi, dan udara dapat menyebar dengan empat arah.
LG Dual Vane Cassette, Unit Indoor, ARNU30GTBB4 berbentuk persegi, dan udara dapat menyebar dengan empat arah.

Fitur Utama

  • Aliran Udara 4 Arah dengan Desain Baru
  • Pemurnian Udara 5 Langkah yang Praktis & Kuat (Opsional)
  • Aliran Udara Deteksi Manusia (Opsional)

Aliran Udara 4 Arah

4-way cassette dual vane baru memungkinkan aliran udara yang nyaman dan mudah. Unit ini mengoperasikan 6 mode aliran udara termasuk mode daya, mode pintar, dan mode penyegaran.

Pemurnian Udara 5 Langkah (Opsional)

Pemurnian udara yang kuat menghilangkan bau, kuman, dan debu halus PM 1.0 yang tidak terlihat. Mudah untuk mengatur sistem pemurnian udara dengan filter pemurnian udara satu sentuhan.

Deteksi Manusia (Opsional)

Deteksi manusia memberi pengguna preferensi aliran udara langsung atau tidak langsung.

Print

All Spec

SUMBER LISTRIK

  • Kasus 1

    50/60 Hz 220-240 V~

  • Batas Rentang Tegangan (Kasus 1) (V)

    240, 230, 220

  • Kasus 2

    50/60 Hz 220-240 V~

KAPASITAS PENDINGINAN

  • Nominal (kW)

    9.00

  • Nominal (Btu/h)

    30700

KAPASITAS PEMANASAN

  • Nominal (kW)

    10.0

  • Nominal (Btu/h)

    34100

INPUT DAYA (INDOOR)

  • H/M/L (W)

    48 / 36 / 25

ARUS OPERASI (INDOOR)

  • H/M/L (A)

    0.43 / 0.34 / 0.25

KIPAS INDOOR

  • Tipe

    3D Turbo Fan

  • Laju Aliran Udara (H/M/L) (m³/min)

    21 / 19 / 16

MOTOR KIPAS INDOOR

  • Tipe

    Brushless DC

  • Penggerak

    Direct

  • Output (W)

    51

  • Output (No.)

    1

PENUKAR PANAS

  • Baris x Kolom x FPI

    3 x 8 x 21

  • No.

    1

  • Area Muka (m²)

    0.33

BERAT

  • Net (kg)

    21

  • Shipping (kg)

    26

EKSTERIOR

  • Warna

    White

  • RAL (Klasik)

    RAL 9003

FILTER UDARA

  • Tipe

    Long life filter

KONTROL SUHU

  • Kontrol Suhu

    Microprocessor, Thermostat for cooling and heati

BAHAN PENYERAP SUARA / ISOLASI TERMAL

  • Bahan Penyerap Suara / Isolasi Termal

    Foamed polystrene

PERANGKAT PERLINDUNGAN

  • Sekring

    Fuse

REFRIGERAN

  • Tipe

    R410A/R32

  • Jumlah Pengisian Tambahan (kg(each))

    0.32 / 0.26

  • Jenis Kontrol

    EEV

PIPA PEMBUANGAN (MENGGUNAKAN POMPA PEMBUANGAN)

  • O.D / I.D (mm(inch))

    32/25

PIPA KONEKTOR

  • Cairan (mm(inch))

    Φ9.52 (3/8)

  • Gas (mm(inch))

    Φ15.88 (5/8)

JENIS KONEKTOR PIPA

  • Cairan

    Flare

  • Gas

    Flare

TINGKAT TEKANAN SUARA (UNIT INDOOR)

  • Pendinginan((SH)/H/M/L) (dB(A))

    - / 43 / 40 / 36

  • Pemanasan((SH)/H/M/L) (dB(A))

    43 / 40 / 36

TINGKAT DAYA SUARA (UNIT INDOOR)

  • Pendinginan((SH)/H/M/L) (dB(A))

    - / 53 / 50 / 45

  • Pemanasan((SH)/H/M/L) (dB(A))

    53 / 50 / 45

KABEL KONEKTOR

  • Kabel Komunikasi (VCTF-SB) (mm² × cores)

    1.0~1.5 x 2

KARAKTERISTIK LISTRIK

  • ‬Ampere Sirkuit Minimum (MCA) (A)‭

    1.23

  • Motor Kipas Indoor_Full Load Ampere (FLA) (A)

    0.98

DIMENSI

  • Net(W x H x D) (mm)

    840 x 204 x 840

  • Shipping(W x H x D) (mm)

    922 x 276 x 917

PRODUK

  • Tipe

    Dual Vane

PRODUCT INFORMATION

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
