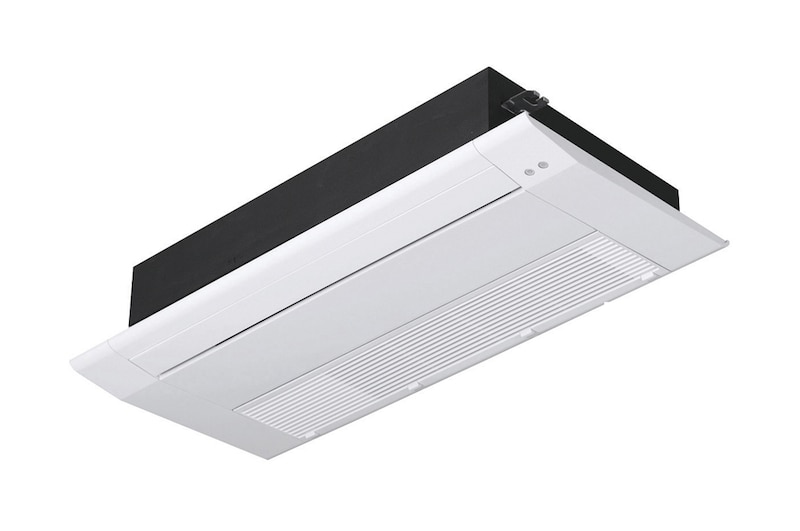

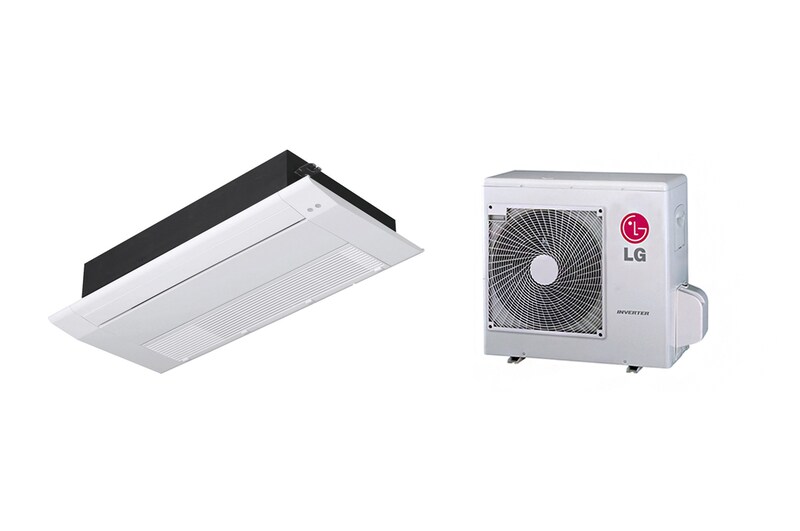

ATNQ12GULA1 / ATUQ12GULA1
MSRP Rp
  • Desain dan Ukuran Ringkas1 Desain dan Ukuran Ringkas2

    Desain dan Ukuran Ringkas

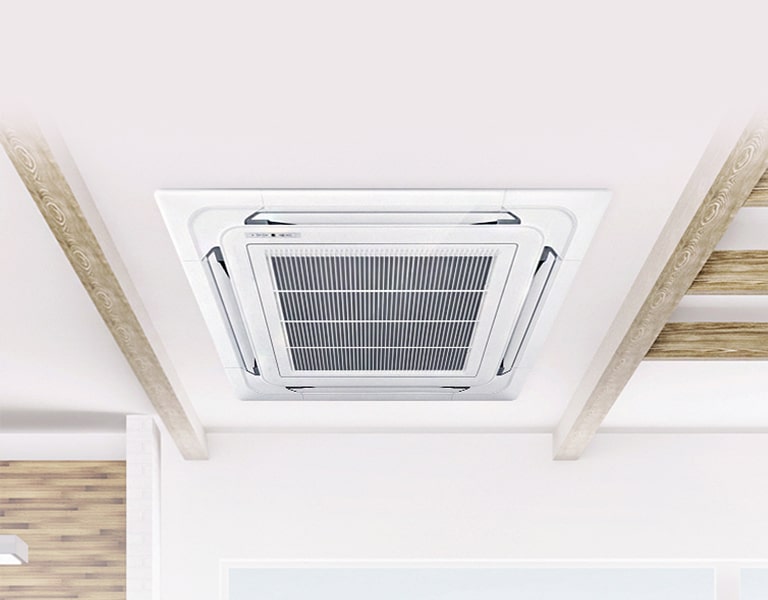

    Panel 4 Way AC LG Cassete yang baru mengadaptasi bentuk unibodi dengan ukuran sesuai plafon. Unit indoor dengan dimensi ringkas mengurangi berbagai kendala pemasangan yang memungkinkan penempatannya pada berbagai ruang

  • Auto Elevation Grille1 Auto Elevation Grille2

    Auto Elevation Grille

    Auto Elevation Grille memudahkan pembersihan saringan dengan dukungan struktur empat titik, fitur pengatur tingkatan otomatis dan deteksi berhenti otomatis. Dilengkapi pula dengan memori yang mudah dijangkau pengguna

  • Pemasangan Panel Mudah1 Pemasangan Panel Mudah2

    Pemasangan Panel Mudah

    Desain dengan sudut yang dapat dilepas memudahkan penyesuaian saat pemasangan dan pemeriksaan kemungkinan kebocoran pada pipa saluran

INDOOR SPECIFICATIONS

  • Capacity Cooling (Min.∼Rated∼Max.) - ㎾
    1.37 ~ 3.00 ~ 3.60
    Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
    4,670 ~ 10,230 ~ 12,290
  • Power Input Cooling (Min.∼Rated∼Max.) - ㎾
    0.31 ~ 0.99 ~ 1.15
    Running Current Cooling (Rated) - A
    4.60
  • SEER / EER - Btu/h / W
    16.82 / 10.33
    Power Supply - V, Ø, ㎐
    220-240, 1, 50/60
  • Dimensions Net (W x H x D) - ㎜
    860 x 132 x 450
    Dimensions Shipping (W x H x D) - mm
    1,109 x 239 x 523
  • Weight Net - ㎏
    11.8
    Weight Shipping - ㎏
    15.0
  • Heat Exchanger (Row x Column x Fins per inch)
    2 x 12 x 18
    Heat Exchanger Face Area - ㎡
    0.15
  • Fan Type
    Cross flow fan
    Fan Air Flow Rate (H / M / L) - ㎥/min
    9.0 / 8.0 / 7.0
  • Fan Motor Type
    BLDC
    Fan Motor Output - W
    30
  • Dehumidification Rate - ℓ/h
    0.9
    Safety Devices
    Fuse
  • Piping Connections Liquid Side - ㎜(inch)
    Ø 6.35 (1/4)
    Piping Connections Gas Side - ㎜(inch)
    Ø 9.52 (3/8)
  • Piping Connections Drain (O.D. / I.D.) - ㎜(inch)
    Ø 32.0(1-1/4) / 25.0(31/32)
    Sound Pressure Level (H / M / L) - dB(A)
    37 / 36 / 33
  • Refrigerant Control
    Electronic Expansion Valve
    Power and Communication Cable (included Earth) - No. x ㎟ (AWG)
    5C x 1.0 (10)
  • Decoration Panel Model Name
    PT-UUC
    Decoration Panel Color
    White
  • Decoration Panel Dimensions (W x H x D) - ㎜
    1,100 x 34 x 500
    Decoration Panel Net Weight - ㎏
    3.3
  • Decoration Panel Shipping Weight - ㎏
    4.7

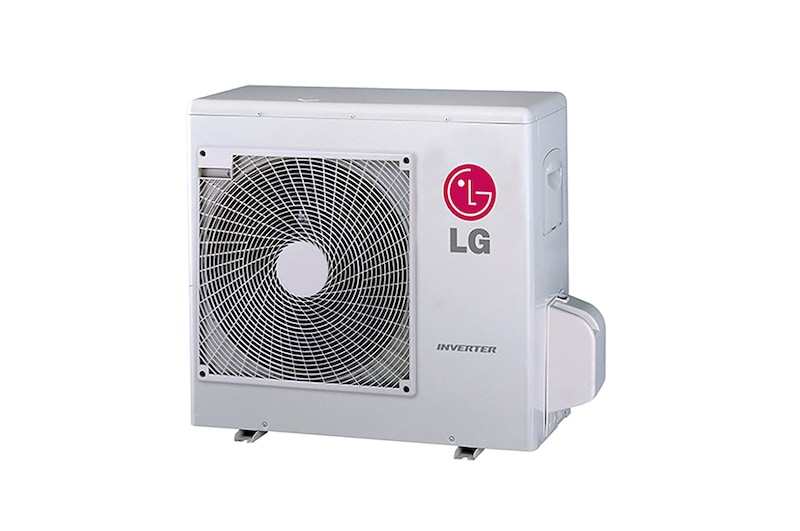

OUTDOOR SPECIFICATIONS

  • Capacity Cooling (Min.∼Rated∼Max.) - ㎾
    1.37 ~ 3.00 ~ 3.60
    Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
    4,670 ~ 10,230 ~ 12,290
  • Power Input Cooling (Min.∼Rated∼Max.) - ㎾
    0.31 ~ 0.99 ~ 1.15
    Running Current Cooling (Rated) - A
    4.60
  • SEER / EER - Btu/h / W
    16.82 / 10.33
    Power Supply - V, Ø, Hz
    220-240, 1, 50/60
  • Casing Color
    Warm Gray
    Dimensions Body (W x H x D) - ㎜
    770 × 545 × 288
  • Net Weight - ㎏ (lbs)
    29.4 (64.8)
    Heat Exchanger (Row x Column x Fins per inch) x No.
    (1 × 24 × 14) × 1
  • Compressor Type
    Twin Inverter
    Compressor Model - Model x No.
    GAT134MBA x 1
  • Compressor Motor type
    BLDC
    Compressor Motor Output - W × No.
    1,200 x 1
  • Fan Type
    Axial
    Fan Air Flow Rate - ㎥/min x No.
    28.2 x 1
  • Fan Motor Type
    BLDC
    Fan Motor Output - W × No.
    43.0 x 1
  • Sound Pressure Level Cooling (Rated) - dB(A)
    47
    Piping Connections Liquid Side - ㎜(inch)
    Ø 6.35 (1/4)
  • Piping Connections Gas Side - ㎜(inch)
    Ø 9.52 (3/8)
    Piping Length (Min./Max.) - m(ft)
    5 (16.4) / 20 (65.6)
  • Refrigerant Type
    R410A
    Refrigerant Precharged Amount - g(oz)
    750 (26.5)
  • Refrigerant Chargeless-Pipe Length - m(ft)
    5.0 (16.4)
    Refrigerant Additional Charging Volume - g/m(oz/ft)
    15
  • Refrigerant Control
    Electronic Expansion Valve
    Refrigerant Oil Type
    RB68A
  • Refrigerant Oil Charged volume - cc x No.
    400 x 1
    Wiring Connections Power Supply Cable (included Earth) - No. x ㎟ (AWG)
    3C x 2.5 (12)
  • Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)
    15 (49.2)
