5.2 cu. ft. Ultra Large Front Load Washer

Features

Gallery

Specs

Reviews

Where to Buy

Support

5.2 cu. ft. Ultra Large Front Load Washer

5.2 cu. ft. Ultra Large Front Load Washer

WM3400CV
  • front view
  • front door open view
  • left know panel view
  • Low Perspective Knob Panel Detail
  • Top Drawer Open Detail
  • Top Right Drawer Open
  • Drum Detail
  • Top Perspective
  • right side view
  • left side view
  • Top Left Perspective
  • Right Low Perspective
  • Right door Open view
  • side view
  • back view

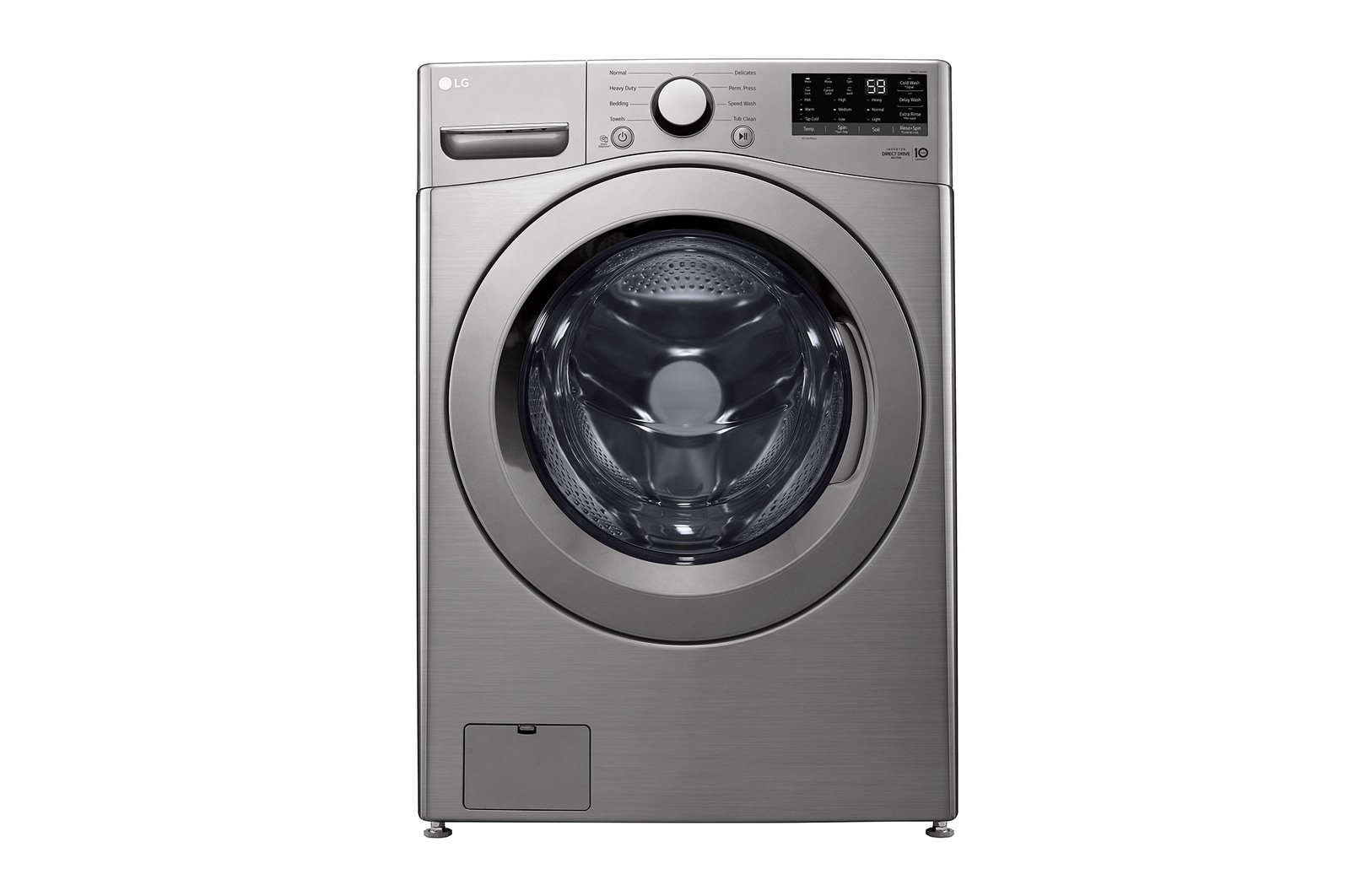

front view

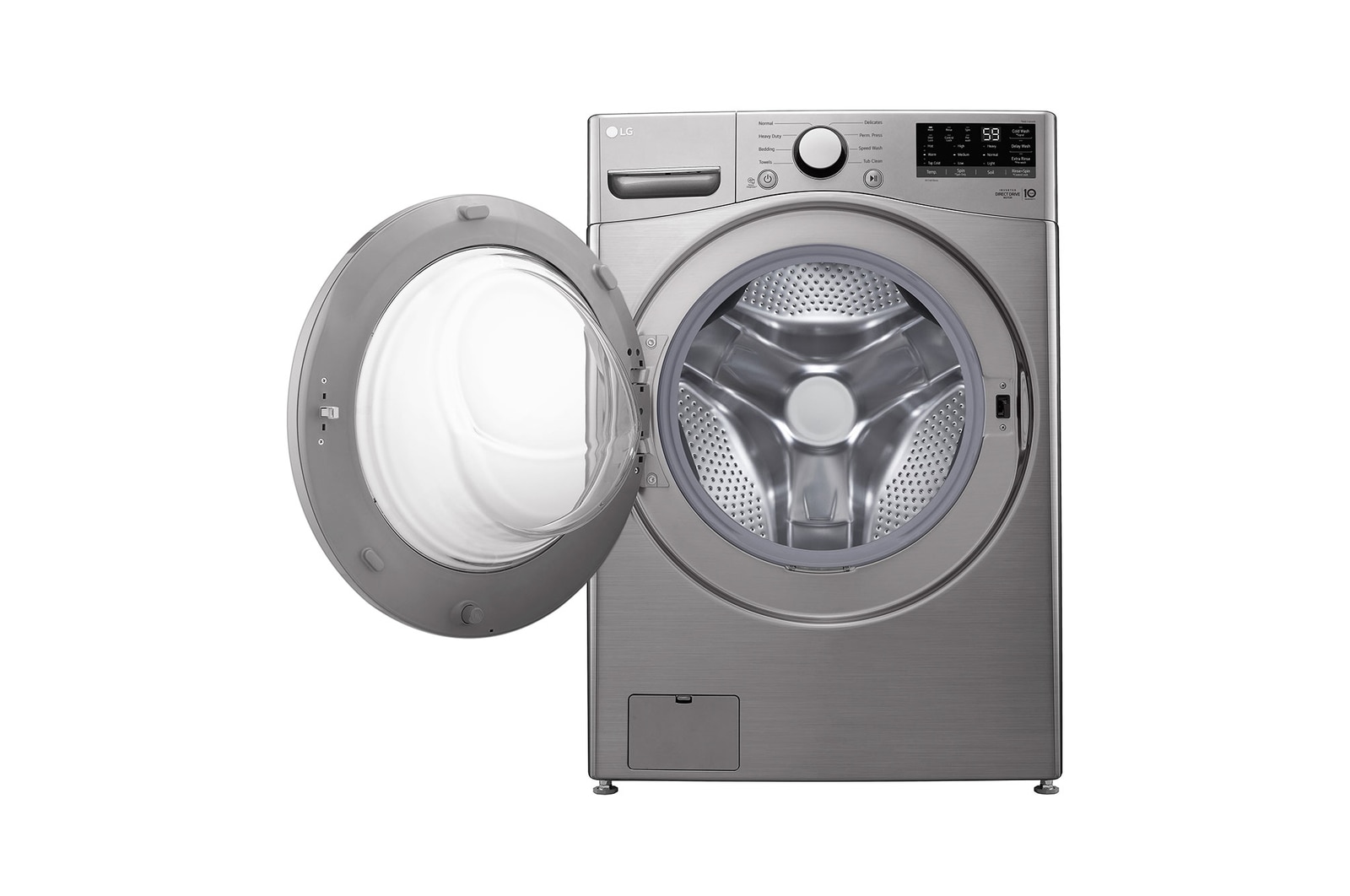

front door open view
left know panel view

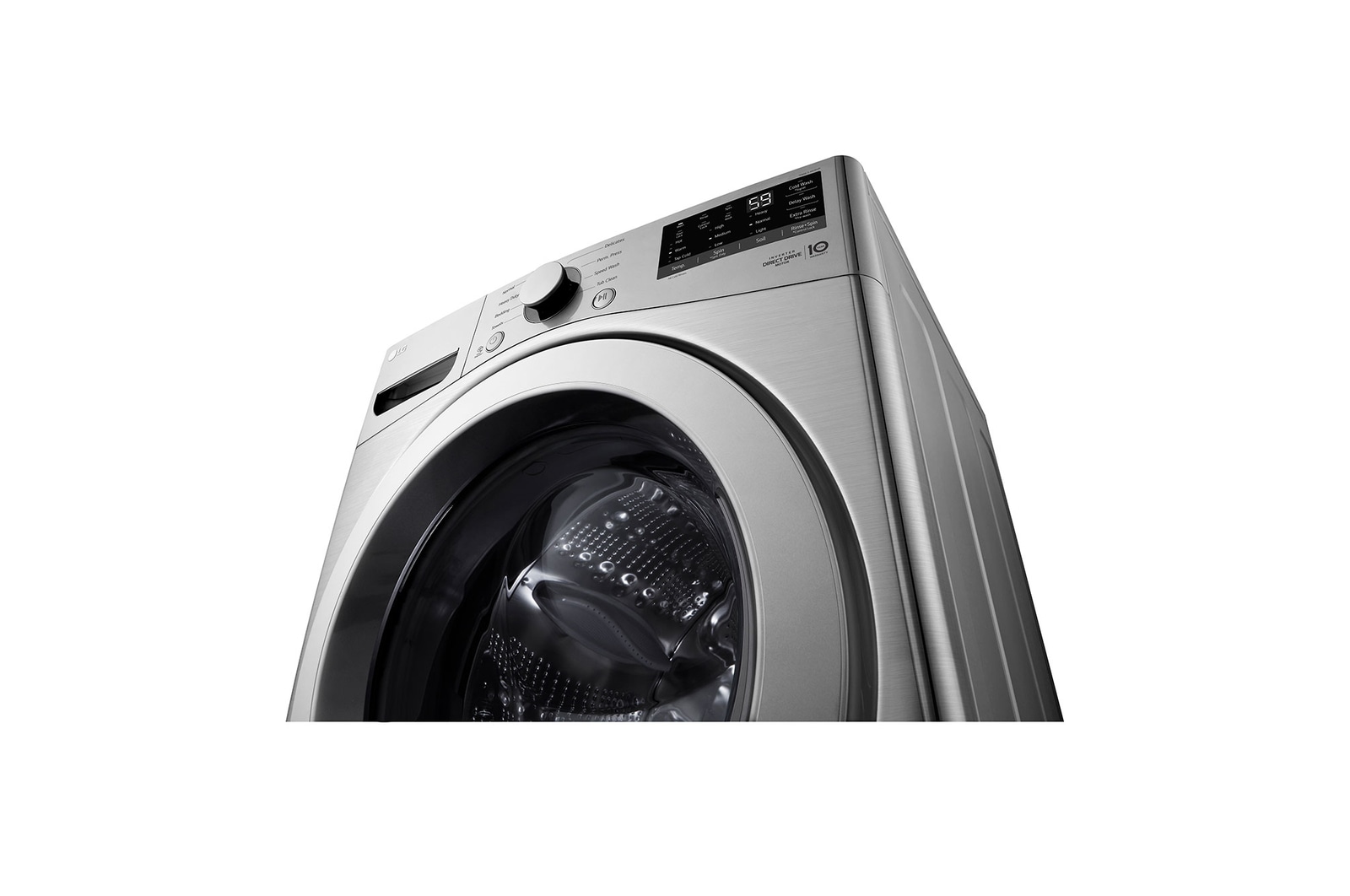

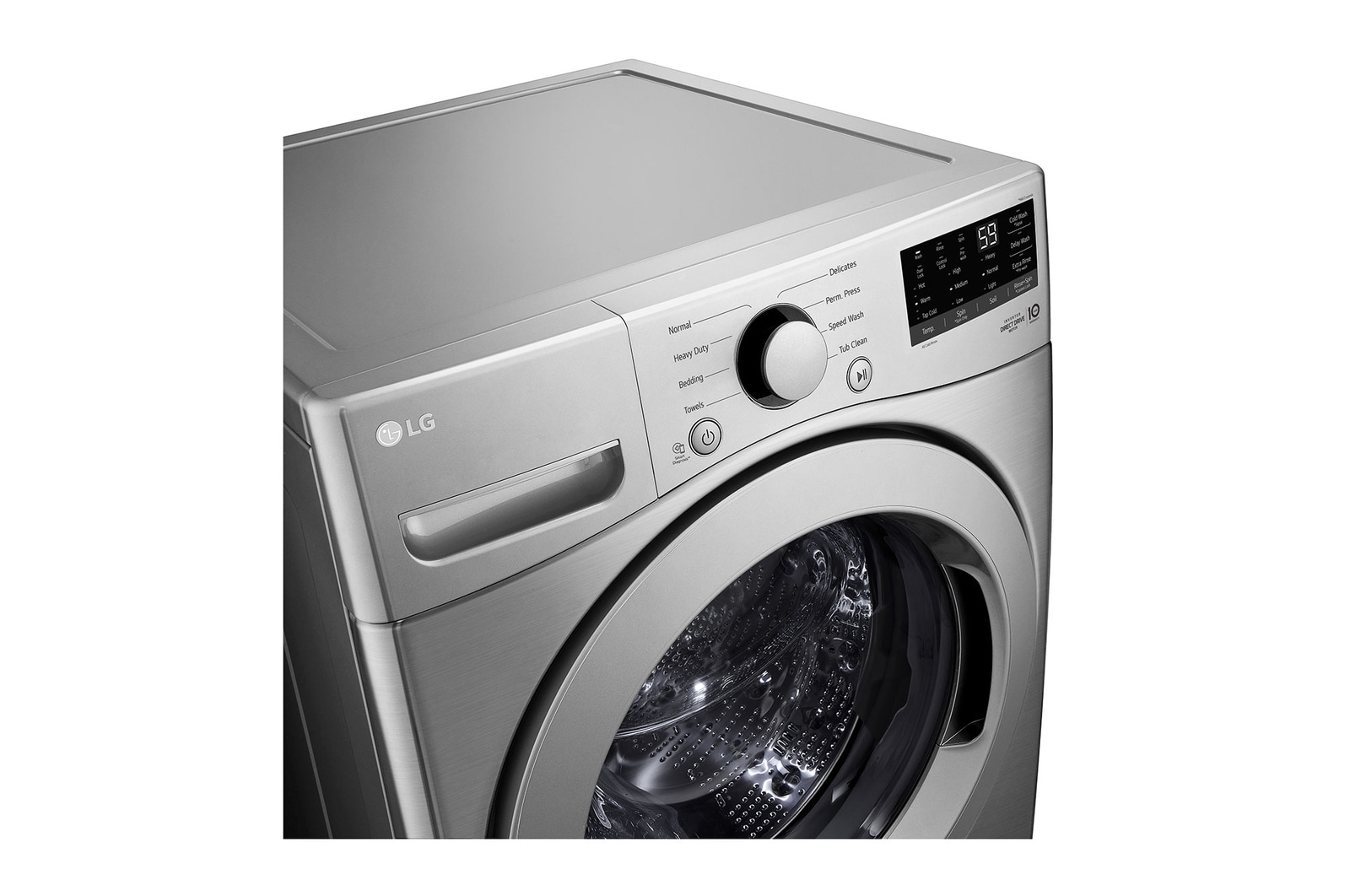

Low Perspective Knob Panel Detail

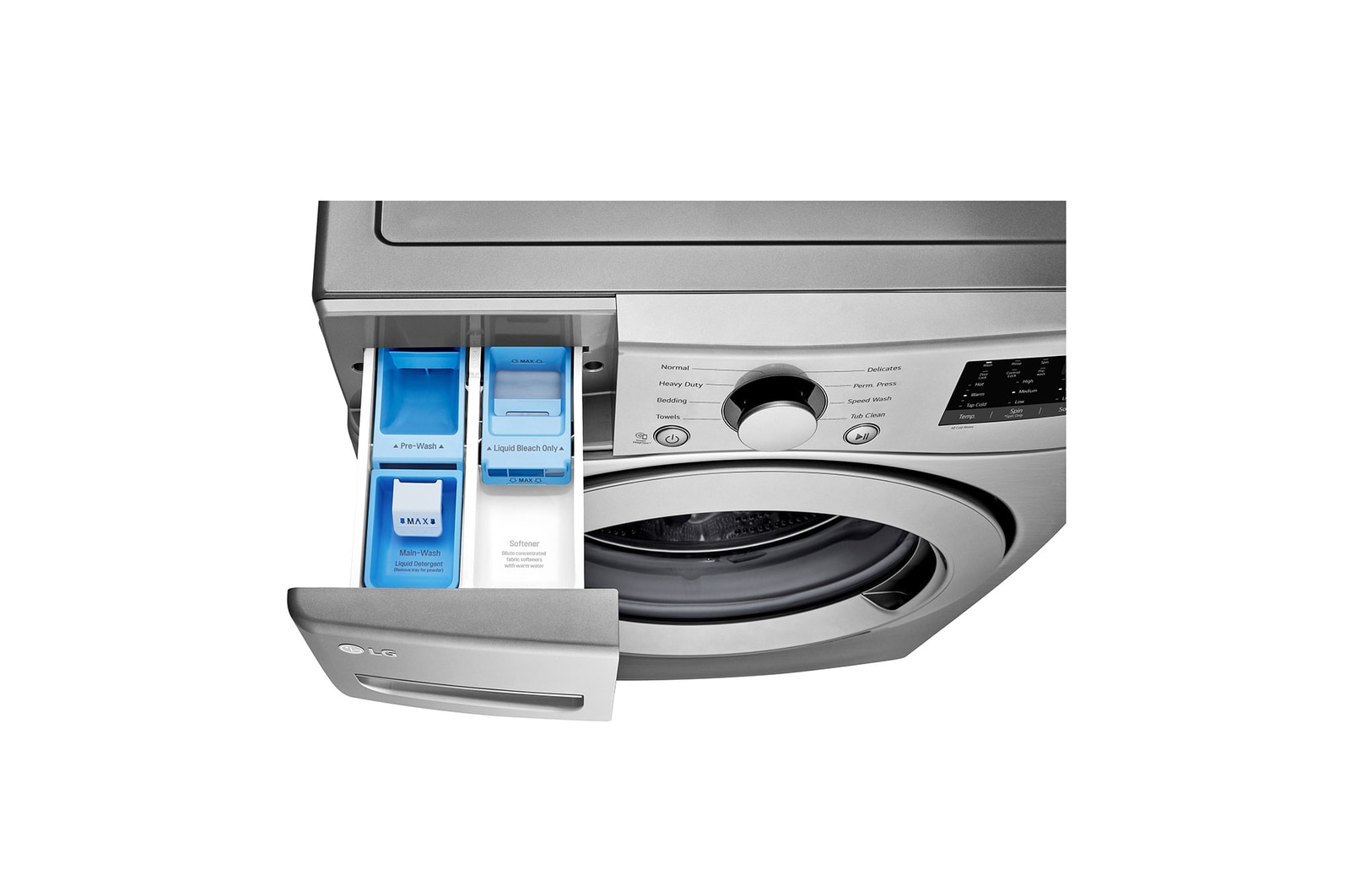

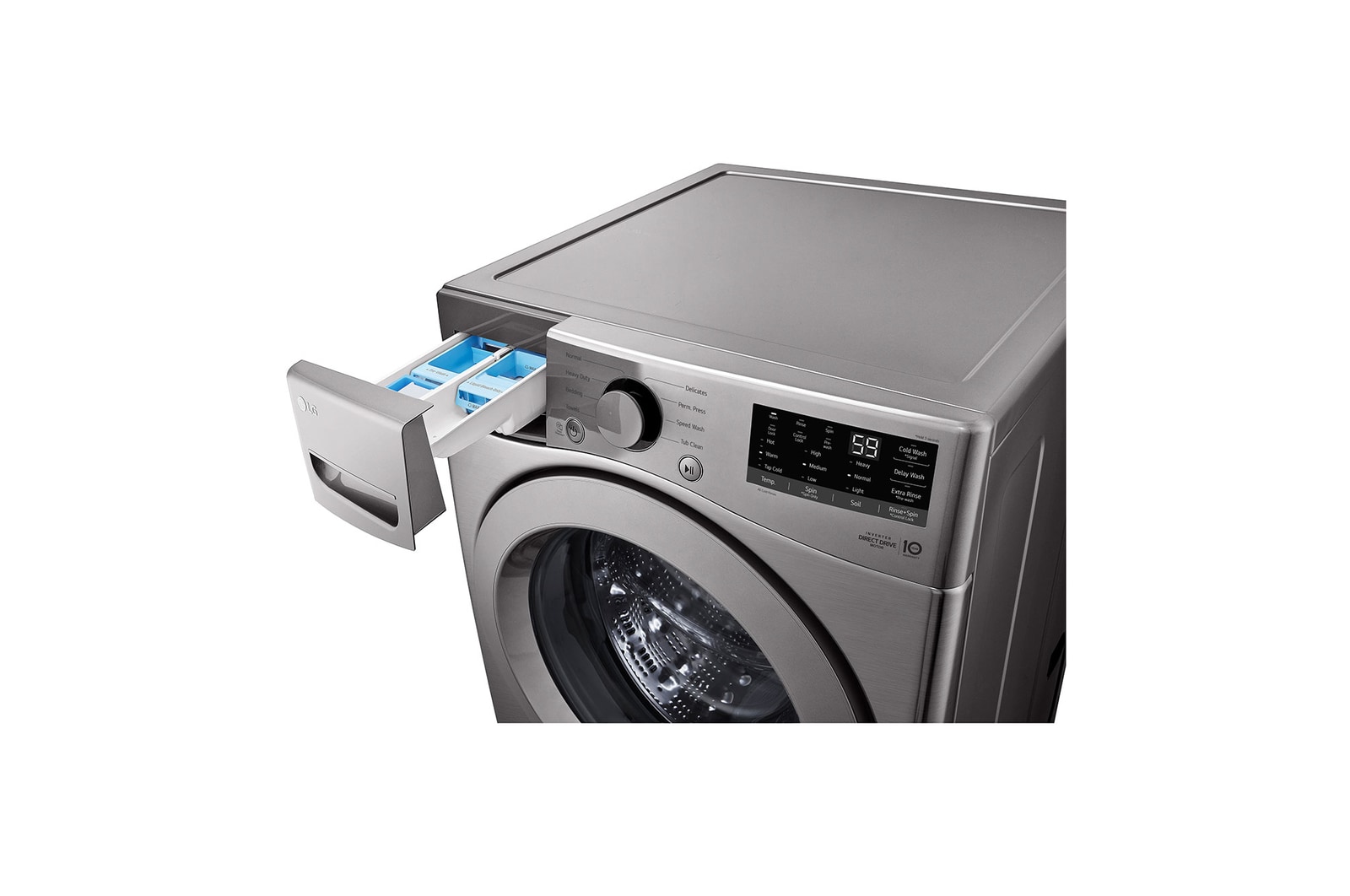

Top Drawer Open Detail
Top Right Drawer Open

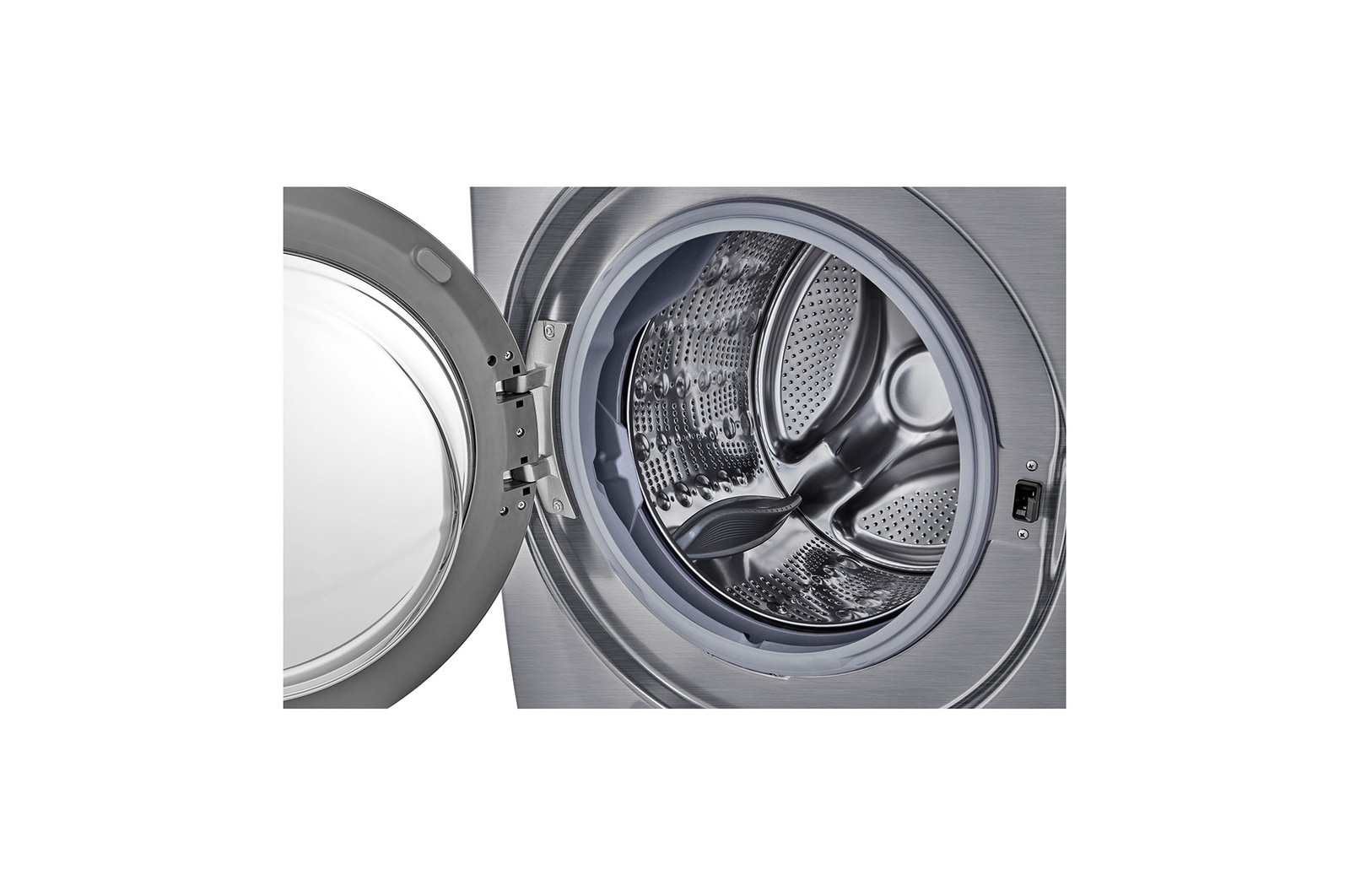

Drum Detail

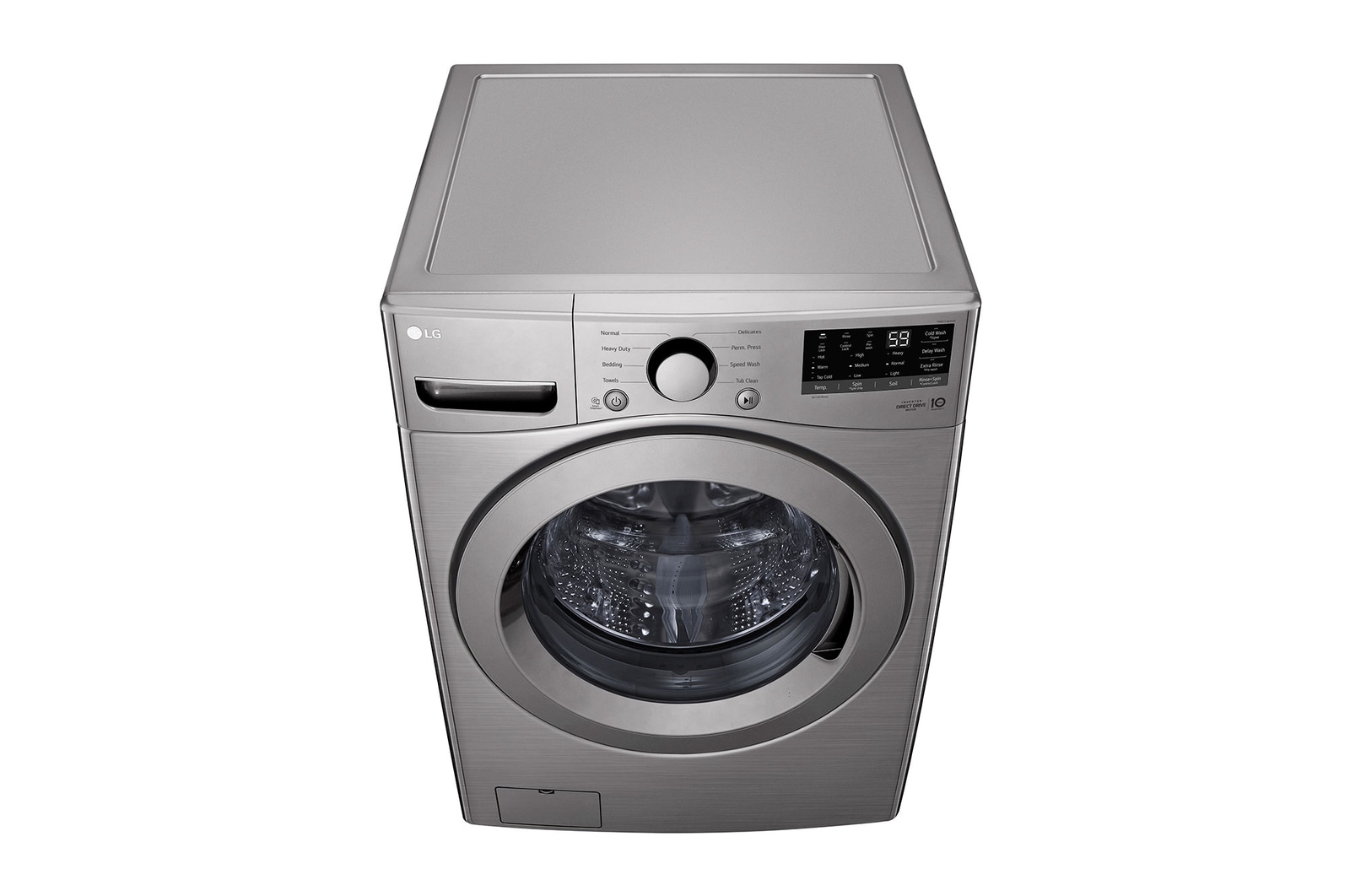

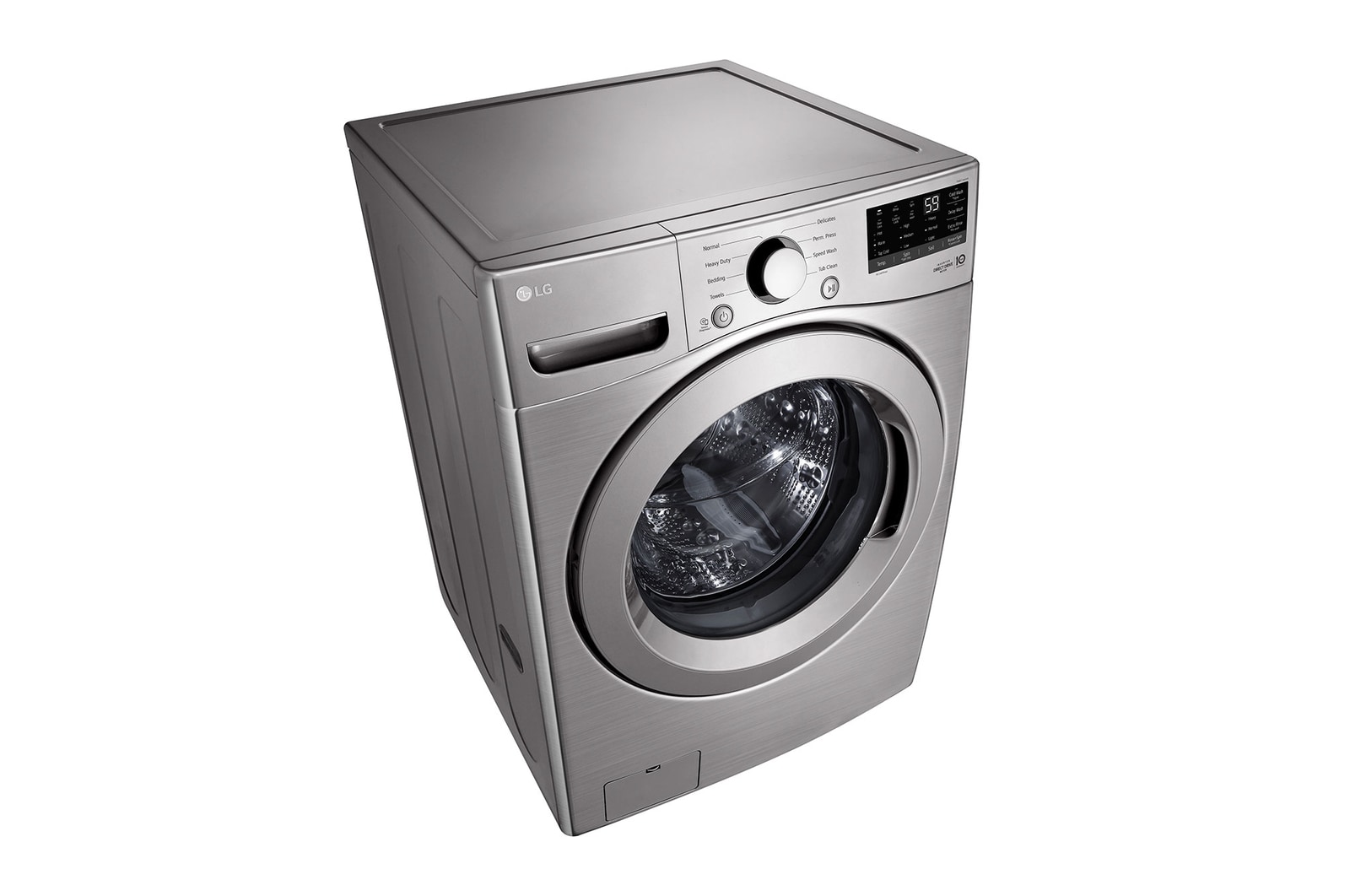

Top Perspective
right side view
left side view
Top Left Perspective

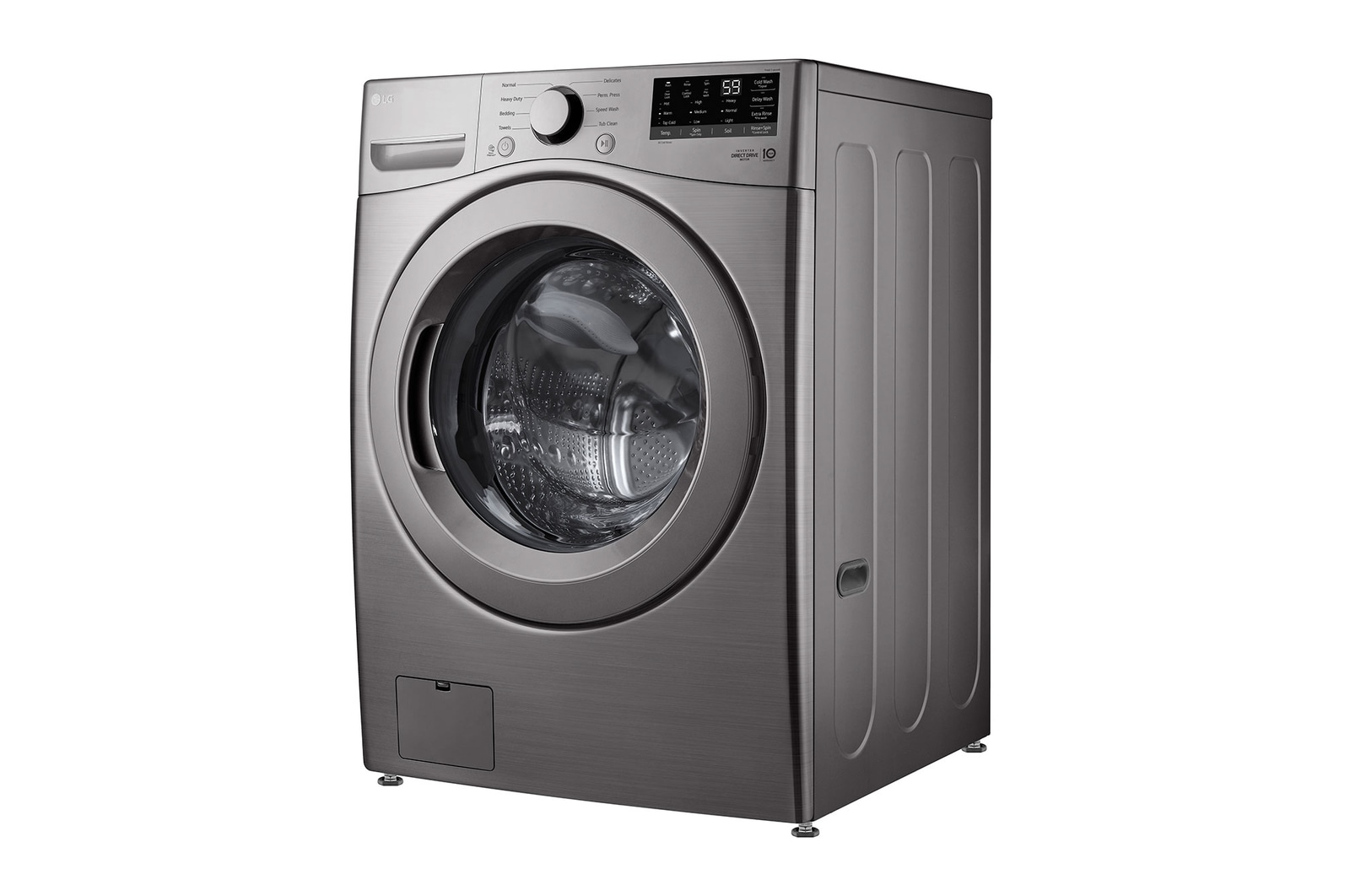

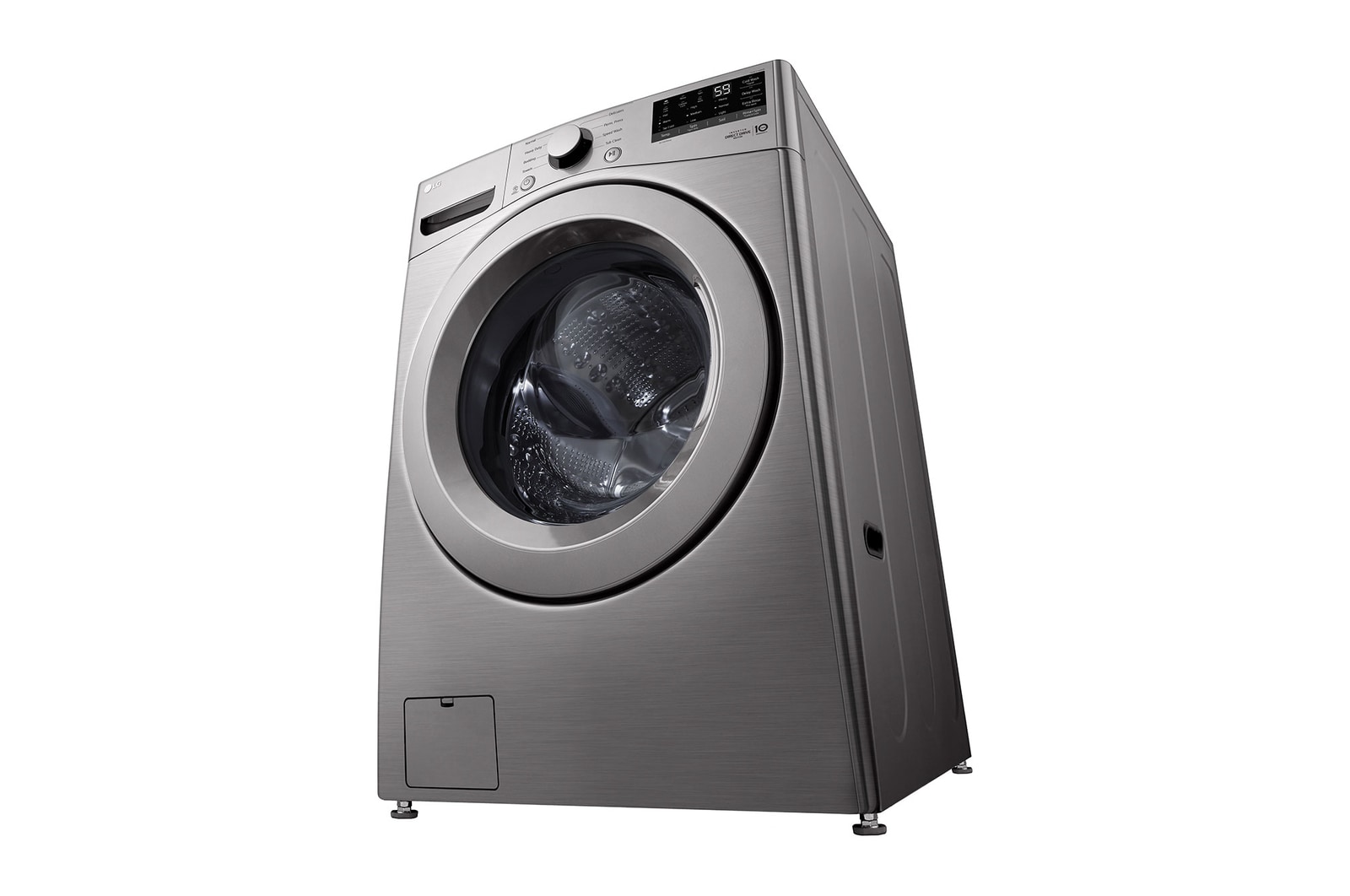

Right Low Perspective

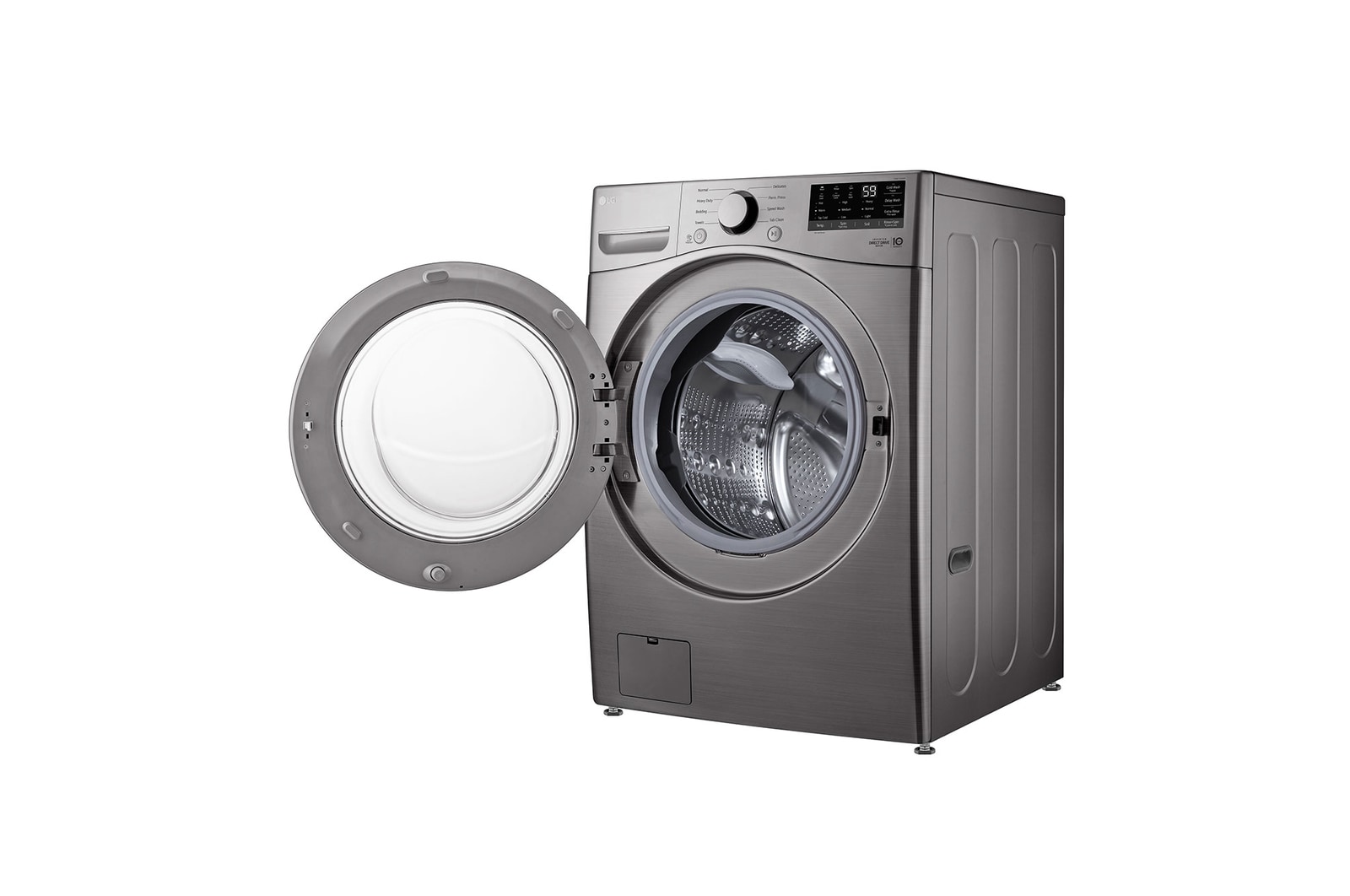

Right door Open view
side view

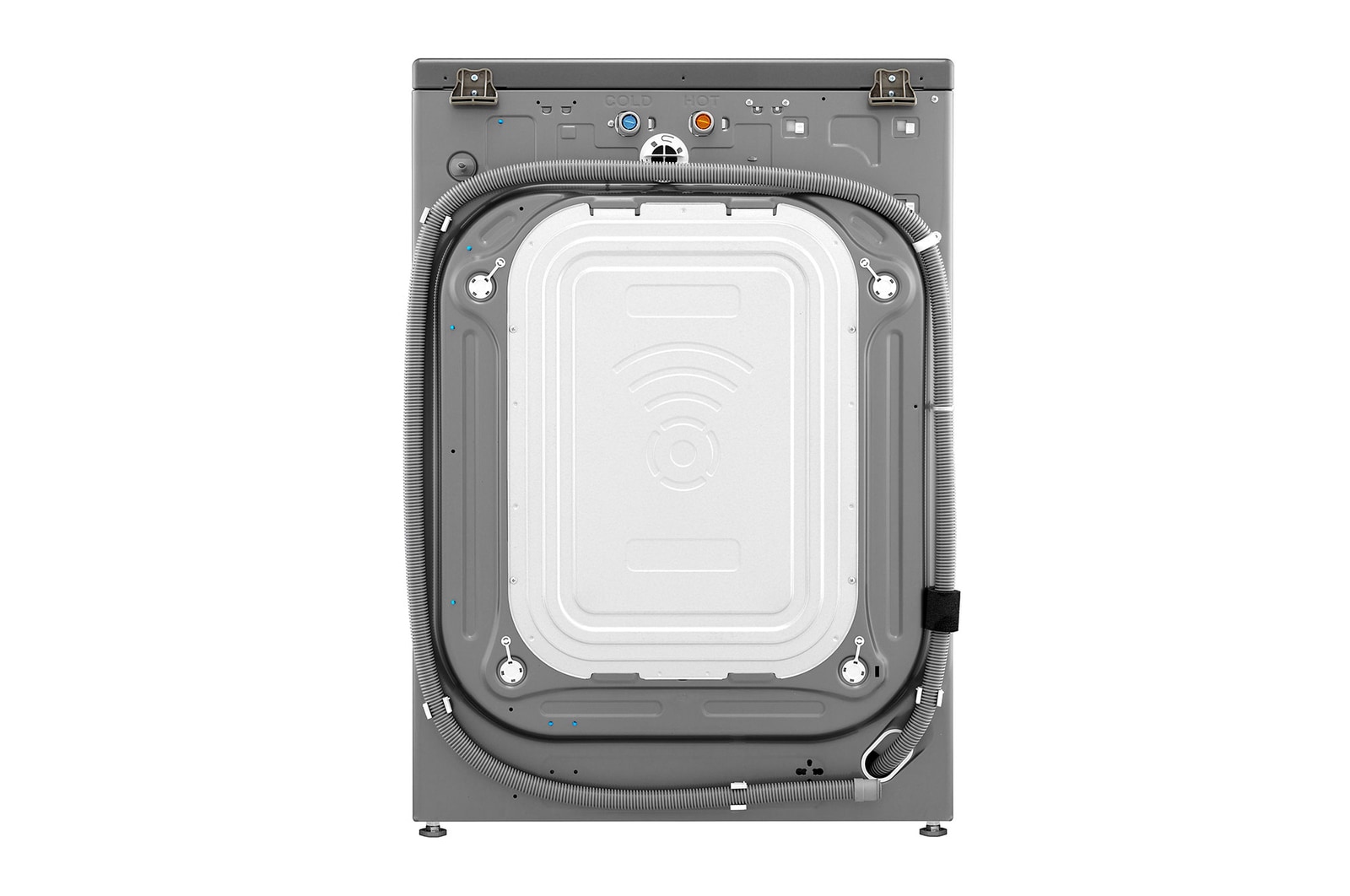

back view

Key Features

  • 2019 Energy Star Most Efficient 6Motion™ Technology
  • Cold Wash™ Technology
  • Smart Diagnosis™
  • Side Kick Compatible
More
A Smarter Way to Wash

A Smarter Way to Wash

6Motion™ Technology uses up to 6 different wash motions to provide a smart cleaning experience that is gentle on clothes and maximizes washing performance.
Cold Wash Without Compromise

Cold Wash Without Compromise

ColdWash™ technology penetrates deep into fabrics, for cold water savings with warm water performance.
Wash Two Loads At The Same Time

Wash Two Loads At The Same Time

Wash small loads that can't wait or two loads at once with the LG Pedestal Washer.
More Style, Less Space

More Style, Less Space

LG closet-depth washers have a shallower depth to fit in more places & add sleek style to any room.
Save Time and Wash Fewer Loads Every Week

Save Time and Wash Fewer Loads Every Week

Bring on big loads of towels or jeans- this 5.2 cu.ft. washer fits more in every load up to 20 lbs.
Call, Connect, Resolve

Call, Connect, Resolve

Smart Diagnosis™ uses self-diagnosing technology that can communicate 24/7 with LG customer service over the telephone providing you with comfort and reliability.

Warranty / Certifications

COMPLETE YOUR SYSTEM

See compatible products below:

SUMMARY

Print

DIMENSIONS

WM3400CV
CAPACITY
5.2 cu.ft.
Dimensions (WxHxD)
27" x 39" x 30 1/4" (55" D with door open)
Steam Technology
No
ThinQ®
No

All Spec

ENERGY

  • ENERGY STAR® Most Efficient 2019

    Yes

  • ENERGY STAR® Qualified

    Yes

  • CEE Tier

    2

  • IMEF

    2.92

  • IWF

    2.9

WASH PROGRAMS

  • No. of Programs

    8 (Normal, Perm. Press, Heavy Duty, Delicates, Towels, Speed Wash, Bedding, Tub Clean)

APPEARANCE

  • Hard Buttons

    Yes

  • Touch Buttons

    Yes

  • Dial-A-Cycle™

    Yes

FABRIC CARE FEATURES

  • ColdWash™ Option

    Yes

  • SenseClean™ System

    Yes

CONVENIENCE FEATURES

  • TrueBalance™ Anti-Vibration System

    Yes

  • 4 Tray Dispenser

    Prewash, Main Wash (with liquid detergent cup), Bleach, Fabric Softener

  • LoDecibel™ Quiet Operation

    Yes

  • End of Cycle Signal

    Yes

  • LoadSense

    Yes

  • Child Lock*

    Yes

  • Auto Suds Removal

    Yes

  • Leveling Legs

    4 Adjustable Legs

  • Easy Loading TilTub™

    Yes

  • Smart Diagnosis™ (v3.0)

    Yes

MATERIALS AND FINISHES

  • NeveRust™ Stainless Steel Drum

    Yes

  • Cabinet

    PCM

  • Control Panel

    Plastic

  • Top Plate

    Painted

  • Door / Rim

    Glass/Graphite

  • Door Cover

    Clear Round Cover

  • All Available Colours

    Graphite Steel

DIMENSIONS

  • Product (WxHxD)

    27" x 39" x 30 1/4"

  • Depth with Door Open

    (55" D with door open)

  • Carton (WxHxD)

    29 23/32" x 41 27/32" x 31 17/32"

  • Weight (Product)

    187.4 lbs

  • Weight (Carton)

    209.8 lbs

POWER SOURCE

  • Ratings

    UL Listed

  • Electrical Requirements

    120V, 10Amps

  • Type

    Electric

SUMMARY

  • Series

    LG

  • Type

    Front Load Washer

  • Capacity (cu.ft.)

    5.2 cu.ft.

  • Matching Electric Dryer

    DLE3400V

  • Colour

    Graphite Steel

UPC CODES

  • WM3400CV

    772454074202

LIMITED WARRANTY

  • Parts and Labour

    1 Year

  • Direct Drive Motor

    10 Years

  • Drum

    3 Years

MOTOR

  • Motor Type

    Inverter Direct Drive Motor

  • Axis

    Horizontal

OPTIONS/ACCESSORIES

  • Pedestal

    WDP4W

  • Pedestal (WxHxD)

    27 x 14 1/8 x 30 3/4 (50 9/16 D with door open)

  • LG Sidekick™ Pedestal Washer

    WD100CW

  • LG Sidekick™ Pedestal Washer (WxHxD)

    27 x 14 1/8 x 30 3/4 (50 9/16 D with door open)

  • Stacking Kit

    KSTK1

WASH OPTIONS

  • No. of Options

    8 (Prewash, Delay Wash, ColdWash, Extra Rinse, Rinse+Spin, Control, Lock, Spin Only, Signal)

WASH DETAILS

  • No. of Wash/Rinse Temps

    5

  • Wash/Rinse Temps

    Hot, Warm, Semi Warm, Cold, Tap Cold

  • No. of Spin Speeds

    3

  • Spin Speeds

    High, Medium, Low

  • Max RPM

    1300

  • Water Levels

    Load Sensing

  • No. of Soil Levels

    3
