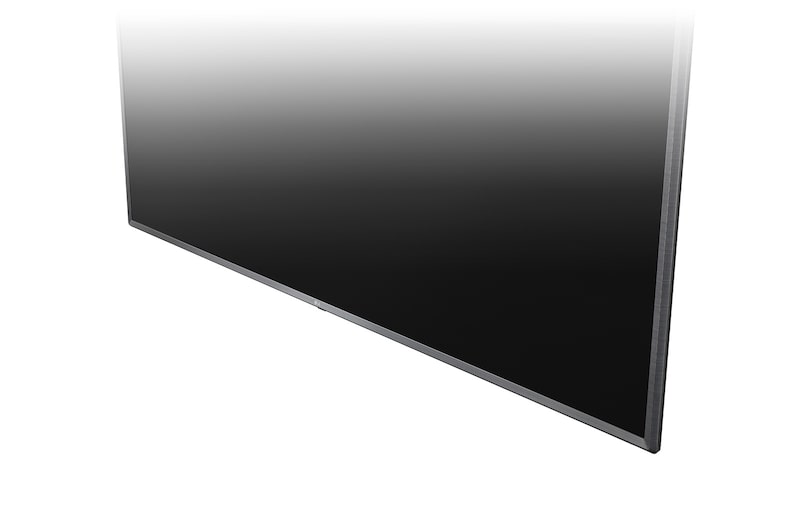

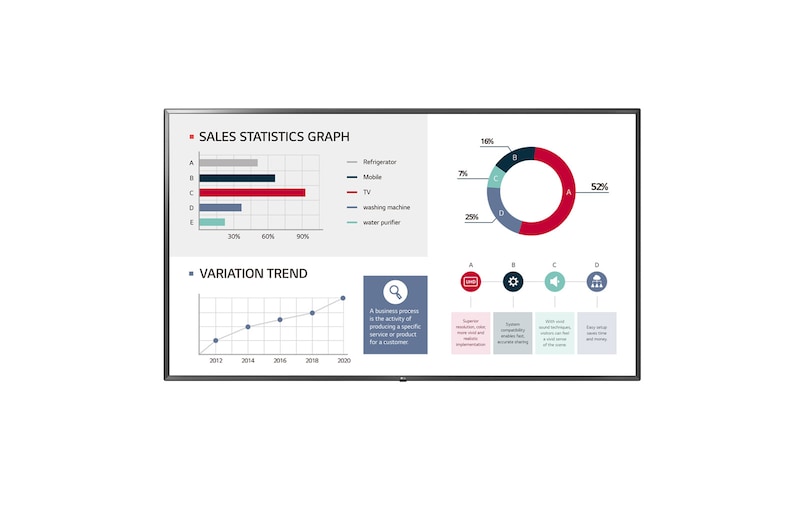

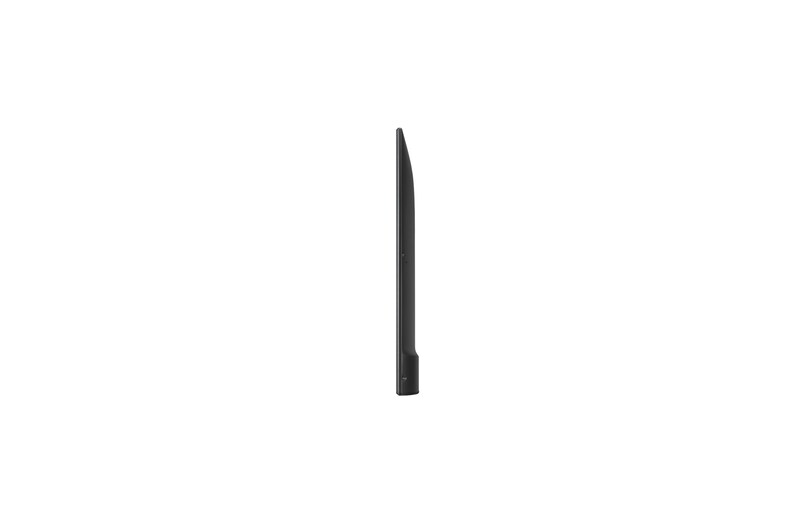

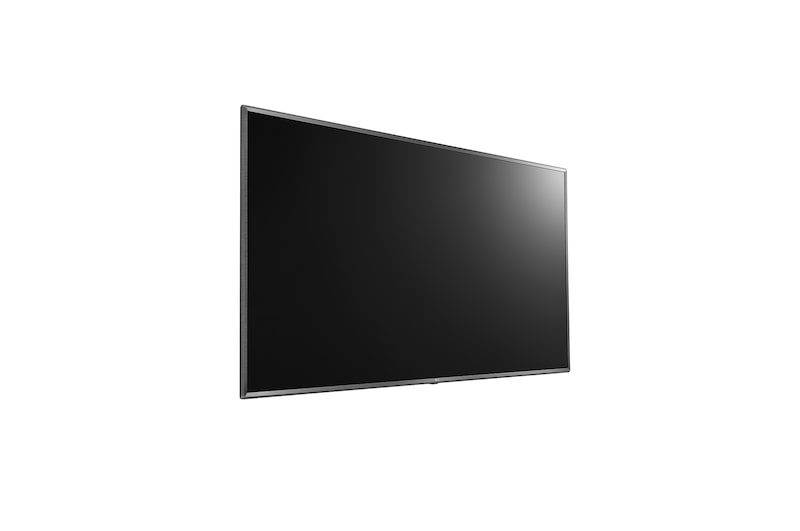

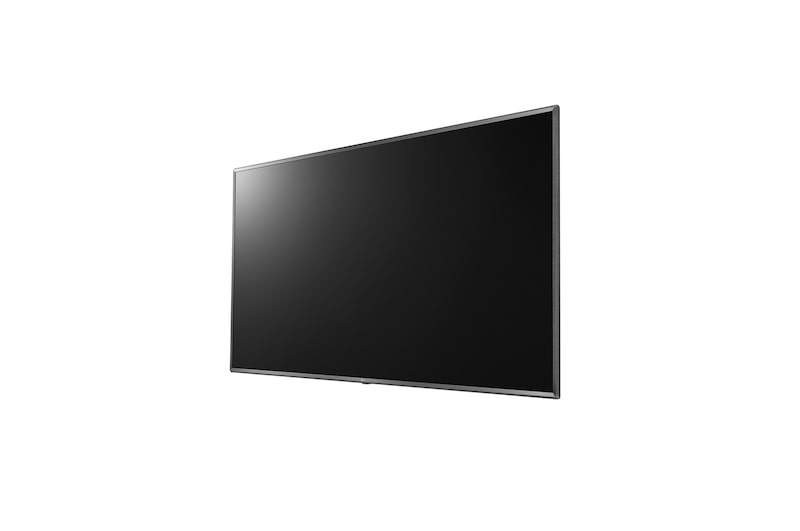

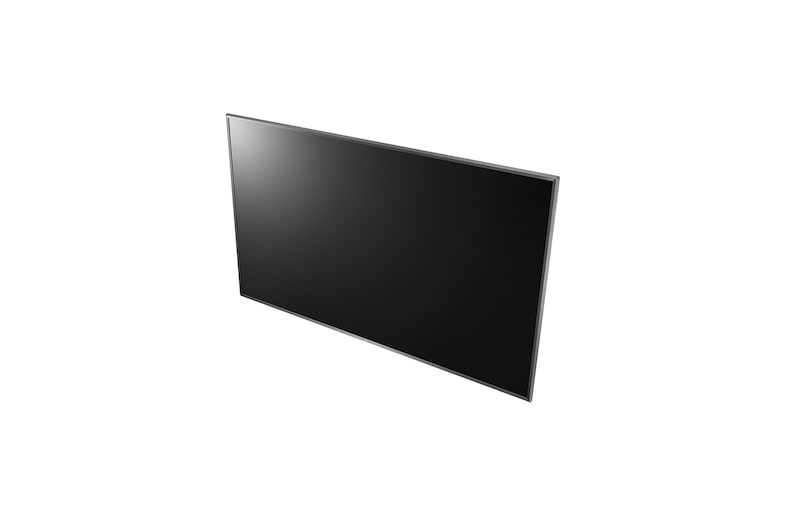

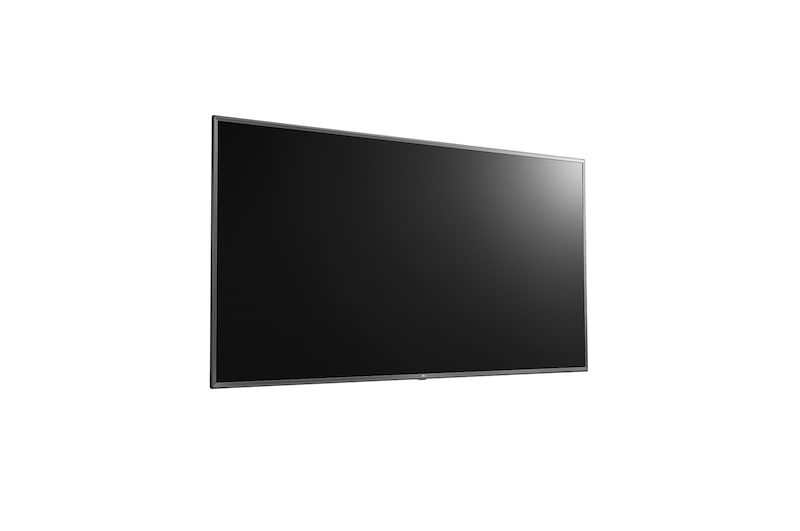

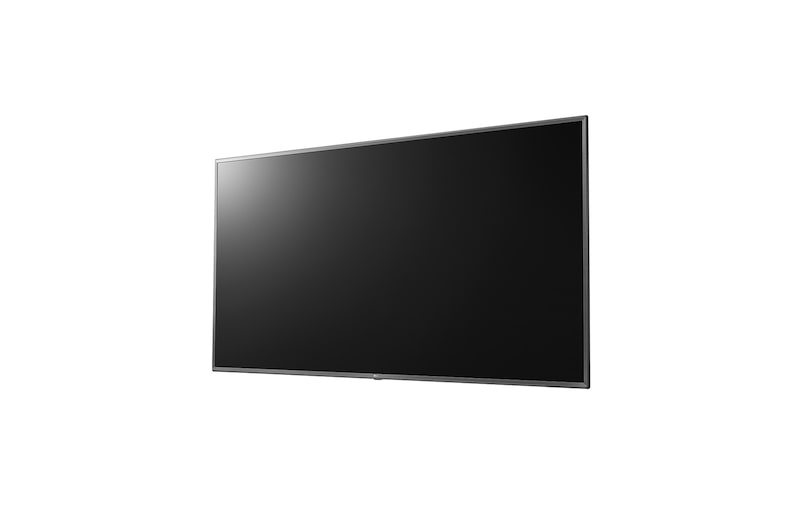

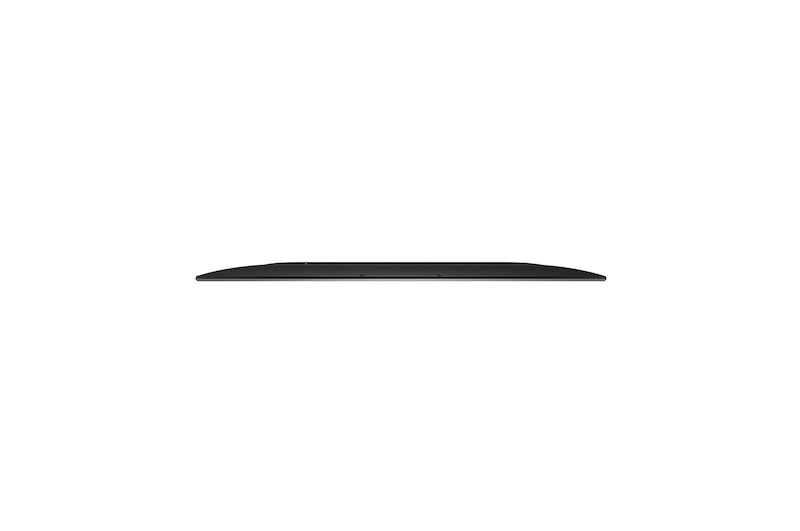

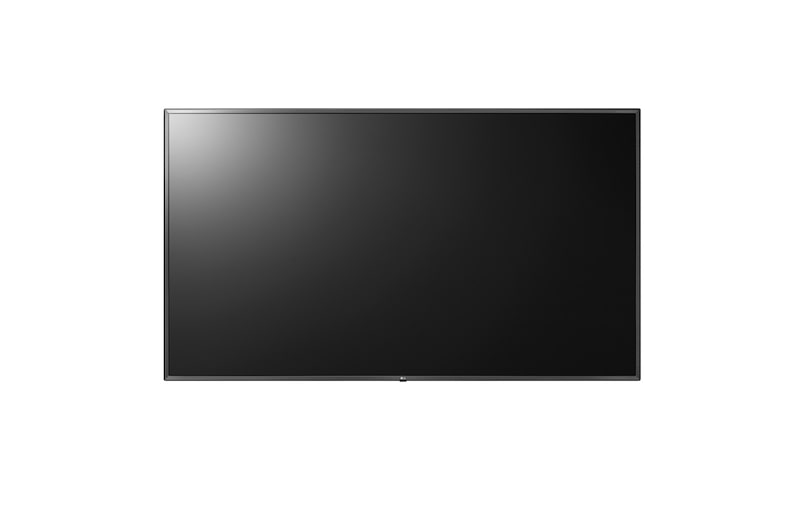

86" 350 nits 120 Hz UHD Signage

86" 350 nits 120 Hz UHD Signage

86UL3G-B

86" 350 nits 120 Hz UHD Signage

All Spec

PANEL

  • Screen Size

    86”

  • Panel Technology

    IPS

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    120Hz

  • Brightness(Typ.,cd/m²)

    350

  • Contrast Ratio

    1,400:1

  • Dynamic CR

    1,000,000:1

  • Colour gamut

    DCI 82%

  • Viewing Angle (H x V)

    178 x 178

  • Response Time

    5ms (G to G)

  • Surface Treatment (Haze)

    Haze 3%

  • Life Time (Min.)

    30,000 Hrs

  • Operation Hours (Hours / Day)

    16 / 7

  • Portrait / Landscape

    No / Yes

CONNECTIVITY

  • Input

    HDMI (3, HDCP2.2), USB 2.0 Type A (2)

  • Output

    Audio

  • External Control

    RS232C IN (4 pin phone-jack), RJ45 (LAN)

MECHANICAL SPECIFICATION

  • Bezel Color

    Dark Meteo Titan

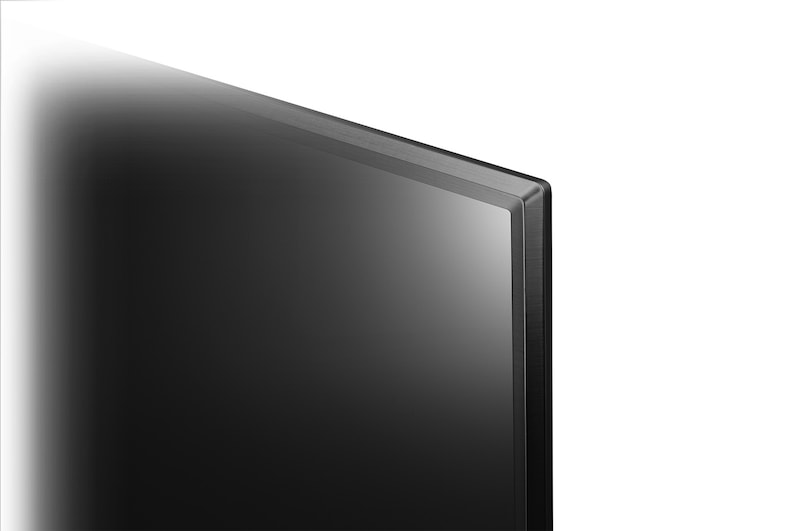

  • Bezel Width

    21.9 mm (Even Bezel)

  • Weight (Head)

    44.2 kg

  • Weight (Head+Stand)

    45.0 kg

  • Packed Weight

    59.0 kg

  • Monitor Dimension (W × H × D)

    1,943 x 1,118 x 77.9 mm (Thickest Point 93.3 mm)

  • Monitor incl. Stand Dimensions (W x H x D)

    1,943 x 1,188 x 345 mm

  • Carton Dimensions (W × H × D)

    2,116 x 1,261 x 285 mm

  • Handle

    No

  • VESA™ Standard Mount Interface

    600 x 400 mm

KEY FEATURE

  • Internal Memory

    8GB

  • Wi-Fi

    Built-in

  • Sensor

    Temperature Sensor, Auto Brightness Sensor

  • Local Key Operation

    Yes (Power On/Off only)

  • webOS ver.

    webOS 4.1

  • Embedded CMS

    Local Contents Scheduling, Group Manager

  • USB Plug & Play

    Yes

  • Fail over

    Yes

  • SW - Background Image - Booting Logo Image

    Yes

  • SW - Background Image - No Signal Image

    Yes

  • Screen Share

    Yes

  • Video Tag

    Yes (4, Max One HDMI input)

  • Play via URL

    Yes

  • Gapless Playback

    Yes

  • Setting Data Cloning

    Yes

  • SNMP

    Yes

  • ISM Mode (Image Sticking Minimization)

    Yes

  • Auto Set ID

    Yes

  • Status Mailing

    Yes

  • Control Manager

    Yes

  • 3rd Party Control Compatibility

    Yes

  • Beacon

    Yes

  • HDMI-CEC

    Yes

  • SI Server Setting

    Yes

  • webRTC

    Yes

  • Pro:Idiom

    Yes

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ. / Max.

    240 W / 325 W

  • Smart Energy Saving

    168 W

  • BTU (British Thermal Unit)

    819 BTU/Hr(Typ.), 1109 BTU/Hr(Max.)

  • DPM

    0.5W

  • Power off

    0.5 W

SOUND

  • Speaker

    Yes

CERTIFICATION

  • Safety

    CB / UL (TBD)

  • EMC

    FCC Class “A” / CE / KC (TBD)

  • ErP / Energy Star

    Yes (EU Only) / No

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control+ / Control

  • SuperSign WB

    Yes

  • SuperSign Media Editor

    Yes

  • Signage365Care

    Yes

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek, Turkish, Arabic

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Stand, Cable Holder
