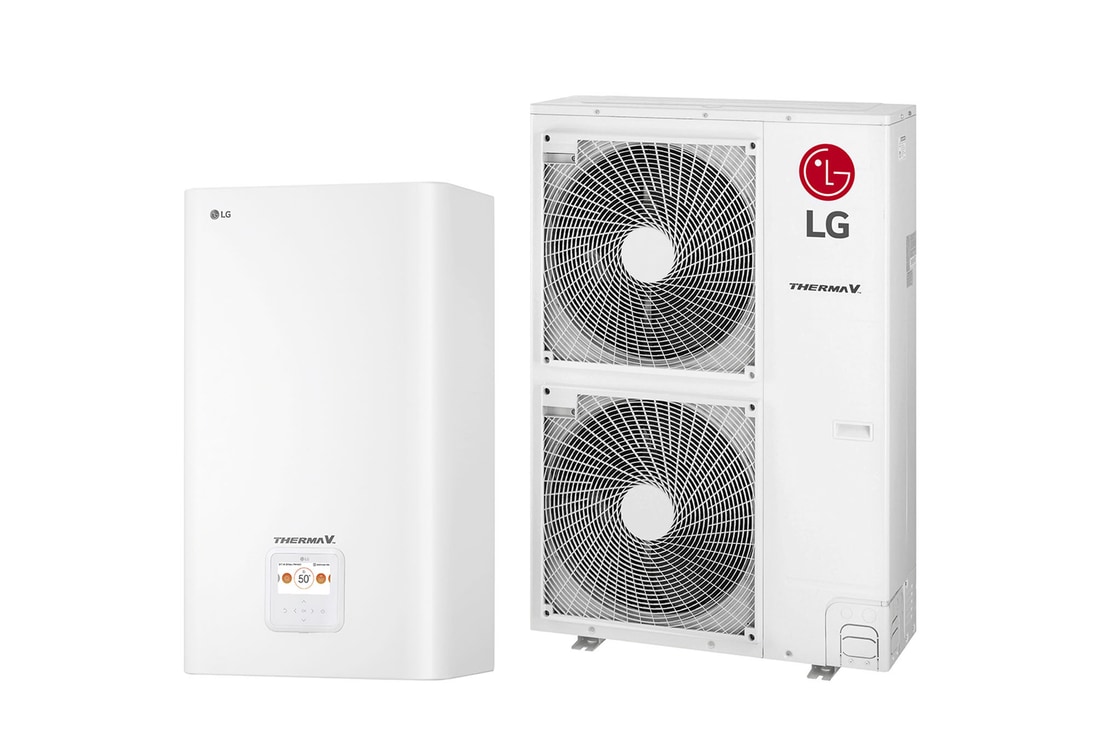

R410A Split Hydro Box, 1Ø, 16kW
HN1616M NK5 + HU161MA U33
Orders for the Scottish Islands and remote areas will be delivered by 3PL. The 3PL will contact you to arrange a suitable delivery date.
Delivery fees vary by postcode and may include additional charges for Highland or remote areas. Final shipping costs will be confirmed at checkout.
Further information regarding delivery can be found in our Delivery Terms and Conditions.
Are you sure you want to remove the coupon?
Indoor unit (W × H × D) (mm)
490 × 850 × 315
Outdoor unit (W × H × D) (mm)
950 x 1,380 x 330
Indoor unit (Color / RAL code)
Noble white / RAL 9016
Outdoor unit (Color / RAL code)
Warm gray / RAL 7044
COP
3.60
Heating capacity (kW)
13.80
COP
4.26
Heating capacity (kW)
16.00
COP
2.55
Heating capacity (kW)
12.00
Cooling capacity (kW)
13.00
EER
3.61
Cooling capacity (kW)
8.92
EER
3.53
Cooling (Min. ~ Max.) (℃)
5 ~ 27
DHW (Min. ~ Max.) (℃)
15 ~ 80
Heating (Min. ~ Max.) (℃)
15 ~ 57
Cooling (Min. ~ Max.) (℃)
5 ~ 48
Heating & DHW (Min. ~ Max.) (℃)
-25 ~ 35
Gas (mm (inch))
Ø 15.88 (5/8)
Length standard / Max. (m)
7.5 / 30
Level difference Max. (m)
30
Liquid (mm (inch))
Ø 9.52 (3/8)
Mass of additional ref. charge (g/m)
40
Max. length without additional charge (m)
7.5
Inlet diameter for space heating (inch)
Male PT 1"
Outlet diameter for space heating (inch)
Male PT 1"
Voltage, phase, frequency (V, Ø, Hz)
220-240, 1, 50
GWP
2,088
Precharged amount (g)
2,500
Type
R410A
Seasonal space heating efficiency (ηS) (35℃ / 55℃)
179 / 130
SCOP (35℃ / 55℃)
4.56 / 3.32
Seasonal space heating eff. class (35℃ / 55℃)
A+++/A++
Rated (dB(A))
44
Rated / low noise mode (dB(A))
65 / 63
Rated (dB(A))
36
Rated / low noise mode (dB(A))
43 / 41
Indoor unit (Empty) (kg)
40.5
Outdoor unit (Empty) (kg)
84.8
