Whole new type UST LED projector

Whole new type UST LED projector

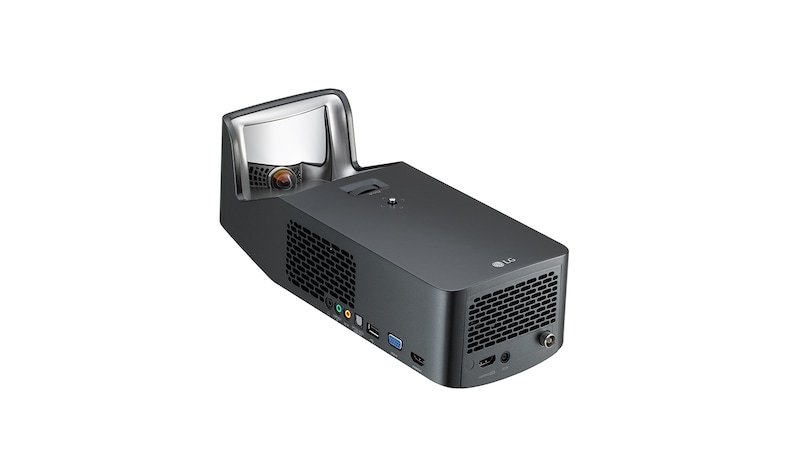

PF1000U

Whole new type UST LED projector

All Spec

PROJECTION SYSTEM

Native Resolution

Full HD(1920x1080)

Brightness (Lumen, lm)

1000

Contrast Ratio (Full On Full Off)

150,000:1

Noise - High Brightness

30dB(A)

Noise - Normal

24dB(A)

Noise - Economic

21dB(A)

Uniformorty(JBMMA 9point)

80%

Projection Lens - Focus

Manual

Projection Image - Screen Size

60" ~ 100"

Projection Image - Standard

80"@51.4cm

Projection Image - Throw Ratio

0.29

Projection Offset

125%

Light source - Type

RGB LED

Light source - Life High Brightness

30,000 Hrs

GENERAL SPECIFICATION

Menu Language

English / French/ Spanish/ German / Italian / Swedish / Portuguese / polish/ Russian/ Greek / Turkish

Aspect Ratio Control

4:3/Just scan/Original/Full Wide/ 16:9/14:9/Zoom/Cinema Zoom

Sound

3W + 3W Stereo

Net Size (mm) (W x D x H)

131 x 309 x 128/89 (including mirror/discluding mirror)

Net Weight (kg or g)

1.9kg

Power Consumption (Max.)

100W

Stand-by Power

<0.5W

Power Supply

Adapter (100V – 240V @ 50~60 Hz)

Operation Temperature

0 ~ 40℃

Input Signal Compatibility - RF

DTV/ATV

Input Signal Compatibility - Digital(HDMI)

Up to 1080p(60Hz/24Hz)

Input Signal Compatibility - RGB

1280*1024(60Hz) (incl. 1080p 60Hz)

Input Signal Compatibility - Component Video

1080i/p, 720p, 480i/p, 576i/p

Input Signal Compatibility - Composite Video

NTSC, PAL

INPUT/OUTPUT TERMINALS

RGB in

1

RGB(PC) Audio in

1

Composite(AV) in

Phone to AV in

Composite(AV) Audio in

Phone to AV in

Component (YPbPr)

RGB to Component in

Component (YPbPr) Audio in

RGB to Component in

Audio out

1 (Φ3.5), S/PDIF 1(Optical)

HDMI

2 (1 MHL)

USB

1

RF IN

1

MAIN FEATURES

3D

3D Optimizer

Digital Keystone Correction

Horizontal/Vertical (Edge Adjustment, a.k.a 4 Corner Keystone)

Auto Keystone

Yes (Vertical)

Picture Still

Yes

Auto Source Detection (Auto Input Search)

Yes

Quick(Instant) Power on/off

Yes (on 10 Sec off 2 Sec)

Auto Sleep (Off)

Yes

Sleep Timer

Yes

Blank

Yes (Blue, Green)

Image Flip

Yes (Horizontal/Vertical)

Color Temperature Adjustment

Yes

Black Level Control

Yes

Expert controlvADJ

Yes

Gamma Correction

Yes

Noise Reduction

Yes

Closed Caption

Yes (Teletext, Subtitle)

Automatic Standby

Yes

ADDED FEATURES

USB Host (DivX, MP3, Photo)

Yes (HD DivX)

File(Office) Viewer

Yes

DTV Tuner

Yes (DVB-T2)

Wireless Mirroring

Screen Share

Wired Mirroring (Cable sold separately) - MHL

Yes

Wired Mirroring (Cable sold separately) - Apple Digital AV Adapter

Yes

Wired Mirroring (Cable sold separately) - Slimport

Yes

Bluetooth Sound out

Yes

Bluetooth AV Sync Adjustment

Yes

Self Diagnosis

Yes

DESIGN

Cabinet Color

Titan Black

Local Key

Joystick

Kensington Lock

Yes

Leg-Stand

Yes

Ceiling mount hole (for bracket)

Yes

ACCESSORY

Manual (Full or Simple Book) (TBD)

Simple Book

CD Manual

Yes

Quick User Guide (Quick Set-up Guide)

Yes

Warranty Card

Yes

3D Glasses

DLP Link Glasses (sold separately)

Cable - Phone to Comp.

1

Cable - Phone to AV (Composite)

1

Cable - Adaptor

1

Cable - Power cord

1

Remote control

Remote Control (New) + Battery

Conformances(Regulation)

CE/CB
