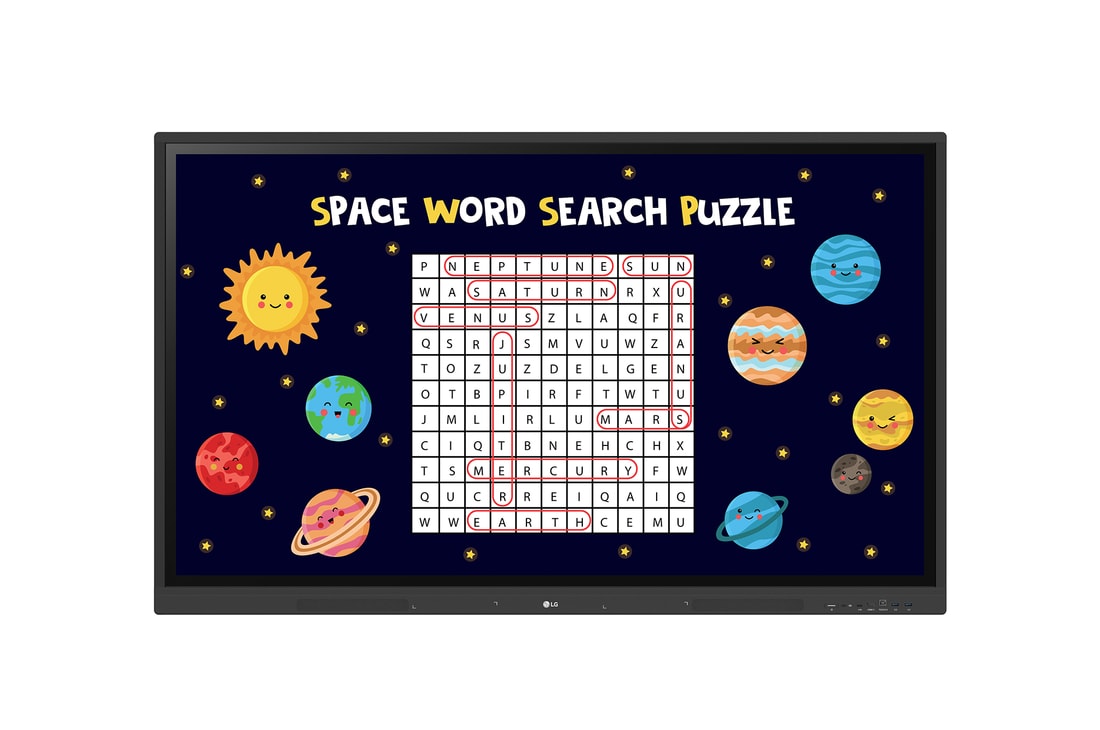

LG CreateBoard

65TR3DK-B

Key Features

Internal Memory : 64GB (Storage) / 8GB (RAM)
Brightness (w/o Glass) : 440 nit (Max.), 390 nit (Typ.)
Resolution : 3,840 × 2,160 (UHD)
Multi-Touch Point : 40 Points (Max.)

All Spec

PANEL

Screen Size (Inch): 65"

Aspect Ratio: 16:9

Back Light Type: Direct

Brightness: 440nit(w/o Glass, max), 390nit(w/o Glass, typ)

Color Depth (Number of Colors): 10bit(8bit + FRC)

Color Gamut: NTSC 72%

Contrast Ratio: 1200:1

Dynamic CR: 5000:1

Life time: 30,000 Hrs(L50, Min.), 50,000 Hrs (L30)

Native Resolution: 3840x2160 (UHD)

Operation Hours (Hours/Day): 16/7

Panel Technology: IPS

Portait / Landscape: No / Yes

Refresh Rate: 60Hz

Response Time: 8ms (G to G)

Surface Treatment (Haze): Haze 25%

Viewing Angle (H x V): 178 X 178

ACCESSORY

Basic: Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module

Optional: Wall Mount(WM-L000S), Floor Stand(ST-000F) (US only)

CONNECTIVITY

HDMI In: Yes (3) HDCP2.2

Audio In: Yes(1)

Audio Out: Yes(1), Optical Yes(1, SPDIF)

HDMI Out: Yes(1)

RGB In: Yes(1, VGA)

RJ45(LAN) In: Yes(1)

RJ45(LAN) Out: Yes(1)

RS232C In: Yes(1)

Touch USB: Yes(2)

USB In: USB3.0 Type A(4), USB2.0 Type A(1) USB Type C(1)(USB-PD, DP-Alt,)

DEDICATED FEATURE - CREATE BOARD

CPU: Quad core A55

Bluetooth: Bluetooth 5.0

GPU: Mali G52MP2

LAN: Gigabit LAN

Memory(RAM): 8GB

OS ver. (Android): Android 13(EDLA)

Storage: 64GB

Wi-Fi: 802.11a/b/g/n/ac/ax (WiFi 6)

DEDICATED FEATURE - TOUCH

Available Object Size for Touch: Ø2 mm ↑

Accuracy (Typ.): ±1mm

Interface: USB2.0

Multi Touch Point: Max 40 points (Windows), Max 20 points (Android)

Operating System Support: Windows 7/8/10/Linux/Mac/Android (Linux/Mac Support one point touch)

Protection Glass Thickness: 3T(Anti-Glare)

Protection Glass Transmission: 88%

Response Time ('Paint' app on Windows 10 PC): ≤5ms

ENVIRONMENT CONDITIONS

Operation Temperature: 0 °C to 40 °C

Operation Humidity: 10% to 90%

FEATURE - HARDWARE

Internal Memory (eMMC): 64GB

Auto Brightness Sensor: Yes

Power Indicator: Yes

Wi-Fi/BT (Built-in): Yes (Slot type)

FEATURE - SOFTWARE

OS Ver. (webOS): Android 13(EDLA)

Crestron Connected: Yes

PBP: Yes(1) external source

PIP: Yes(1) external source

Screen Share: Yes(CreateBoard Share)

Smart Energy Saving: Yes (Energy Saving)

Wake on LAN: Yes

LANGUAGE

OSD: English, Simplified Chinese, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Thai, Indonesian, Qajaq, Catalan, Basque

MECHANICAL SPECIFICATION

Bezel Color: Black

Bezel Width: T/R/L/B : 15/15/15/44mm

Carton Dimensions (W x H x D): 1628 × 1005 × 208mm

Handle: Yes

Monitor Dimensions (W x H x D): 1488.4 × 896.6 × 87.2mm

Packed Weight: 44.7Kg

VESA Standard Mount Interface: 600 × 400

Weight (Head): 35.0Kg

OPS COMPATIBILITY

OPS Type compatible: Yes(Slot)

OPS Power Built-in: Yes

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-In Power

POWER CONSUMPTION

Typ.: 220W

BTU (British Thermal Unit): 751BTU/Hr(Typ.), 1433BTU/Hr(Max.)

DPM: ≤0.5W

Max.: 420W

Power off: ≤0.5W

SOFTWARE COMPATIBILITY

Connected Care: Yes / Yes(DMS)

SOUND

Speaker (Built-in): Yes (15W x 2)

SPECIAL FEATURE

Conformal Coating (Power Board): Yes(Partial)
