LG CreateBoard

LG CreateBoard

65TR3DK-B

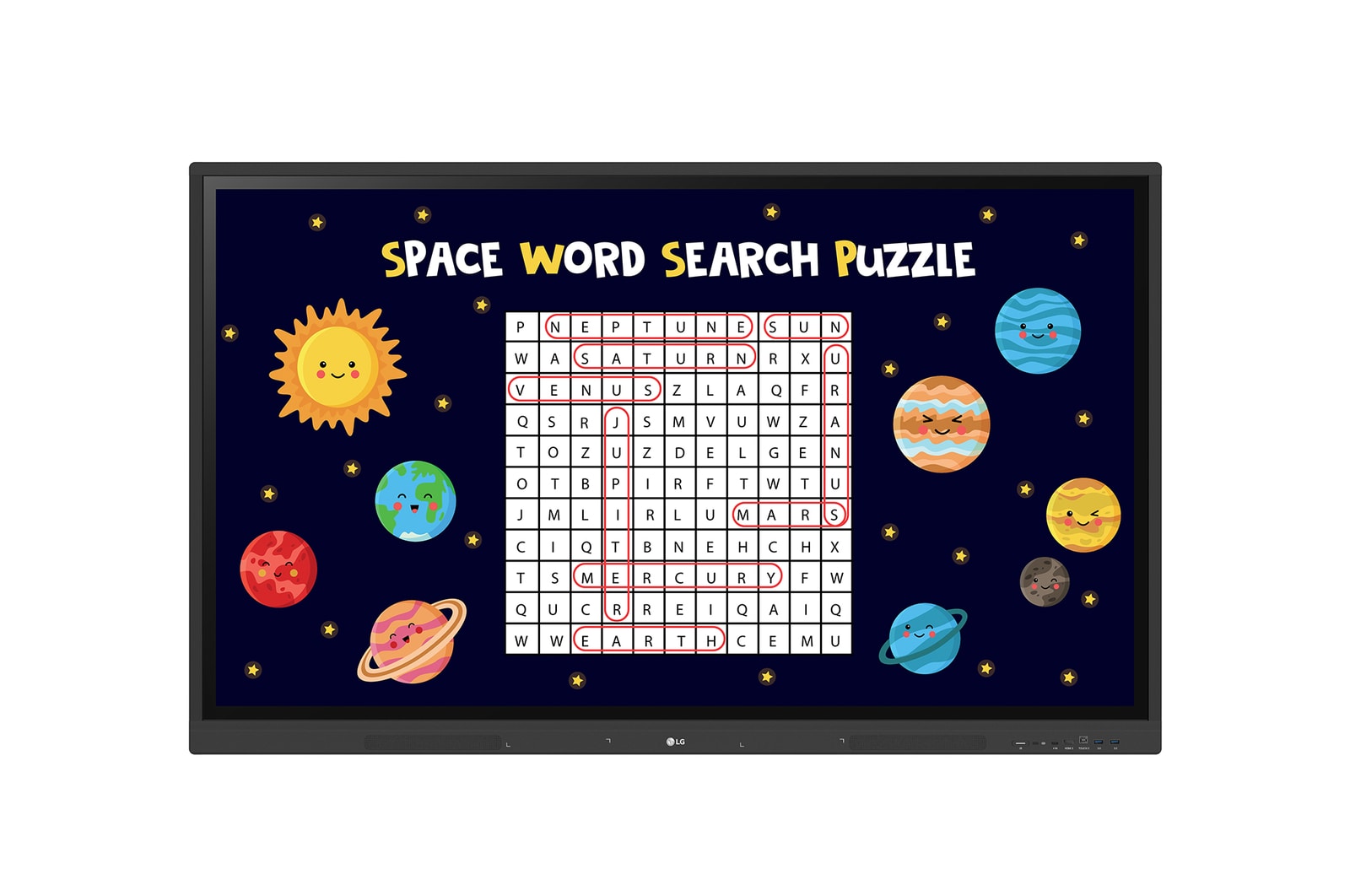

Front view of LG CreateBoard 65TR3DK-B

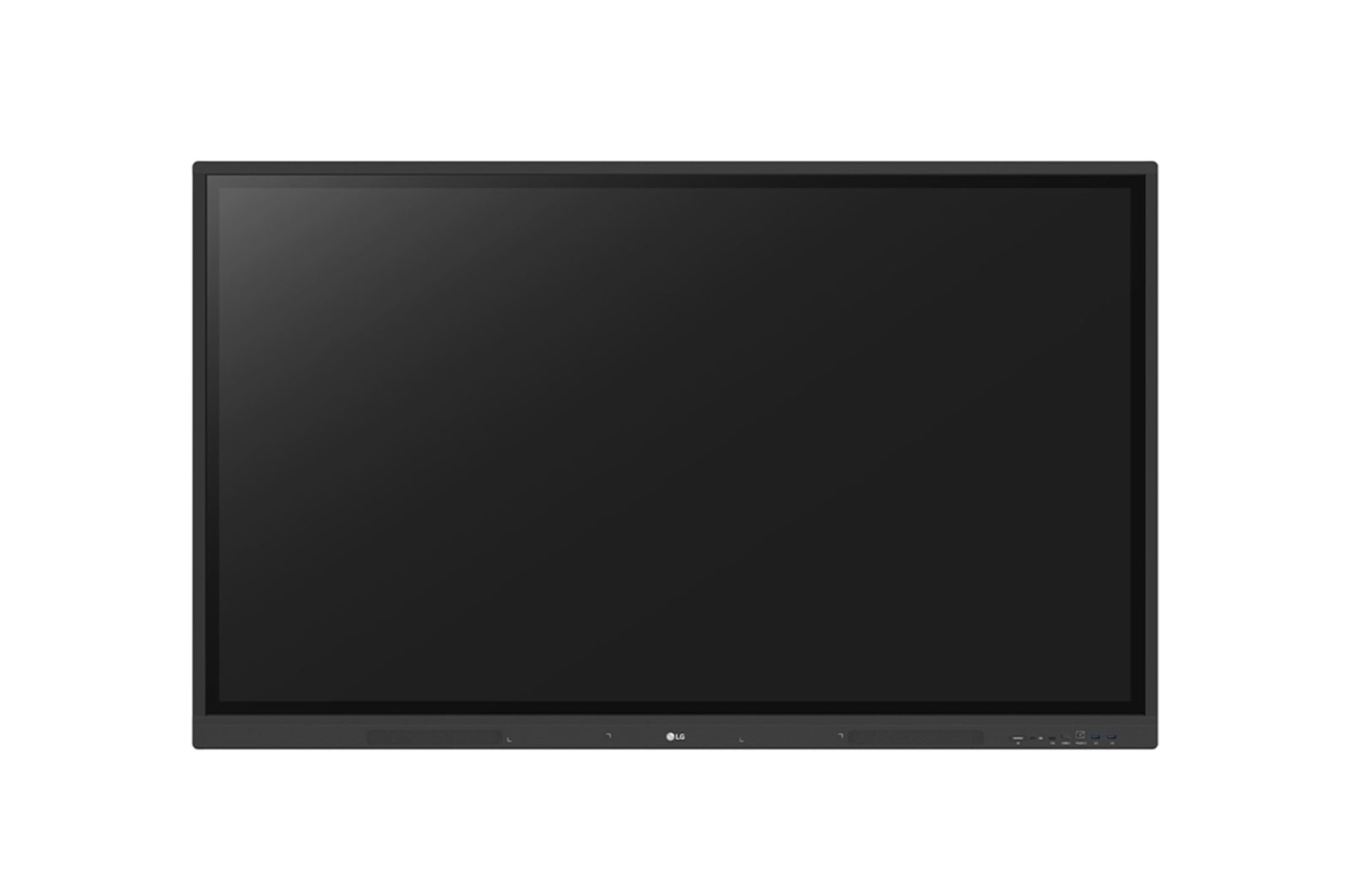

Front view

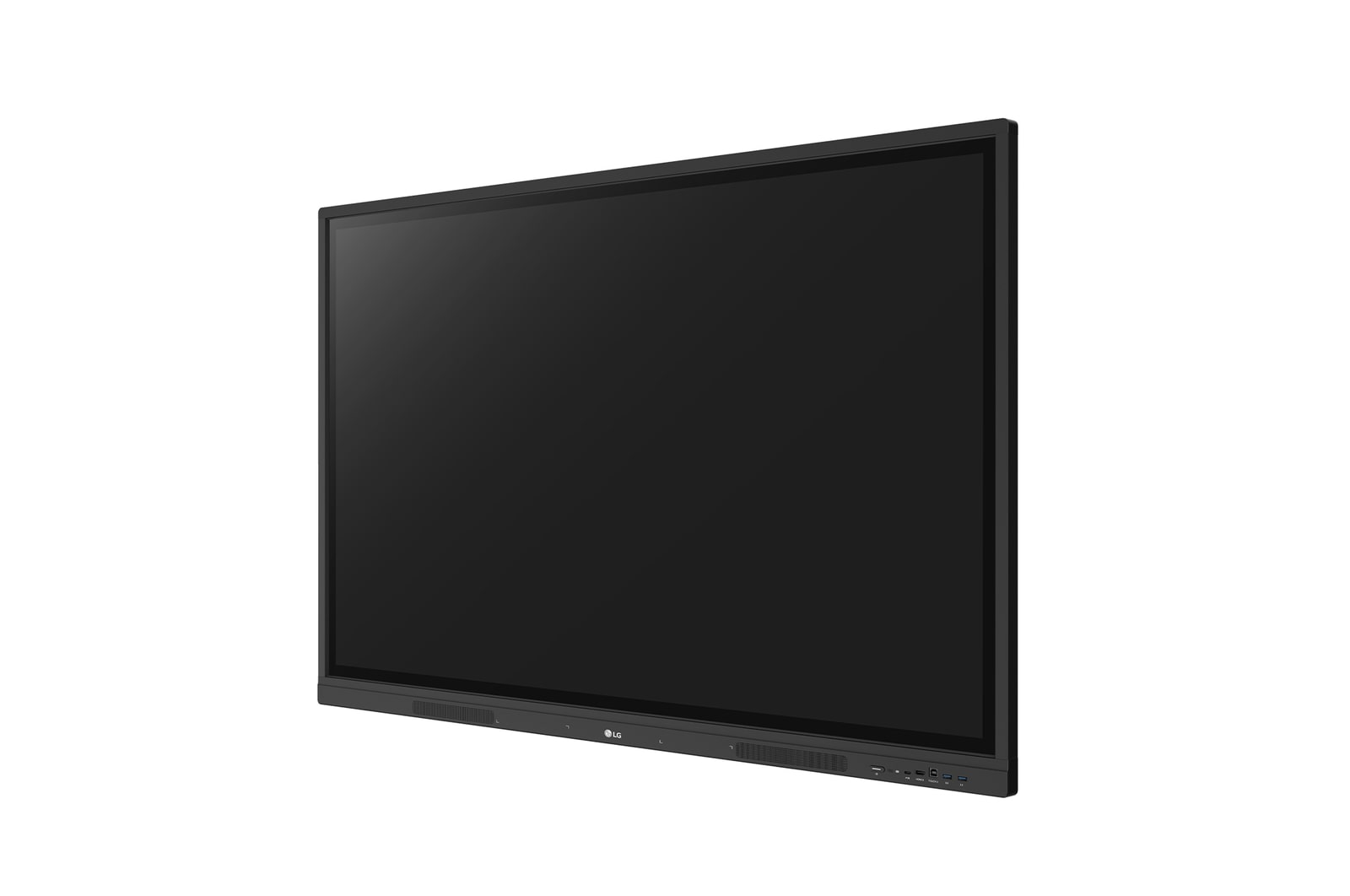

-45 degree side view

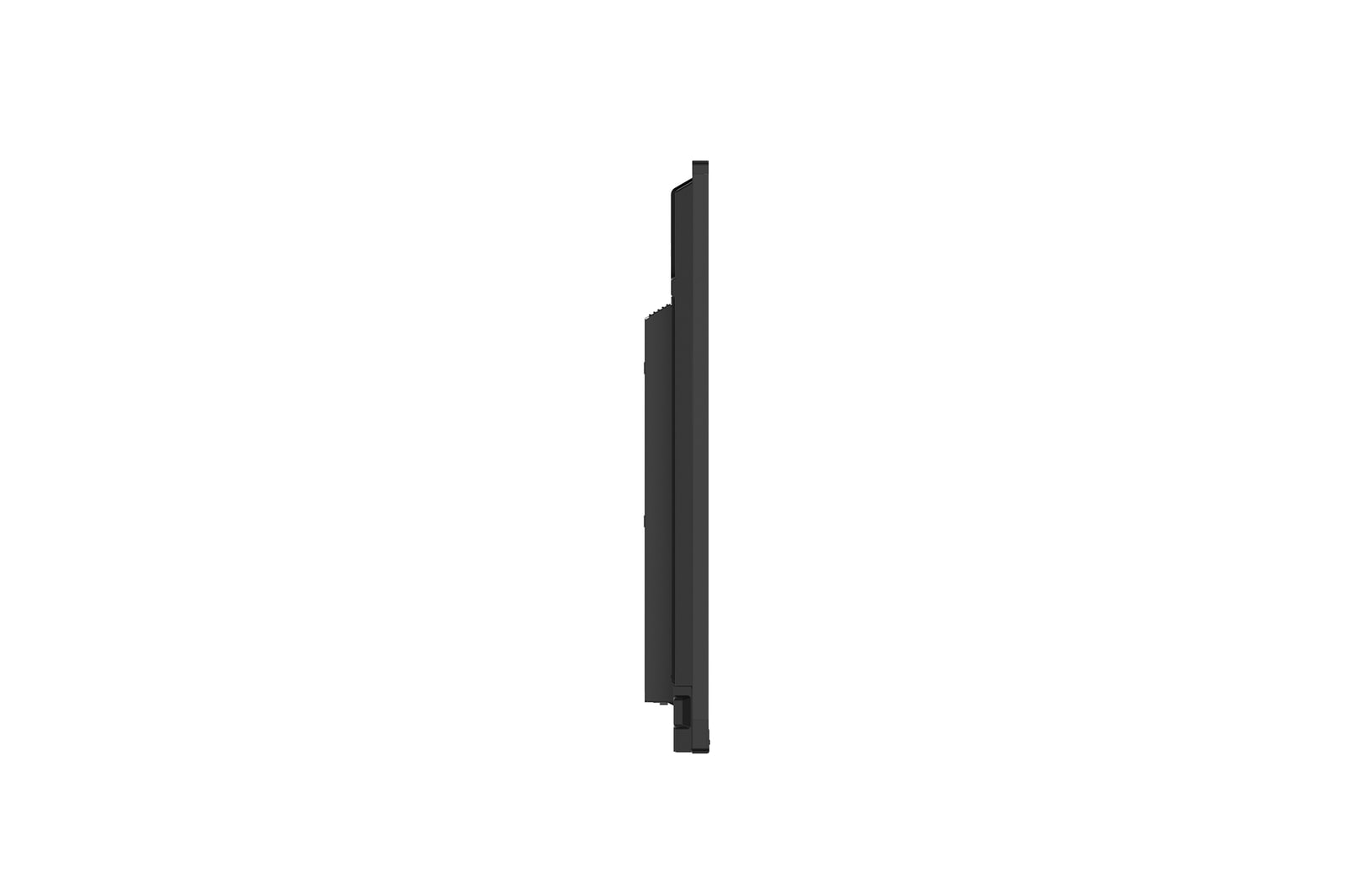

+90 degree side view

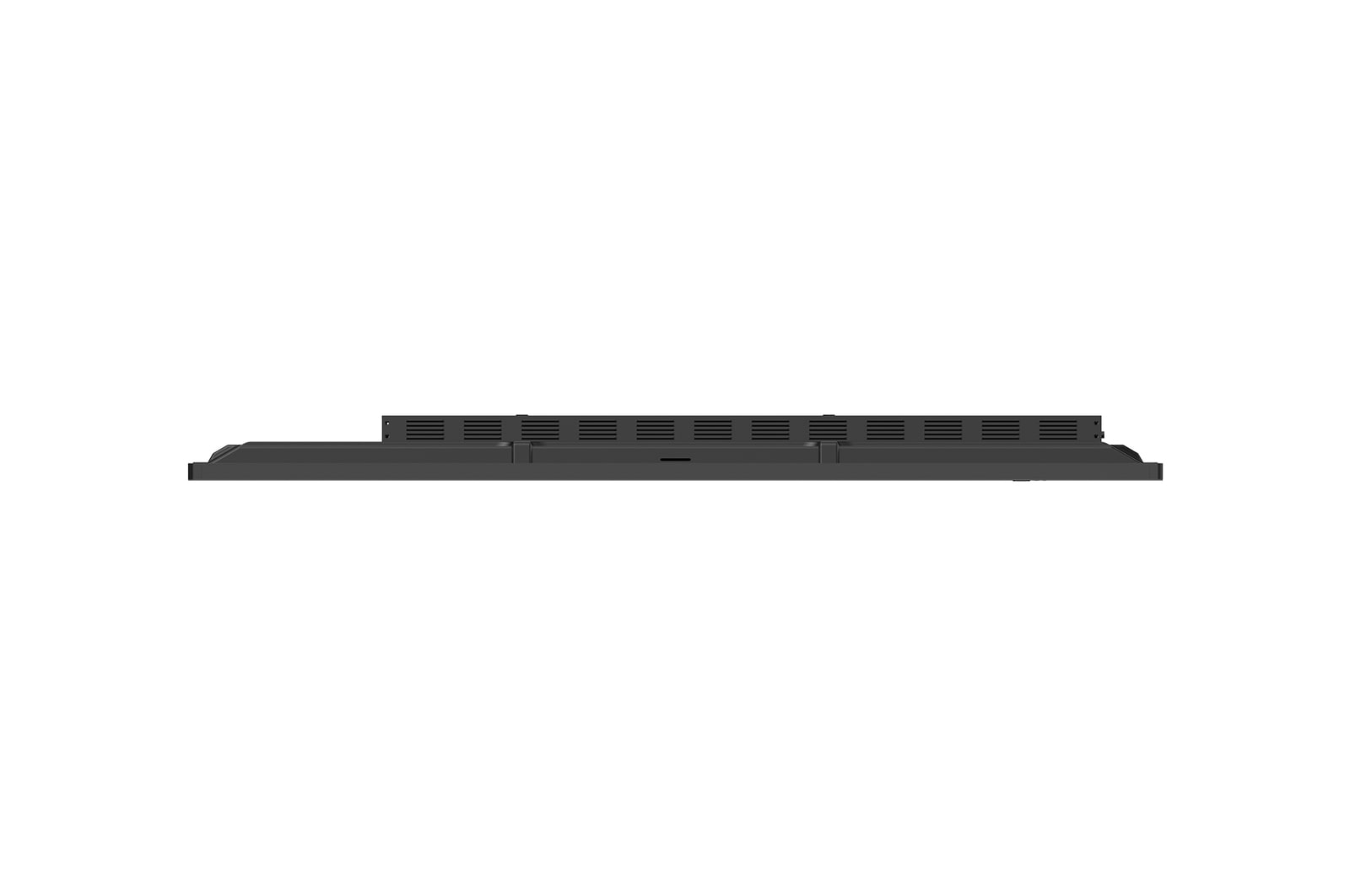

Bottom view

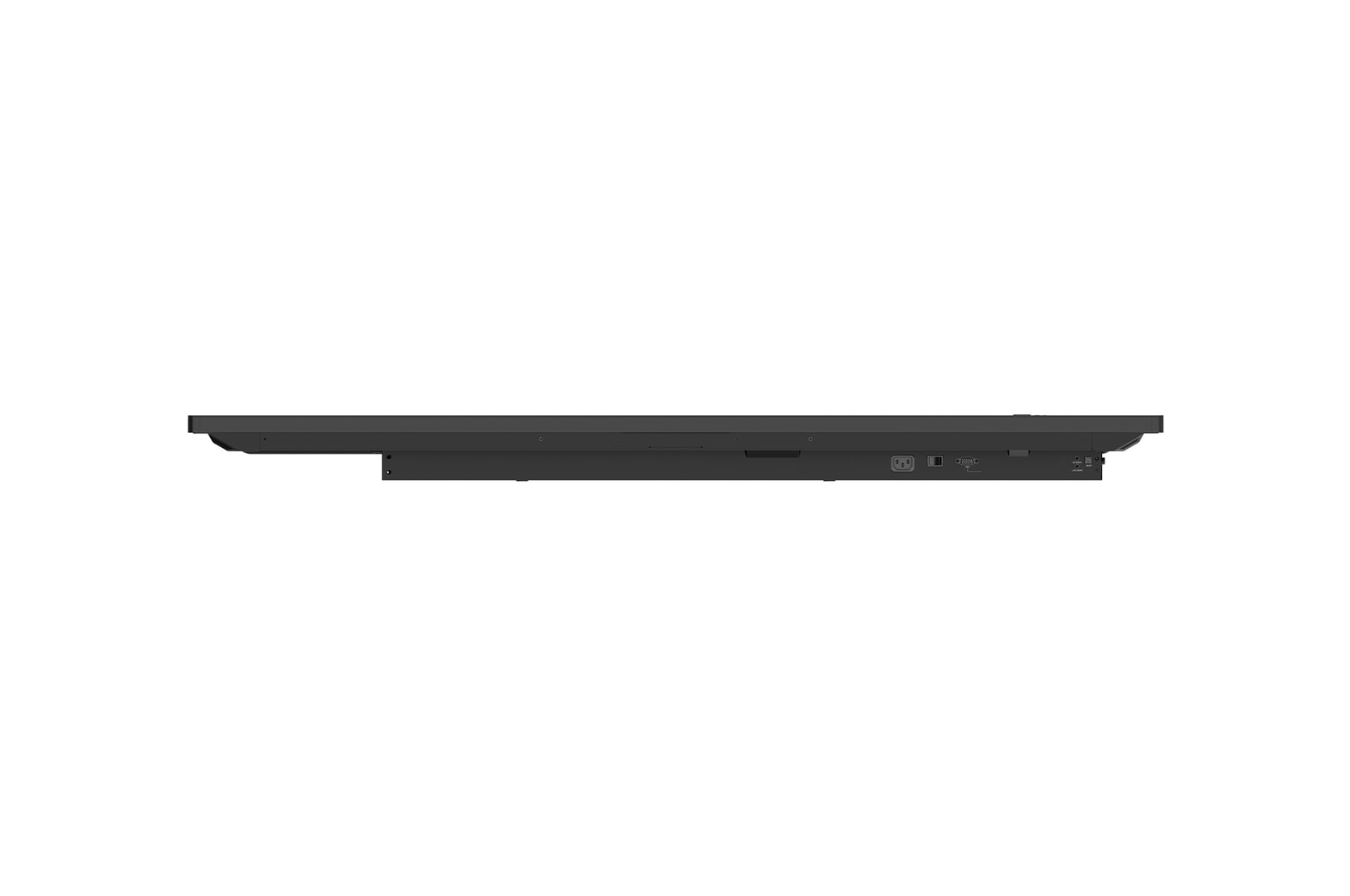

Top view

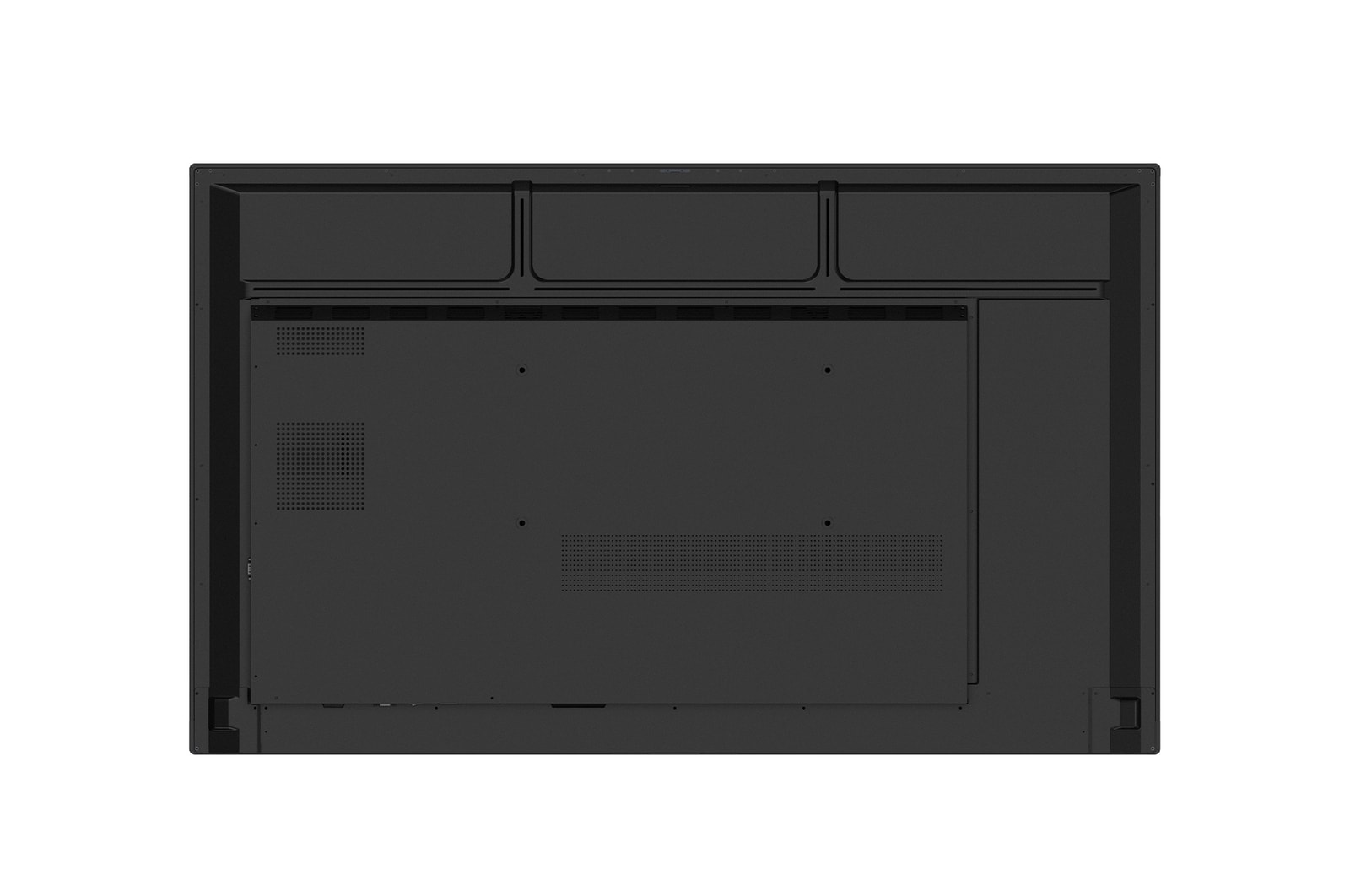

Rear view
Front view of LG CreateBoard 65TR3DK-B
Front view
-45 degree side view
+90 degree side view
Bottom view
Top view
Rear view

Key Features

  • Internal Memory : 64GB (Storage) / 8GB (RAM)
  • Brightness (w/o Glass) : 440 nit (Max.), 390 nit (Typ.)
  • Resolution : 3,840 × 2,160 (UHD)
  • Multi-Touch Point : 40 Points (Max.)
More
Print

All Spec

PANEL

  • Screen Size (Inch)

    65"

  • Aspect Ratio

    16:9

  • Back Light Type

    Direct

  • Brightness

    440nit(w/o Glass, max), 390nit(w/o Glass, typ)

  • Color Depth (Number of Colors)

    10bit(8bit + FRC)

  • Color Gamut

    NTSC 72%

  • Contrast Ratio

    1200:1

  • Dynamic CR

    5000:1

  • Life time

    30,000 Hrs(L50, Min.), 50,000 Hrs (L30)

  • Native Resolution

    3840x2160 (UHD)

  • Operation Hours (Hours/Day)

    16/7

  • Panel Technology

    IPS

  • Portait / Landscape

    No / Yes

  • Refresh Rate

    60Hz

  • Response Time

    8ms (G to G)

  • Surface Treatment (Haze)

    Haze 25%

  • Viewing Angle (H x V)

    178 X 178

ACCESSORY

  • Basic

    Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module

  • Optional

    Wall Mount(WM-L000S), Floor Stand(ST-000F) (US only)

CONNECTIVITY

  • HDMI In

    Yes (3) HDCP2.2

  • Audio In

    Yes(1)

  • Audio Out

    Yes(1), Optical Yes(1, SPDIF)

  • HDMI Out

    Yes(1)

  • RGB In

    Yes(1, VGA)

  • RJ45(LAN) In

    Yes(1)

  • RJ45(LAN) Out

    Yes(1)

  • RS232C In

    Yes(1)

  • Touch USB

    Yes(2)

  • USB In

    USB3.0 Type A(4), USB2.0 Type A(1) USB Type C(1)(USB-PD, DP-Alt,)

DEDICATED FEATURE - CREATE BOARD

  • CPU

    Quad core A55

  • Bluetooth

    Bluetooth 5.0

  • GPU

    Mali G52MP2

  • LAN

    Gigabit LAN

  • Memory(RAM)

    8GB

  • OS ver. (Android)

    Android 13(EDLA)

  • Storage

    64GB

  • Wi-Fi

    802.11a/b/g/n/ac/ax (WiFi 6)

DEDICATED FEATURE - TOUCH

  • Available Object Size for Touch

    Ø2 mm ↑

  • Accuracy (Typ.)

    ±1mm

  • Interface

    USB2.0

  • Multi Touch Point

    Max 40 points (Windows), Max 20 points (Android)

  • Operating System Support

    Windows 7/8/10/Linux/Mac/Android (Linux/Mac Support one point touch)

  • Protection Glass Thickness

    3T(Anti-Glare)

  • Protection Glass Transmission

    88%

  • Response Time ('Paint' app on Windows 10 PC)

    ≤5ms

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10% to 90%

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    64GB

  • Auto Brightness Sensor

    Yes

  • Power Indicator

    Yes

  • Wi-Fi/BT (Built-in)

    Yes (Slot type)

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    Android 13(EDLA)

  • Crestron Connected

    Yes

  • PBP

    Yes(1) external source

  • PIP

    Yes(1) external source

  • Screen Share

    Yes(CreateBoard Share)

  • Smart Energy Saving

    Yes (Energy Saving)

  • Wake on LAN

    Yes

LANGUAGE

  • OSD

    English, Simplified Chinese, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Thai, Indonesian, Qajaq, Catalan, Basque

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/R/L/B : 15/15/15/44mm

  • Carton Dimensions (W x H x D)

    1628 × 1005 × 208mm

  • Handle

    Yes

  • Monitor Dimensions (W x H x D)

    1488.4 × 896.6 × 87.2mm

  • Packed Weight

    44.7Kg

  • VESA Standard Mount Interface

    600 × 400

  • Weight (Head)

    35.0Kg

OPS COMPATIBILITY

  • OPS Type compatible

    Yes(Slot)

  • OPS Power Built-in

    Yes

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ.

    220W

  • BTU (British Thermal Unit)

    751BTU/Hr(Typ.), 1433BTU/Hr(Max.)

  • DPM

    ≤0.5W

  • Max.

    420W

  • Power off

    ≤0.5W

SOFTWARE COMPATIBILITY

  • Connected Care

    Yes / Yes(DMS)

SOUND

  • Speaker (Built-in)

    Yes (15W x 2)

SPECIAL FEATURE

  • Conformal Coating (Power Board)

    Yes(Partial)
