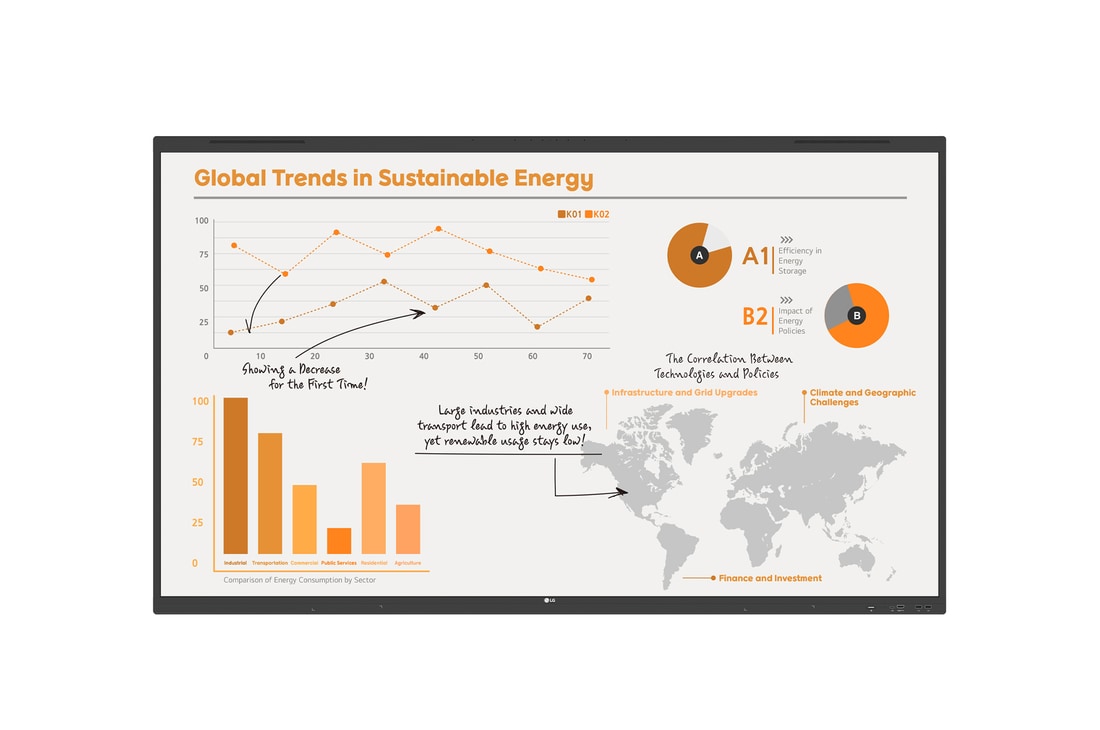

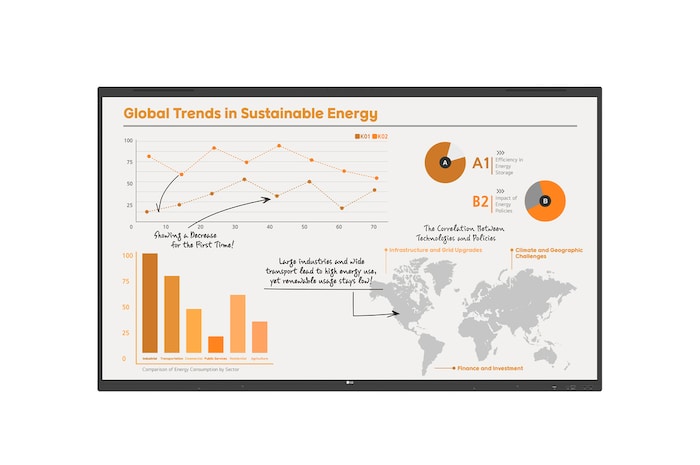

LG CreateBoard Pro

75TR3PN-B

Key Features

Resolution : 3,840 × 2,160 (UHD)
Brightness : 400 nit (Typ.)
Multi-Touch Point : Max. 50 Points
OS Ver. : Andorid 13

All specs

ACCESSORY

Basic: Power Cord 3 M*1, USB Cable(Type A-Type B) 5 M*1, USB Type-C Cable(C to C) 1.8 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module

Optional: Wall Mount(WM-L000S), Floor Stand(ST-000F / ST-860F)

CERTIFICATION

EMC: FCC Class "A“

ERP / Energy Star: Yes / Yes

Safety: IEC62368, EN62368, GB4943, UL62368

CONNECTIVITY

Audio In: Yes(1)

Audio Out: Yes(1)

DP In: Yes(1), HDCP1.3/2.3

HDMI In: Yes(4), HDCP2.3

HDMI Out: Yes(1)

RJ45(LAN) In: Yes(1)

RJ45(LAN) Out: Yes(1)

RS232C In: Yes(1)

Touch USB: USB2.0 Type A(2)

USB In: USB Type C(2), USB3.0 Type A(4), USB2.0 Type A(3)

DEDICATED FEATURE - CREATE BOARD

Bluetooth: Bluetooth 5.0

CPU: Octa-core A76x4 + A55x4

GPU: Mali G52MP2

LAN: Gigabit LAN

Memory(RAM): 8GB

OS ver. (Android): Android 13(EDLA)

Storage: 64GB

Wi-Fi: 802.11 a/b/g/n/ac/ax

DEDICATED FEATURE - TOUCH

Accuracy (Typ.): ±1mm

Available Object Size for Touch: Ø2 mm ↑

Interface: USB2.0

Multi Touch Point: Max 50 points

Operating System Support: Windows10/Windows8/Windows7/Android /Linux/Mac OS X/Chrome

Protection Glass Thickness: 3.2mm

Protection Glass Transmission: 88%

Response Time ('Paint' app on Windows 10 PC): ≤2.5ms

ENVIRONMENT CONDITIONS

Operation Humidity: 10 % to 90 %

Operation Temperature: 0 °C to 40 °C

FEATURE - HARDWARE

Auto Brightness Sensor: Yes

Internal Memory (eMMC): 64GB

Power Indicator: Yes

Temperature Sensor: Yes

Wi-Fi/BT (Built-in): Yes (Slot type)

FEATURE - SOFTWARE

Booting Logo Image: Yes

HDMI-CEC: Yes

Network Ready: Yes (Fast Power On)

OS Ver. (webOS): Android13(EDLA)

PIP: Yes (1) external source

Screen Share: Yes (CreateBoard Share)

Smart Energy Saving: Yes (Energy Saving)

Wake on LAN: Yes

LANGUAGE

OSD: English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic, Polski, Hungary, Romania, Thai, Turkiye, Ukraine, Basque, Catalan, Kazakhstan, Indonesia

MECHANICAL SPECIFICATION

Bezel Color: Black

Bezel Width: T/R/L/B : 34.3/15.6/15.6/37mm

Carton Dimensions (W x H x D): 1863 × 225 × 1148mm

Handle: Yes(2)

Monitor Dimensions (W x H x D): 1709 × 1031 × 86mm

Packed Weight: 60.7kg

VESA Standard Mount Interface: 800x400mm

Weight (Head): 51.4kg

OPS COMPATIBILITY

OPS Power Built-in: Yes

OPS Type compatible: Yes

PANEL

Aspect Ratio: 16:9

Back Light Type: Direct

Brightness: 400nit (Typ.)

Color Depth (Number of Colors): 10bit(8bit + FRC)

Color Gamut: 72% (NTSC)

Contrast Ratio: 4,000:1

Dynamic CR: 5,000:1

Life time: 50,000 Hrs (Min.)

Native Resolution: 3840x2160 (UHD)

Operation Hours (Hours/Day): 16/7

Panel Technology: IPS

Portait / Landscape: No / Yes

Refresh Rate: 60Hz

Response Time: 8ms(Typ)

Screen Size (Inch): 75"

Surface Treatment (Haze): 25%

Viewing Angle (H x V): 178 x 178

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-In Power

POWER CONSUMPTION

BTU (British Thermal Unit): 1092 BTU/Hr(Typ.), 1808 BTU/Hr(Max)

DPM: 0.5W

Max.: 450W

Power off: 0.5W

Smart Energy Saving (70%): (TBD)

Typ.: 210W

SOFTWARE COMPATIBILITY

Connected Care: Yes

SOUND

Speaker (Built-in): Yes (18Wx2 + 8Wx2)
