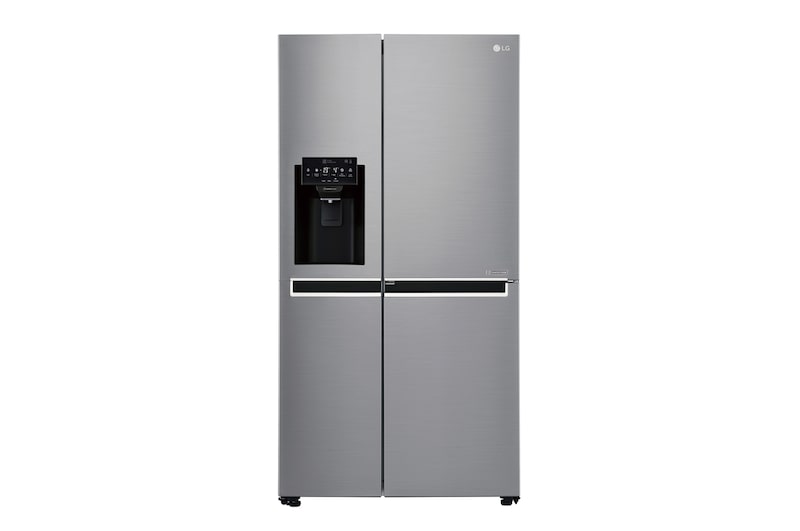

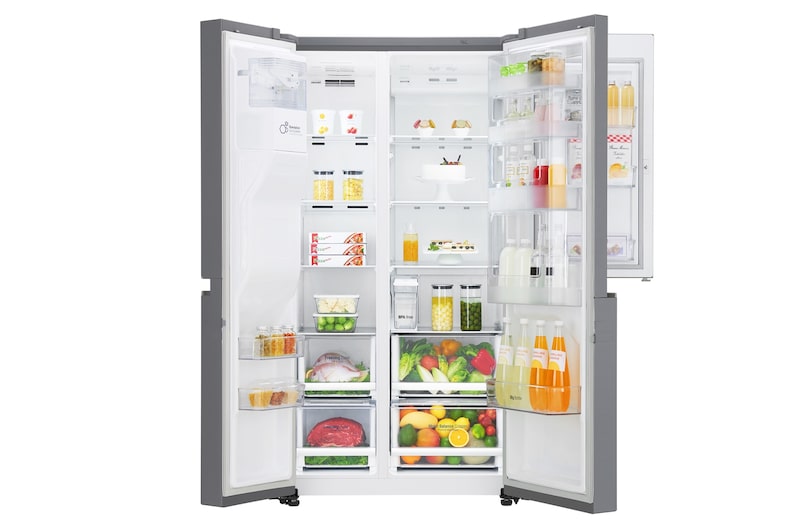

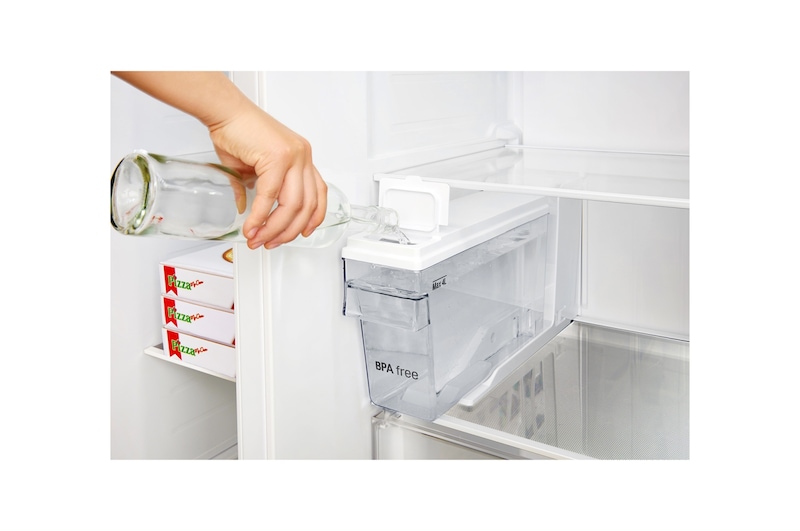

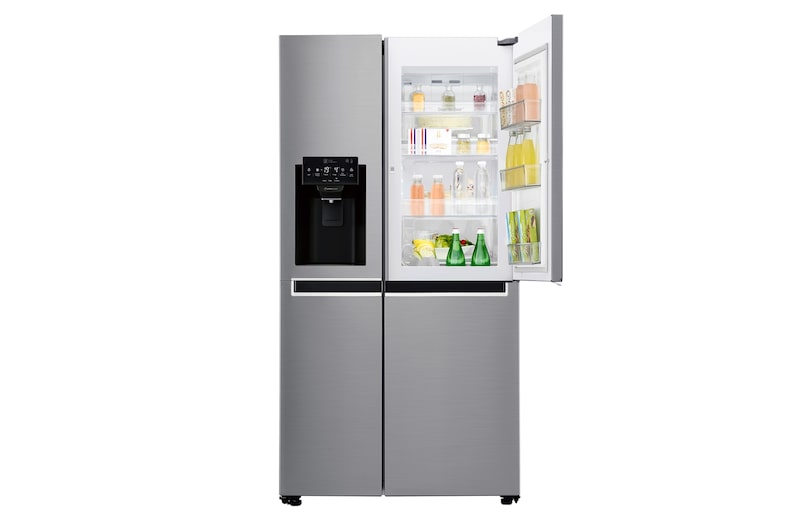

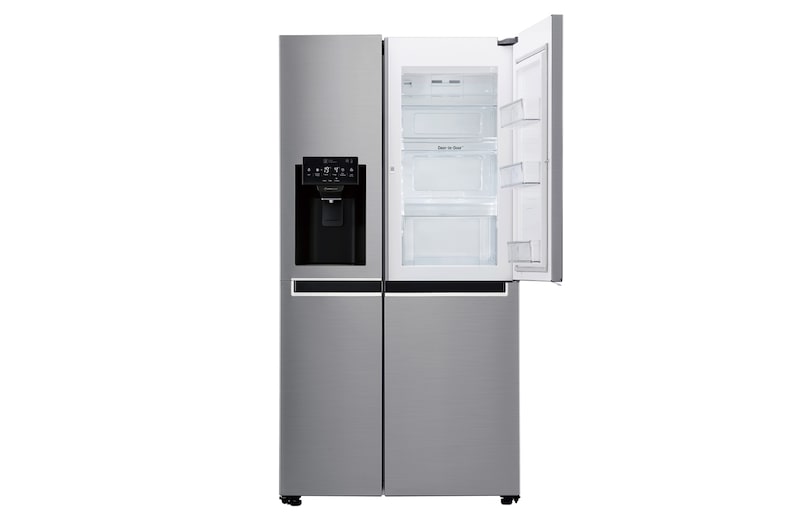

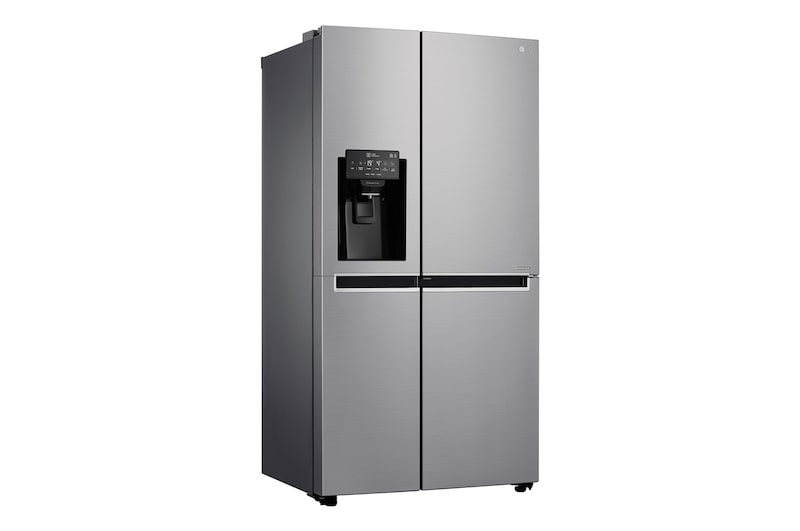

Smart Refrigerator with Door-in-Door™ and Non Plumbed Water
Smart Refrigerator with Door-in-Door™ and Non Plumbed Water
![](/content/dam/channel/wcms/uk/images/fridge-freezers/GSJ761PZXV_APZQLGU_EEUK_UK_C/GSJ761PZXV_APZQLGU_EEUK_UK_C-450x450.jpg)
Summary
DIMENSIONS
![](/content/dam/channel/wcms/uk/images/spec/GSJ761PZXV_tech_spec_image_M.jpg)
All Spec
CAPACITY (ℓ)- ISO GROSS
-
Total
668
-
Freezer
246
-
Refrigerator
422
CAPACITY (L, CU.FT.) STORAGE
-
Total
601
-
Freezer
196 (32)
-
Refrigerator
405
WEIGHT (KG)
-
Net / Packing
124/136
DIMENSION (MM)
-
Height (Net) to Top of Hinge (A)
1790
-
Height (Net) to Top of Case (B)
1750
-
Depth (Net) Without Door (C)
610
-
Depth (Net) Without Handle (D)
733
-
Depth (Net) Including Door & Handle (E)
738
-
Width (Net)
912
-
Width x Height x Depth ( Product)
912 x 1790 x 738
-
Width x Height x Depth ( Packing )
968 x 1891 x 770
GENERAL FEATURES
-
Temperature Control
Digital Sensors (RT Sensor) (7) / Express Freeze
-
Child Lock
Yes
-
Door Alarm
Yes
-
Temperature Function
Express Cool
-

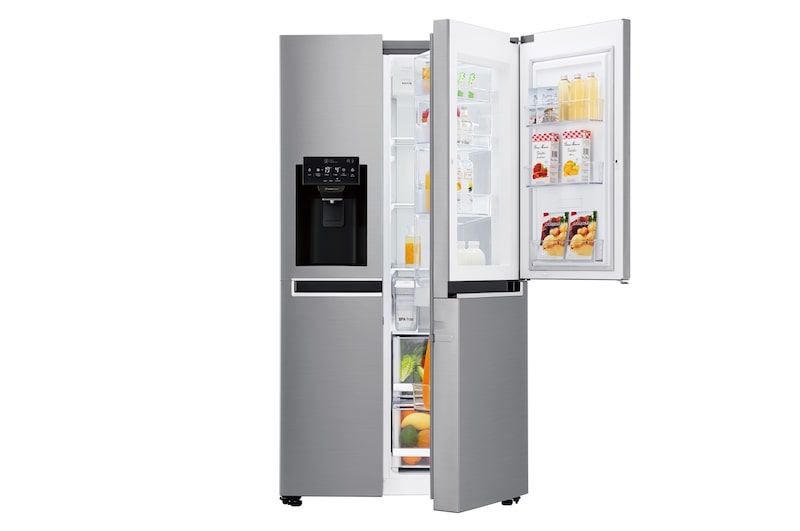

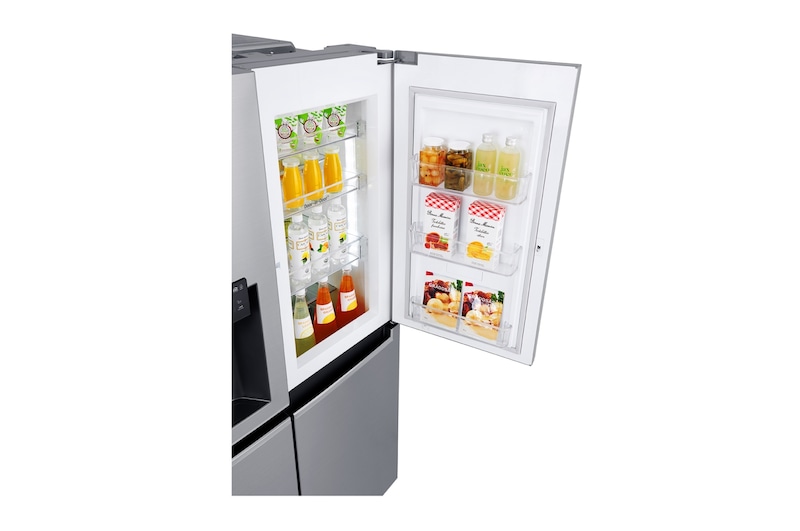

Door In Door
Yes
-
Smart Diagnosis
Yes
-
Cooling System
No Frost
-
Multi-Air Flow
Yes
-
Sound Power (dB)
39
-
Energy Efficiency brClass (A - G)
F
-
Energy Consumption (kWh/year)
419
-
Storage Time in Black-Out (Hour)
10
-
Freezing Capacity (kg)
12
-
Refrigerant
R600a
-
Linear Compressor
Yes FLB150NBMA
-
Star Rating
4 Stars
-
Climate Class
T
-
Finish (Door) - NS/PS3/SW/WB (Option)
PZ
-
Finish (Case) - PET/ PCM (Option)
Option
-
Handle Type Material
Plastic
-
Plumbing Required
Yes
-

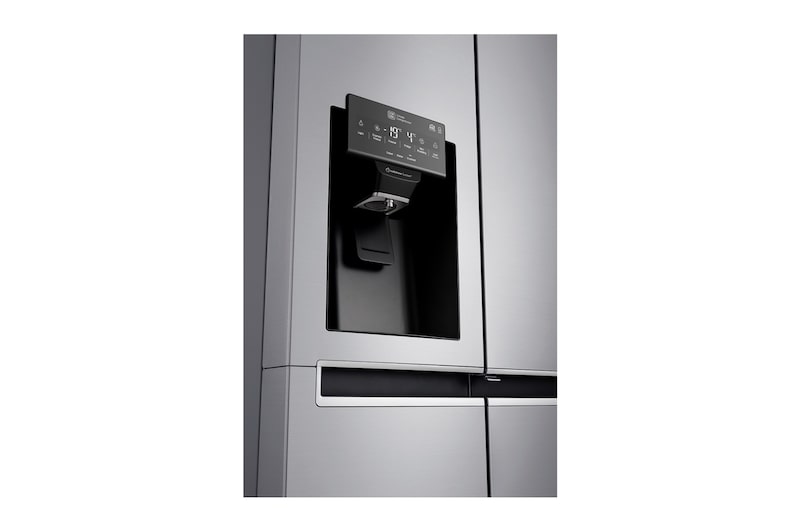

Water Dispenser
Yes
-
Ice Dispenser (Cube Ice)
Yes
-
Crushed Ice Function
Yes
-
Filteration External
Yes
-
BioShield (Gasket)
Yes

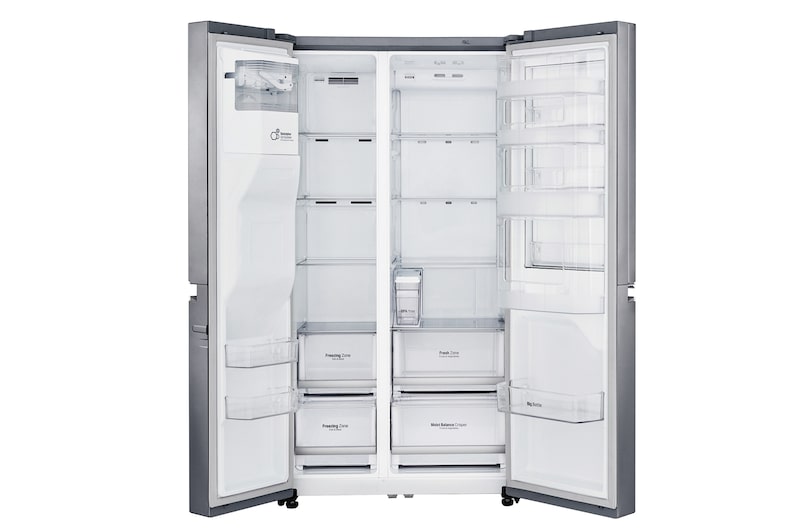

REFRIGERATOR COMPARTMENT
-
Lamp
LED(1)
-

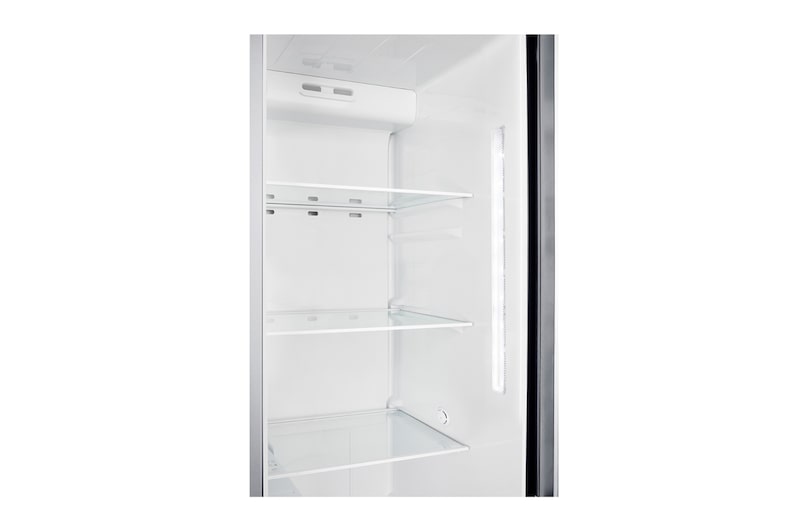

Shelf - Tempered Glass
Yes (4)
-
Door Basket - Transparent
Yes (8)
-
Veg Box Cover T/V R/U br Tempered Glass
Yes
-
Veg Box Cover T/V R/L - Plastic
Yes
-

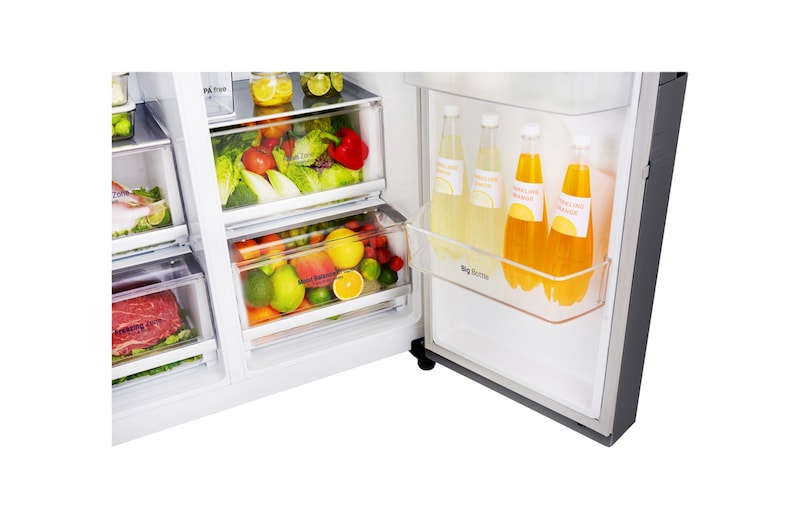

Vegetable Box (Drawer) - One
Yes (2)
-
Vegetable Box (Drawer) br Moist Balance Crisper
Yes(Only R/L)
-
Deodorizer
Yes
-
Egg Bank
Yes

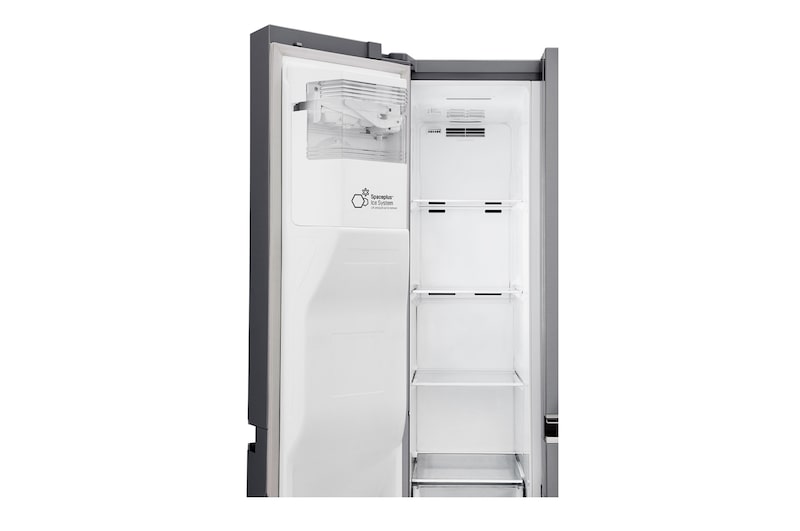

FREEZER COMPARTMENT
-
Lamp
LED(1)
-
Ice maker
Automatic - Indoor
-
Door basket - Transparent
Yes (2)
-
Shelf - Tempered Glass
Yes (4)
-
Drawer Box Cover T/V F/U - Tempered Glass
Yes
-
Drawer Box Cover T/V F/L - Plastic
Yes
-
Drawer Transparent
Yes (2)
MULTI ROOM COMPARTMENT
-
Display PCB - NFC
Yes
-
Door Switch - Reed(DID)
Yes
COMPLIANCE INFORMATION
-
