* Limited to devices supporting 4K resolution.

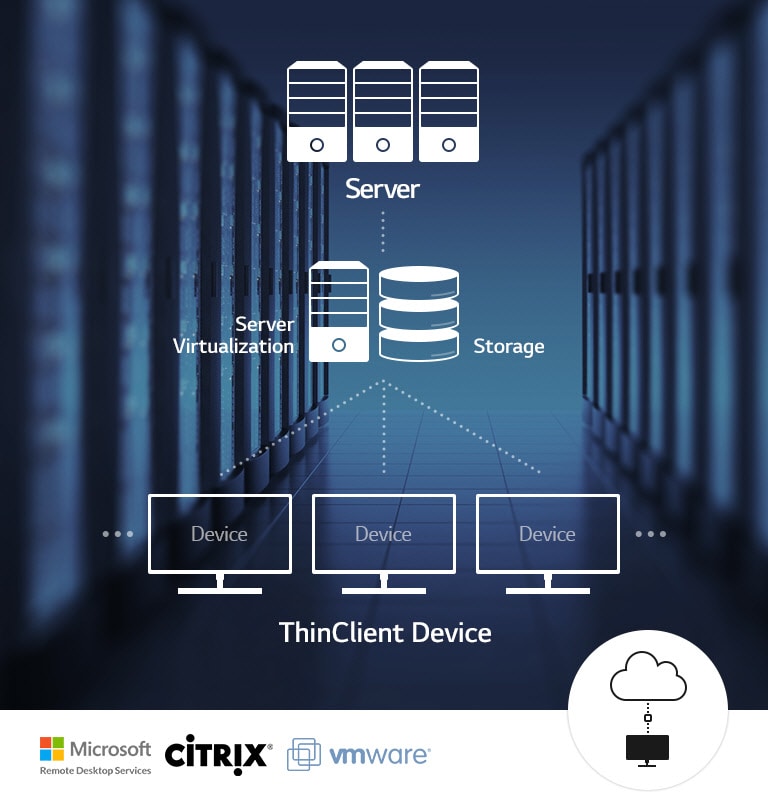

* Virtual Desktop Infrastructure
* Fusion UDM Professional / * VXL Software is used for LG cloud devices.
Processor
AMD Pairie Falcon GX-212JJ, Fanless
Graphics
Integrated Graphics
OS
Windows 10 IoT Enterprise LTSB
Memory
8GB DDR4
Storage
128GB (M.2 SSD) M.2 2280/2242 SSD Supported (SATA/PCIe supported)
Display Support
Up to 1 display : 4096x2160@50Hz, 3840x2160@60Hz (via DisplayPort 1.2 out)
Expansion Slot
M.2 Slots x 2 (Slot 1 : 128GB SSD, Slot 2 : WiFi + Bluetooth card)
* Note: Slot 1 should be capable of supporting both SATA and PCIe NVMe SSDs.
SO-DIMM x 1 (Slot 1 : 8GB DDR4)
TPM (Trust Platform Module)
Software TPM
VDI Support
Citrix, VMware, Microsoft RDP, PCoIP S/W
Size (Inch)
23.8
Size (cm)
60.47 cm
Aspect Ratio
16:9
Resolution
1920 x 1080
Panel Type
IPS
Panel Multi
BMS / LGD Module
Backlight Technology
LED
Backlight Type
Edge
Backlight Array
H1B
Backlight Dimming Technology
Global Dimming
Local Dimming Zone
N/A
Pixel Pitch
0.2745 x 0.2745 mm
Brightness (Min.)
200 cd/m²
Brightness (Typ.)
250 cd/m²
Peak Brightness (Min.)
N/A
Peak Brightness (Typ.)
N/A
Color Gamut (Min.)
N/A
Color Gamut (Typ.)
NTSC 72% (CIE1931)
Color Bit
8bit (6bit+FRC)
Contrast Ratio (Min.)
700:1
Contrast Ratio (Typ.)
1000:1
Contrast Ratio with DFC
Mega
Response Time
5ms (GtG at Faster)
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
Surface Treatment
Anti Glare, 3H
Curvature
N/A
Black Stabilizer
Yes
Color Weakness
YES
Flicker safe
YES
Picture Mode
Custom, Reader1, Reader2, ,Photo, Cinema, Color Weakness, Game
Reader Mode
YES
Smart Energy Saving
YES
Super Resolution+
YES

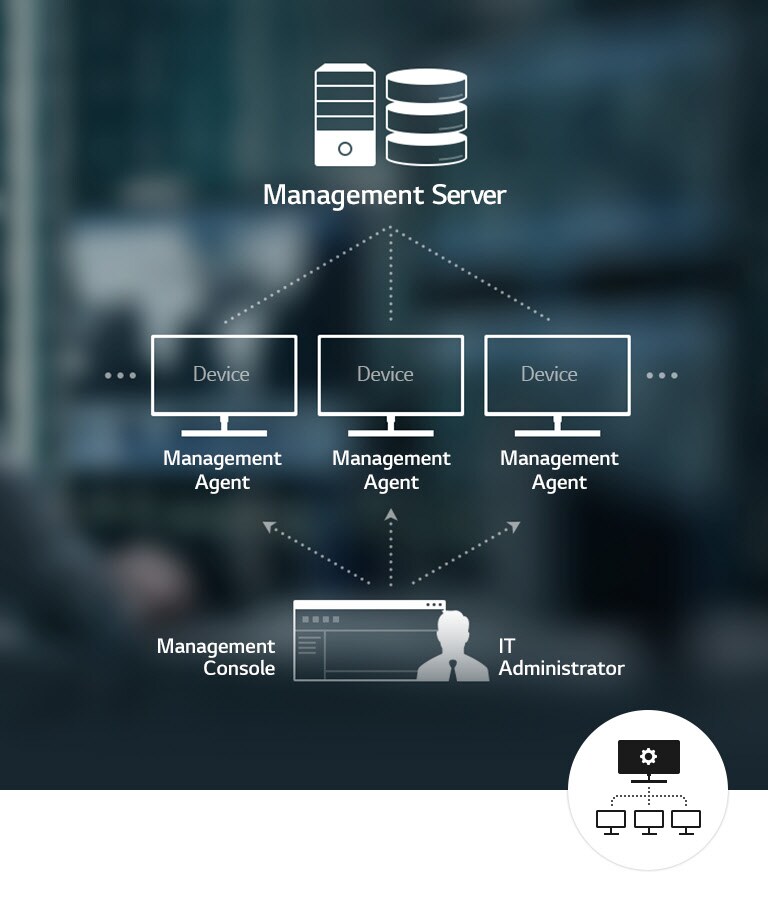

Management Console
LG Cloud Device Manager
OnScreen Control (LG Screen Manager)
YES(HDMI IN Only)
HDMI
YES(1ea)
HDMI Version
1.4
HDMI (H-Frequency)
85KHz
HDMI (V Frequency)
75Hz
HDMI (HDCP Version)
1.4
HDMI (Max. Resolution at Hz)
1920X1080 75Hz
DisplayPort
YES(out 1ea)
DP Version
1.2
DP (Max. Resolution at Hz)
3840X2160 60Hz
Headphone out
YES
Mic In
YES
Thunderbolt (Power Delivery)
N/A
Thunderbolt(USB-C Compatiblity)
N/A

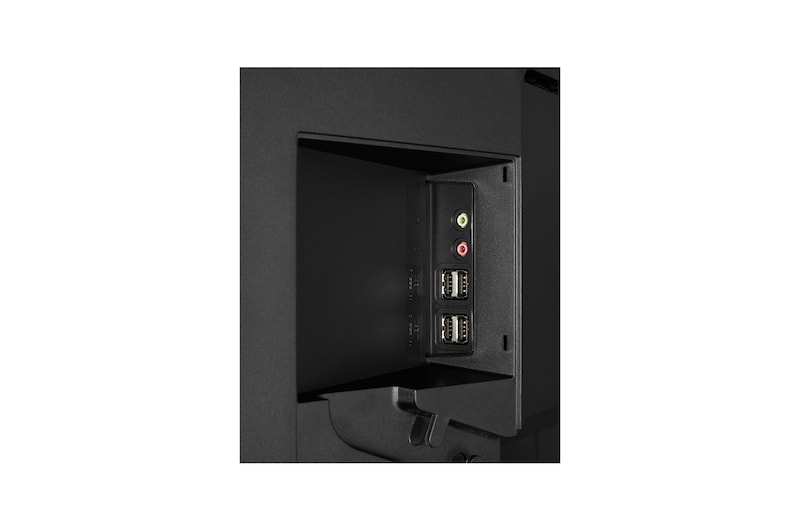

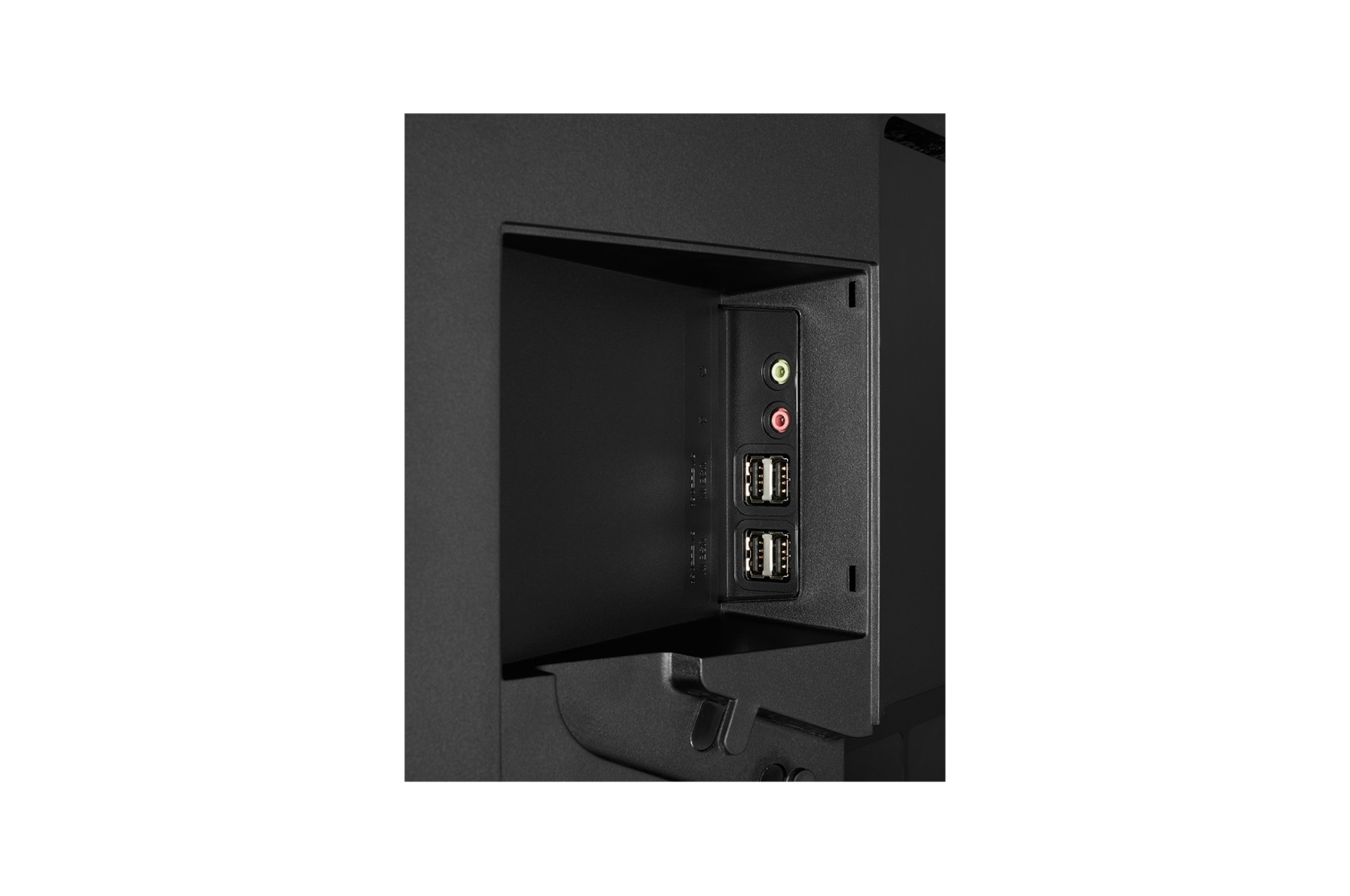

USB
4 x USB 2.0 Type-A
2 x USB 3.1 gen1 (5Gb/s) Type-A
[Location]
Vertical
Speaker
YES
Speaker_Channel
2ch
Speaker_Output (unit)
3W
Speaker_Direction
Down Firing
Maxx Audio
YES
AC Input
100-240Vac, 50/60Hz
DC Output
19V 3.42A
Power Consumption (DC Off)
0.6W
Power Consumption (Typ.)
38.2W
Power Consumption (Sleep Mode)
1.0W
Long Idle (Display Off)
6.0W
Short Idle (Display On)
30W
TEC (kWh)
96.5 kWh
Type
External Power(Adapter)
Borderless Design
Normal
Assembly Step
Three-Step
Base Detachable
YES
Color (Front Cabinet)
Matt Black
Color (Middle Cabinet)
Matt Black
Color (Back Cover)
Matt Black
Color (Stand Body)
Matt Black
Color (Stand Base)
Matt Black
Display Position Adjustments
Tilt/Height/Swivel/Pivot
Tilt
-5º ~ 35º
Swivel
0°~355° (±5°)
Pivot
Bi-Direction
Height Range
130mm
Down Height
70mm
OneClick Stand
YES
Wall Mountable
100 x 100 mm
Dimension in Shiping (W x H x D)
626 x 474 x 194
Dimension with Stand (W x H x D)
553.8 x 512.9 x 240
Dimension without Stand (W x H x D)
553.8 x 333.1 x 67.6
Pallet Stuffing (20ft/40ft/40ft HC)
440/924/1,008
Weight in Shipping
8.25
Weight with Stand
6.1
Weight without Stand
3.95
CB
YES
CE
YES
EPA
YES (7.0)
EPEAT (Germany)
BRONZE
EPEAT (USA)
BRONZE
Energy Star
YES
Erp
YES
FCC-B
YES
KC (for Rep. of Korea)
YES
ROHS, REACH
YES
TUV-Ergo
YES
TUV-GS
YES
TUV-Type
YES
UL(cUL)
YES
VESA wall mount standard
YES
Windows
YES
Adapter
YES
Adapter (Color)
Black
Power Cord
YES
Power Cord (Color/Length)
Black / 2.0m
LAN
1 x RJ45 : 10/100/1000 Base-T Gigabit Ethernet (Wake on LAN)
Wi-Fi
Intel Dual Band Wireless-AC 3168 1x1 AC (AGN support, BT 4.0 + LE Combo), Internal Antenna
Bluetooth
BT4.0
HDMI (PC)
1920X1080 60Hz
HDMI (Video)
1920X1080 60Hz
Key Location
Front
Key Number (Power Key Included)
7
Key Type
Tact
LED Color(On mode)
White(AIO PC)
LED Color(Power save mode)
Blinking (AIO PC)
LED Color(Standby)
OFF(AIO PC)
Country
English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese(brazil), Hindi, Tranditional Chinese
Number of Language
18
Box Printing Type
Flexo
Handle
Hand Hole
Packing Material
EPS
Stacking Type
Face Down
Stand Packing Type
Detached
Humidity Range
Operating : 20%~80%, Storage : 10%~85%
Temperature Range
Operating : 10°C ~ 40°C, Storage : -20°C ~ 60°C
