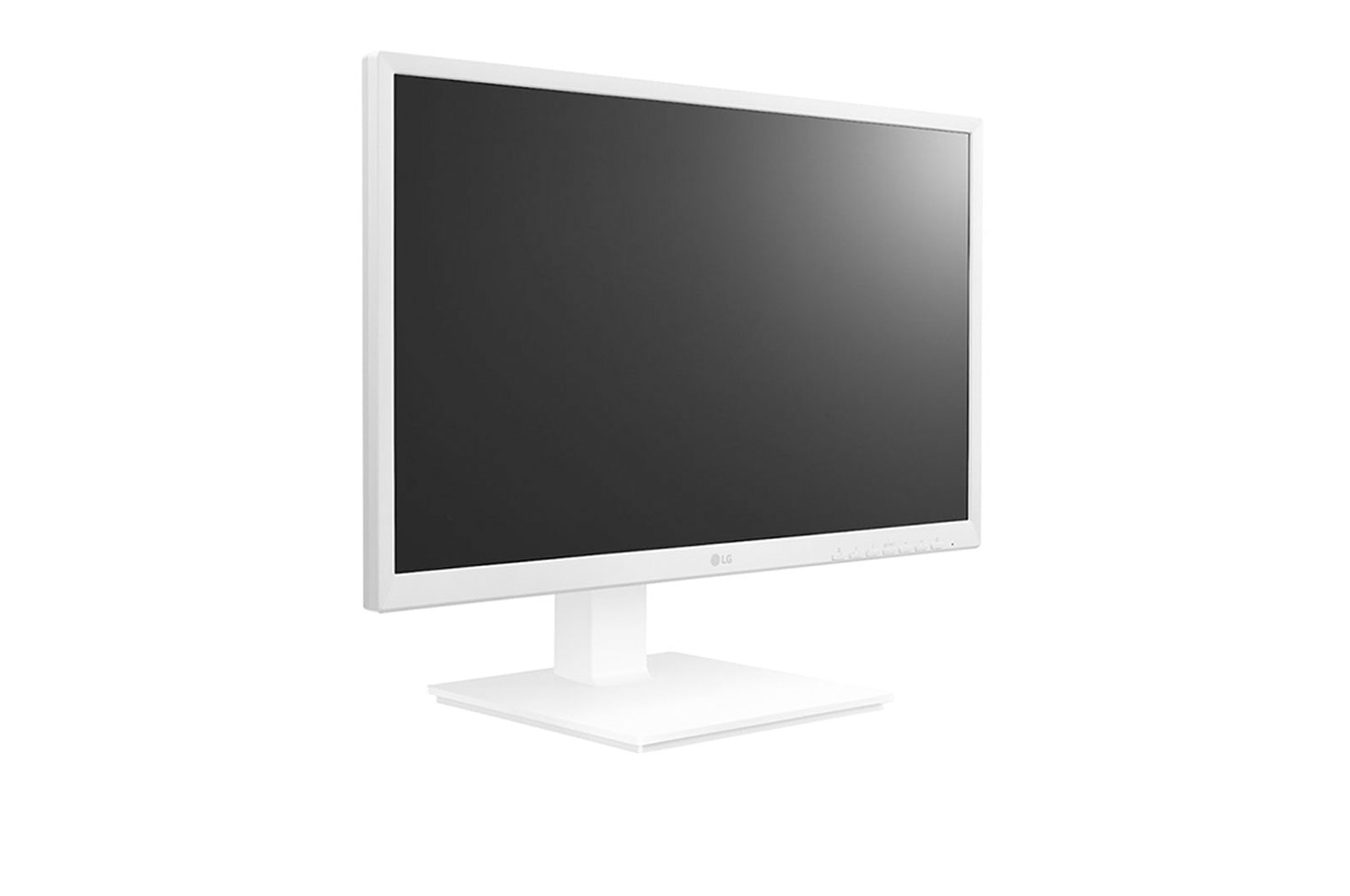

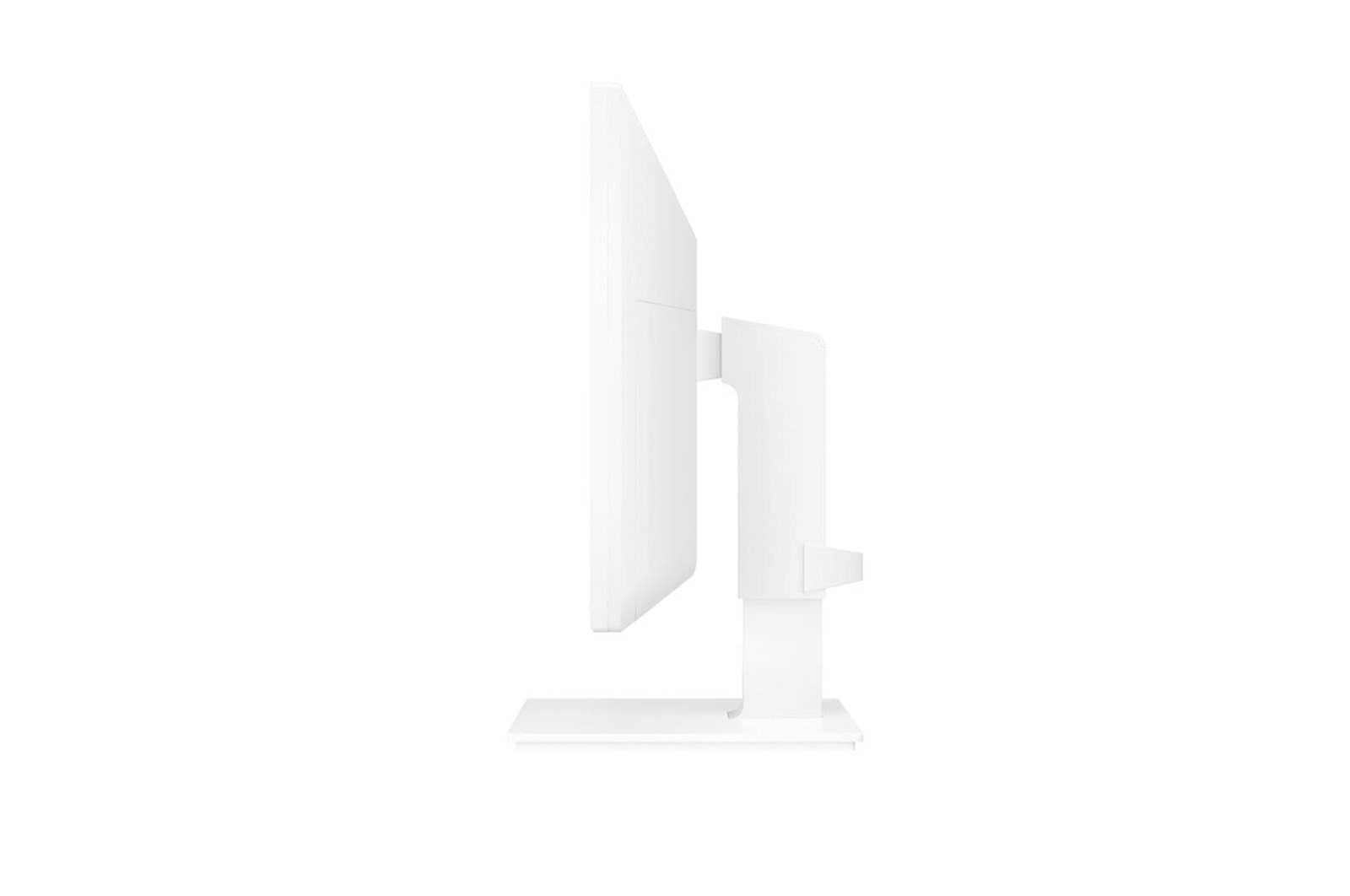

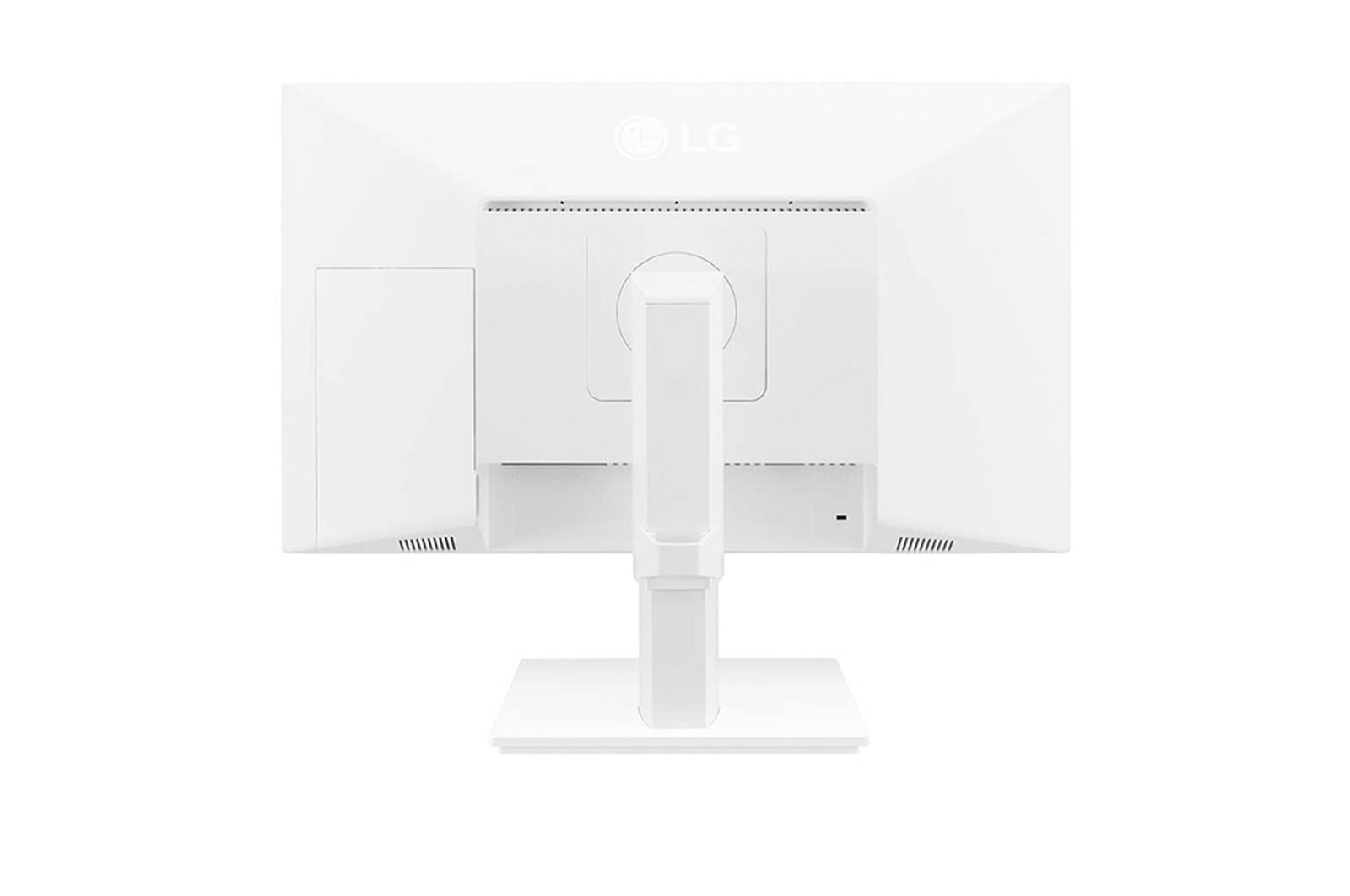

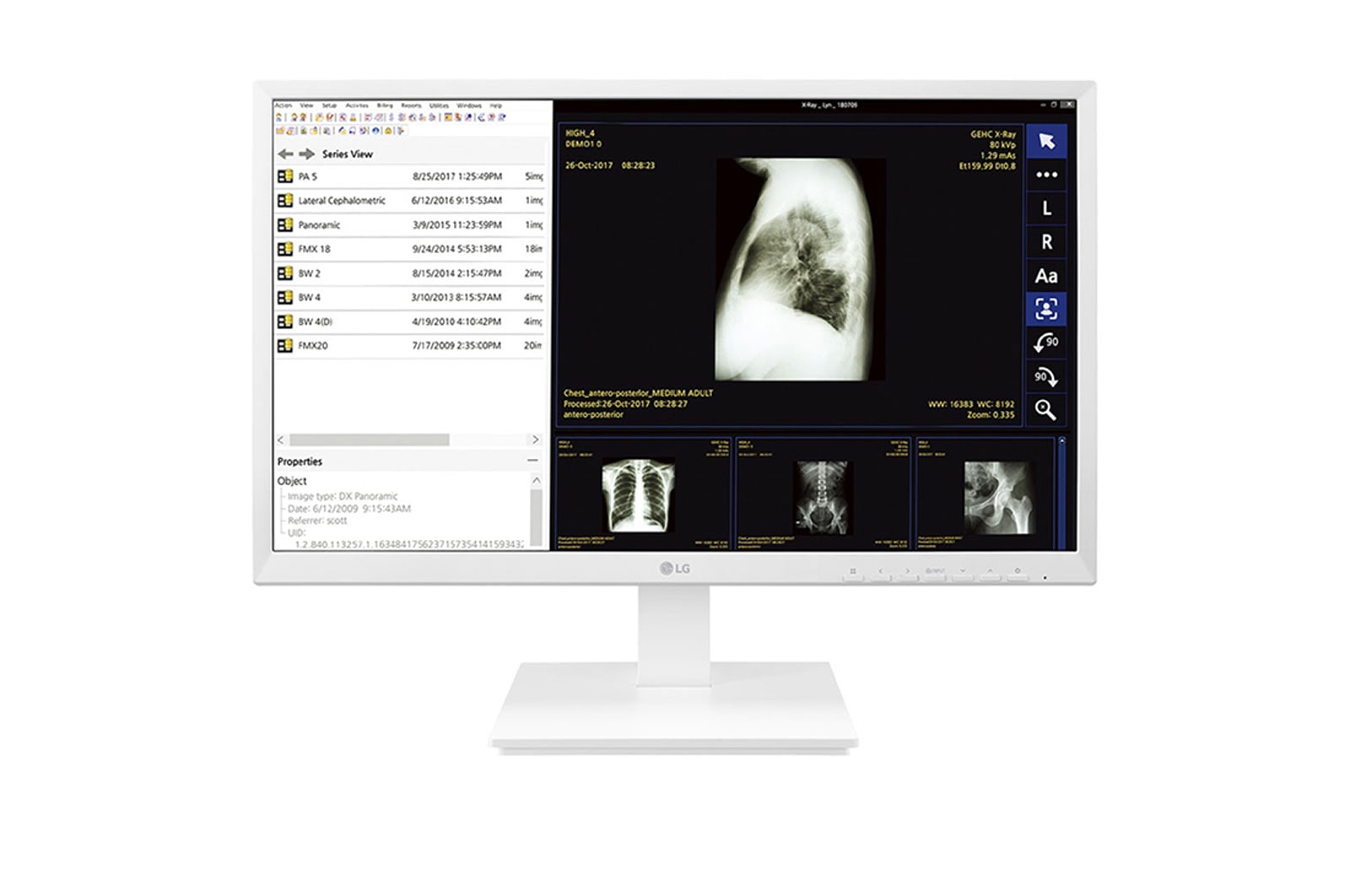

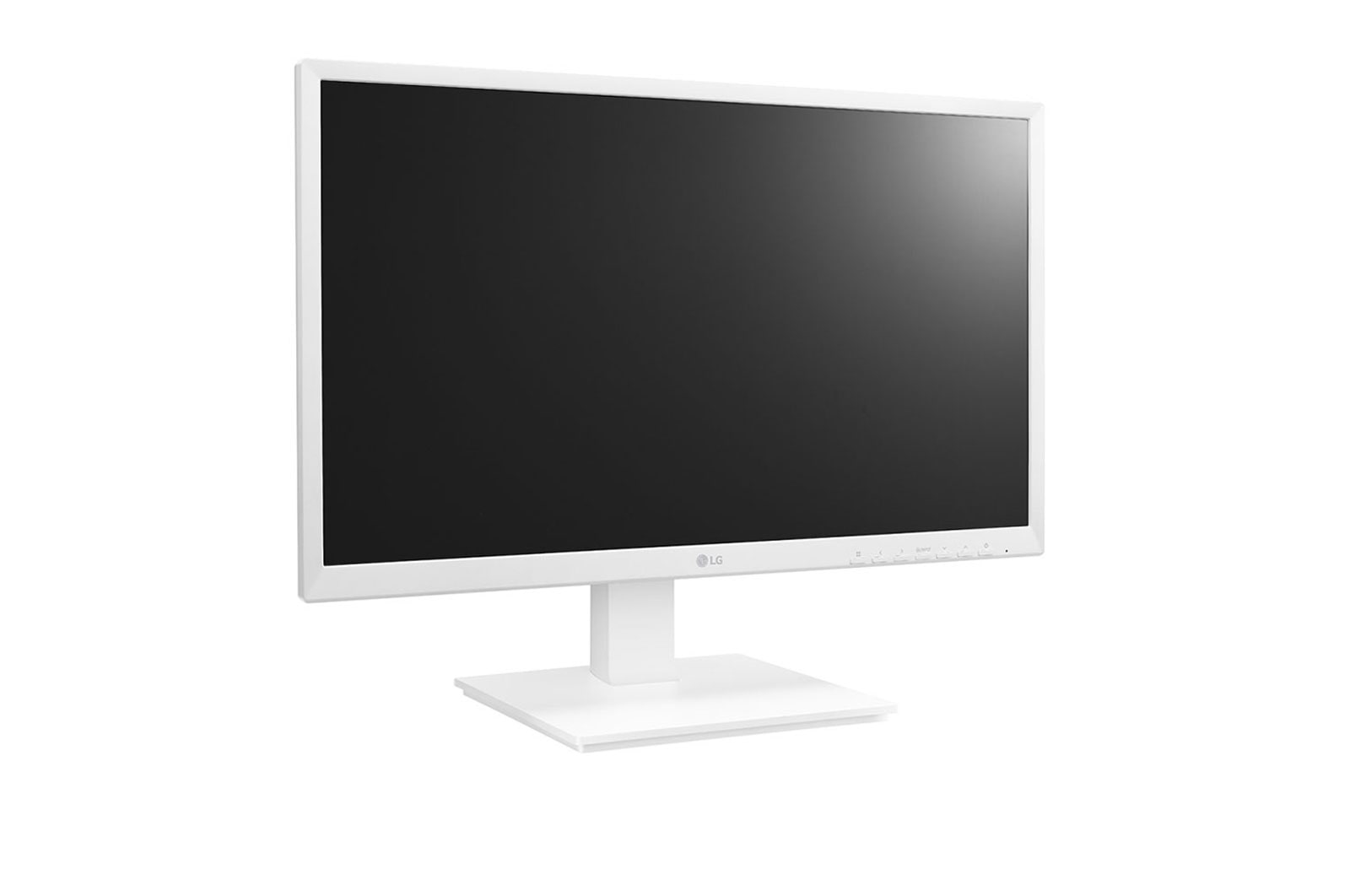

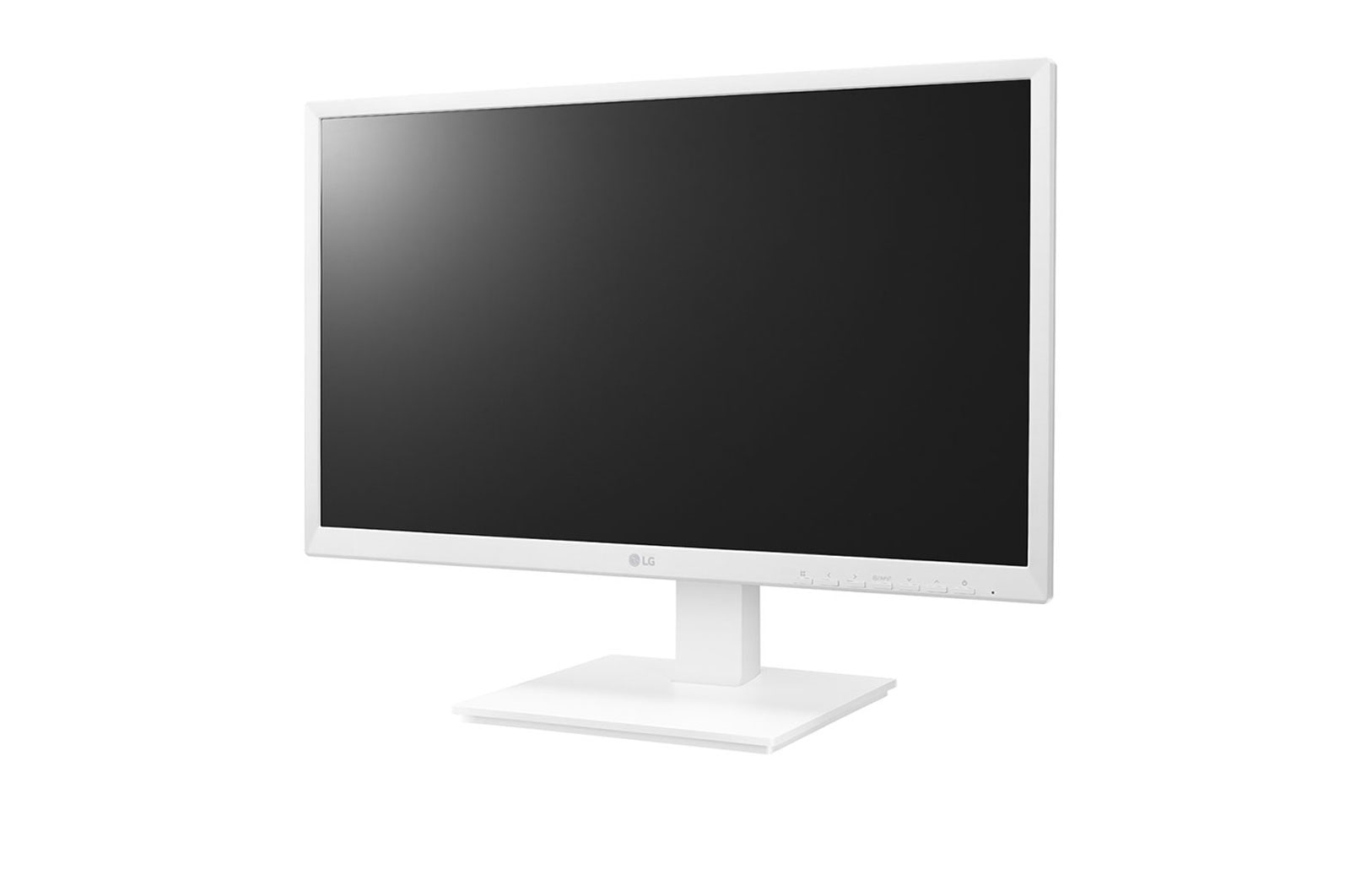

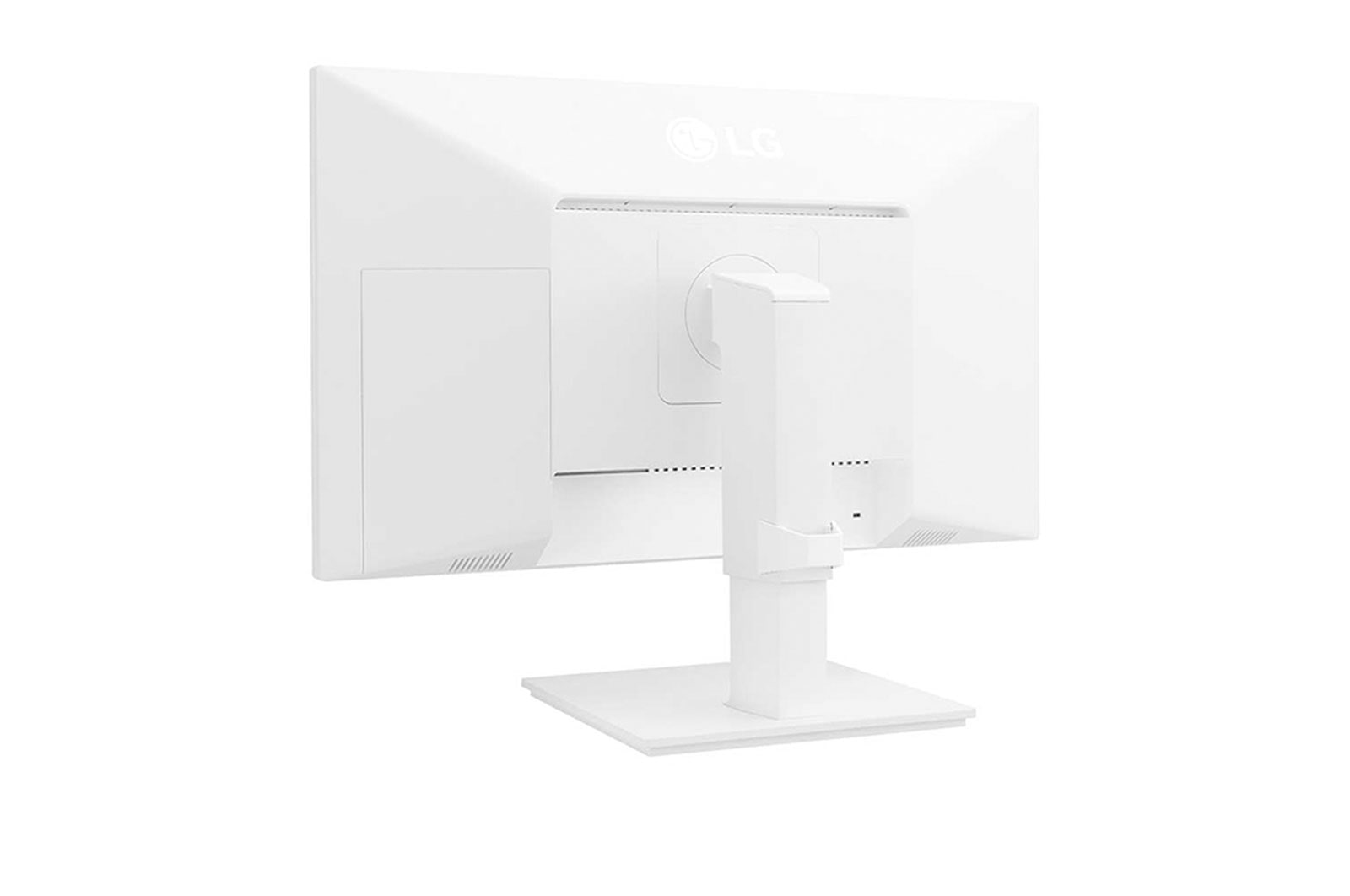

24" All-in-One Thin Client for Healthcare
![](/content/dam/channel/wcms/uk/images/business/monitor-products/24CK560N-3A_AEK_EEUK_UK_B/24CK560N-3A_AEK_EEUK_UK_B-450x450.jpg)
*IEC 60601: Series of technical standards for safety and essential performance of medical equipments, published by the International Electrotechnical Commission.
**CE marking: The medical device manufacturer's claim that a product meets the essential requirements of all relevant European Medical Device Directives.
***FDA Class I: Class I devices are subject to ‘General Controls’ as are Class II and Class III devices. Class I medical devices have a low to moderate risk to the patient and/or user.
****Recommended cleaning products are Isopropanol 100%, Ethanol 70%, Cidex OPA, 0.9% NaCl solution. All excluding screen. See user guide for cleaning instructions for more details.
*LG monitor 24BK550Y-W has the same design with 24CK560N.
*Limited to devices supporting 4K resolution.
Gallery
All Spec
SYSTEM
-
Processor
AMD Pairie Falcon GX-212JJ, Fanless
-
Graphics
Integrated Graphics
-
OS
Non OS
-
Memory
4GB DDR4
-
Storage
32GB (M.2 SSD) M.2 2280/2242 SSD Supported (SATA/PCIe supported)
-
Display Support
Up to 1 display : 4096x2160@50Hz, 3840x2160@60Hz (via DisplayPort 1.2 out)
-
Expansion Slot
M.2 Slots x 2 (Slot 1 : 32GB SSD, Slot 2 : WiFi + Bluetooth card)
* Note: Slot 1 should be capable of supporting both SATA and PCIe NVMe SSDs.
SO-DIMM x 1 (Slot 1 : 4GB DDR4) -
TPM (Trust Platform Module)
Software TPM
DISPLAY
-
Size (Inch)
23.8
-
Size (cm)
60.47 cm
-
Aspect Ratio
16:9
-
Resolution
1920 x 1080
-
Panel Type
IPS
-
Panel Multi
BMS / LGD Module
-
Backlight Technology
LED
-
Backlight Type
Edge
-
Backlight Array
H1B
-
Backlight Dimming Technology
Global Dimming
-
Local Dimming Zone
N/A
-
Pixel Pitch
0.2745 x 0.2745 mm
-
Brightness (Min.)
200 cd/m²
-
Brightness (Typ.)
250 cd/m²
-
Peak Brightness (Min.)
N/A
-
Peak Brightness (Typ.)
N/A
-
Color Gamut (Min.)
N/A
-
Color Gamut (Typ.)
NTSC 72% (CIE1931)
-
Color Bit
8bit (6bit+FRC)
-
Contrast Ratio (Min.)
700:1
-
Contrast Ratio (Typ.)
1000:1
-
Contrast Ratio with DFC
Mega
-
Response Time
5ms (GtG at Faster)
-
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
-
Surface Treatment
Anti Glare, 3H
-
Curvature
N/A
FEATURE
-
Black Stabilizer
Yes
-
Color Weakness
YES
-
Flicker safe
YES
-
Picture Mode
Custom, Reader1, Reader2, ,Photo, Cinema, Color Weakness, Game
-
Reader Mode
YES
-
Smart Energy Saving
YES
-
Super Resolution+
YES
SW APPLICATION
-
OnScreen Control (LG Screen Manager)
YES(HDMI IN Only)
CONNECTIVITY
-
HDMI
YES(1ea)
-
HDMI Version
1.4
-
HDMI (H-Frequency)
85KHz
-
HDMI (V Frequency)
75Hz
-
HDMI (HDCP Version)
1.4
-
HDMI (Max. Resolution at Hz)
1920X1080 75Hz
-
DisplayPort
YES(out 1ea)
-
DP Version
1.2
-
DP (Max. Resolution at Hz)
3840X2160 60Hz
-
Headphone out
YES
-
Mic In
YES
-
Thunderbolt (Power Delivery)
N/A
-
Thunderbolt(USB-C Compatiblity)
N/A
-
USB
4 x USB 2.0 Type-A
2 x USB 3.1 gen1 (5Gb/s) Type-A -
[Location]
Vertical
SOUND
-
Speaker
YES
-
Speaker_Channel
2ch
-
Speaker_Output (unit)
3W
-
Speaker_Direction
Down Firing
-
Maxx Audio
YES
POWER
-
AC Input
100-240Vac, 50/60Hz
-
DC Output
19V 3.42A
-
Power Consumption (DC Off)
0.6W
-
Power Consumption (Typ.)
38.2W
-
Power Consumption (Sleep Mode)
1.0W
-
Long Idle (Display Off)
6.0W
-
Short Idle (Display On)
30W
-
TEC (kWh)
96.5 kWh
-
Type
External Power(Adapter)
MECHANICAL
-
Borderless Design
Normal
-
Assembly Step
Three-Step
-
Base Detachable
YES
-
Color (Front Cabinet)
Matt Black
-
Color (Middle Cabinet)
Matt Black
-
Color (Back Cover)
Matt Black
-
Color (Stand Body)
Matt Black
-
Color (Stand Base)
Matt Black
-
Display Position Adjustments
Tilt/Height/Swivel/Pivot
-
Tilt
-5º ~ 35º
-
Swivel
0°~355° (±5°)
-
Pivot
Bi-Direction
-
Height Range
130mm
-
Down Height
70mm
-
OneClick Stand
YES
-
Wall Mountable
100 x 100 mm
DIMENSIONS & WEIGHT
-
Dimension in Shiping (W x H x D)
626 x 474 x 194
-
Dimension with Stand (W x H x D)
553.8 x 512.9 x 240
-
Dimension without Stand (W x H x D)
553.8 x 333.1 x 67.6
-
Pallet Stuffing (20ft/40ft/40ft HC)
440/924/1,008
-
Weight in Shipping
8.25
-
Weight with Stand
6.1
-
Weight without Stand
3.95
STANDARD
-
CB
YES (Medical CB)
-
CE
YES (Medical CE)
-
FCC-B
YES
-
IEC60601
YES
-
KC (for Rep. of Korea)
YES
-
ROHS, REACH
YES
-
UL(cUL)
YES (Medical UL)
-
VESA wall mount standard
YES
-
Windows
YES
ACCESSORY
-
Adapter
YES
-
Adapter (Color)
Black
-
Power Cord
YES
-
Power Cord (Color/Length)
Black / 2.0m
NETWORK
-
LAN
1 x RJ45 : 10/100/1000 Base-T Gigabit Ethernet (Wake on LAN)
-
Wi-Fi
Intel Dual Band Wireless-AC 3168 1x1 AC (AGN support, BT 4.0 + LE Combo), Internal Antenna
-
Bluetooth
BT4.0
RESOLUTION
-
HDMI (PC)
1920X1080 60Hz
-
HDMI (Video)
1920X1080 60Hz
CONTROL KEY
-
Key Location
Front
-
Key Number (Power Key Included)
7
-
Key Type
Tact
-
LED Color(On mode)
White(AIO PC)
-
LED Color(Power save mode)
Blinking (AIO PC)
-
LED Color(Standby)
OFF(AIO PC)
OSD
-
Country
English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese(brazil), Hindi, Tranditional Chinese
-
Number of Language
18
BOX COSMETIC
-
Box Printing Type
Flexo
-
Handle
Hand Hole
-
Packing Material
EPS
-
Stacking Type
Face Down
-
Stand Packing Type
Detached
ETC
-
Humidity Range
Operating : 20%~80%, Storage : 10%~85%
-
Temperature Range
Operating : 10°C ~ 40°C, Storage : -20°C ~ 60°C
