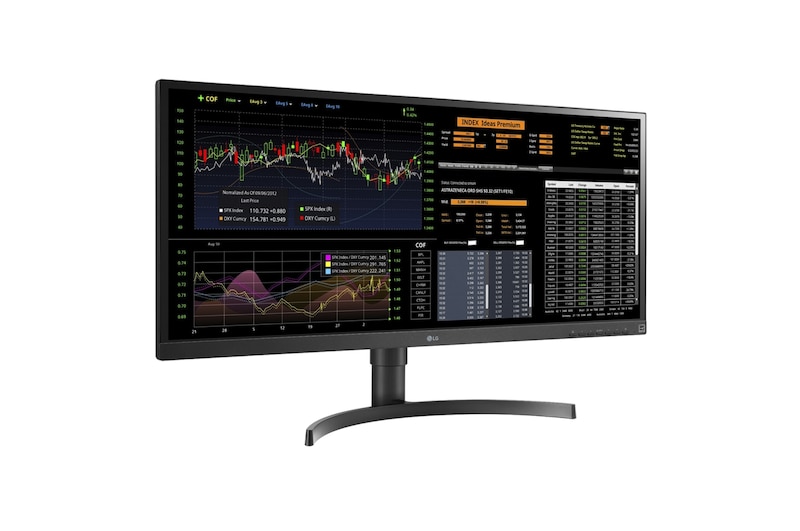

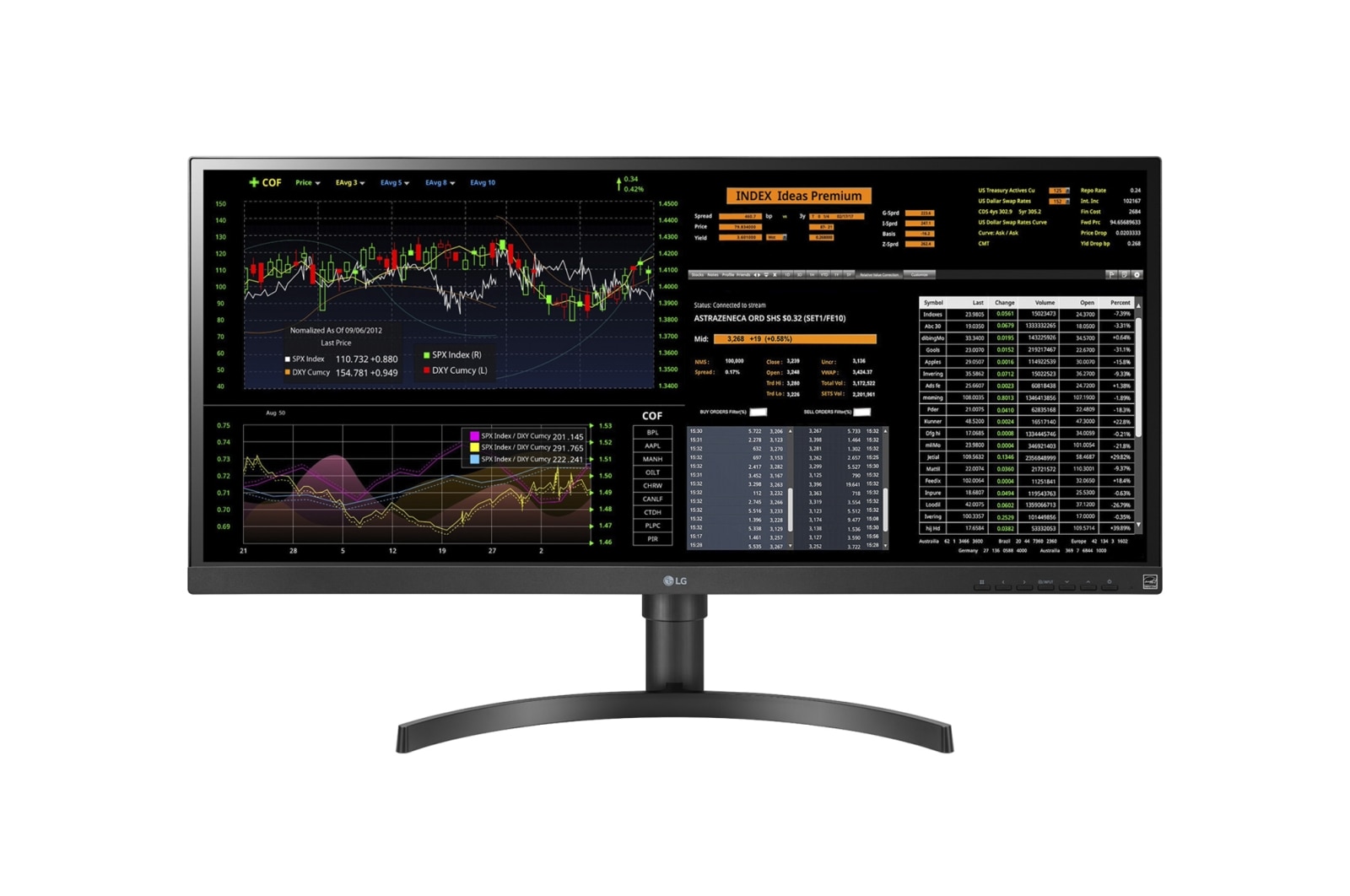

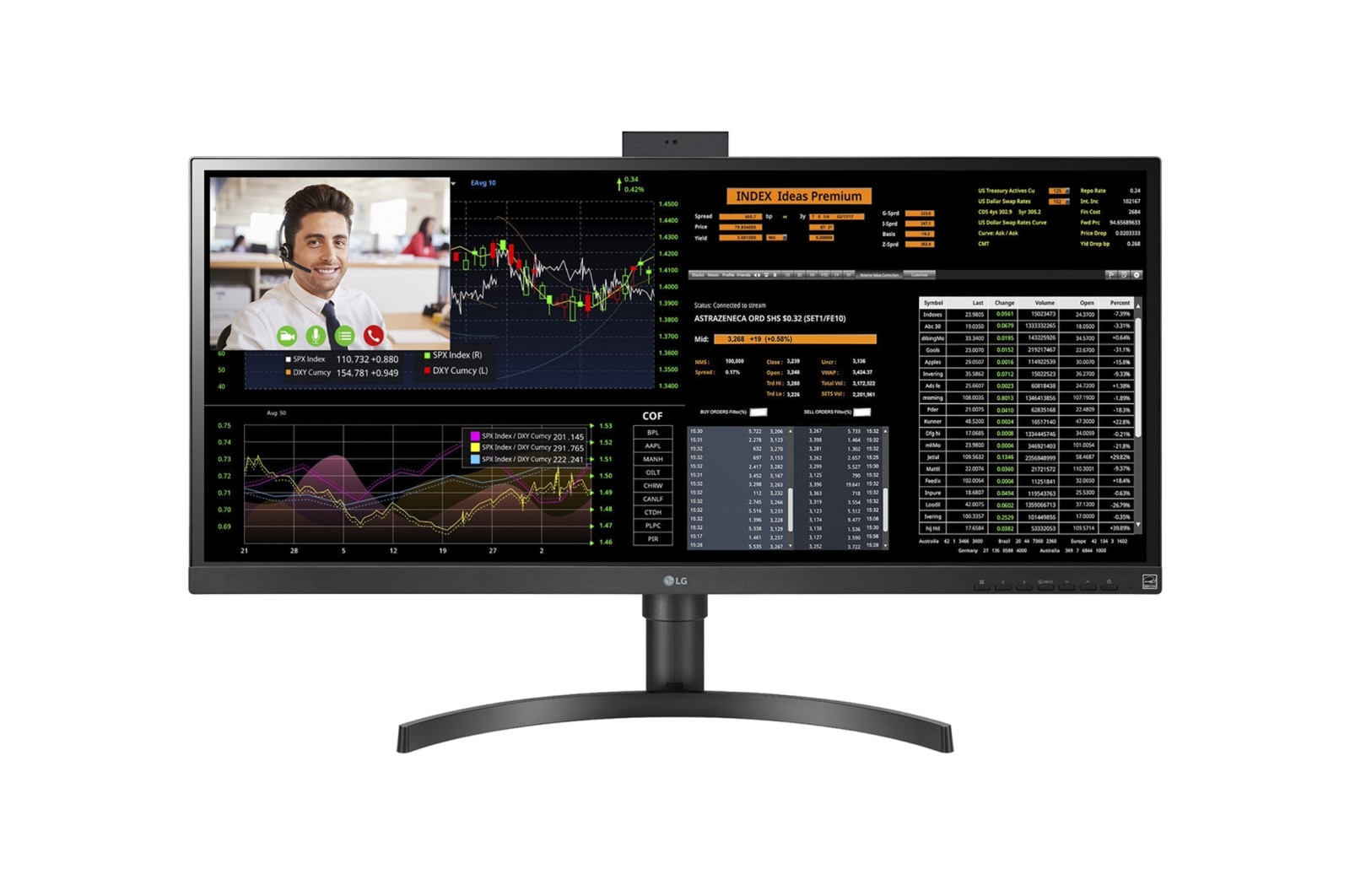

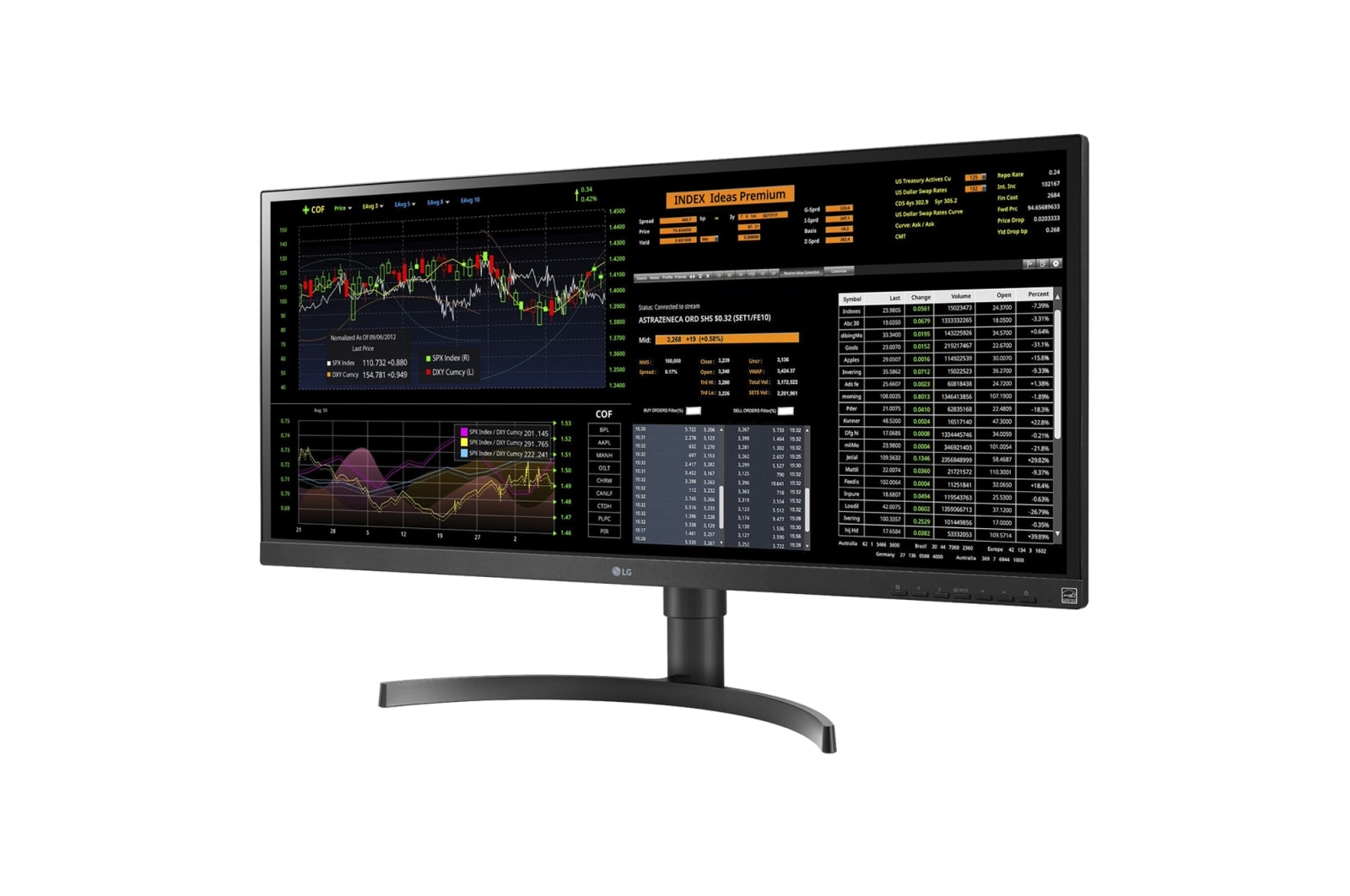

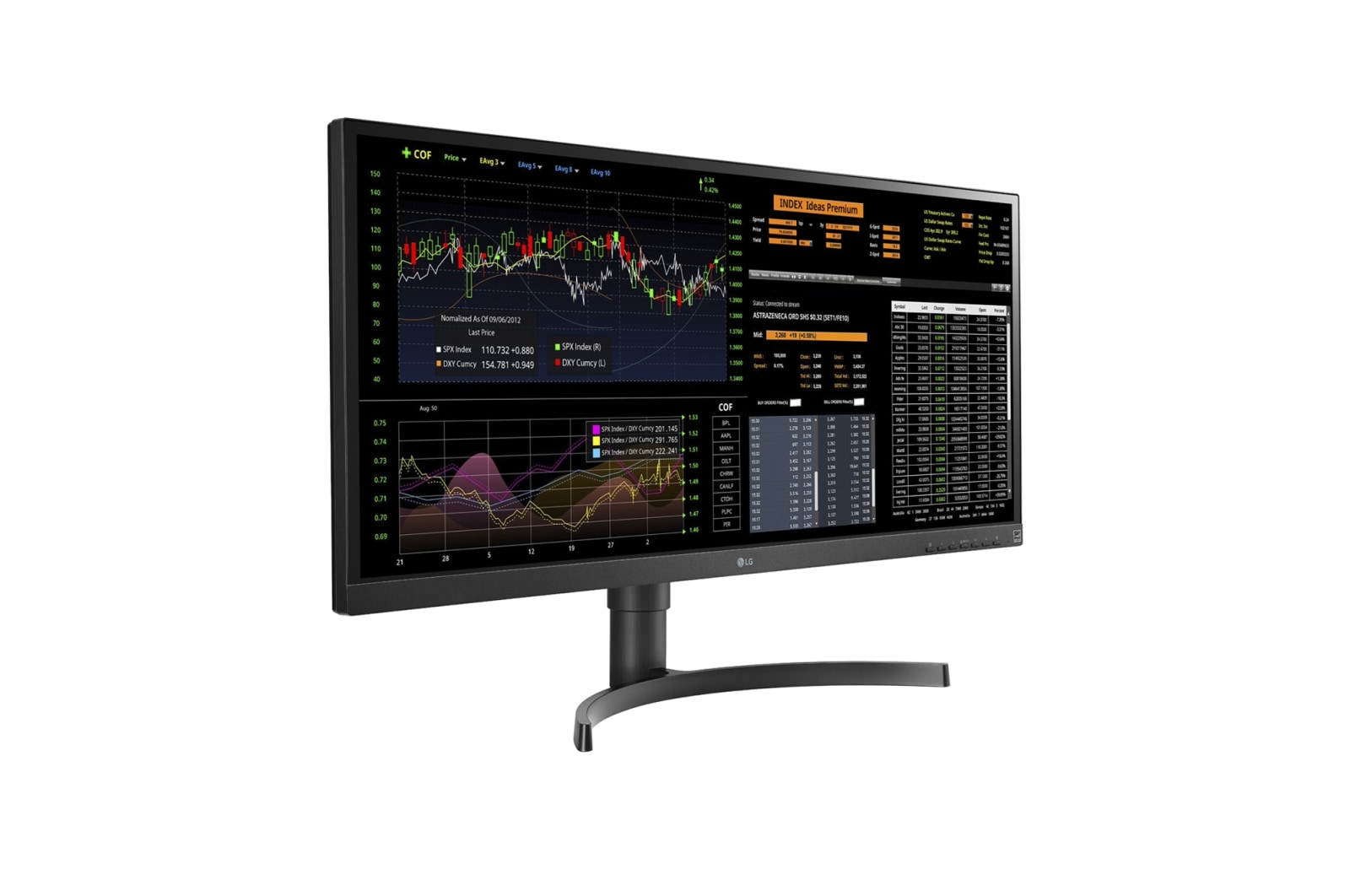

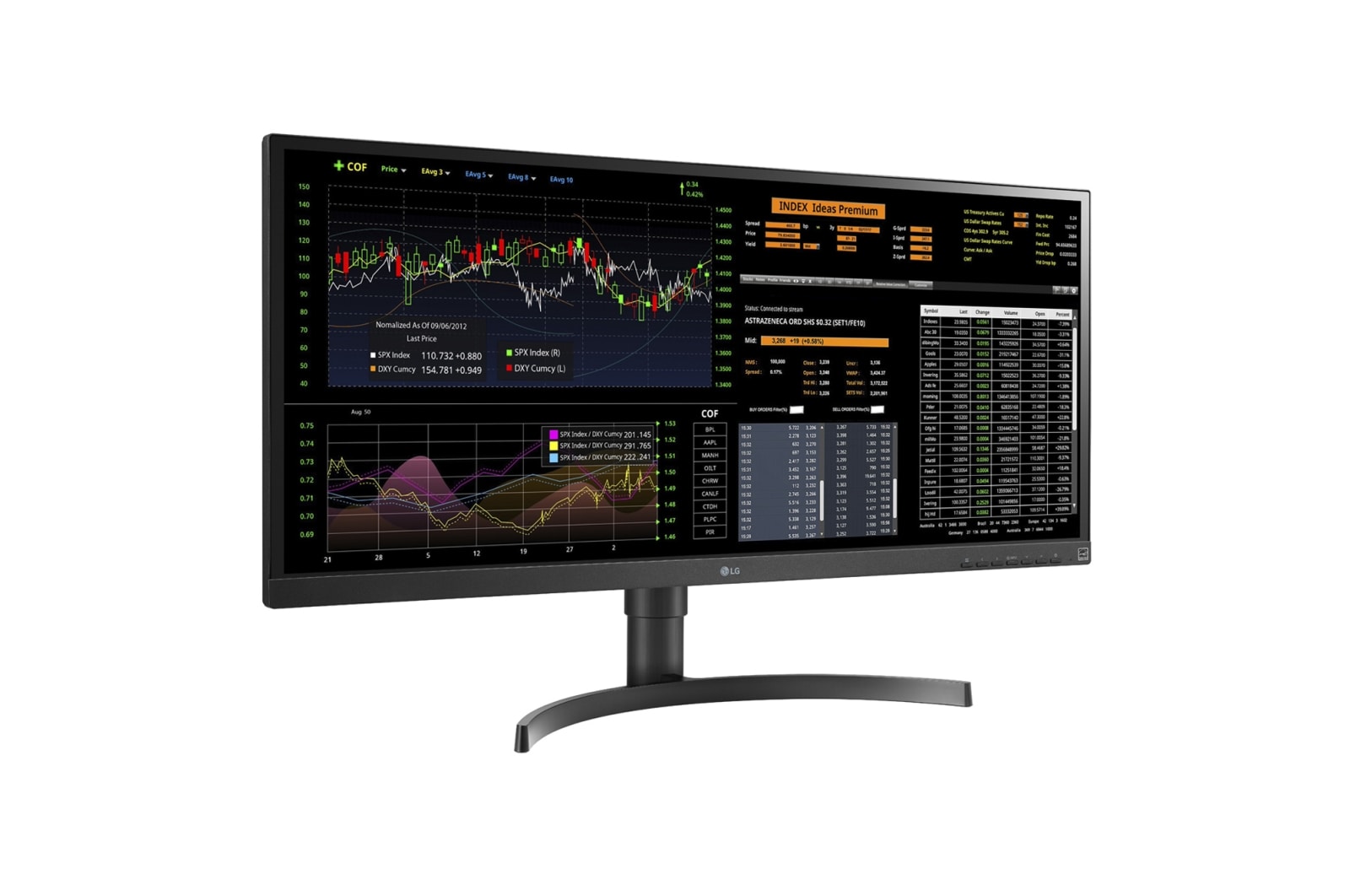

34" UltraWide™ All-in-One Thin Client

34" UltraWide™ All-in-One Thin Client

34CN650W-AC

34" UltraWide™ All-in-One Thin Client

With Cloud compuring environment, you can expect  Enhanced Security , Access Anytime, Anywhere, Making Operations More Efficient, Improved Collaboration, Business Continuity and Cost Savings.
Why Cloud Device

Productivity and Efficiency

LG offers various Thin Client form factors. LG’s excellence in display products can add value to your work environment with better performance and lower costs than a conventional PC device.
Powerful_Performance_with_Processor_(Intel®_Celeron_J4105),_RAM_Storage_(8GB_DDR4_/ SSD 128GB) and OS (Windows10 IoT Enterprise)
Quad-core Processor

More Powerful Performance

With advanced Quad-core Processor and a powerful system memory option, 34CN650W helps you complete your work faster and easier than ever.
LG monitor offers Wide Viewing Angle 178̊ by IPS. And The 21:9 UltraWide™ Full HD resolution (2560x1080) offers 33% more screen space compared to 16:9 Full HD display.
34" UltraWide™ Full HD IPS Display

More Space for Working Together

The 21:9 UltraWide™ Full HD resolution (2560x1080) offers 33% more screen space compared to 16:9 Full HD display. IPS panel delivers uniform and clear picture quality from any viewing angle. You can use it to view multiple windows at once and share screen with colleagues easily.
IT Administrator can control multiple Cloud Devices using Providing Web UI. Expected benefits are High Security, Cost Saving and Efficient Management.

LG Cloud Device Manager

It’s the optimised management software for LG cloud device. By installing on cloud devices using Windows 10 IoT OS, the devices are managed and controlled centrally for work efficiency and TCO reduction effect.
Triple-monitor setup with two 27UL850 monitors.
Up to 2 Display Support

The Most Productive Workstation

LG 34CN650W supports up to 4K UHD resolution dual displays. With the most flexibility for multi-monitor set-up options, you can get more done in less time.

*34CN650W display supports up to UltraWide™ Full HD resolution (2560x1080).

USB Type-C™

With a single USB Type-C™ connection, delivers up to 4K hi-resolution imagery and transmits data with faster transfer speeds at once.

Data Transfer, Display Connection by USB Type-C™ connection.

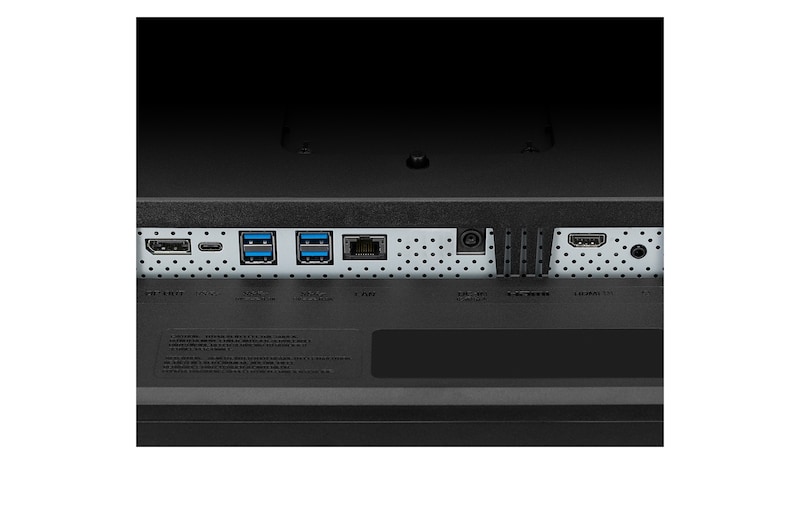

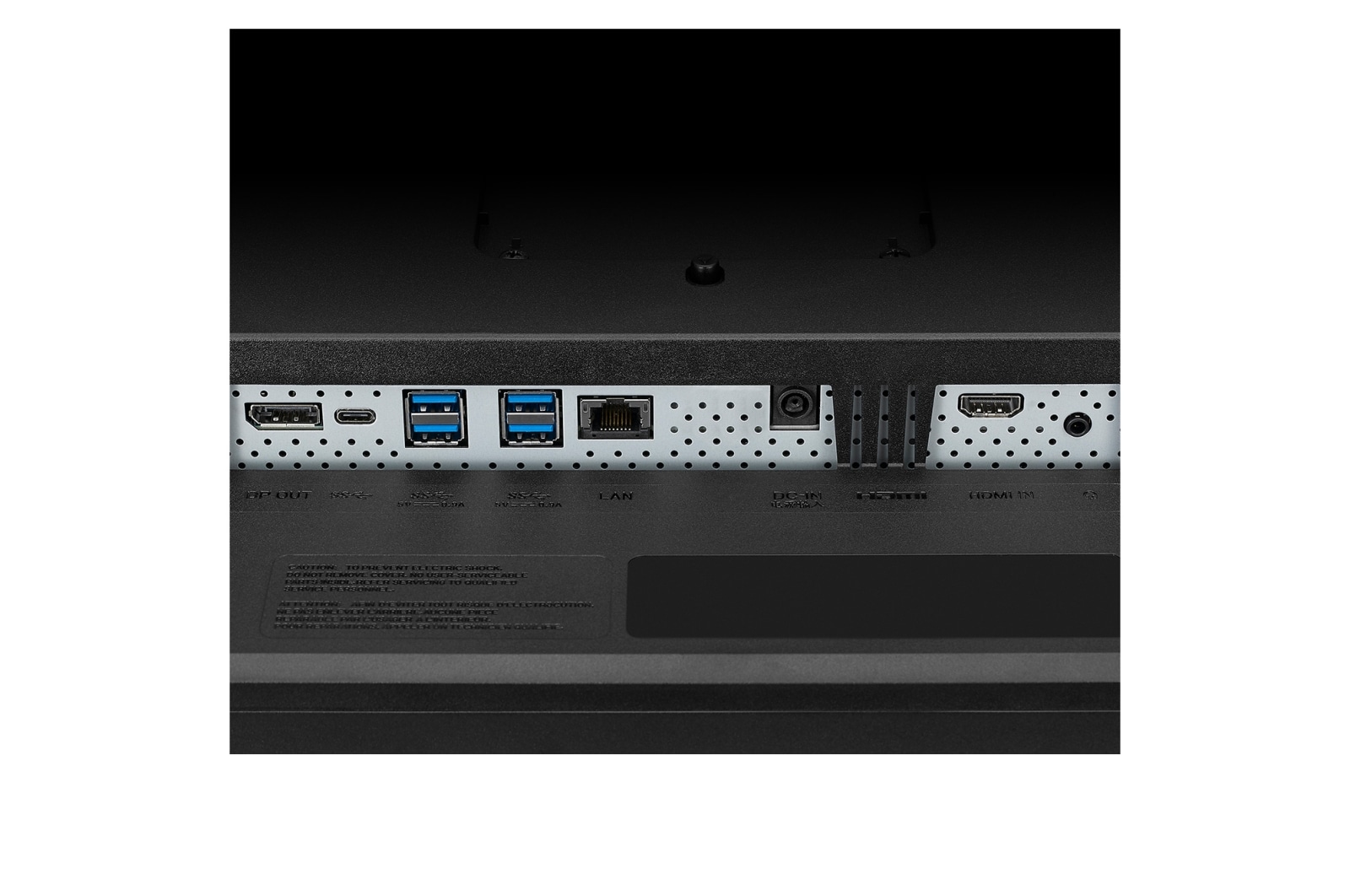

Various Interface

1) DisplayPort 2) USB Type-C™ 3) USB 3.0 4) Gigabit Ethernet 5) HDMI 6) Headphone & Mic Combo 7) USB 2.0

8 kinds of port in back and side.
Having online Conference face to face with Pop-up Type Full HD Webcam.

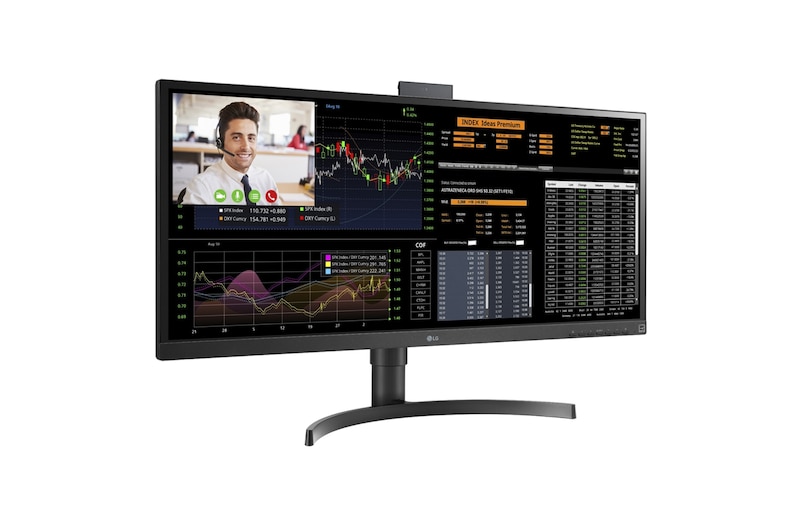

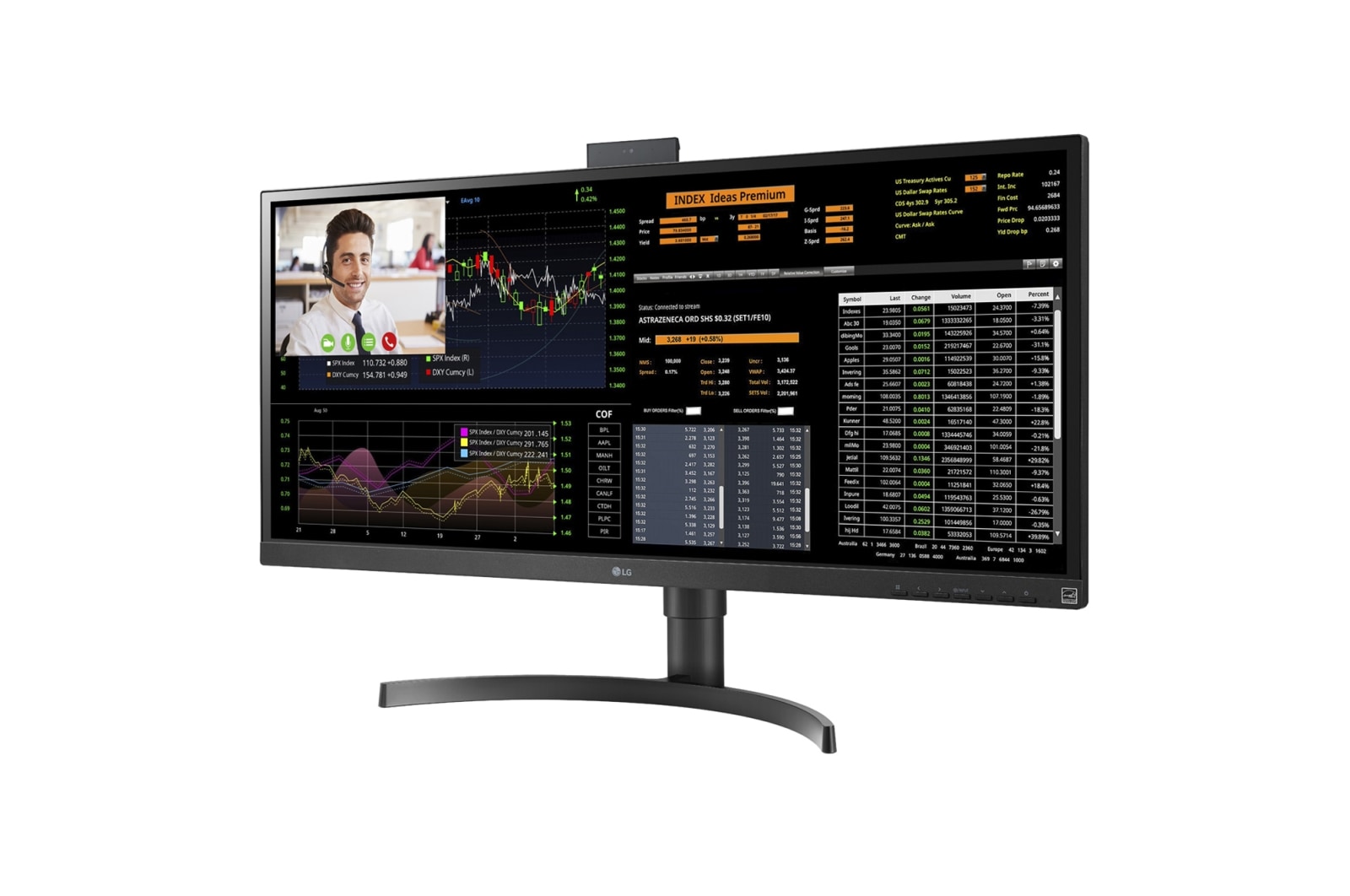

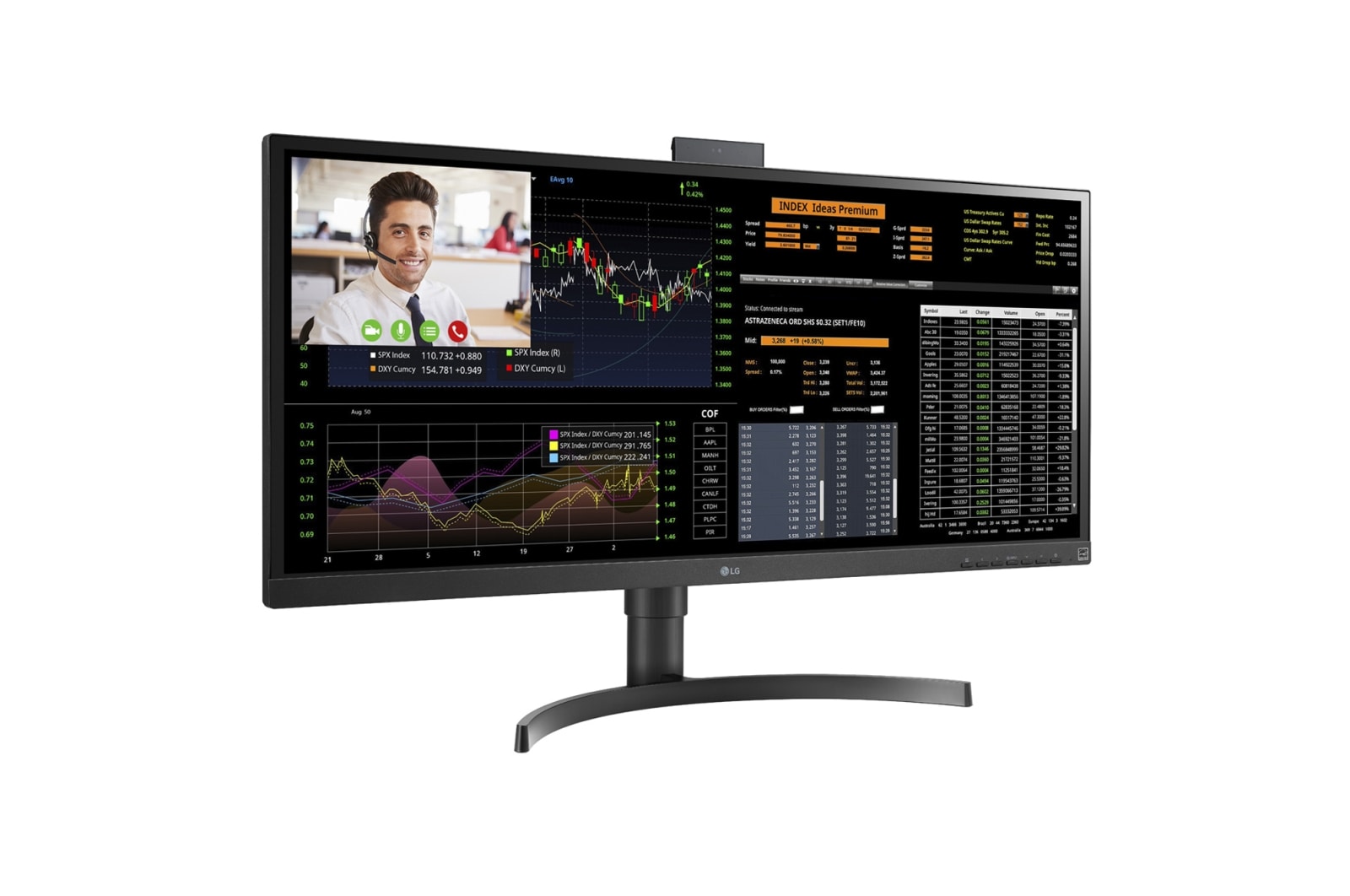

Pop-up Type Full HD Webcam

Enhanced Usability & Security

Featuring the pop-up type built-in Full HD webcam with improved security and the integrated speaker, to host various meetings and video conferences.
Work in Silent and Cost-efficient with Fanless Design .
Fanless Design

Silent and Cost-efficient

The fanless design increases LG 34CN650W’s lifespan and also reduces replacement costs. The low noise and heat provide a pleasant office environment, and its lower power consumption reduces management costs.

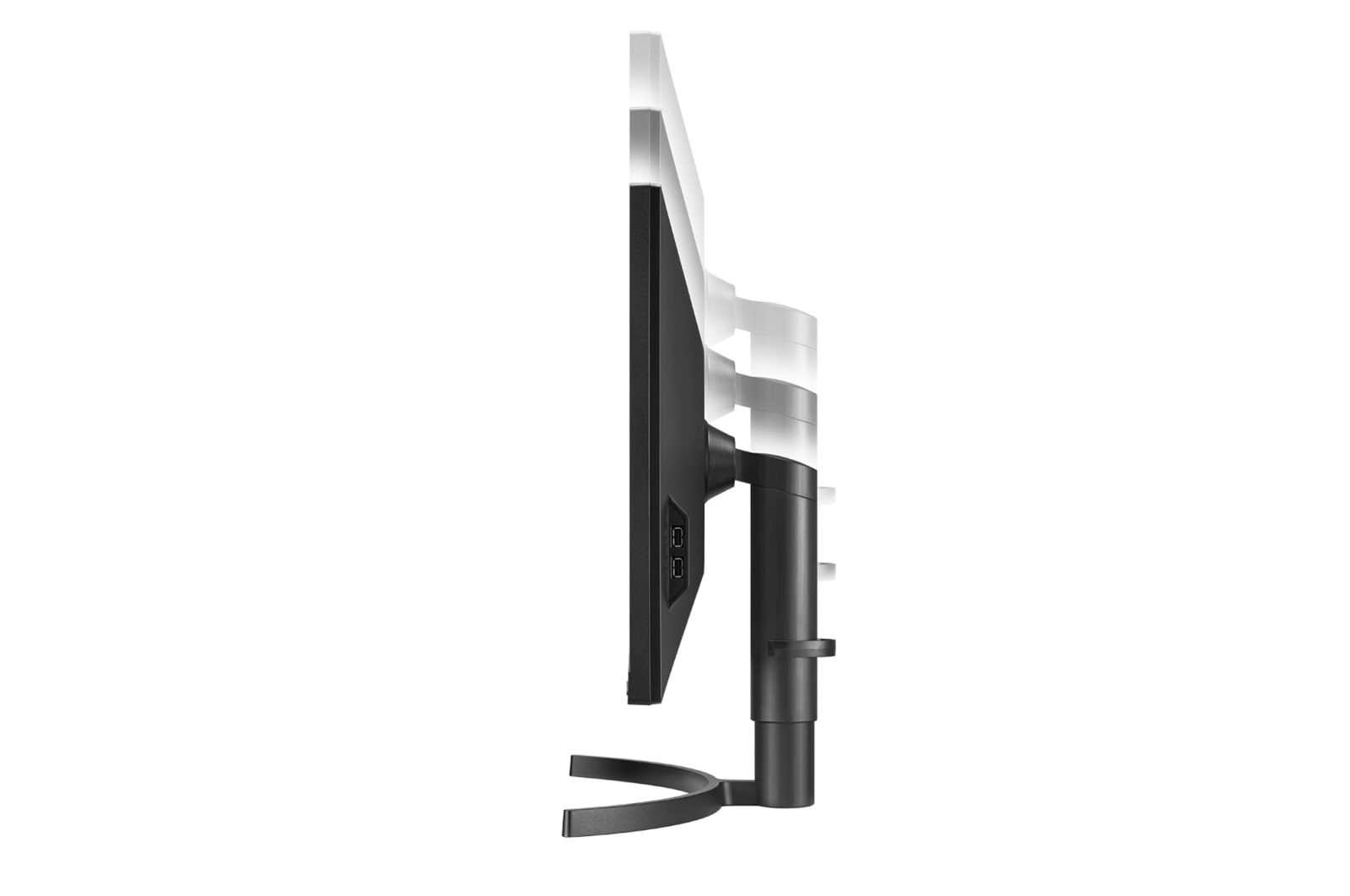

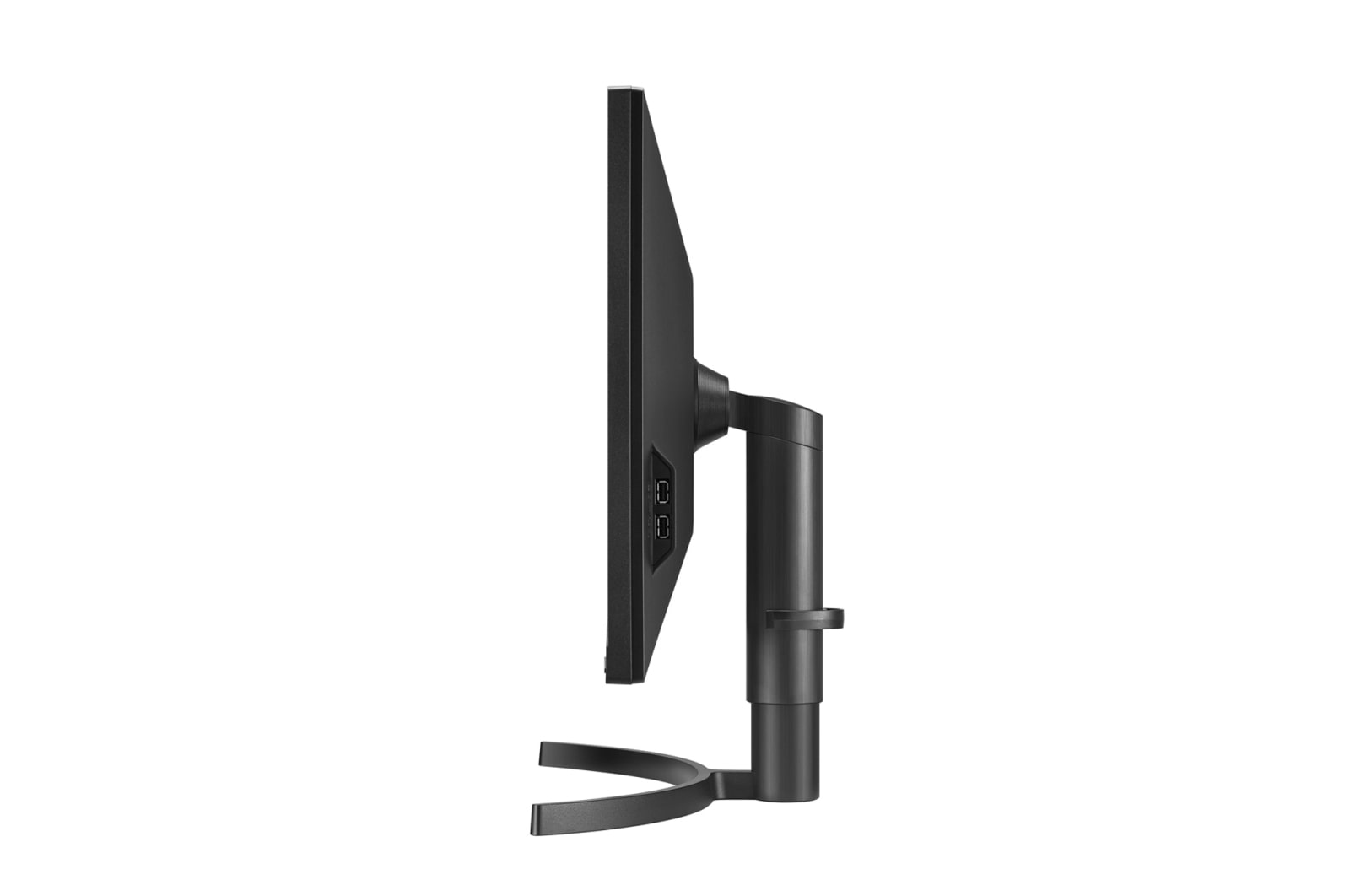

product detail view of  Virtually Borderless Design, Tilt, Height and feature One Click Stand.

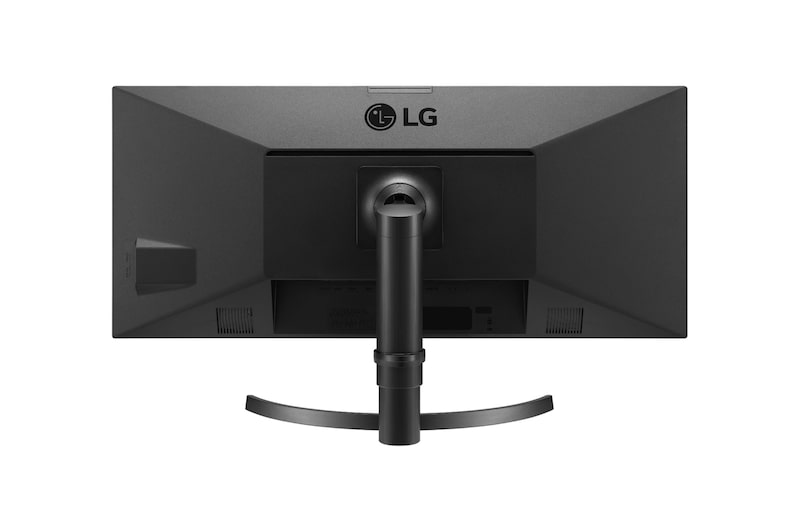

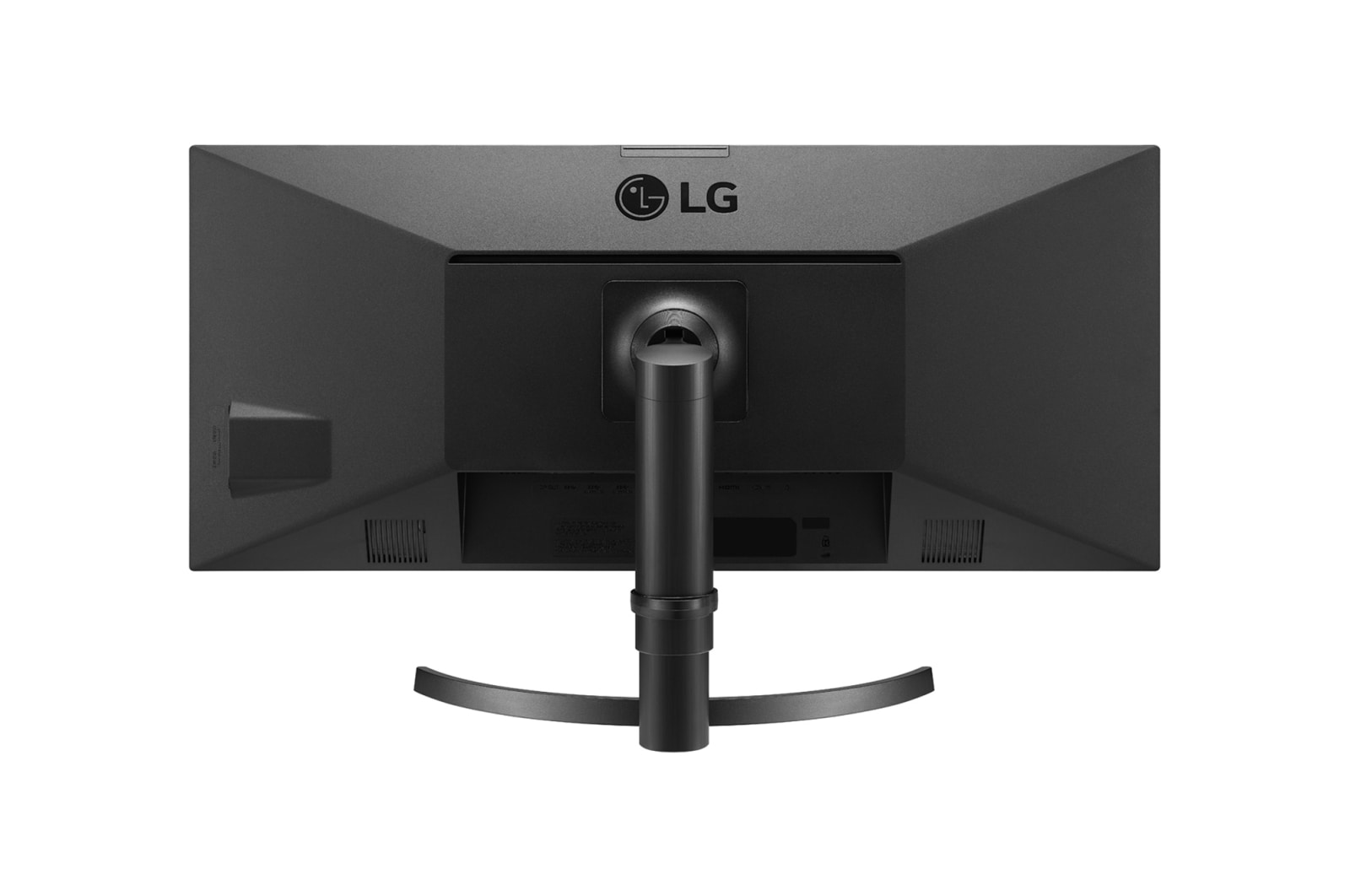

Ergonomic Design

Smart Workspace

For multiple Thin clients setup, you can save time and reduce a loss of work by featuring the one click stand. And the convenient stand can be adjusted to change height and tilt of the monitor allows you to create the comfort workspace.

All Spec

SYSTEM

Processor

Intel® Celeron J4105 (Quad Core 1.5GHz, up to 2.5GHz burst), Fanless

Graphics

Integrated Graphics

OS

Windows 10 IoT Enterprise LTSB

Memory

8GB (2x4GB) DDR4, 2666MHz, 2 SODIMM slots

Storage

128GB SSD (M.2)

Display Support

Up to 2 displays : 3840x2160@60Hz (via DisplayPort 1.2 out), 3840x2160@60Hz (via USB Type-C)

Expansion Slot

M.2 Slots x 2 (Slot 1 : 128GB SSD, Slot 2 : WiFi + Bluetooth card) * Note: Slot 1 should be capable of supporting SATA, SO-DIMM x 2 (Slot 1 : 4GB DDR4, Slot 2 : 4GB DDR4)

TPM (Trust Platform Module)

Hardware TPM 2.0

VDI Support

Citrix, VMware, Microsoft RDP, PCoIP S/W

DISPLAY

Size (Inch)

34

Size (cm)

86.61 cm

Aspect Ratio

21:9

Resolution

2560 x 1080

Panel Type

IPS

Panel Multi

LGD Module

Backlight Technology

LED

Backlight Type

Edge

Backlight Array

H2B

Backlight Dimming Technology

Global Dimming

Local Dimming Zone

N/A

Pixel Pitch

0.312 x 0.310 mm

Brightness (Min.)

240 cd/m²

Brightness (Typ.)

300 cd/m²

Peak Brightness (Min.)

N/A

Peak Brightness (Typ.)

N/A

Color Gamut (Min.)

N/A

Color Gamut (Typ.)

sRGB 100% (CIE1931)

Color Depth (Number of Colors)

16.7M

Color Bit

8bit (6bit+FRC)

Contrast Ratio (Min.)

700:1

Contrast Ratio (Typ.)

1000:1

Contrast Ratio with DFC

Mega

Response Time

5ms (GtG at Faster)

Viewing Angle (CR≥10)

178º(R/L), 178º(U/D)

Surface Treatment

Anti Glare, 3H

Curvature

N/A

FEATURE

Webcam

Yes (FHD, Pop-up type, webcam)

Black Stabilizer

Yes

Color Weakness

YES

Flicker safe

YES

Picture Mode

Custom, Reader,Photo, Cinema, Color Weakness, Game

Reader Mode

YES

Smart Energy Saving

YES

Super Resolution+

YES

SW APPLICATION

Management Console

LG Cloud Device Manager

OnScreen Control (LG Screen Manager)

YES(HDMI IN Only)

CONNECTIVITY

HDMI

YES(In 1ea)

HDMI Version

2.0

HDMI (H-Frequency)

90KHz

HDMI (V Frequency)

75Hz

HDMI (HDCP Version)

1.4

HDMI (Max. Resolution at Hz)

2560X1080 75Hz

DisplayPort

YES(out 1ea)

DP Version

1.2

DP (Max. Resolution at Hz)

3840X2160 60Hz

MIC & Headphone out combo

YES (1 x 3.5mm audio-mic combo jack (CTIA Type))

Thunderbolt (Power Delivery)

N/A

Thunderbolt(USB-C Compatiblity)

N/A

USB

2 x USB 2.0 Type-A
4 x USB 3.1 gen1 (5Gb/s) Type-A
1 x USB 3.1 gen1 (5Gb/s) Type-C with DP out

USB-C

YES(out 1ea)

USB-C (DP Version)

1.2

USB-C (Power Delivery)

N/A

[Location]

Vertical

SOUND

Speaker

YES

Speaker_Channel

2ch

Speaker_Output (unit)

5W

Speaker_Direction

Down Firing

Maxx Audio

YES

POWER

AC Input

100-240Vac, 50/60Hz

DC Output

19V 5.79A

Power Consumption (DC Off)

Less than 1.2W

Power Consumption (Typ.)

39W

Power Consumption (Sleep Mode)

1.42W

Long Idle (Display Off)

4.71W

Short Idle (Display On)

26.68W

Type

External Power(Adapter)

MECHANICAL

Borderless Design

Normal

Assembly Step

Three-Step

Base Detachable

YES

Color (Front Cabinet)

Matt Black

Color (Middle Cabinet)

Matt Black

Color (Back Cover)

Matt Black

Color (Stand Body)

Matt Black

Color (Stand Base)

Matt Black

Display Position Adjustments

Tilt/Height

Tilt

-5º ~ 15º

Height Range

100mm

OneClick Stand

YES

Wall Mountable

100 x 100 mm

DIMENSIONS & WEIGHT

Dimension in Shiping (W x H x D)

940 × 241 × 490

Dimension with Stand (W x H x D)

825.6 × 570.7(460.7) × 230

Dimension without Stand (W x H x D)

825.6 × 374.8 × 60.5

Pallet Stuffing (20ft/40ft/40ft HC)

192/384/480

Weight in Shipping

12.0

Weight with Stand

8.3

Weight without Stand

6.6

STANDARD

CB

YES

CE

YES

EPA

YES (7.0)

EPEAT (Germany)

GOLD

EPEAT (USA)

GOLD

Energy Star

YES

Erp

YES

FCC-B

YES

KC (for Rep. of Korea)

YES

ROHS, REACH

YES

TUV-Ergo

YES

TUV-GS

YES

TUV-Type

YES

UL(cUL)

YES

VESA wall mount standard

YES

Windows

YES

ACCESSORY

Adapter

YES

Adapter (Color)

Black

Power Cord

YES

Power Cord (Color/Length)

Black / 2.0m

HDMI

YES

HDMI (Color/Length)

Black / 2.0m

Display Port

YES

Display Port (Color/Length)

Black / 2.0m

External Antenna

NO (Internal Antenna)

NETWORK

LAN

1 x RJ45 : 10/100/1000 Base-T Gigabit Ethernet (Wake on LAN)

Wi-Fi

Dual Band 802.11a/b/g/n/ac 2x2 (BT 5.0 Combo, Internal Antenna)

Bluetooth

BT5.0

RESOLUTION

HDMI (PC)

2560X1080 75Hz

HDMI (Video)

1920X1080 60Hz

CONTROL KEY

Key Location

Front

Key Number (Power Key Included)

7

Key Type

Tact

LED Color(On mode)

White(AIO PC)

LED Color(Power save mode)

Blinking (AIO PC)

LED Color(Standby)

OFF(AIO PC)

OSD

Country

English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese(brazil), Hindi, Tranditional Chinese

Number of Language

18

BOX COSMETIC

Box Printing Type

Flexo

Handle

Hand Hole

Packing Material

EPS

Stacking Type

Face Down

Stand Packing Type

Detached

ETC

Humidity Range

Operating : 20%~80%, Storage : 10%~90%

Temperature Range

Operating : 10°C ~ 40°C, Storage : -20°C ~ 60°C

COMPLIANCE INFORMATION

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
