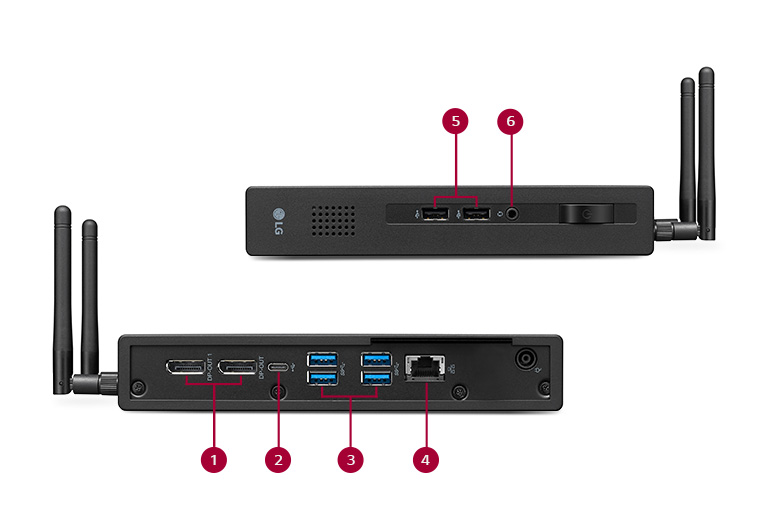

1) DisplayPort 2) USB Type-C™ 3) USB 3.0 4) Gigabit Ethernet 5) SFP Ready 6) USB 2.0 7)
Headphone & Mic Combo
Various Interface1
Processor
Intel® Celeron J4105 (Quad Core 1.5GHz, up to 2.5GHz burst), Fanless
Graphics
Integrated Graphics
OS
Windows 10 IoT Enterprise LTSB
Memory
8GB (2x4GB) DDR4, 2666MHz, 2 SODIMM slots
Storage
128GB, M.2 SSD
Display Support
Up to 3 displays :
2560x1600@60Hz (via 1st DisplayPort 1.2 out)
3840x2160@60Hz (via 2nd DisplayPort 1.2 out)
3840x2160@60Hz (via USB Type-C)
Expansion Slot
M.2 Slots x 2 (Slot 1 : 128GB SSD, Slot 2 : WiFi + Bluetooth card) * Note: Slot 1 should be capable of supporting SATA, SO-DIMM x 2 (Slot 1 : 4GB DDR4, Slot 2 : 4GB DDR4)
TPM (Trust Platform Module)
Hardware TPM 2.0
VDI Support
Citrix, VMware, Microsoft RDP, PCoIP S/W
Management Console
LG Cloud Device Manager
DisplayPort
YES(out 2ea)
DP Version
1.2
DP (Max. Resolution at Hz)
3840X2160 60Hz
MIC & Headphone out combo
YES
Fiber Ready
SFP Module support ready for Fiber NIC network connectivity (mutually exclusive with RJ45)
USB
2 x USB 2.0 Type-A
4 x USB 3.1 gen1 (5Gb/s) Type-A
1 x USB 3.1 gen1 (5Gb/s) Type-C with DP out
USB-C
YES(out 1ea)
USB-C (DP Version)
1.2
[Location]
Horizontal
Speaker
YES
Speaker_Channel
1ch
Speaker_Output (unit)
1.2W
Speaker_Direction
Front Firing
AC Input
100-240Vac, 50/60Hz
DC Output
19V 3.42A
Power Consumption (DC Off)
1.0W
Power Consumption (Sleep Mode)
1.2W
Long Idle (Display Off)
6.0W
Short Idle (Display On)
6.0W
TEC (kWh)
27.0 kWh
Type
External Power(Adapter)
Color (Front Cabinet)
Matt Black
Color (Middle Cabinet)
Matt Black
Color (Back Cover)
Matt Black
Wall Mountable
100 x 100 mm
Dimension in Shiping (W x H x D)
260 x 164 x 101
Dimension without Stand (W x H x D)
199 x 137 x 35
Pallet Stuffing (20ft/40ft/40ft HC)
3,000/6,300/7,560
Weight in Shipping
1.685
Weight with Stand
0.82
Weight without Stand
0.8
CB
YES
CE
YES
EPA
YES (7.0)
EPEAT (Germany)
BRONZE
EPEAT (USA)
BRONZE
Energy Star
YES
Erp
YES
FCC-B
YES
KC (for Rep. of Korea)
YES
ROHS, REACH
YES
TUV-Ergo
YES
TUV-GS
YES
TUV-Type
YES
UL(cUL)
YES
VESA wall mount standard
YES
Adapter
YES
Adapter (Color)
Black
Power Cord
YES
Power Cord (Color/Length)
Black / 2.0m
External Antenna
YES
VESA Bracket
Horizontal/Vertical feet and VESA/wall mounting
LAN
1 x RJ45 : 10/100/1000 Base-T Gigabit Ethernet (Wake on LAN)
Wi-Fi
Dual Band 802.11a/b/g/n/ac 2x2 (BT 5.0 Combo, External Antenna)
Bluetooth
BT5.0
Key Location
Front
Key Number (Power Key Included)
1
Key Type
Tact
LED Color(On mode)
White (PC Power / HDD)
LED Color(Power save mode)
Blinking (PC)
LED Color(Standby)
OFF(PC)
Box Printing Type
Flexo
Packing Material
A-Flute
Stacking Type
Vertical
Humidity Range
Operating : 20%~80%, Storage : 10%~90%
Temperature Range
Operating : 10°C ~ 40°C, Storage : -20°C ~ 60°C
