32LS341H0ZA

32" Pro:Centric Hotel TV

Essential Commercial TV with Commercial Grade Stand

Essential Commercial TV with Commercial Grade Stand

The LS341H Commercial TV series provides hotels with an economical TV solution with Pro:Centric V for two-part solution (with an external set-top box). It delivers crisp Full HD images by using a stylish commercial-grade stand.

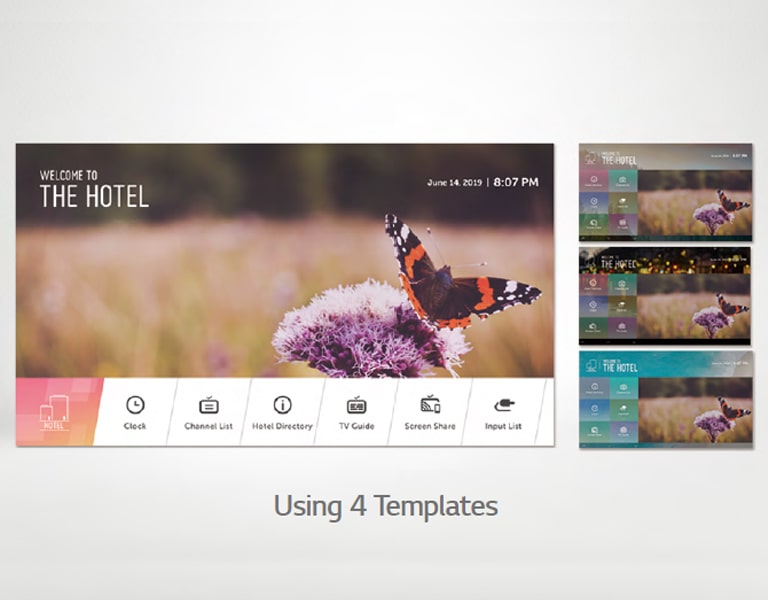

Quick Menu
VALUE ADDED FEATURES

Quick Menu

Enjoy LG’s easy solution of menu home. Now LG provides the new Quick menu (Ver 3.0), making it more easy and user-friendly than ever.
Hotel Mode (Public Display Mode)
VALUE ADDED FEATURES

Hotel Mode (Public Display Mode)

From channel selection to volume level, you can control the TV settings in business areas. Public Display Mode also enables you to restore default settings, as required, on the TVs.
Welcome Video / Screen
VALUE ADDED FEATURES

Welcome Video / Screen

With the capability to display several images, Commercial Lite TVs allow for a greater variation of greeting messages in hotel rooms which make customers feel more welcome and cared for.

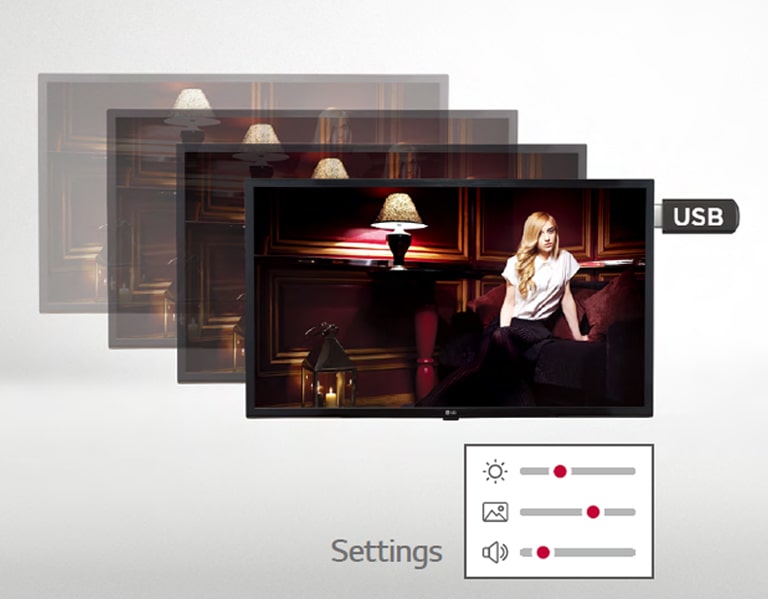

USB Data Cloning
VALUE ADDED FEATURES

USB Data Cloning

USB data cloning makes managing multiple displays more efficient for optimal operation. No need to set up each display one by one, data can be copied to a USB in one display and will be distributed to other displays through a USB plug-in.

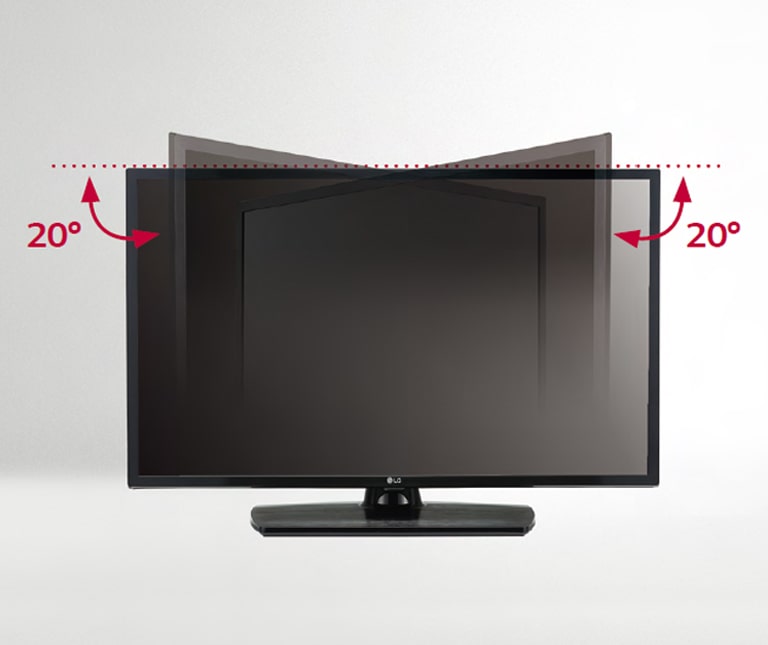

Commercial Swivel Stand
VALUE ADDED FEATURES

Commercial Swivel Stand

Expand the range of comfort for guests with a commercial grade stand. This allows guests to watch the TV from any angle. Also, for security purposes, the stand may be secured to its table.
External Speaker Out
VALUE ADDED FEATURES

External Speaker Out

Enhance the entertainment experience with an additional speaker. Guests can listen and control the TV audio from anywhere, even from restrooms.
Diagnostics
SIMPLE & EFFECTIVE MAINTENANCE

Diagnostics

The TV stores diagnostic data, which can be saved to a USB memory device, thus enabling service engineers to analyse the data and identify technical issues quickly and easily.

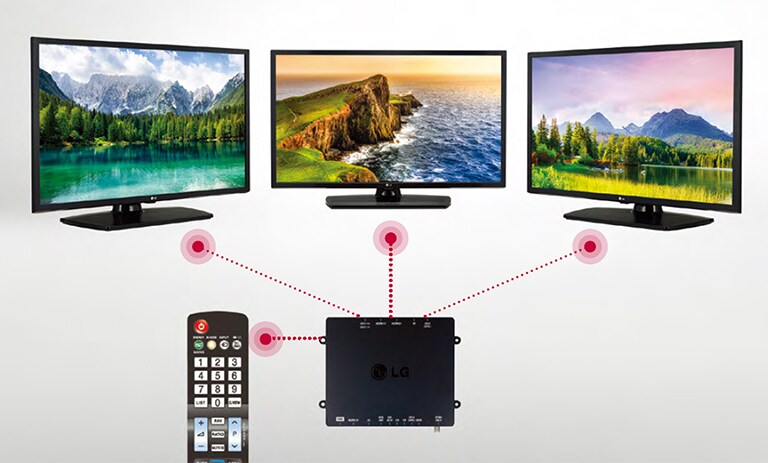

IR Out
SIMPLE & EFFECTIVE MAINTENANCE

IR Out

Using the interactive set-top box, all LG TVs can be controlled with a single remote control.

All Spec

DESIGN

  • Stand Type

    1 pole (Swivel)

  • Front Colour

    Ceramic BK

DISPLAY

  • Inch

    32"

  • Resolution

    1,920 x 1,080 (FHD)

  • Backlight Unit Type

    Direct

  • Brightness (cd/m²)

    240

  • Dynamic Contrast Ratio

    1000000:1

  • Response Time (GtoG, ms)

    8

  • TruMotion / Refresh Rate

    60Hz

  • Life span (hrs)

    30,000

BROADCASTING SYSTEM

  • Digital

    Yes (DVB-T2 / C / S2)

  • Analog

    PAL

  • Teletext

    Yes

VIDEO

  • SoC

    M1A+R, Single

AUDIO

  • Audio Output

    5W+5W

  • Speaker System

    2.0 ch

HOSPITALITY SOLUTION

  • Pro:Centric Smart

    Data Streaming (RF), HCAP (GEM)

  • Pro:Centric V

    Pro:Centric Application version 3.8

  • Pro:Centric Server

    PCS400R, PCS200S

  • Quick Menu

    version 3.0

FEATURES

  • Ease Installation

    EzManager, USB Cloning

  • Management

    Self Diagnostics (USB), HTNG-CEC (v1.4), Simplink (HDMI-CEC) (v1.4), IR Out (RS-232C), Multi IR Code

  • Hospitality

    Hotel Mode, Lock mode (Limited), Welcome Video, Welcome Screen, Insert Image, One Channel Map, External Speaker Out (Int / Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 2W with 8Ω), RJP (remote jack pack) Compatibility - Teleadapt/Guestlink (HDMI CEC)

  • USB

    USB Auto playback

  • Setting Option

    Auto Off / Sleep Timer, Smart Energy Saving

FUNCTION

  • Signage (Corporate/Retail)

    DPM (Digital Power management), Time scheduler

JACK INTERFACE

  • Set Side

    Headphone Out, HDMI In (1.4), USB 2.0, CI Slot

  • Set Rear

    HDMI In (HDCP, 1.4), RF In (2), AV In (Share with Component), Component in (RCA5 Type), Digital Audio Out (Optical), RGB In (D-sub 15pin) - PC, RS-232C (D-Sub 9pin), RJ45 (Usage Purpose, SNMP/MHEG), External Speaker Out (3.5 mm Phone Jack) - Spk-out 1, 4W (Stereo, R: 2.0W, L: 2.0W, 8Ω

OTHERS

  • Anti-theft System

    Kensington Lock, Credenza/Security Screw Hole, Lock Down Plate (for easy installing)

DIMENSION(UNIT: MM/KG)

  • Vesa

    200 x 200

  • W x H x D / Weight (with stand)

    736 x 493.6 x 240.8 / 5.9

  • W x H x D / Weight (without stand)

    736 x 437 x 82.9 / 4.65

  • W x H x D / Weight (Shipping)

    905 x 530 x 162 / 7.35

  • Bezel Width (L/R/U/B): On Bezel

    18.7 / 18.7 / 18.7 / 21.2

  • Bezel Width (L/R/U/B): Off Bezel

    17.2 / 17.2 / 17.2 / 19.7

POWER(UNIT : WATTS)

  • Voltage, Hz

    100 ~ 240, 50 / 60

  • Power Consumption(Max.)

    50W

  • Power Consumption(Typ.)

    37W

  • Stand-by

    0.3

REQUIRED LISTING(CERTIFICATION)

  • Safety

    CB , CU TR

  • EMC

    CE

  • ErP Class

    F

  • On Power Consumption

    26W

  • Luminance Ratio (%)

    65%

  • Average Annual Consumption(kWh)

    36kWh

ACCESSORY

  • Remote type

    S-Con

  • Power Cable

    1.5M, Angle Type

Specification Sheet

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
