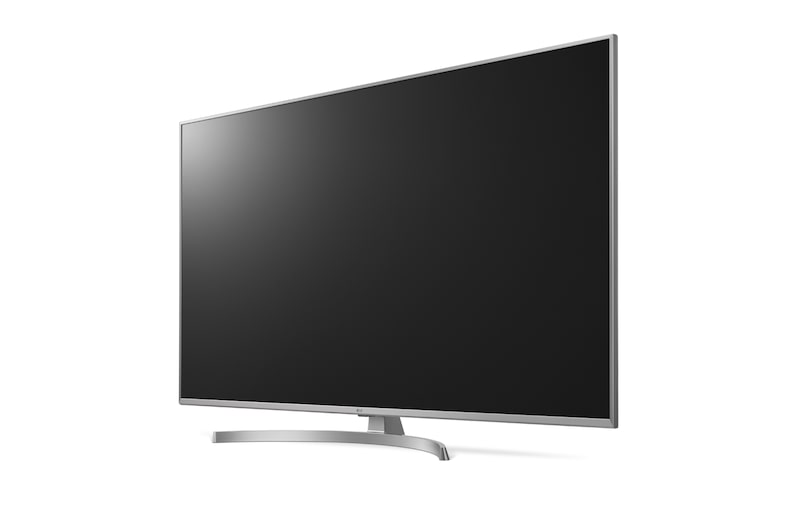

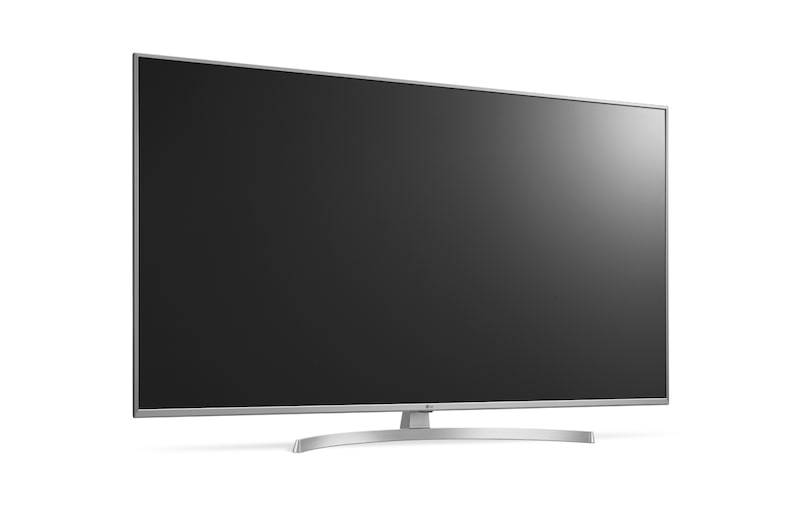

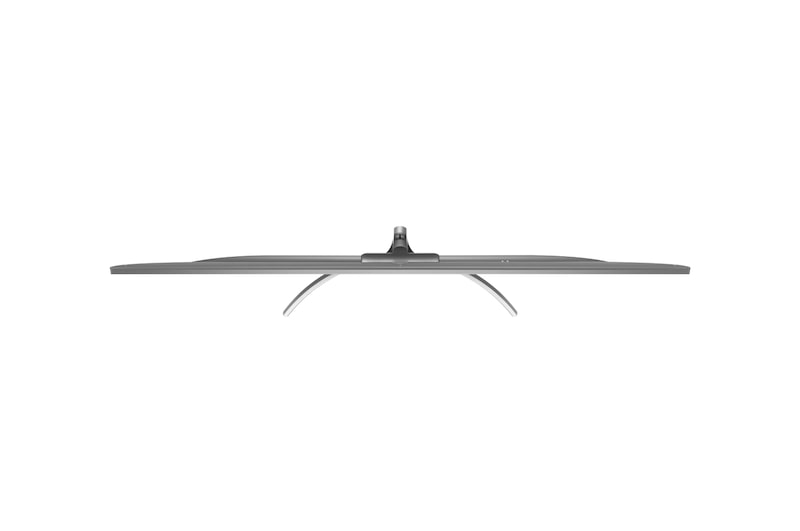

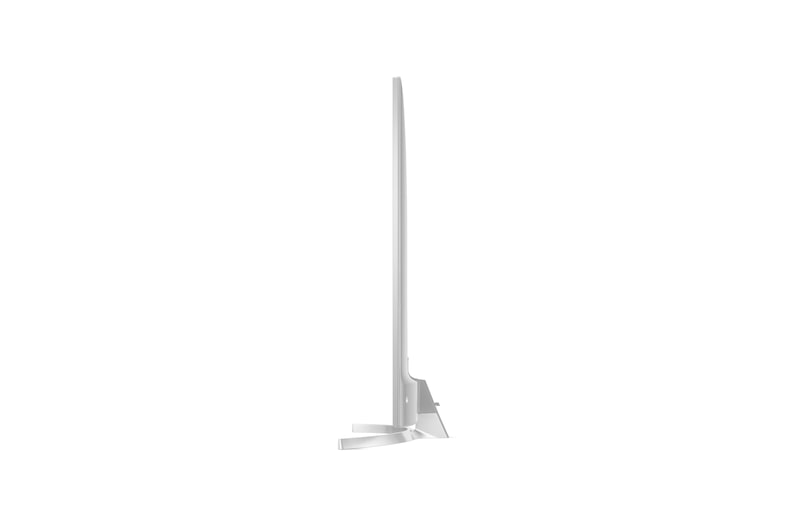

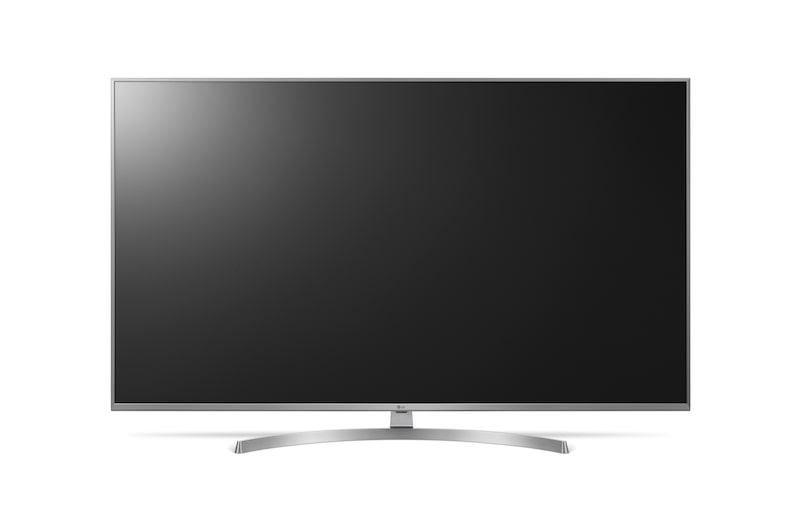

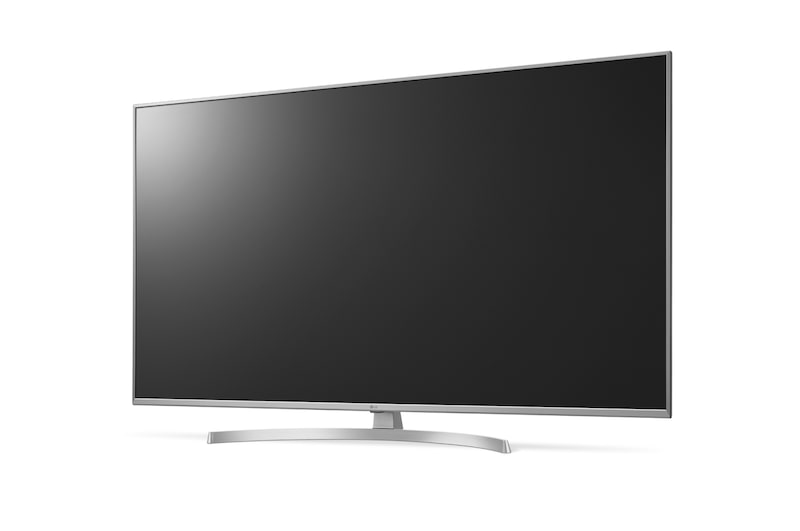

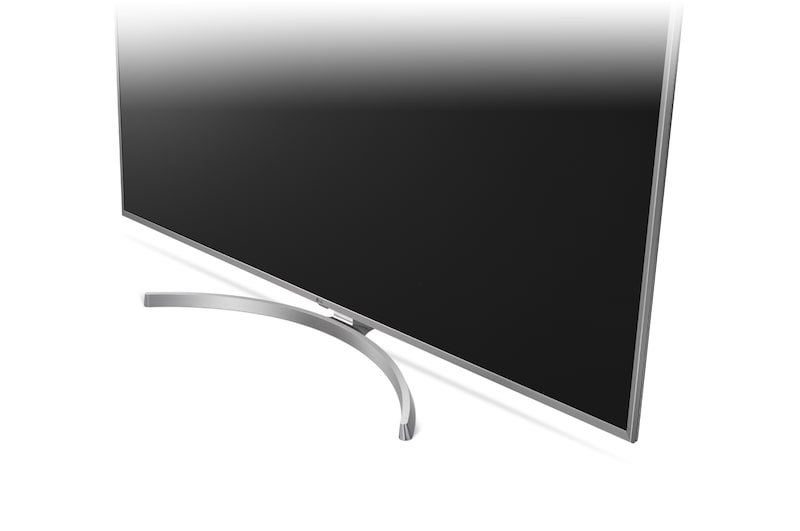

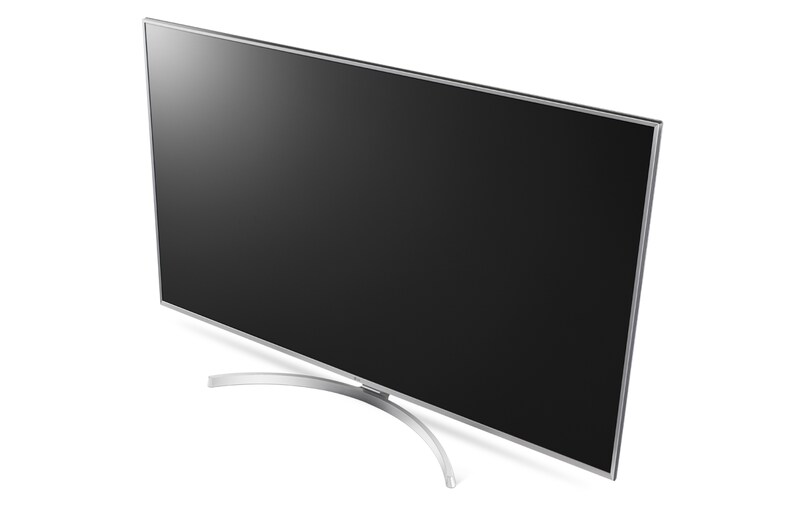

65UU761H
UU761H Series
  • Pro:Centric Hotel Management Solution (Smart, V, Direct)
  • Quick Menu (2.0)
  • WebOS 4.0
  • Facility Virtual View
  • Smart Clock(visualized app-based)
UU761H Series
MSRP £
*Customized UI may be little different.
* Actual UI may be litter different
* TV native Control
* Server Based control
* Magic Motion Remote is required(sold separately)
*Actual In-screen image may be little different.
*Actual In-screen image may be little different.
* All pictures shown below are for illustration purpose only (for a better understanding).
Actual device and screen may differ.
* Support devices for Bluetooth Sound Sync : Android (above v4.4 KitKat) / iOS based Mobile Device
* SoftAP should be set in installation menu after TV is on.
* Smart Mirroring may not be operated at the same time.

Display

  • Backlight Type
    LED (Edge)
    Resolution
    3,840 x 2,160 (4K UHD)
  • Brightness (cd/m²)
    400

Broadcasting System

  • Analog
    • (PAL/SECAM)
    Digital
    DVB-T2/C (Varied by countries)

Video

  • XD Engine
    Aspect Ratio
    • 6 modes (TBD)
    (16:9, Original, Full wide, 4:3, Vertical Zoom, All-Direction Zoom)

Audio

  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound Mode
    • 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
    • 6 modes (India, Australia, Newzeland, Srilanka) (Standard, Cinema, Clear Voice III, Cricket, Music, Game)
    Clear Voice
    • (Clear VoiceⅢ)

Hospitality Solution

  • Solution Type
    Pro:Centric (Smart, V, Direct), Quick Menu 2.0
    Data Streaming (IP & RF)
  • RF
    • (1 Tuner)
    HCAP (SDK)
    GEM / Flash / HTML5
  • Pro:Centric Application
    PCA 3.8 (TBD)

Feature

  • Hospitality
    Hotel Mode, Lock Mode, Welcome Screen, Insert Image, One Channel Map, External Speaker Out, Instant ON, External Power, V-Lan Tag, RJP Interface, RJP Compatibility, External Clock Compatibility, Clock (World Clock / Alarm), 360 Viewer, Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care, Teletext / Auto Teletext (Australia 16:9 only)

Jack Interface

  • Set Side
    HDMI In, USB 2.0 (2), CI Slot

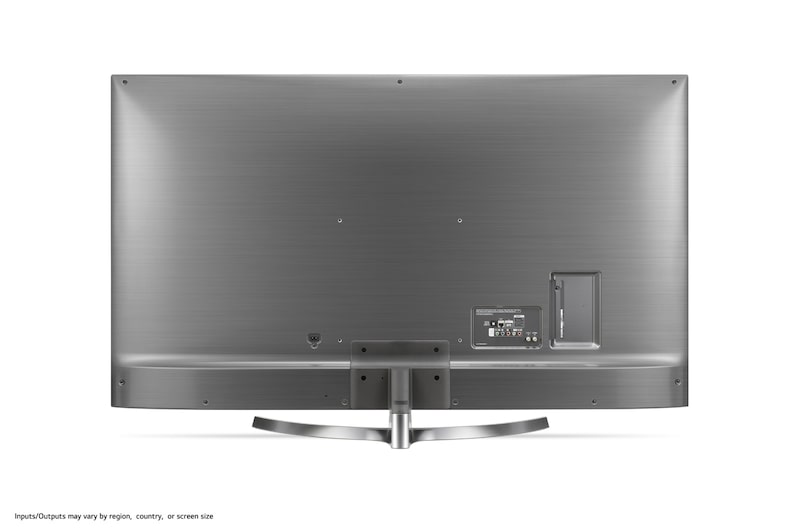

    Set Rear
    RF In, AV In, Component In (Phone Jack Type), Digital Audio Out (Optical), HDMI / HDCP Input, RS-232C (Control & Service), Headphone Out, Clock Interface (RJ12), External Speaker Out

Dimension(Unit: mm)

  • Vesa
    300 x 300
    W x H x D / weight (with stand)
    1,456 x 916 x 318.5 / 26.2kg
  • W x H x D / Weight (without stand)
    1,456 x 844 x 37.2 / 24.5kg
    W x H x D / weight (Packing)
    1,600 x 1,035 x 190 / 33.6kg

Power(Unit : Watts)

  • Voltage, Hz
    100~240V, 50 / 60 Hz
    Max
    185
  • Typical
    167
    Energy saving (Min / Med / Max)
    114 / 82 / 52
  • Stand-by
    0.5W↓

General

  • Region
    ASIA
