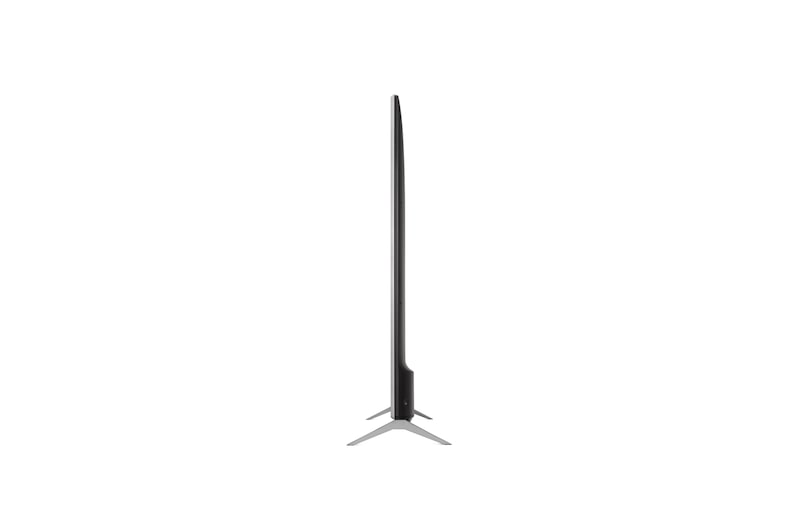

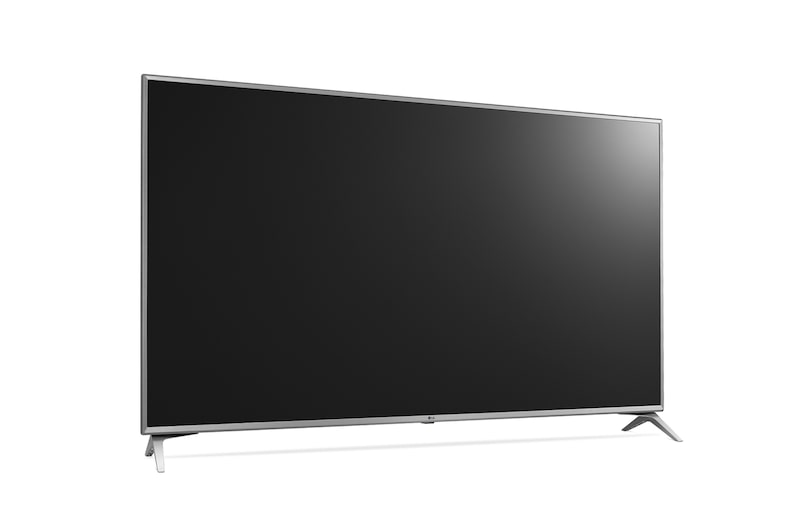

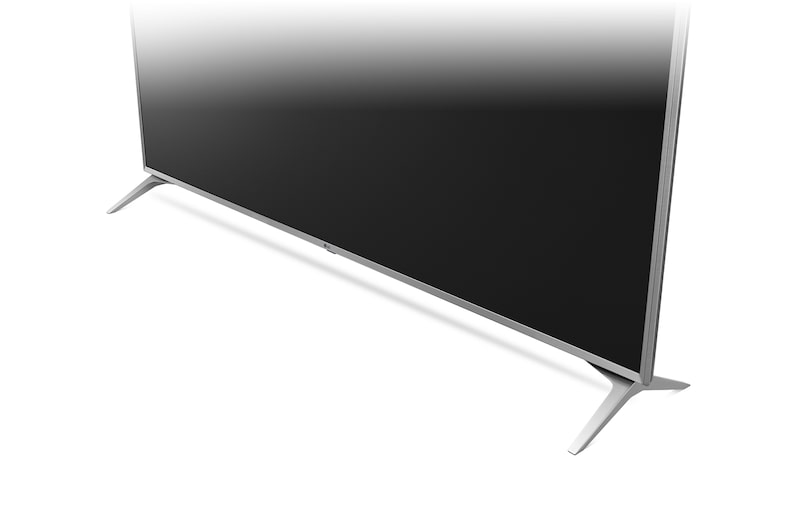

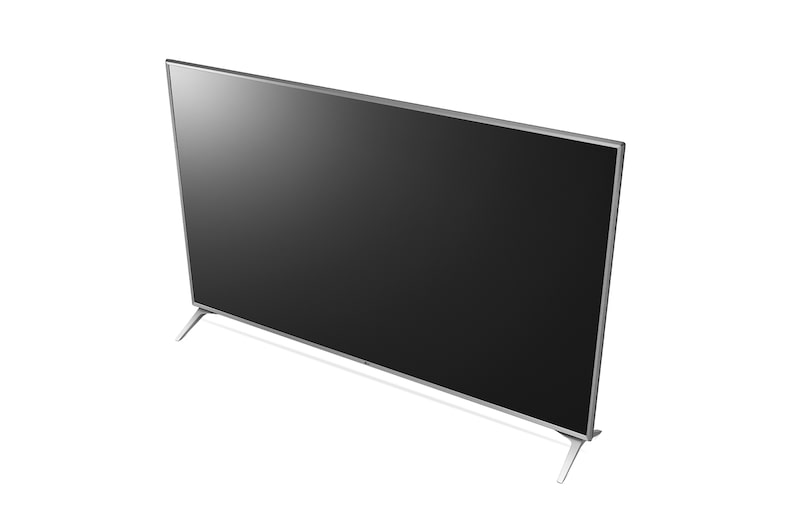

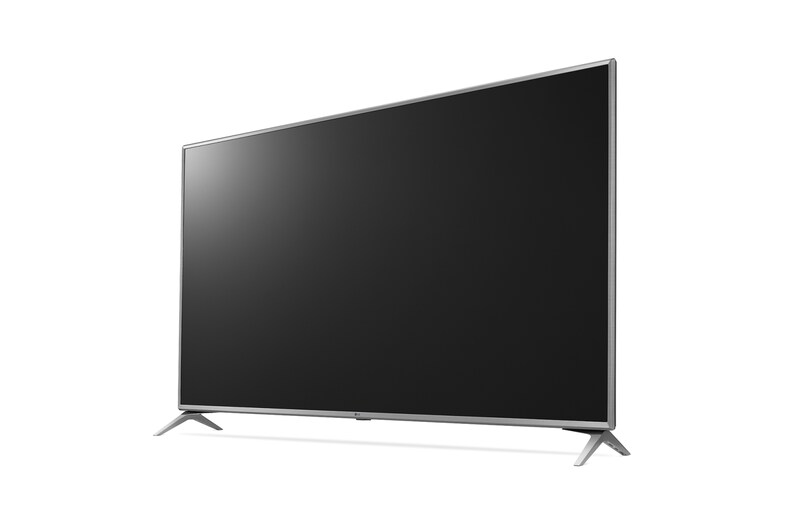

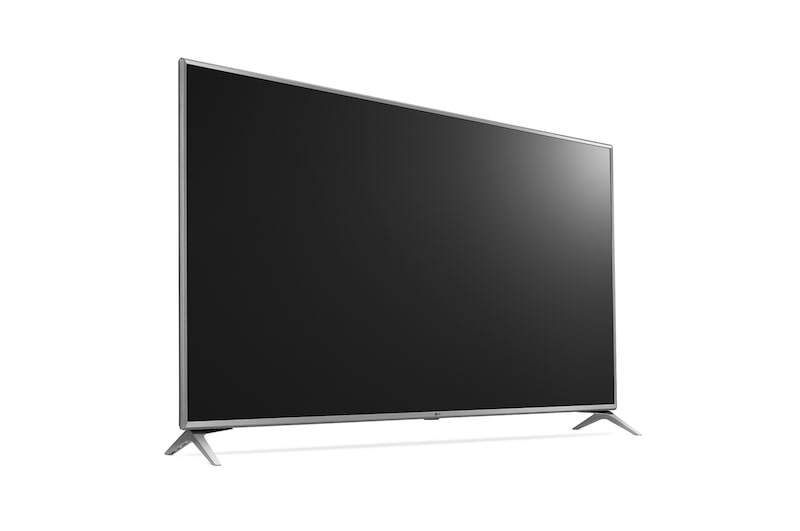

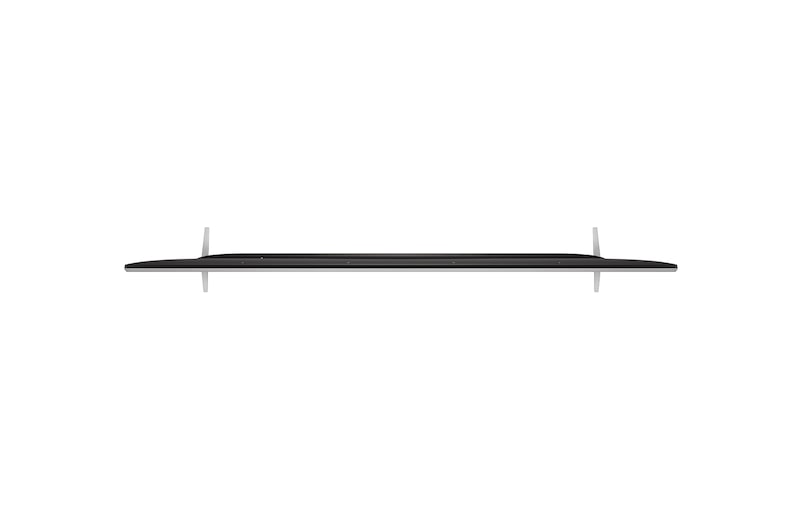

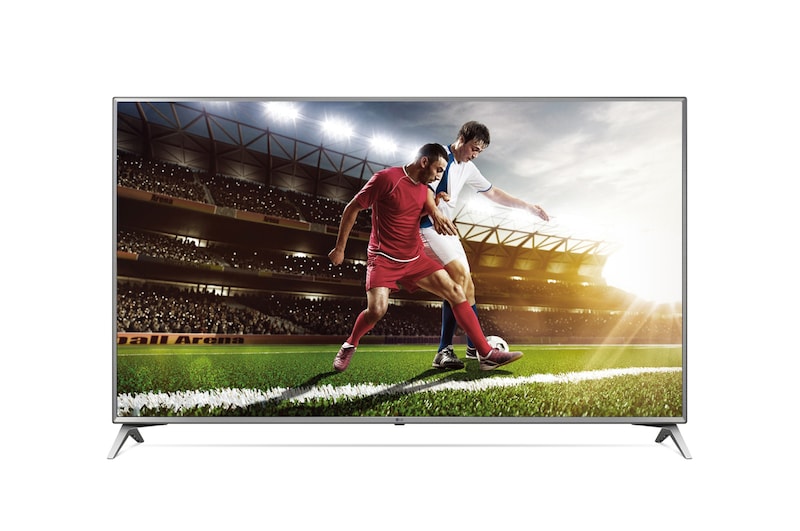

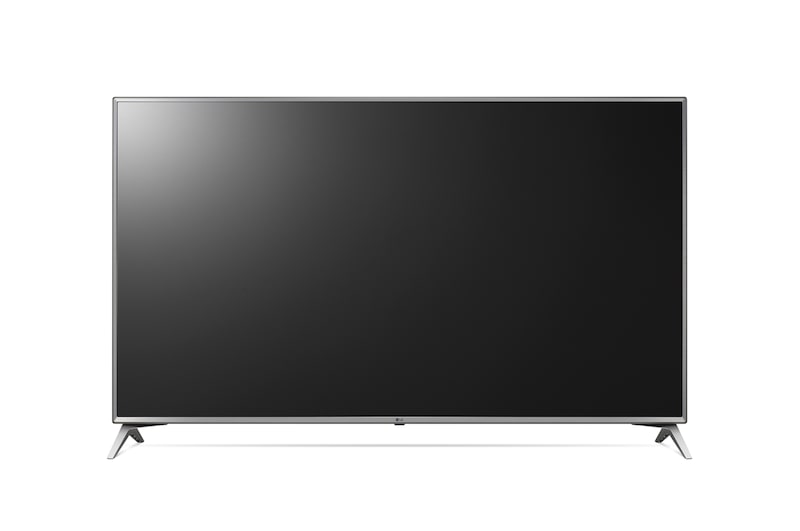

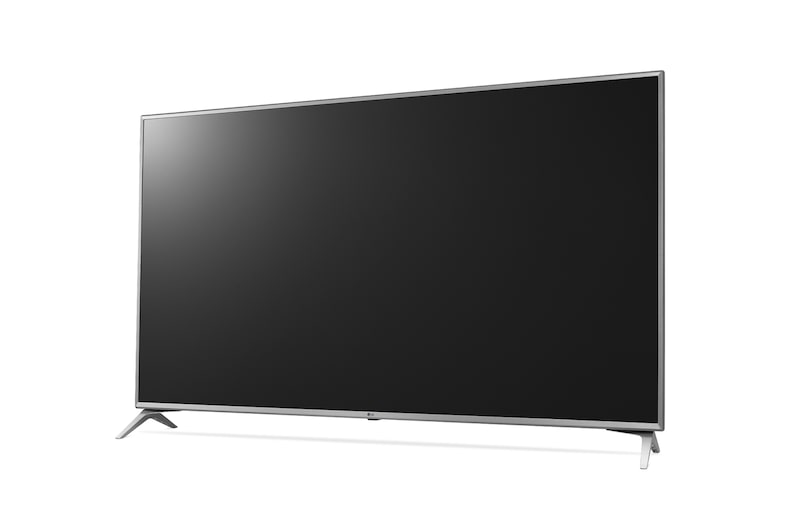

70UU640C
UU640C Series
  • Content Management/Group Management
  • SuperSign Control
  • SNMP
  • Wake-up On Lan
  • Crestron Connected® (Network Based Control)
UU640C Series
MSRP £
* The scenes are simulated for illustractive purposes. Actual GUI may differ from the accompanying image.
** All displays must be connected to the same network.
* SuperSign Control : Freen version (Good at - Operating small and medium-sized signage displays)
* SuperSign Control+ : Advanced and Paid versin (Good at - Operating large-scale signage displays)
* See more for SuperSign Control+ at LG.com/B2B
  • Easy Maintenance

    Easy Maintenance1 Easy Maintenance2
  • Real-Time Remote Monitoring

    In case of malfunctions or errors, real-timeremote care is available. When an error occurs, a notification can be sent through the SNMP(Simple Network Management Protocol)protocol.

  • Power & Network in One Line

    WOL(Wake-on-LAN) enables users to send a message through network to turn on displays. This greatly simplifies the installation and maintenance processes as only a single wire is required for power and network connection.

* It is a network based control system.
Available AV control systems may differ by regions.

Panel

  • Screen Size
    70"
    Backlight Type
    LED (Direct)
  • Resolution
    3,840 x 2,160 (4K UHD)
    Brightness (cd/m²)
    400

Broadcasting System

  • Analog
    Yes (PAL/SECAM)
    Digital
    DVB-T2/C/S2

Video

  • XD Engine
    Yes
    Aspect Ratio
    Yes 6 modes (16:9, Original, Full Wide, 4:3, Vertical Zoom, All-Direction Zoom)
  • Picture Mode
    ● 9 modes (Vivid, Standard, Eco, Cinema, Sports, Game, HDR Effect, Expert(Bright Room), Expert (Dark Room))
    HDR 10 / HDR Dolby Vision
    Yes / No

Audio

  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound mode
    Yes 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
    Clear Voice
    Yes (Clear VoiceⅢ)

Feature

  • Hospitality
    Hotel Mode, Lock Mode (Limited), One Channel Map, Welcome Screen, Insert Image, External Speaker Out, RJP Interface, RJP Compatibility, Time Scheduler, Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care, Crestron ConnectedⓇ (Network Based Control), DPM, Embedded Content Manager/Group Manager, RTC, NTP Sync Timer

Jack Interface

  • Set Side
    HDMI In 2.0 (2), USB 2.0, CI Slot

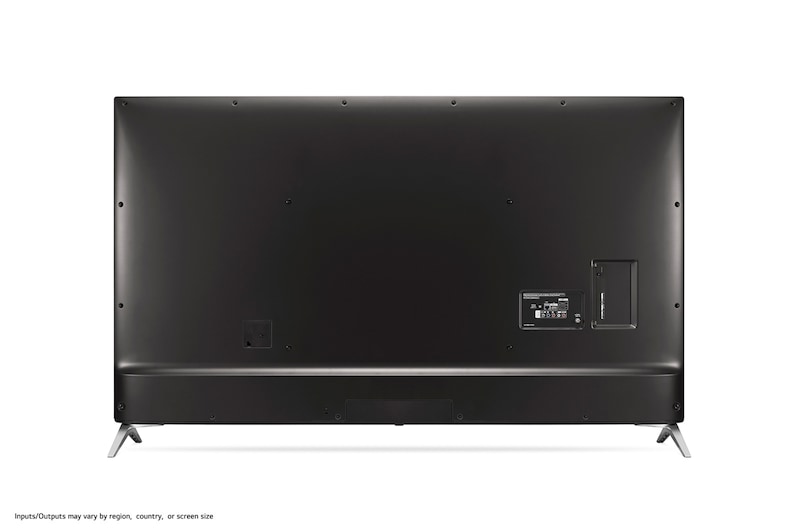

    Set Rear
    RF In (2), Digital Audio Out, HDMI/HDCP Input 2.0, RS-232C (Phone Jack Type, Control & Service), Headphone Out, RJ45, Debug

Dimension (Unit: mm)

  • Vesa
    600 x 400
    W x H x D/Weight (w/o packing, w/o stand)
    1,573 x 910 x 42.8 (SPK: 69.0) / 32.5kg
  • W x H x D / weight (w/ Packing, w/ Stand)
    1,682 x 1,075 x 175 / 41.3 kg

Power

  • Energy saving (Max)
    35W
    Stand-by
    0.3W

Power(Unit : Watts)

  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Max
    233.5
  • Typical
    207.2
    Stand-by
    0.3

Certification

  • EMC
    CE
    Safety
    CB , CU TR
  • ErP Class
    A

General

  • Region
    Europe

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
