Key Features
Max Input Resolution (FHD)
1,920 x 1,080@60Hz (RGB, HDMI, DVI-D)
Max Input Resolution (HD)
1,366 x 768@60Hz (RGB, HDMI, DVI-D)
Recommended Resolution (FHD)
1,920 x 1,080@60Hz (RGB, HDMI, DVI-D)
Recommended Resolution (HD)
1,366 x 768@60Hz (RGB, HDMI, DVI-D)
H-Scanning Frequency
30 ~ 67.5kHz (RGB, HDMI, DVI-D)
V-Scanning Frequency
60Hz (RGB, HDMI, DVI-D)
Pixel Frequency
148.5MHz (RGB, HDMI, DVI-D)
Sync Compatability
Separate, Composite, Digital

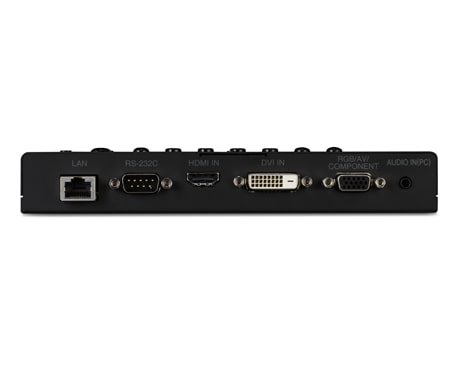

Video Input
RGB, HDMI, DVI-D
Picture mode
Vivid, Standard , Cinema, Sports, Game
Color temperature
Warm, Medium, Cool
HDMI
Yes (1)
DVI-D
Yes (1)
Analog (RGB)
Yes (1), Shared component/AV
Analog (AV)
Yes (1)
Audio
RGB/DVI-D (3.5Φ 1)
External Control (RS232C IN)
Yes (1)
External Control (RJ45)
Yes (1)

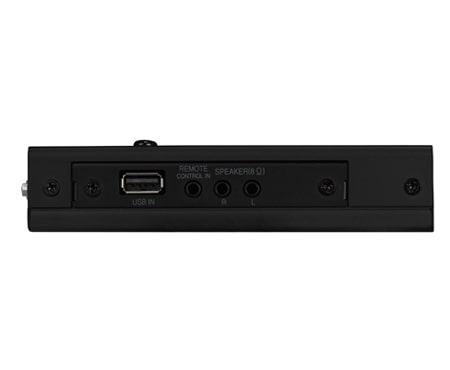

USB
Yes (1)

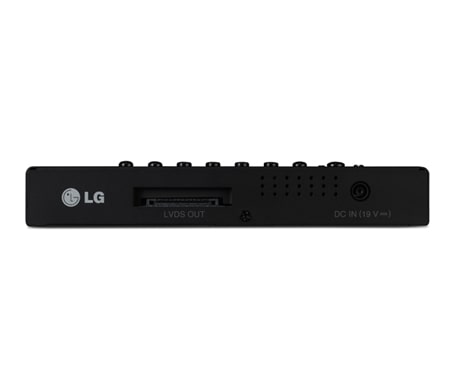

LVDS
Yes
Audio
External Speaker Option
External Control (RS232C OUT)
Yes (1)
Balance
Yes
Audio Power
10W (5W x 2)
Clear Voice II
Yes
Speaker On/off
Yes
Sound mode
Standard, Music, Cinema, Sports, Game
Dimension (W x H x D)
19.8cm x 14.4cm x 2.9cm
Weight (SET)
0.7kg
VESA™ Standard Mount Interface
No
Power Supply
100-240V~, 50/60Hz
Power Type
Adaptor
Slot PC compatible (optional)
No
External Media player Attatchable
No
SuperSign-w lite
Yes (Editing, Scheduling, Distribution & Play, Control)
Optional
SP-2000 (Speaker)
Basic
Remote Controller, Power Cable, RGB Cable, Manual, ESG, LVDS cable(FHD/HD), IR Dongle, Adapter
