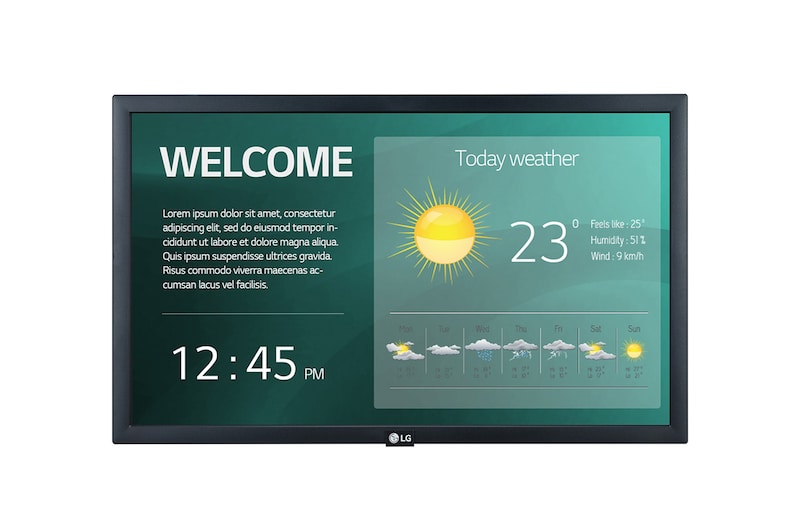

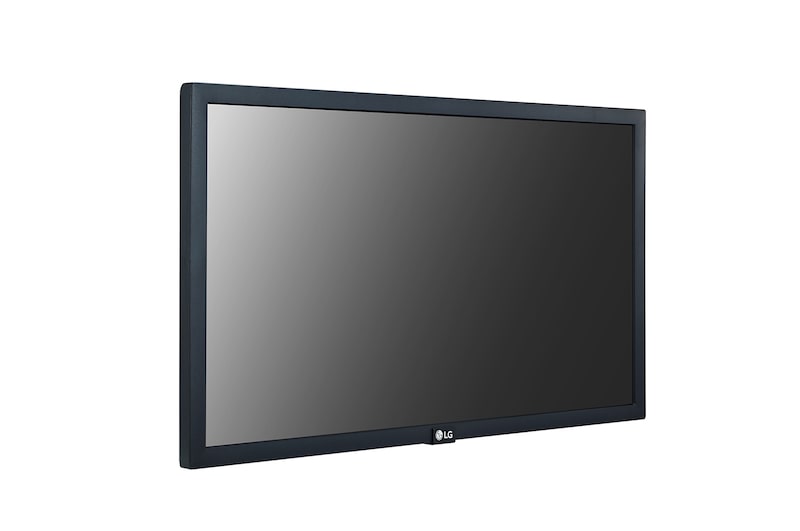

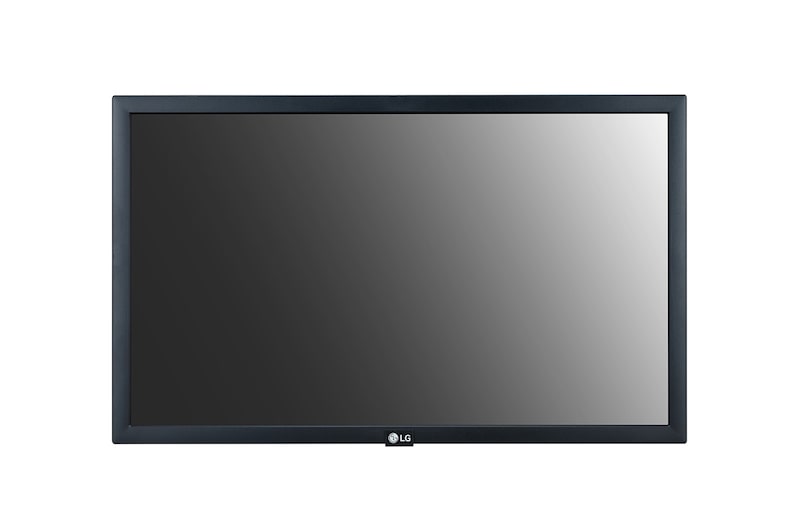

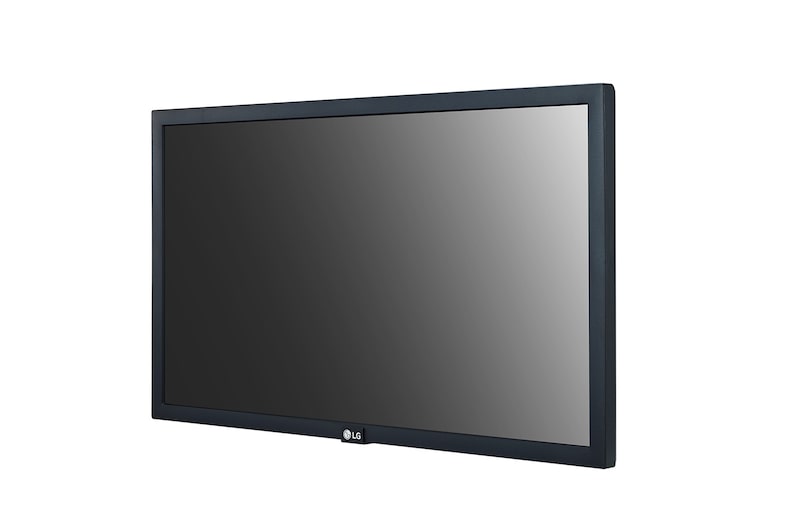

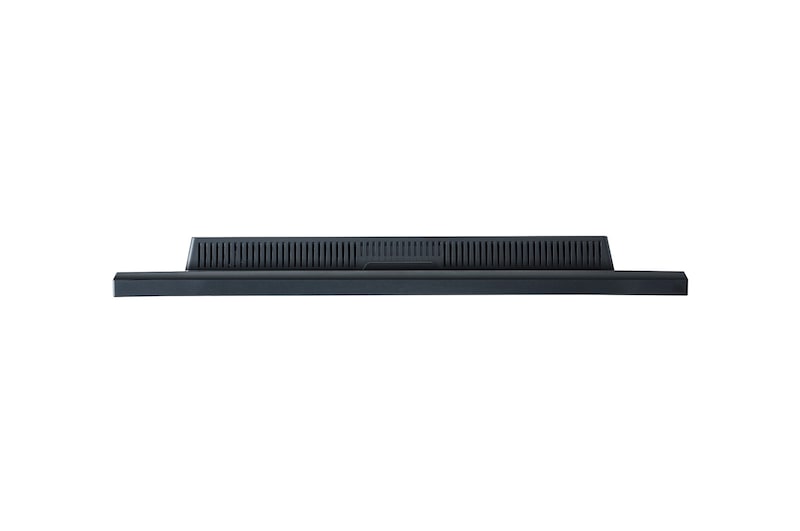

22SM3G-B
22'' Standard Signage
  • Brightness(Typ.) : 250 cd/m²
  • Bezel : 16.3mm

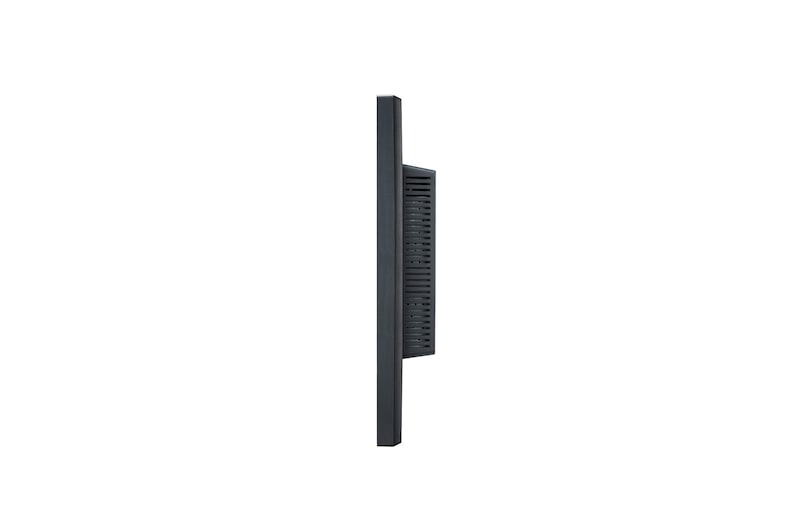

  • Depth : 53.8mm

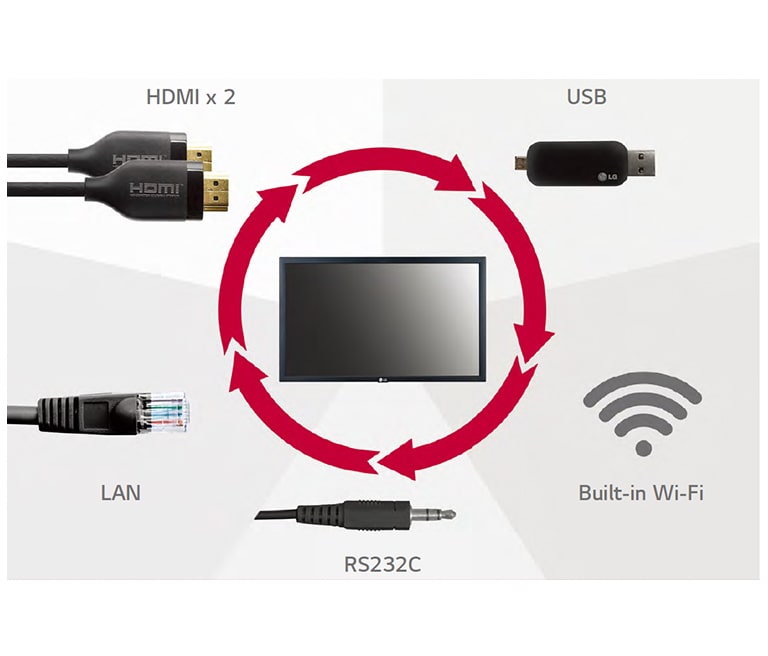

  • Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio

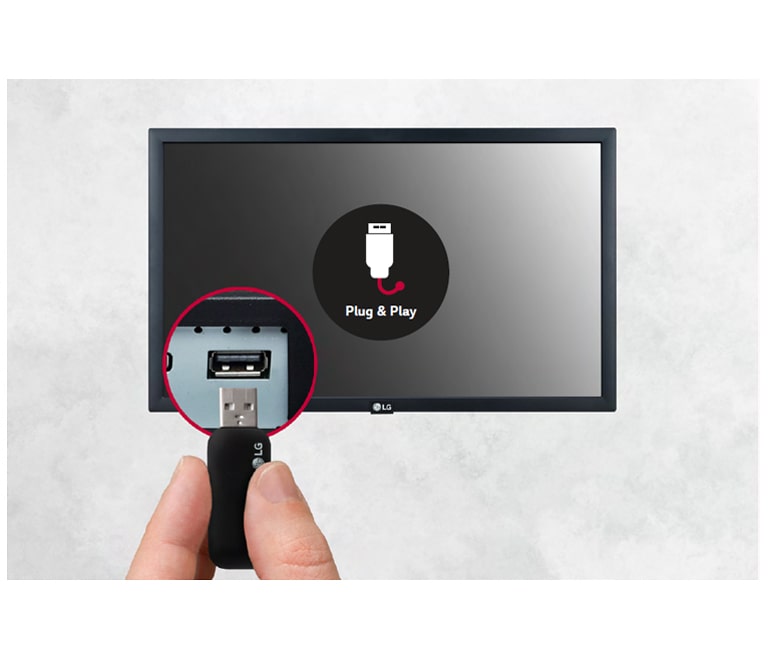

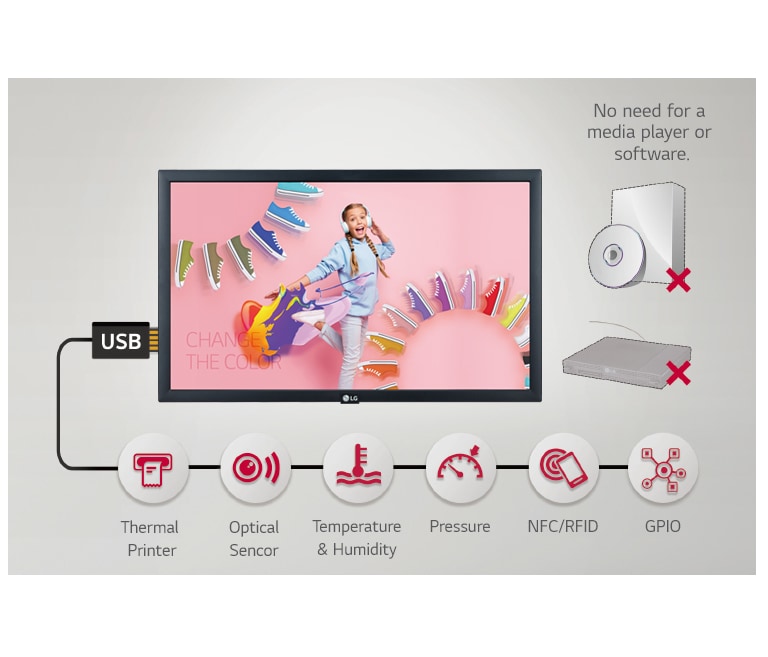

  • USB Plug & Play, Built-in Wi-Fi

component-OBScountrySelectDesc

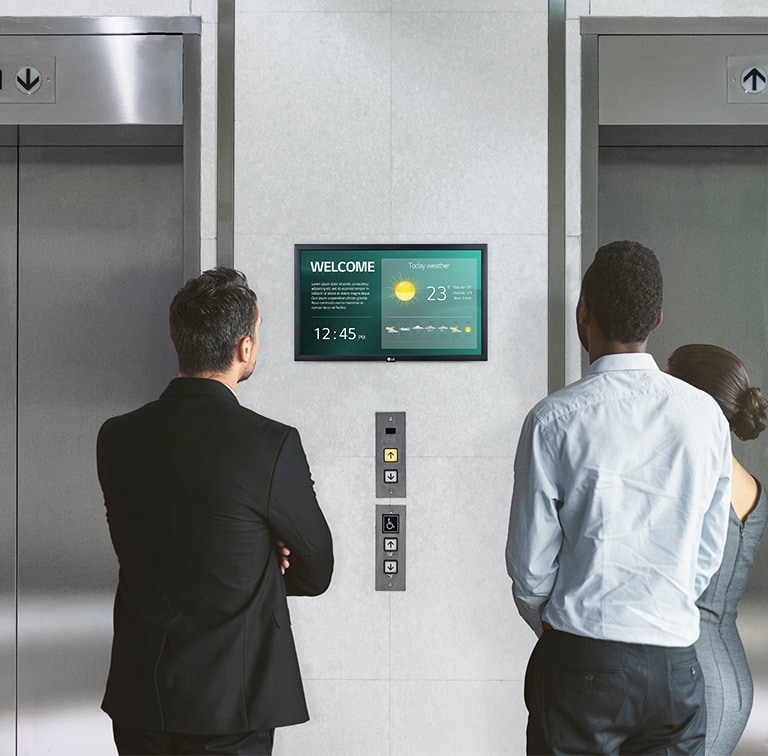

22" Standard Signage

Smart Signage Platform

Smart Signage Platform Smart Signage Platform
  • Content Sharing

    • Content Mirroring among devices is more convenient on a Wi-Fi network.
  • Real-time Promotion

    • With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.
  • Wireless Solution

    • 22SM3G operates as a virtual router which can be a wireless access point for mobile devices.
* The availability of “Signage365Care” service can differ by region, so please contact the LG sales representative in your region for further details.

Panel

  • Screen Size
    21.5"
    Panel Technology
    IPS
  • Back Light Type
    Edge
    Native Resolution
    1,920 x 1,080 (FHD)
  • Refresh Rate
    60Hz
    Brightness
    250 nit (Typ.)
  • Contrast Ratio
    1,000:1
    Dynamic CR
    400,000:1
  • Color Gamut
    BT.709 95%
    Viewing Angle(H x V)
    178x178
  • Color Depth
    6bit, 16.7Million Colors
    Response Time
    14ms (G to G)
  • Surface Treatment(Haze)
    25%
    Operation Hours (Hours/Day)
    16/7
  • Landscape
    Yes

Connectivity

  • Input - Digital - HDMI
    Yes(2), HDCP2.2
    Input - Audio In
    Yes(1)
  • Input - External Control - RS232C IN
    Yes(1), Phone-jack
    Input - External Control - RJ45(LAN)
    Yes(1)
  • Input - External Control - IR IN
    Yes(1), Phone-jack
    Input - USB
    USB2.0 Type A(1)

Mechanical Specification

  • Bezel Colour
    Black
    Bezel Width
    16.3 mm (Even Bezel)
  • Weight(Head)
    3.34 kg
    Packed Weight
    4.74 kg
  • Monitor Dimension(W x H x D)
    510.3 x 302.1 x 53.8mm
    Carton Dimensions(W x H x D) (Box outer size)
    565.0 x 357.0 x 103.0mm

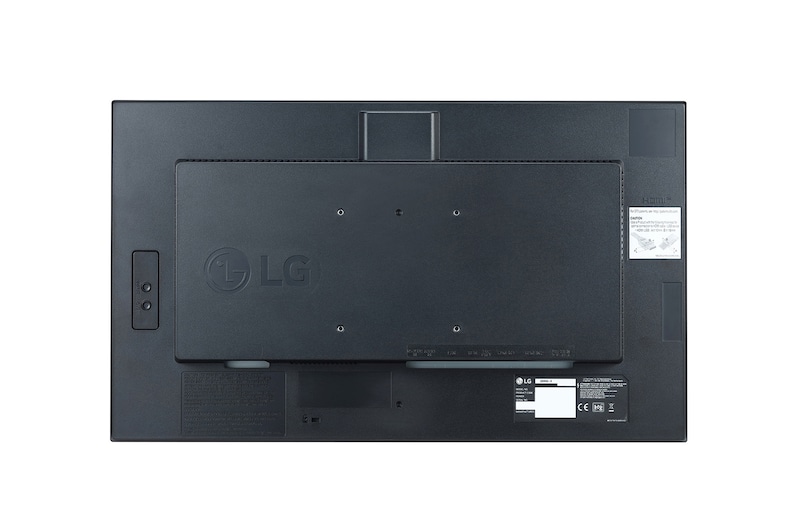

  • VESA™ Standard Mount Interface
    100 x 100

Feature

  • Key Feature
    Internal Memory 8GB, Built-in Wi-Fi, Temperature Sensor, Local Key Operation, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), PIP, PBP (2), Screen Share, Play via URL, Setting Data Cloning, SNMP, ISM (Image Sticking Minimization) Method, Control Manager, Crestron Connected® (Network based control), Smart Energy Saving, PM Mode, Wake on LAN,Beacon, HDMI-CEC (Compatibility may differ by equipment), SI Server Setting, webRTC, Pro:Idiom

Environment Conditions

  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %

Power

  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption (Typ. / Max.)
    30 W / 33 W
    Power Consumption (Smart Energy Saving)
    15 W ± 5 %

Sound

  • Speaker
    Yes(1W x 2EA)

Certification

  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE
  • ErP
    Yes (EU Only)
    ePEAT (US Only)
    No

OPS Compatibility

  • OPS type compatible
    No
    OPS Power Built In
    No

Software Compatibility

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+
  • Signage365Care
    Yes (The availability of the “Signage365Care” service differs by region.)

Accessory

  • Basic
    Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS232C Gender, External IR, IR Sheet

General

  • Region
    Global
