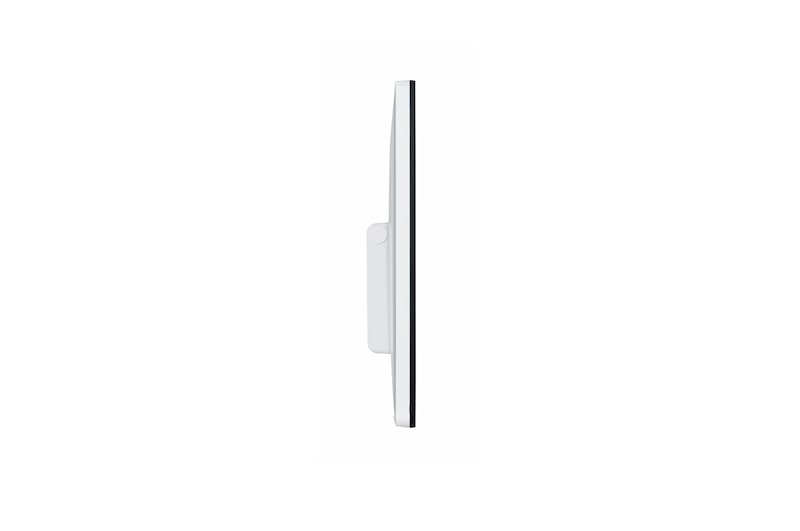

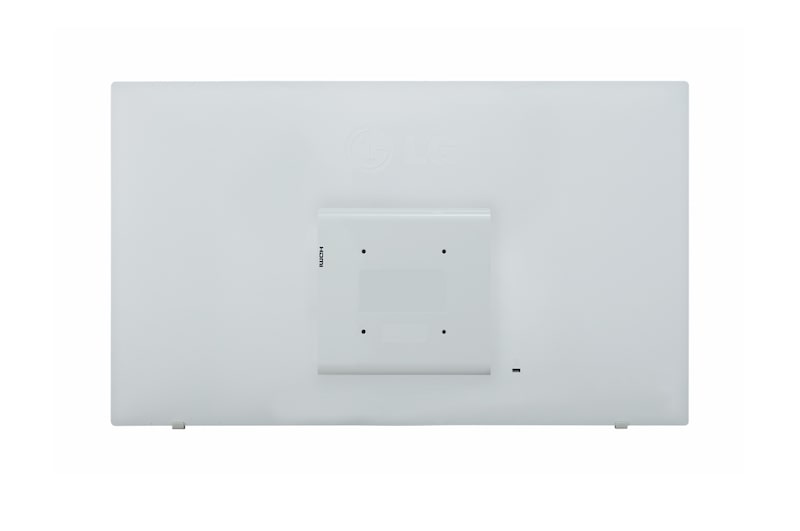

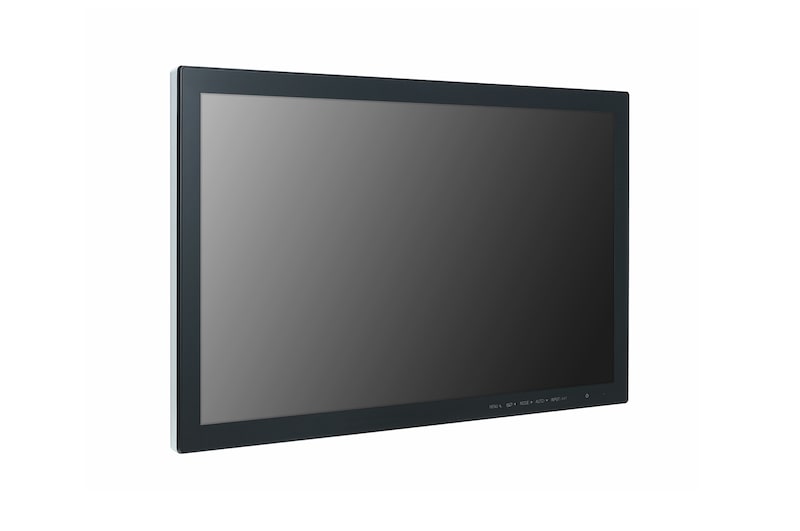

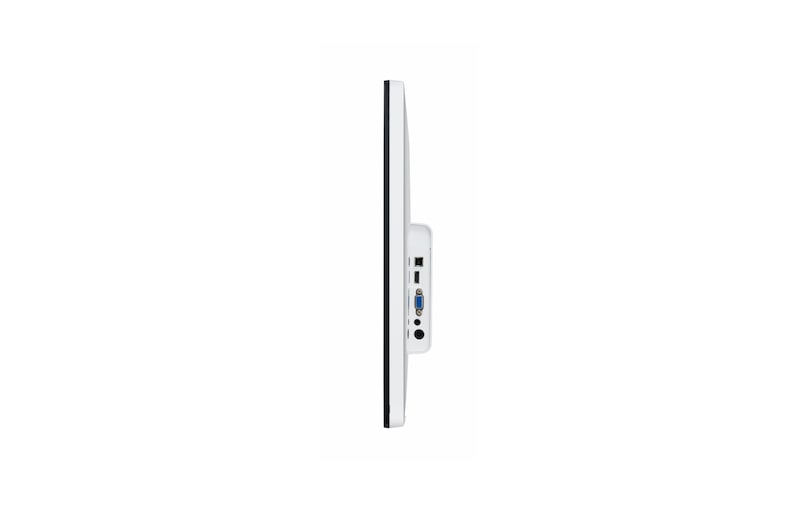

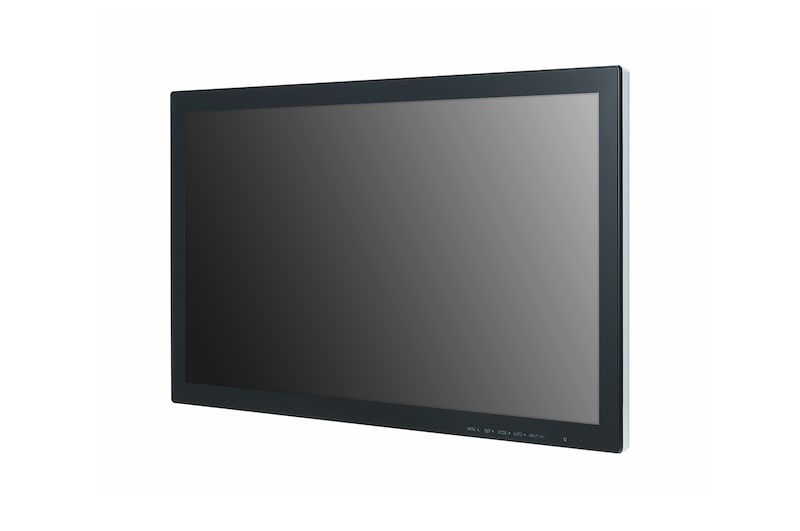

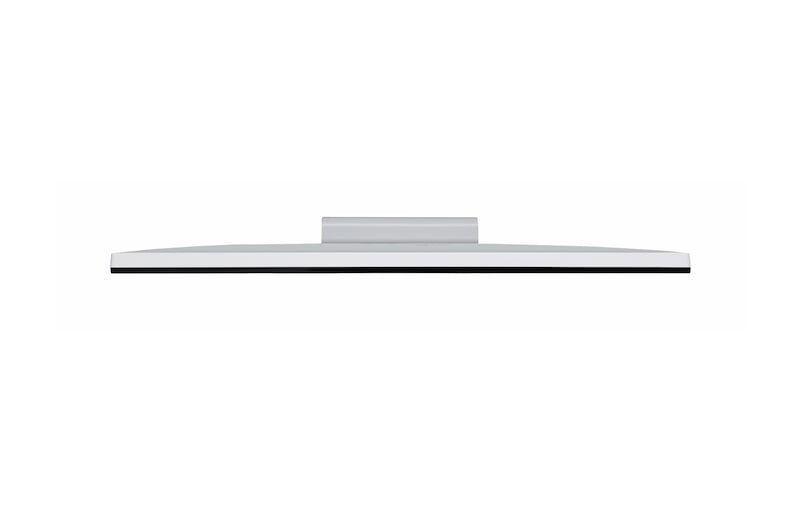

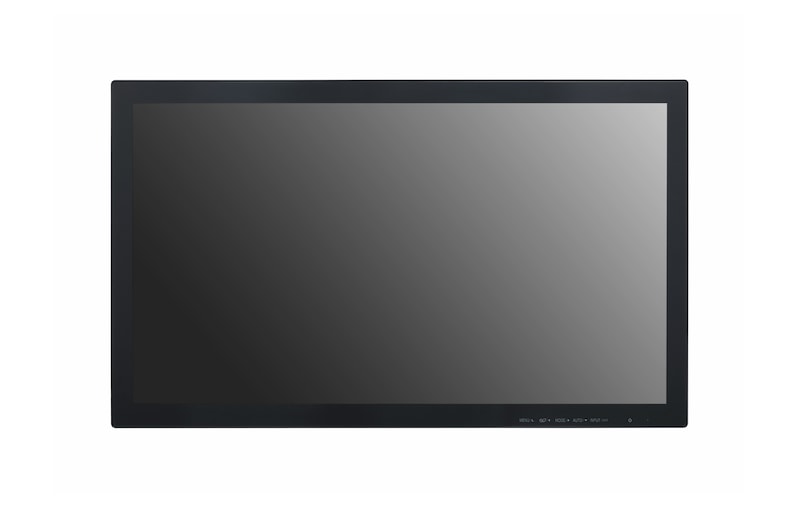

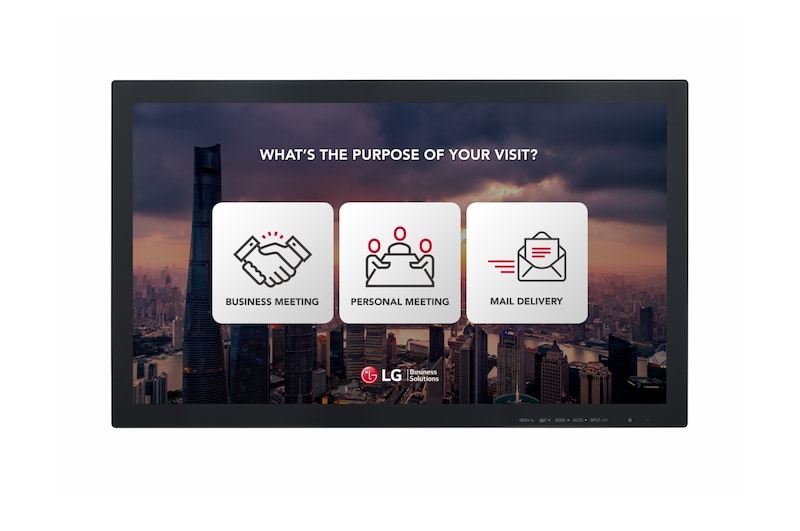

23" 250 nits FHD Standard Signage

23" 250 nits FHD Standard Signage

23" 250 nits FHD Standard Signage

23SE3TE-B
LG 23" 250 nits FHD Standard Signage, 23SE3TE-B
LG 23" 250 nits FHD Standard Signage, 23SE3TE-B
LG 23" 250 nits FHD Standard Signage, 23SE3TE-B
LG 23" 250 nits FHD Standard Signage, 23SE3TE-B
LG 23" 250 nits FHD Standard Signage, 23SE3TE-B
LG 23" 250 nits FHD Standard Signage, 23SE3TE-B
LG 23" 250 nits FHD Standard Signage, 23SE3TE-B
LG 23" 250 nits FHD Standard Signage, 23SE3TE-B
LG 23" 250 nits FHD Standard Signage, 23SE3TE-B
LG 23" 250 nits FHD Standard Signage, 23SE3TE-B
LG 23" 250 nits FHD Standard Signage, 23SE3TE-B
LG 23" 250 nits FHD Standard Signage, 23SE3TE-B
LG 23" 250 nits FHD Standard Signage, 23SE3TE-B
LG 23" 250 nits FHD Standard Signage, 23SE3TE-B
LG 23" 250 nits FHD Standard Signage, 23SE3TE-B
LG 23" 250 nits FHD Standard Signage, 23SE3TE-B

Key Features

  • Brightness(Typ.): 250 cd/m²
  • Bezel Width (On Bezel): 22.9 mm (T), 23.8 mm (B), 21.5 mm (L/R)
  • Depth: 53 mm
  • Interface : HDMI, RGB, USB (UP, for Touch), Headphone Out
More
Print

All Spec

PANEL

  • Screen Size

    23"

  • Resolution

    1,920 x 1,080 (FHD)

  • Brightness(Typ.,cd/m²)

    250

ENVIRONMENT CONDITIONS

  • Operation Temperature

    10°C to 35°C

  • Operation Humidity

    10 % to 80 %

TOUCH

  • Touch type

    P-Cap (Ag Metal Mesh)

  • Interface

    USB (UP)

  • Operating Systme Support

    Windows 8, Windows 10

  • Multi touch point

    Max 10 Points

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Adapter

  • Power Switch

    Touch Type

POWER CONSUMPTION

  • Typ.

    25 W

  • Max.

    30 W

STANDARD(CERTIFICATION)

  • Safety

    CB

  • EMC

    FCC Class "A" / CE

  • ErP / Energy Star

    Yes / No

ACCESSORY

  • Basic

    Adpater, USB Cable, RGB Cable, Easy Setup Guide, Warranty Card, Product Fiche, Regulatory

CONNECTIVITY

  • Input

    HDMI, RGB, USB (UP, for Touch)

  • External Control

    Headphone Out

PHYSICAL SPECIFICATION

  • Bezel Width

    22.9 mm (T), 23.8 mm (B), 21.5 mm (L/R)

  • Monitor Dimension (W x H x D)

    555 × 335 × 53 mm

  • Weight (Head)

    3.9 kg

  • Carton Dimensions (W x H x D)

    631 × 120 × 412 mm

  • Packed Weight

    5.2 kg

  • VESA™ Standard Mount Interface

    75 × 75 mm

COMPLIANCE INFORMATION

MORE COMPLIANCE INFORMATION
The safety information for accessories is included with the safety information for the product and is not provided separately.

Specification Sheet

extension : pdf
HSP894 - ID Specsheet 98UH5F.PDF
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
