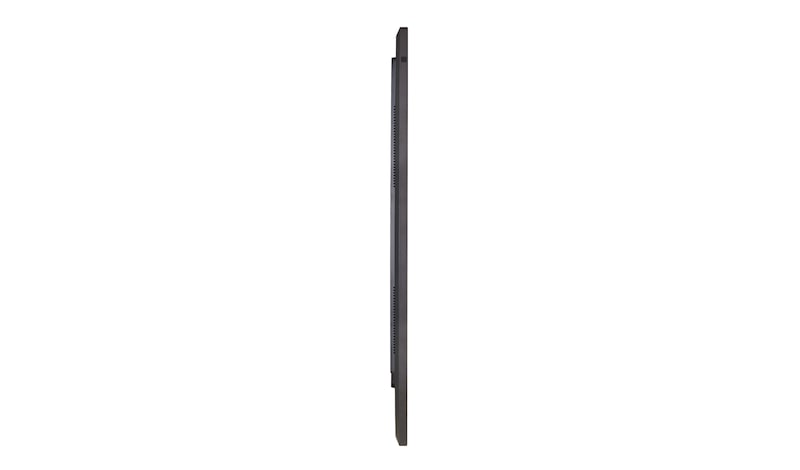

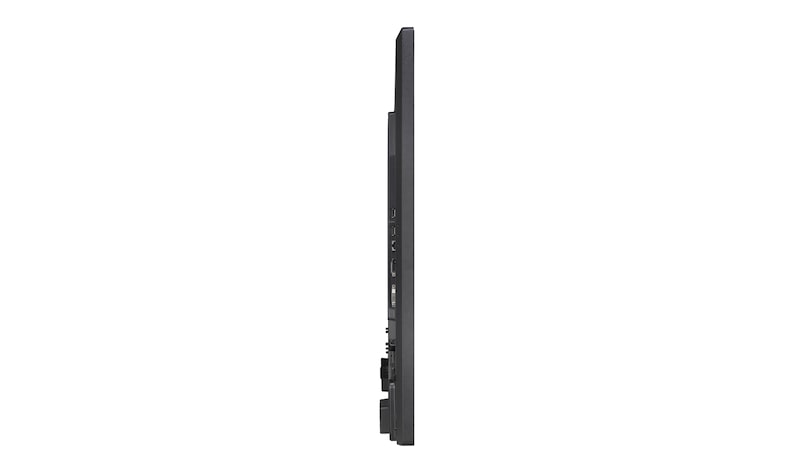

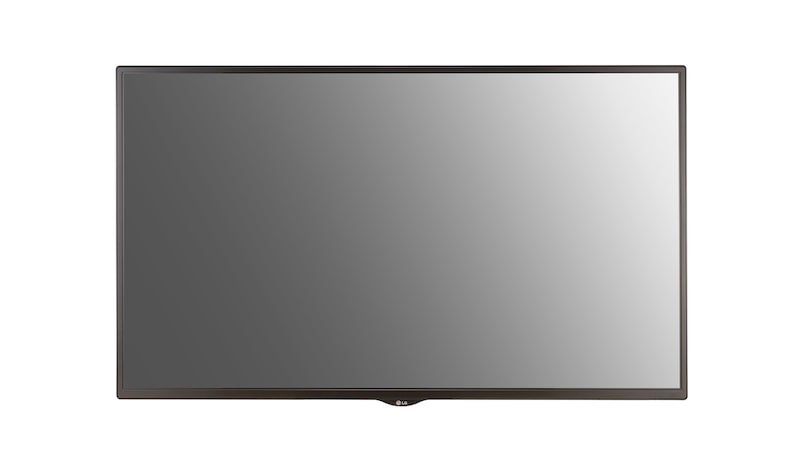

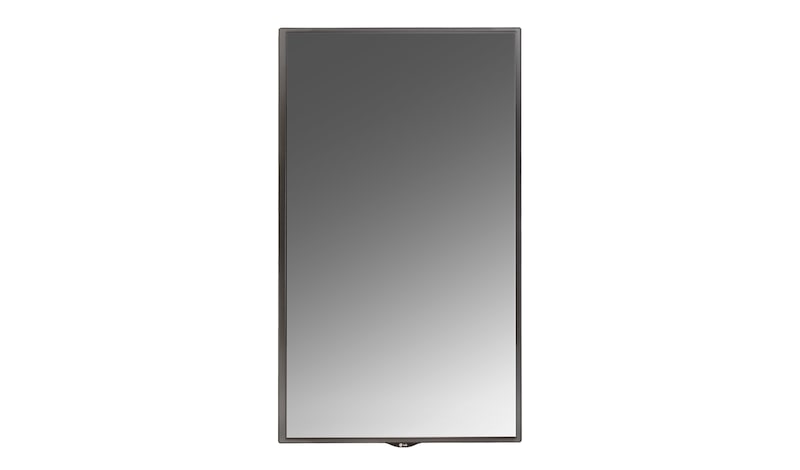

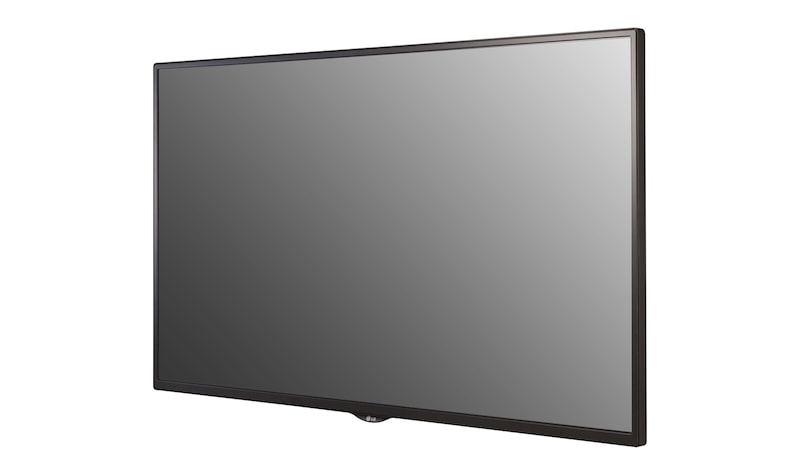

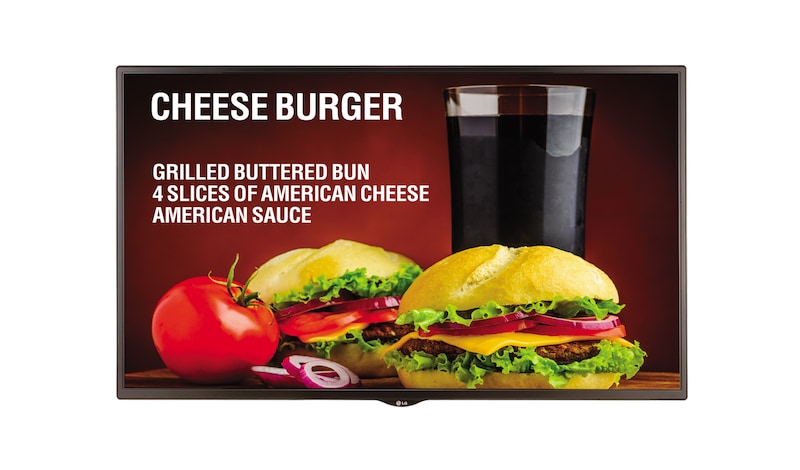

SM5KD Series
All Spec
PANEL
-
Screen Size
43"
-
Resolution
1,920 x 1,080 (FHD)
CONNECTIVITY
-
Input
HDMI (2), DP, DVI-D, RGB, Audio, USB 3.0
-
Output
DP, Audio
-
External Control
RS232C in/out, RJ in, IR Receiver, Pixel Sensor
PHYSICAL SPECIFICATION
-
Bezel Width
11.9 mm (T/R/L), 18 mm (B)
-
Monitor Dimension (W x H x D)
969.6 x 563.9 x 54 mm
-
Weight (Head)
10.0 kg
-
VESA™ Standard Mount Interface
200 x 200
ENVIRONMENT CONDITIONS
-
Operation Temperature
0°C to 40°C
-
Operation Humidity
10 % to 80 %
POWER
-
Power Supply
100-240V~, 50/60Hz
-
Power Type
Built-In Power
POWER CONSUMPTION
-
Typ.
75 W
-
Smart Energy Saving
50 W
STANDARD(CERTIFICATION)
-
Safety
UL / cUL / CB / TUV / KC
-
EMC
FCC Class "A" / CE / KCC
-
ErP / Energy Star
NA / Yes (Energy Star 7.0)
MEDIA PLAYER COMPATIBILITY
-
OPS type compatible
Yes
-
External Media player Attatchable
Yes (MP500/MP700)
SOFTWARE COMPATIBILITY
-
Content Management Software
SuperSign Premium
-
Control and Monitoring Software
SuperSign Link
ACCESSORY
-
Basic
Remote Controller (included 2ea batteries), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover
-
Optional
Stand (ST-432T), Pixel Sensor (KT-SP0), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T430)
