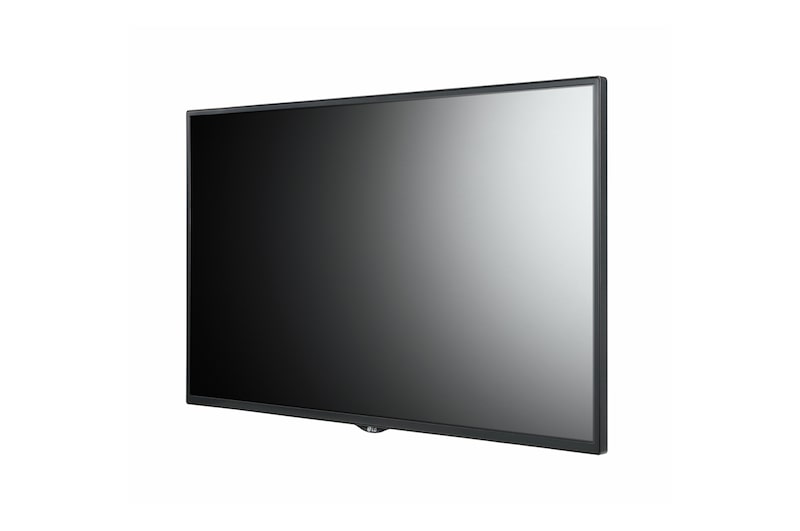

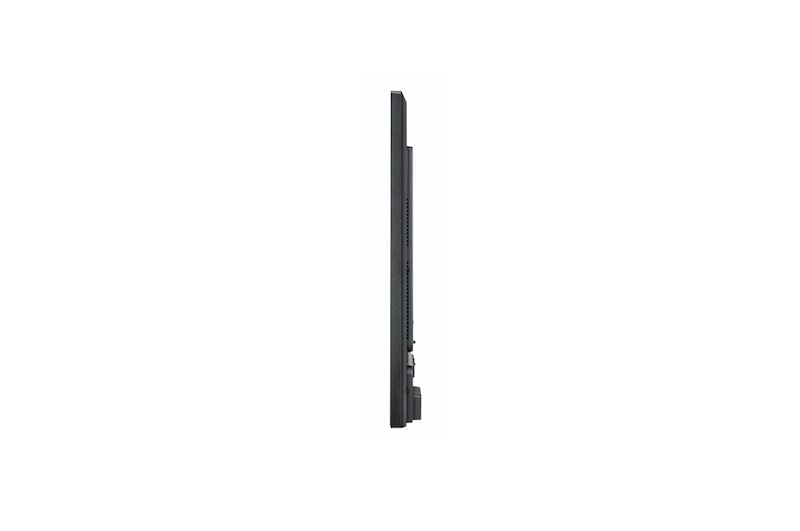

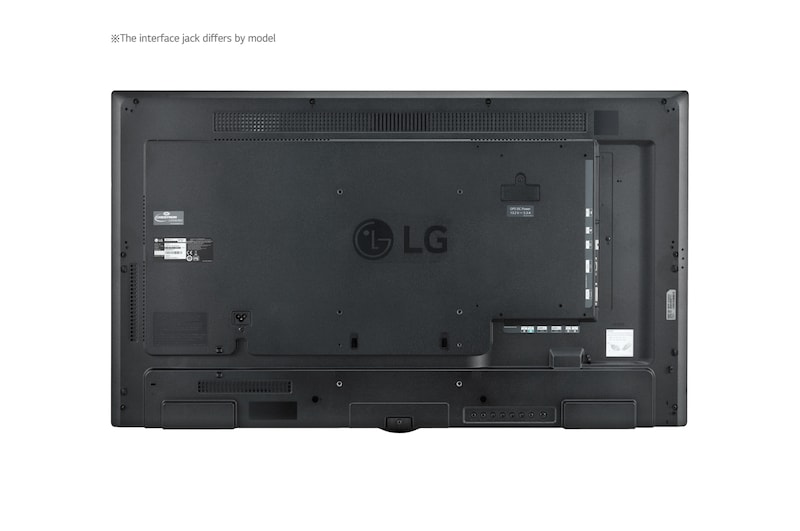

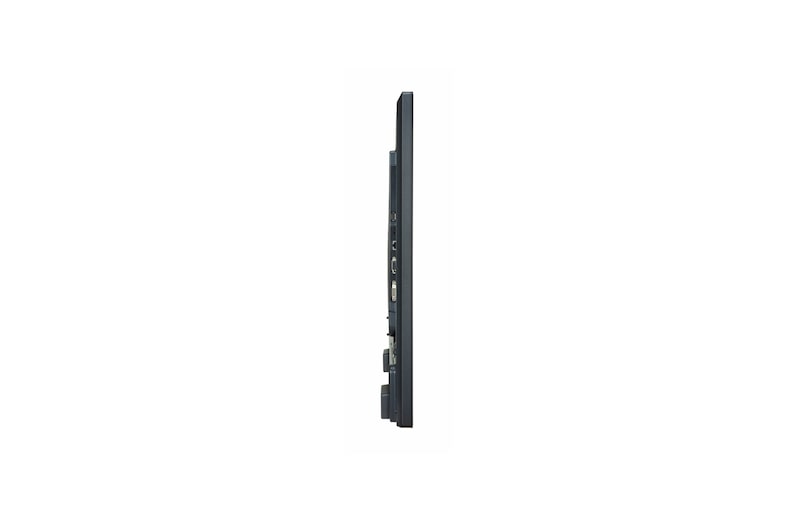

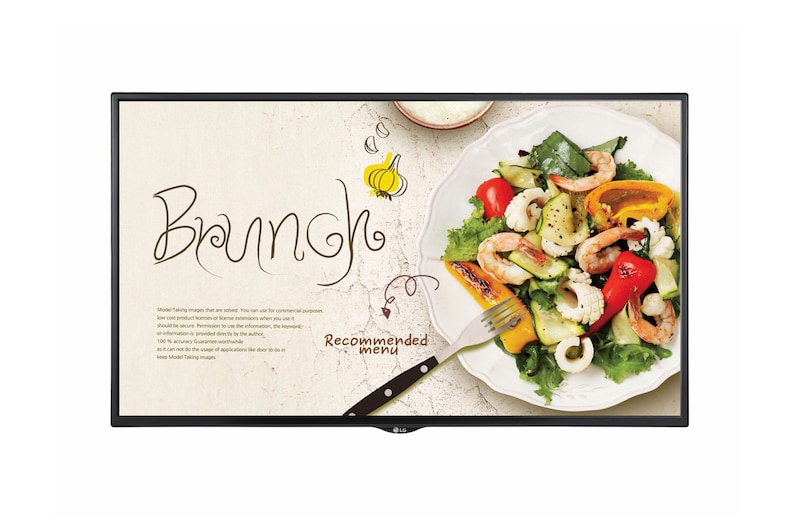

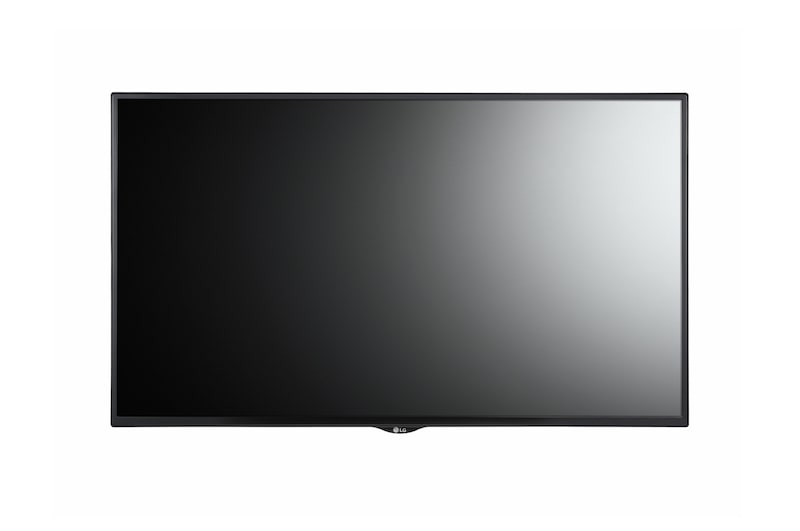

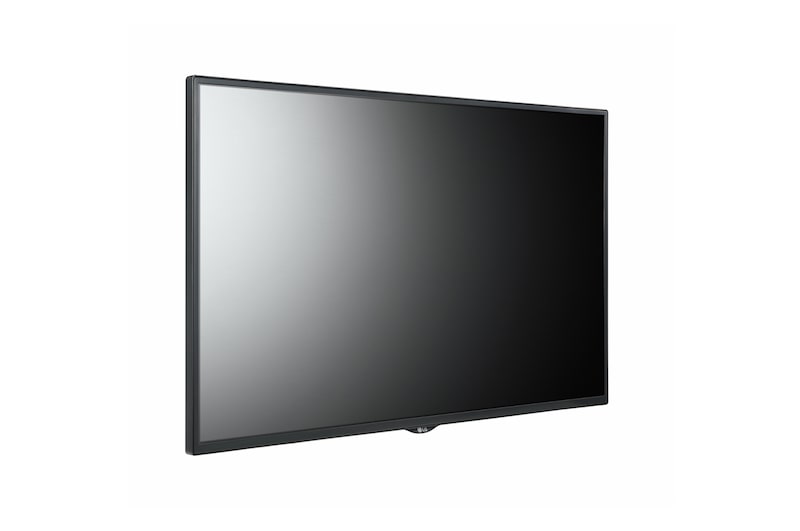

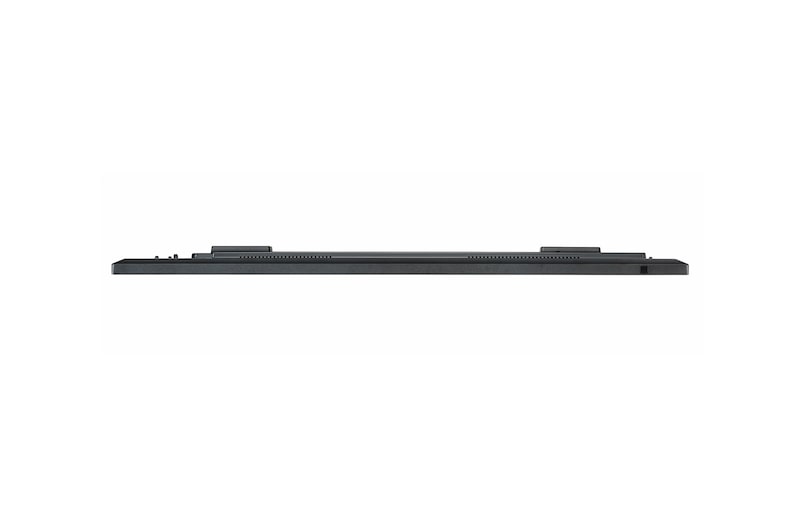

49" 450 nits FHD Standard Signage
All Spec
PANEL
Screen Size
49"
Resolution
1,920 x 1,080 (FHD)
Brightness(Typ.,cd/m²)
450
ENVIRONMENT CONDITIONS
Operation Temperature
0°C to 40°C
Operation Humidity
10 % to 80 %
POWER
Power Supply
100-240 V~, 50/60 Hz
Power Type
Built-In Power
POWER CONSUMPTION
Typ. / Max.
85 W (TBD) / 105 W
Smart Energy Saving
60 W (TBD)
STANDARD(CERTIFICATION)
Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
N/A / Yes (Energy Star 8.0)
ACCESSORY
Basic
Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover
Optional
Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T49E)
MEDIA PLAYER COMPATIBILITY
OPS type compatible
Yes
External Media player Attatchable
Yes
SOFTWARE COMPATIBILITY
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control+/Control
CONNECTIVITY
Input
HDMI (3), DP, DVI-D, Audio, USB 3.0
Output
DP(SST), Audio(Off/Fixed/Variable)
External Control
RS232C In/out, RJ45 In, IR Receiver In
PHYSICAL SPECIFICATION
Bezel Width
11.9 mm (T/R/L), 18 mm (B)
Monitor Dimension (W x H x D)
1,102.2 x 638.5 x 54 mm
Weight (Head)
14.3 kg
Monitor with Optional Stand Dimensions (W x H x D)
1102.2 x 696.8 x 219.6 mm
Weight (Head+Stand)
17.6 kg
Carton Dimensions (W x H x D)
1,197 x 760 x 166 mm
Packed Weight
17.4 kg
VESA™ Standard Mount Interface
300 x 300 mm
