98" 350 nits 120 Hz UHD Signage

Specs

Support

Resource

98" 350 nits 120 Hz UHD Signage

98" 350 nits 120 Hz UHD Signage

98UM3F-B
  • Front view of 98" 350 nits 120 Hz UHD Signage 98UM3F-B
  • LG 98" 350 nits 120 Hz UHD Signage, 98UM3F-B
  • LG 98" 350 nits 120 Hz UHD Signage, 98UM3F-B
  • LG 98" 350 nits 120 Hz UHD Signage, 98UM3F-B
  • LG 98" 350 nits 120 Hz UHD Signage, 98UM3F-B
  • LG 98" 350 nits 120 Hz UHD Signage, 98UM3F-B
  • LG 98" 350 nits 120 Hz UHD Signage, 98UM3F-B
  • LG 98" 350 nits 120 Hz UHD Signage, 98UM3F-B
  • LG 98" 350 nits 120 Hz UHD Signage, 98UM3F-B

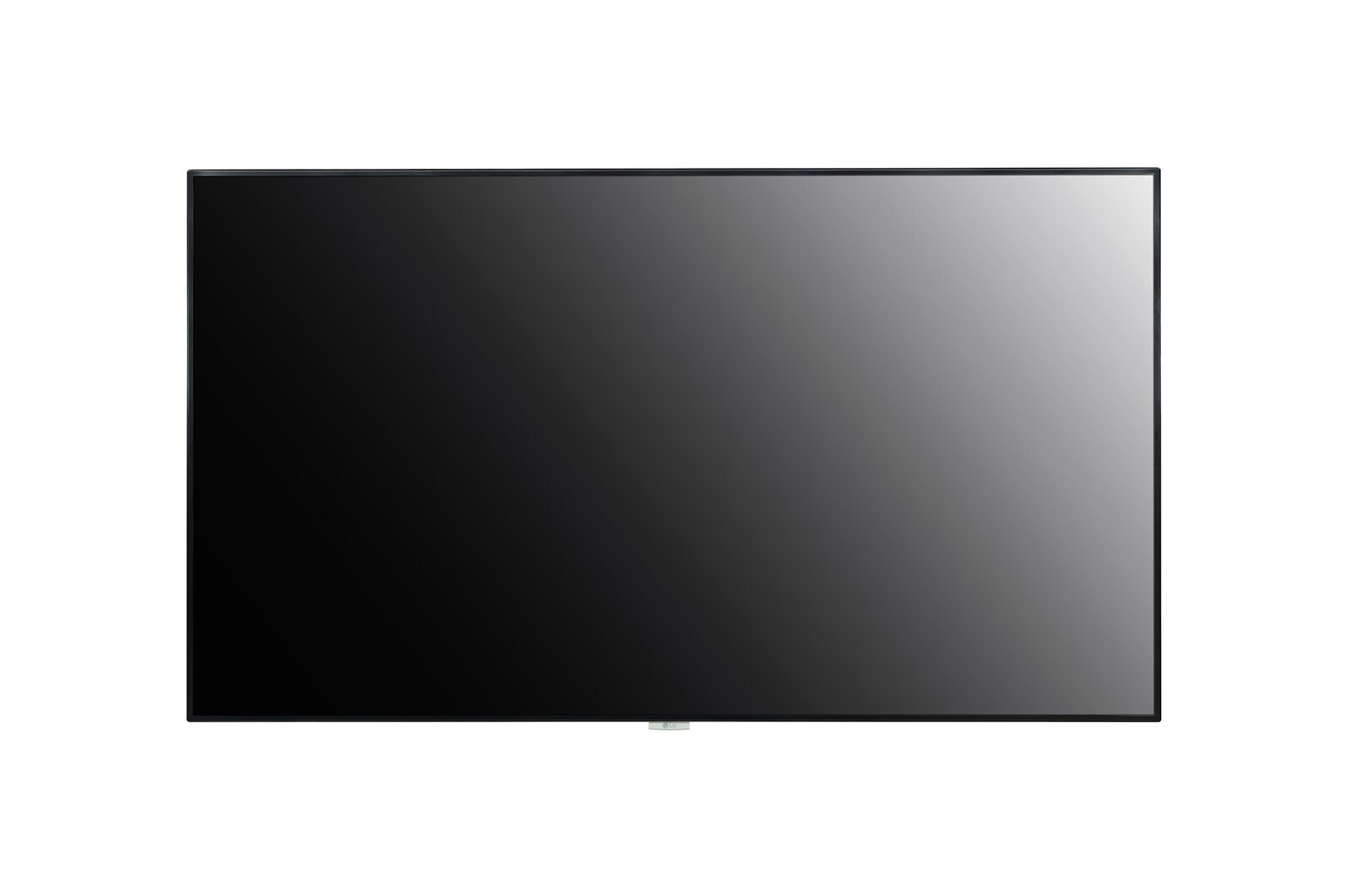

Front view of 98" 350 nits 120 Hz UHD Signage 98UM3F-B
LG 98" 350 nits 120 Hz UHD Signage, 98UM3F-B
LG 98" 350 nits 120 Hz UHD Signage, 98UM3F-B
LG 98" 350 nits 120 Hz UHD Signage, 98UM3F-B
LG 98" 350 nits 120 Hz UHD Signage, 98UM3F-B
LG 98" 350 nits 120 Hz UHD Signage, 98UM3F-B
LG 98" 350 nits 120 Hz UHD Signage, 98UM3F-B
LG 98" 350 nits 120 Hz UHD Signage, 98UM3F-B
LG 98" 350 nits 120 Hz UHD Signage, 98UM3F-B

Key Features

  • Brightness(Typ.) : 350 cd/m²
  • Bezel : 14.9 mm (Even, Off-Bezel)
  • Depth : 83.8 mm (without Handle)
  • Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker and Detachable Logo
More
Print

All Spec

PANEL

  • Screen Size

    98''

  • Panel Technology

    IPS

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    120Hz

  • Brightness(Typ.,cd/m²)

    350

  • Contrast Ratio

    1,300:1

  • Dynamic CR

    500,000 : 1

  • Colour gamut

    NTSC 72%

  • Viewing Angle (H x V)

    178 x 178

  • Colour Depth

    10bit, 1.06B colours

  • Response Time

    8 ms (G to G)

  • Surface Treatment (Haze)

    Haze 1%

  • Life Time (Min.)

    50,000 Hrs (Typ.)

  • Operation Hours (Hours / Day)

    24 / 7

  • Portrait / Landscape

    Yes / Yes

CONNECTIVITY

  • Input

    HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (1, HDCP1.4), Audio In (1), USB2.0 Type A (2)

  • Output

    DP Out (1, Input : HDMI 1/ 2/ 3 / DVI / DP), Audio out (1)

  • External Control

    RS232C In/out (4pin phone-jack), RJ45 (LAN) In, IR In

MECHANICAL SPECIFICATION

  • Bezel Colour

    Black

  • Bezel Width

    Even bezel : 14.9mm

  • Weight (Head)

    81.1 kg

  • Packed Weight

    119 kg

  • Monitor Dimension (W × H × D)

    2191.8 x 1246.8 x 83.8mm (without Handle and LG Logo)

  • Monitor incl. Stand Dimensions (W x H x D)

    2362 x 1386 x 420mm

  • Carton Dimensions (W × H × D)

    2354 x 1386 x 420mm

  • Handle

    Yes

  • VESA™ Standard Mount Interface

    800 x 400

KEY FEATURE

  • Internal Memory

    8GB

  • Wi-Fi

    Built-in

  • Sensor

    Temperature Sensor, Auto Brightness Sensor

  • Local Key Operation

    Yes

  • webOS ver.

    webOS 4.0

  • Embedded CMS

    Local Contents Scheduling, Group Manager

  • USB Plug & Play

    Yes

  • Fail over

    Yes

  • SW - Background Image - Booting Logo Image

    Yes

  • SW - Background Image - No Signal Image

    Yes

  • Sync mode

    RS-232C Sync, Local Network Sync

  • Multi-screen

    PIP, PBP(4)

  • Screen Share

    Yes

  • Video Tag

    Yes (4)

  • Play via URL

    Yes

  • Screen Rotation

    Yes

  • External Input Rotation

    Yes

  • Gapless Playback

    Yes

  • Tile Mode Setting

    Yes (Max. 15x15)

  • Setting Data Cloning

    Yes

  • SNMP

    Yes

  • ISM Mode (Image Sticking Minimization)

    Yes

  • Auto Set ID

    Yes

  • Status Mailing

    Yes

  • Control Manager

    Yes

  • 3rd Party Control Compatibility

    Yes

  • Beacon

    Yes

  • HDMI-CEC

    Yes

  • SI Server Setting

    Yes

  • webRTC

    Yes

  • Pro:Idiom

    Yes

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ. / Max.

    315W / 415W

  • Smart Energy Saving

    220.5 W

  • BTU (British Thermal Unit)

    1075 BTU/Hr(Typ.), 1416 BTU/Hr(Max)

  • DPM

    0.5W

  • Power off

    0.5 W

SOUND

  • Speaker

    Yes

CERTIFICATION

  • Safety

    CB / UL (TBD)

  • EMC

    FCC Class “A” / CE / KC (TBD)

  • ErP / Energy Star

    Yes (EU Only) / No

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control+ / Control

  • SuperSign WB

    Yes

  • SuperSign Media Editor

    Yes

  • Signage365Care

    Yes

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

  • Basic

    Remote Controller (include battery 2ea), Power Cord, QSG, IR/Light sensor receiver, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender, EYE-BOLT

COMPLIANCE INFORMATION

MORE COMPLIANCE INFORMATION
The safety information for accessories is included with the safety information for the product and is not provided separately.

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
