55" 700 nits FHD 0.44mm Even Bezel Video Wall

55" 700 nits FHD 0.44mm Even Bezel Video Wall

55" 700 nits FHD 0.44mm Even Bezel Video Wall

55SVH7E-A

Front view of 55" 700 nits FHD 0.44mm Even Bezel Video Wall 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

Front view of 55" 700 nits FHD 0.44mm Even Bezel Video Wall 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7E-A

Key Features

Brightness(Typ.) : 700 cd/m²
Bezel : 0.44 mm (Even)
Depth : 86.5 mm
Interface : HDMI(2)/ DP/ DVI-D/ RGB/ USB 2.0/ RS232C/ RJ45/ Audio/ IR

All Spec

PANEL

Screen Size
55"
Resolution
1,920 x 1,080 (FHD)
Brightness(Typ.,cd/m²)
700

ENVIRONMENT CONDITIONS

Operation Temperature
0°C to 40°C
Operation Humidity
10 % to 80 %

POWER

Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power

POWER CONSUMPTION

Typ.
170 W
Max
220 W

STANDARD(CERTIFICATION)

Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes(EU Only) / No

ACCESSORY

Basic
Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
Optional
Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V), OPS Kit (KT-OPSA)

MEDIA PLAYER COMPATIBILITY

OPS type compatible
Yes (Piggyback)

SOFTWARE COMPATIBILITY

Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control / Control+

MECHANICAL SPECIFICATION

Bezel Width
0.44 mm (Even)
Monitor Dimension (W × H × D)
1,210.51 x 681.22 x 86.5 mm
Weight (Head)
16.8 kg
Carton Dimensions (W × H × D)
1,353.0 x 855.0 x 263.0 mm
Packed Weight
23.6 kg
VESA™ Standard Mount Interface
600 x 400 mm

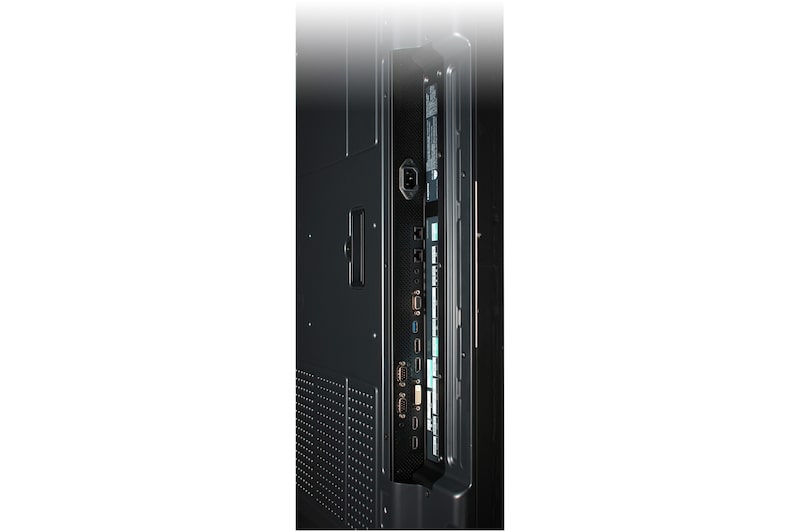

CONNECTIVITY

Input
HDMI (2), DP, DVI-D, RGB, Audio, USB 2.0
Output
DP, Audio
External Control
RS232C In/out, RJ45 In/out, IR In

COMPLIANCE INFORMATION

extension:pdf
ENERGY LABEL(55SVH7E-A)
extension:pdf
PRODUCT FICHE(55SVH7E-A)
extension:pdf
GPSR Safety Information(55SVH7E-A)
extension:pdf
WEB INFO(55SVH7E-A)
