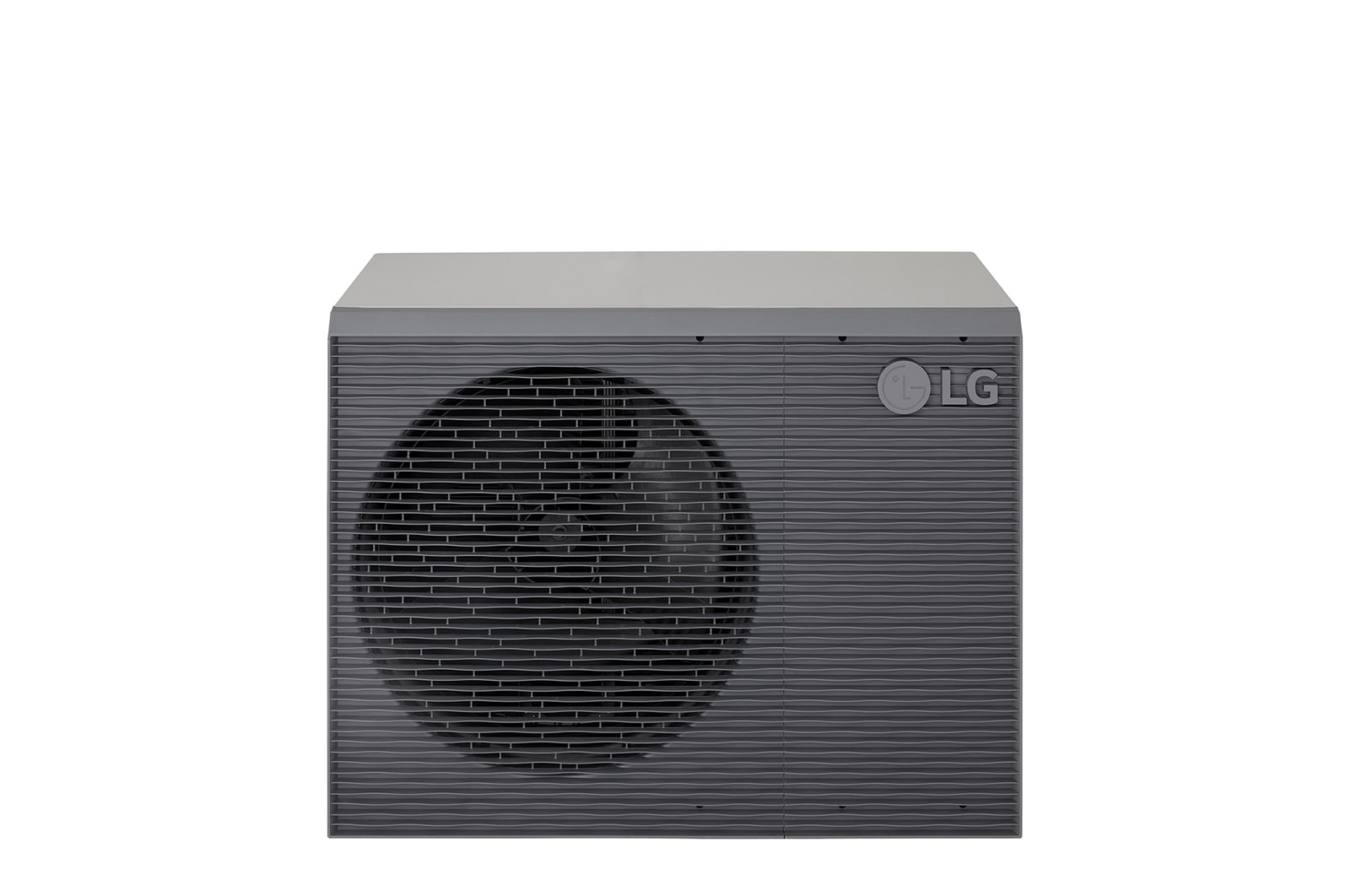

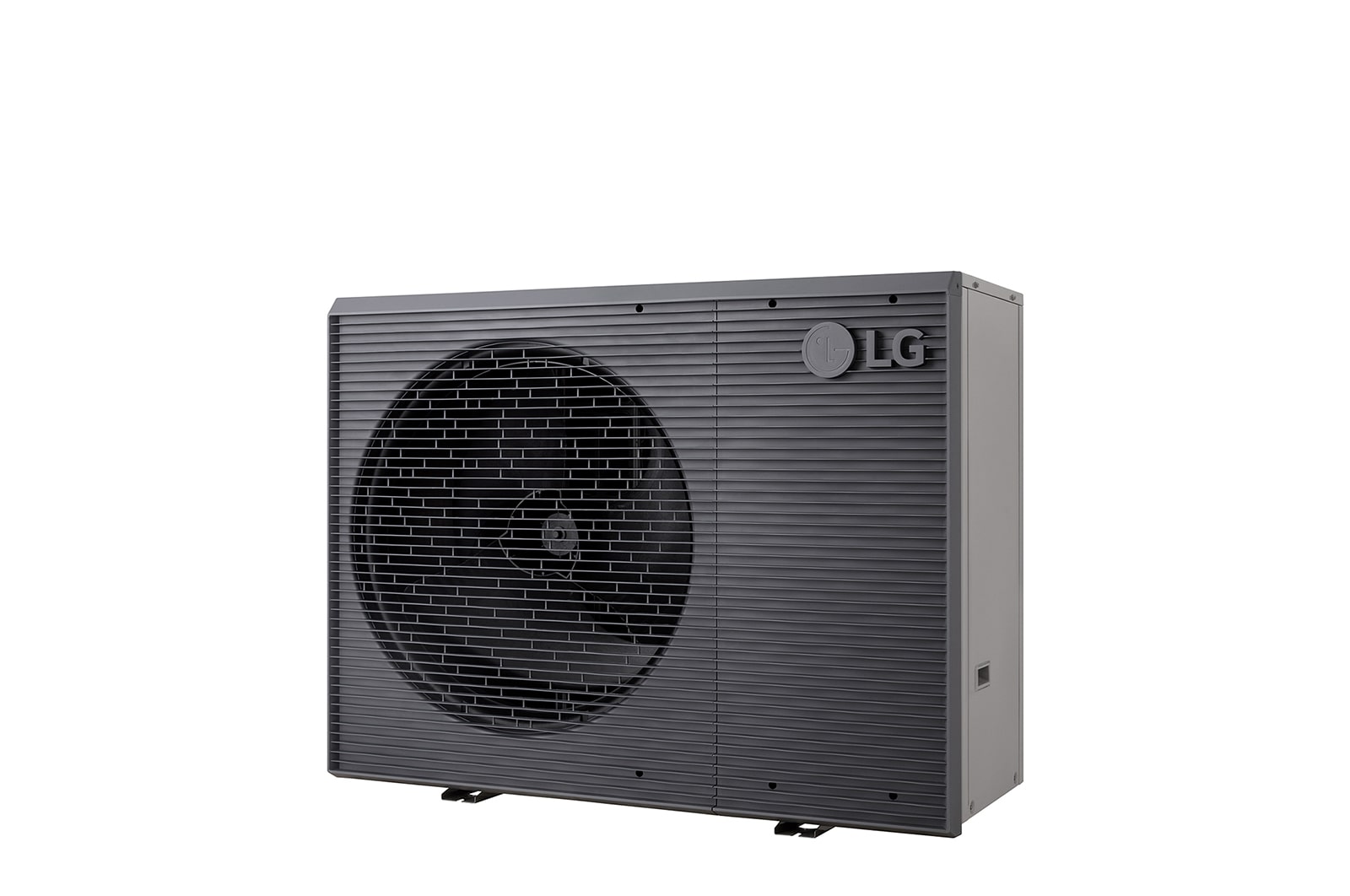

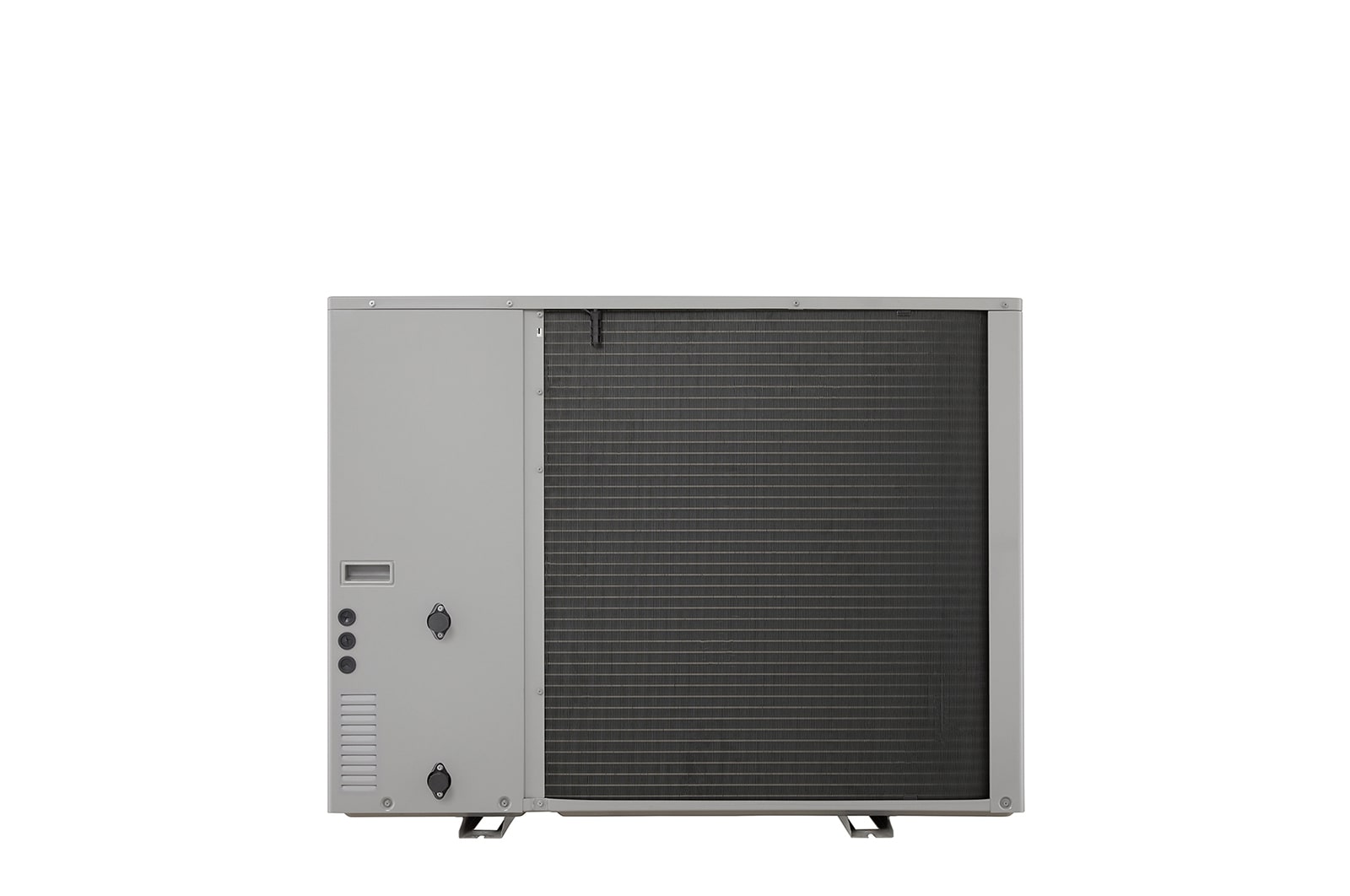

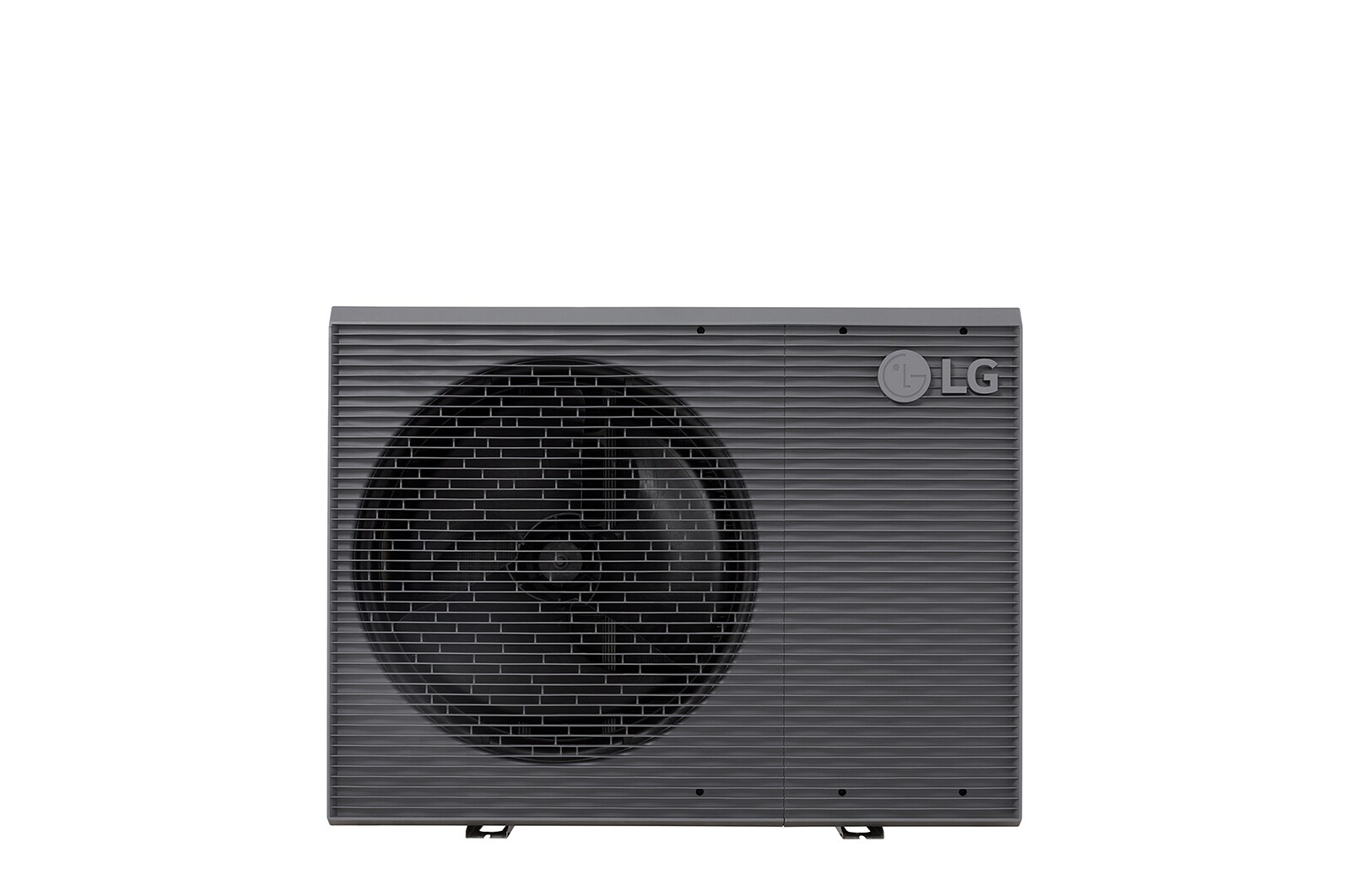

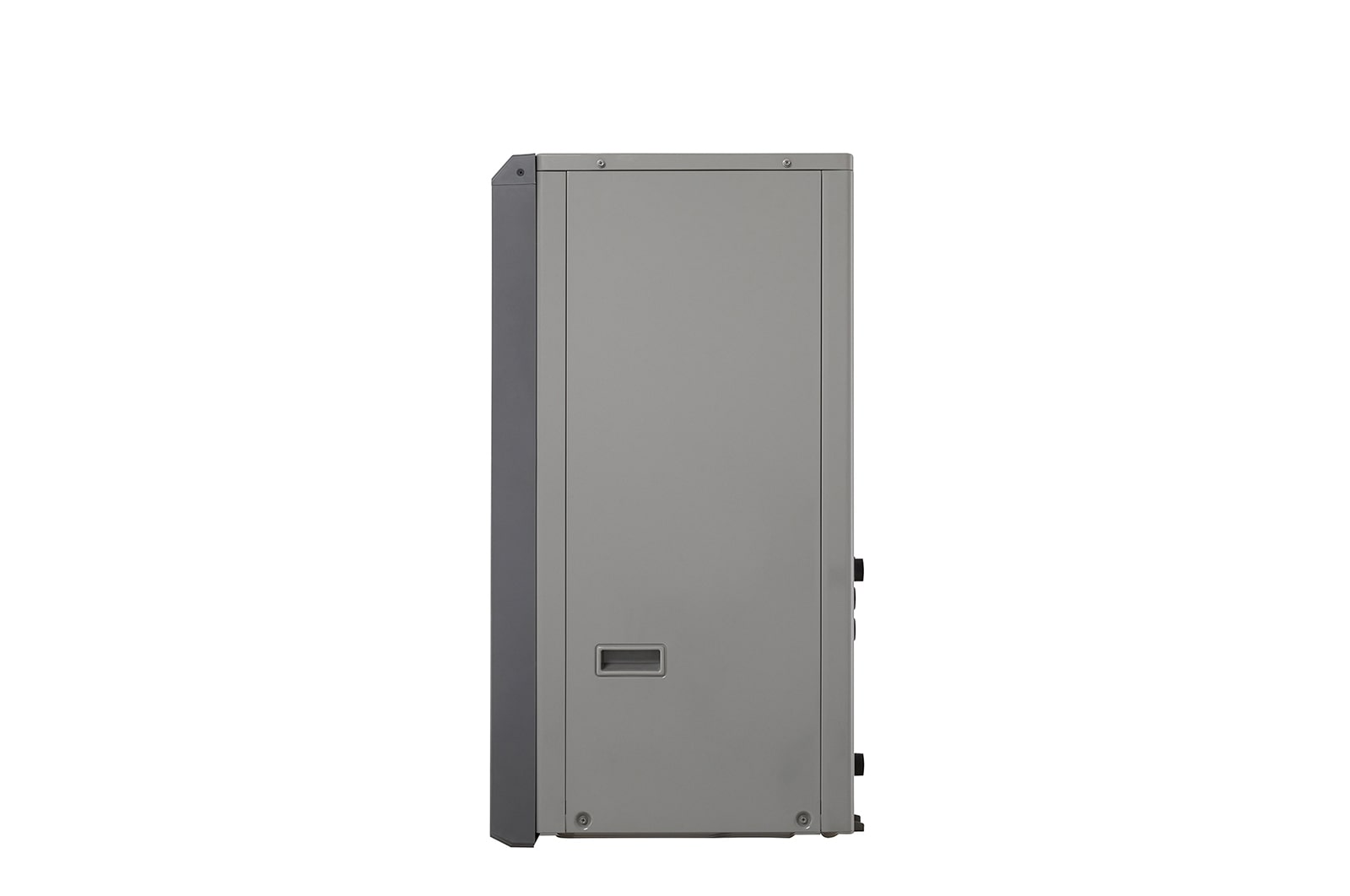

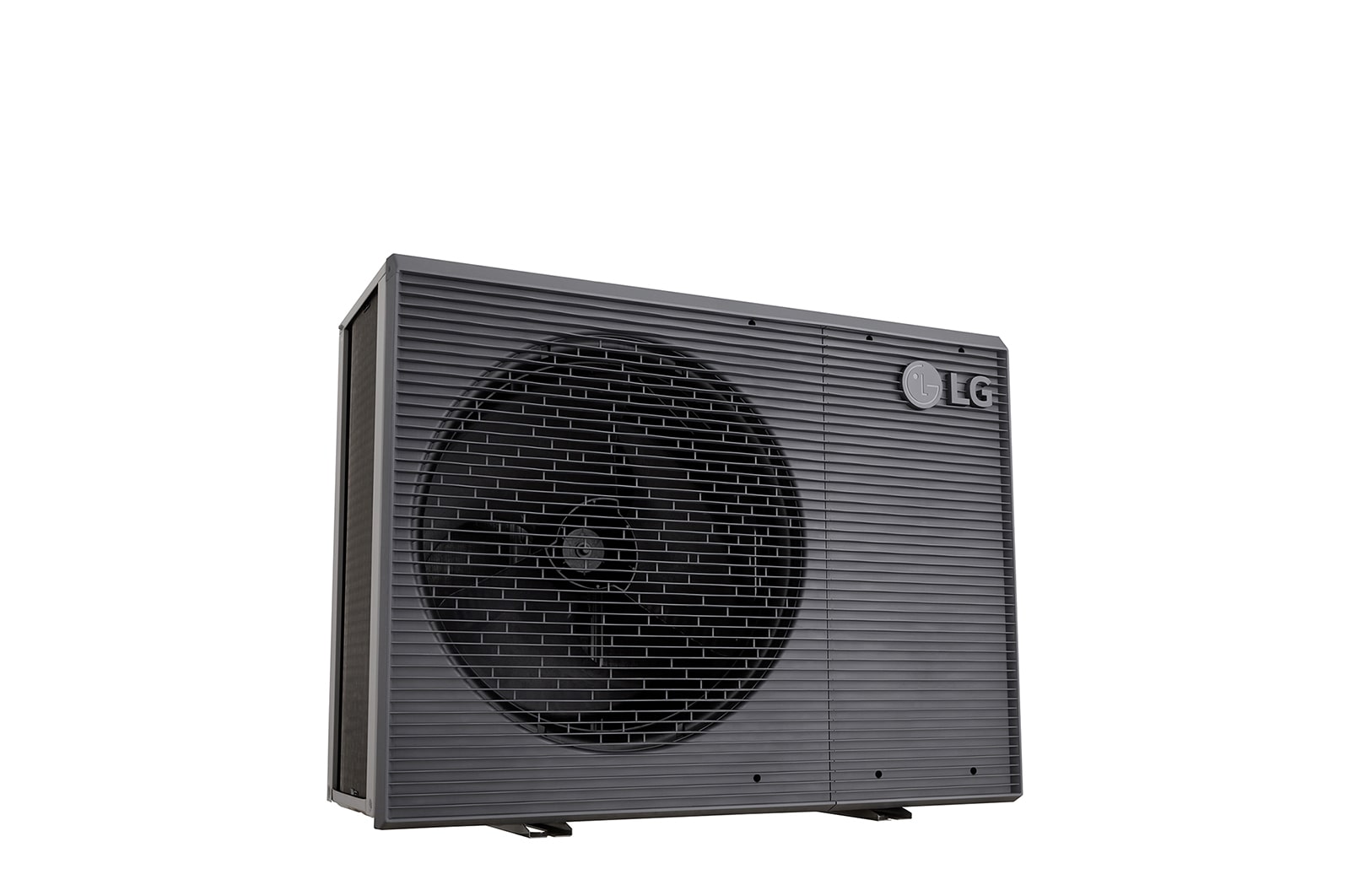

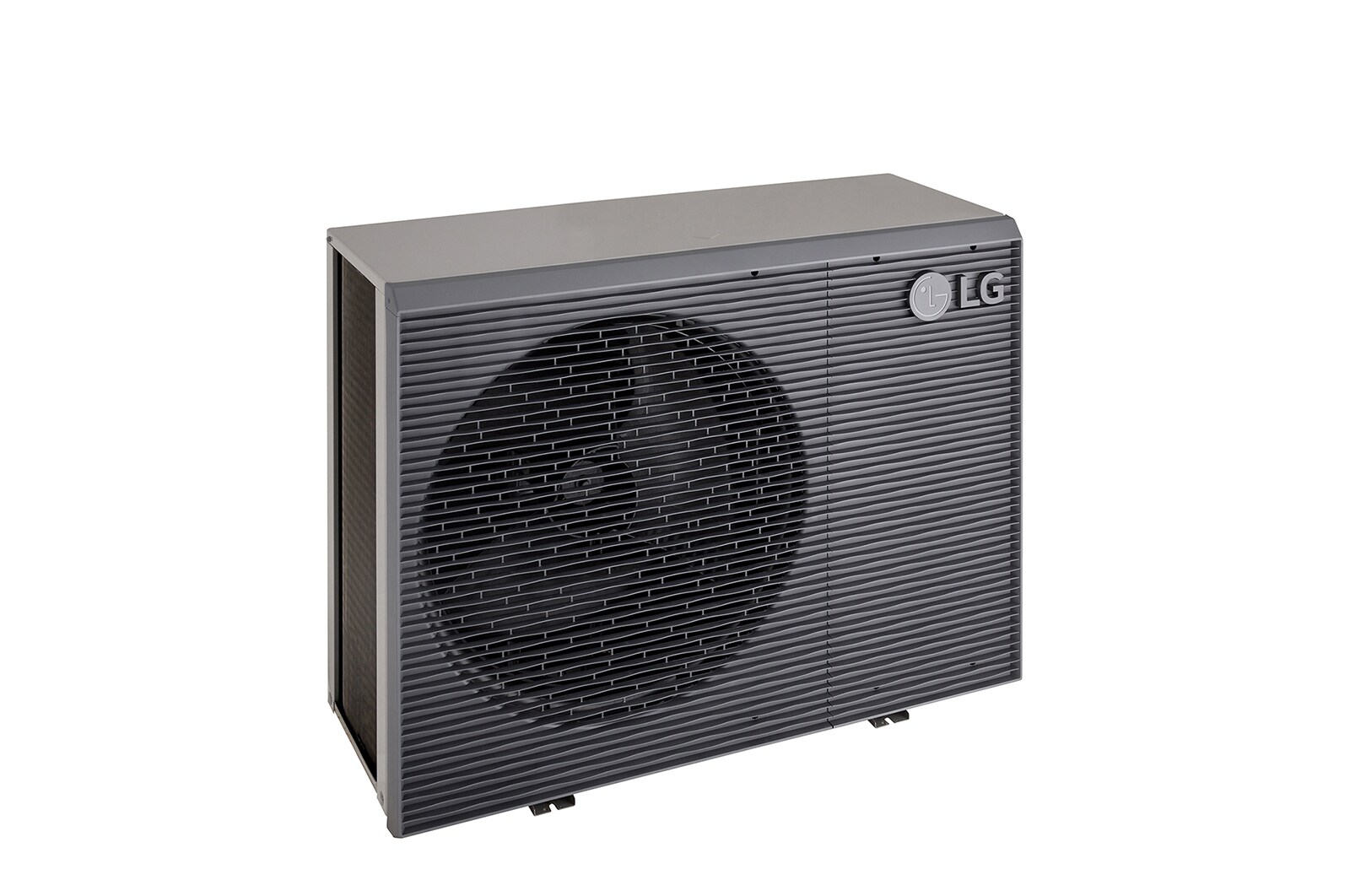

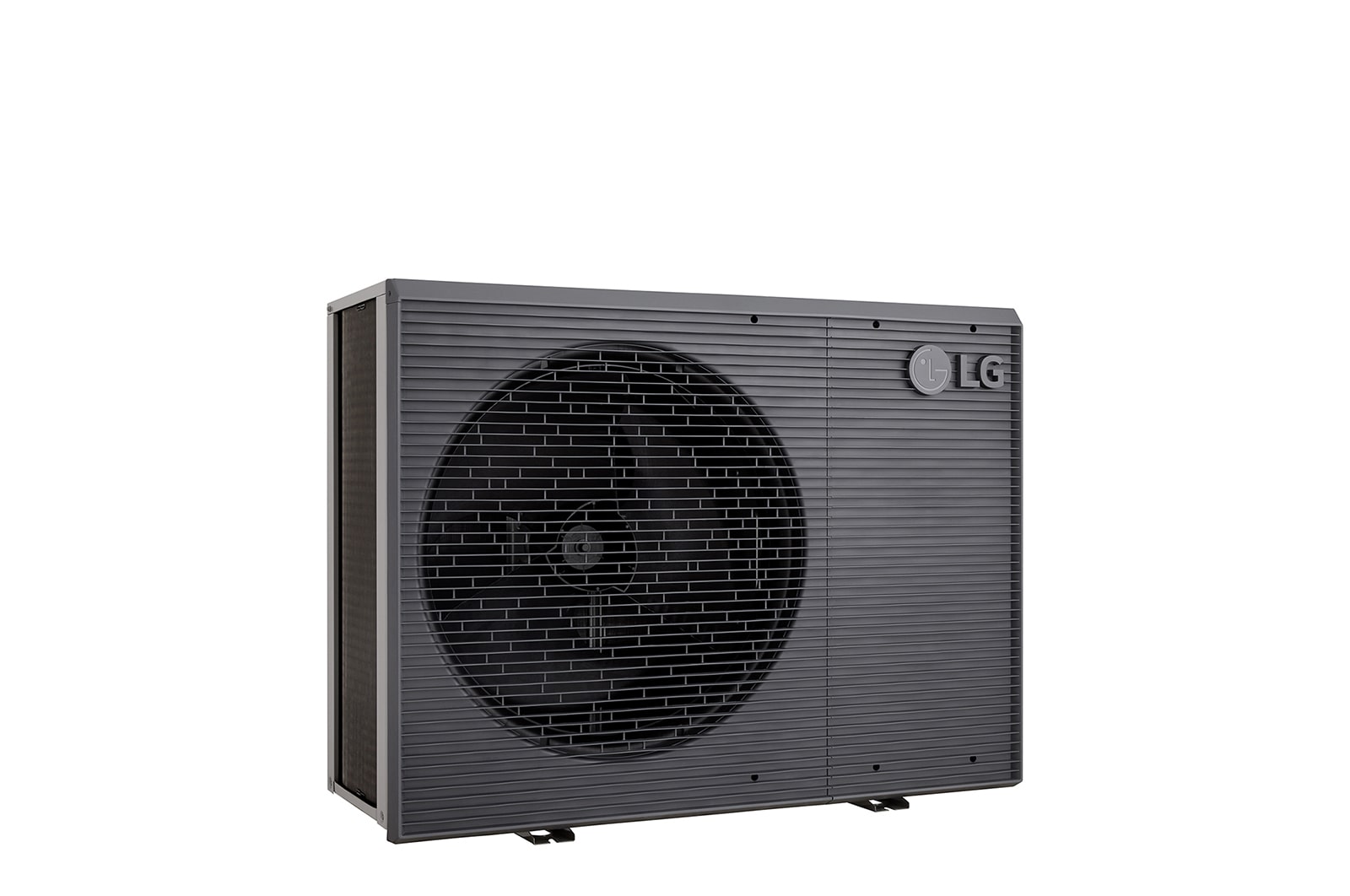

R32 Monobloc S II, 3Ø, 14kW
Key Features
All-in-one outdoor unit includes all hydronic components in a package, providing space-efficiency and simplified installation.
Wide operation range allows remarkable heating performance even in extremely cold weather.
The sleek and compact black design seamlessly fits into various space, harmonising with indoor interior.
Noise reduction technology provides quiet and comfortable experience, increasing installation flexibility in urban areas.
Voltage, phase, frequency for outdoor unit (V, Ø, Hz)
380 ~ 415, 3, 50
Outdoor unit (W × H × D) (mm)
1,320 x 1,019 x 520
Outdoor unit (Empty) (kg)
117.0
Color of outdoor unit chassis (Color / RAL code)
Dawn gray / RAL 7037
Color of outdoor unit front grille (Color / RAL code)
Dark dawn gray / RAL 7012
Type
R32
GWP
675
Precharged amount (g)
1,600
Rated / low noise mode (dB(A))
61 / 57
COP
3.55
Heating capacity (kW)
12.00
COP
4.80
Heating capacity (kW)
14.00
COP
2.85
Heating capacity (kW)
11.50
Cooling capacity (kW)
14.00
EER
4.70
Cooling capacity (kW)
14.00
EER
3.10
Cooling (Min. ~ Max.) (℃)
5 ~ 27
DHW (Min. ~ Max.) (℃)
15 ~ 80
Heating (Min. ~ Max.) (℃)
15 ~ 65
Cooling (Min. ~ Max.) (℃)
5 ~ 48
Heating & DHW (Min. ~ Max.) (℃)
-25 ~ 35
Inlet diameter (inch)
Male PT 1"
Outlet diameter (inch)
Male PT 1"
SCOP (35℃ / 55℃)
4.62 / 3.46
Seasonal space heating eff. class (35℃ / 55℃)
A+++/A++
Rated / low noise mode (dB(A))
39 / 35
