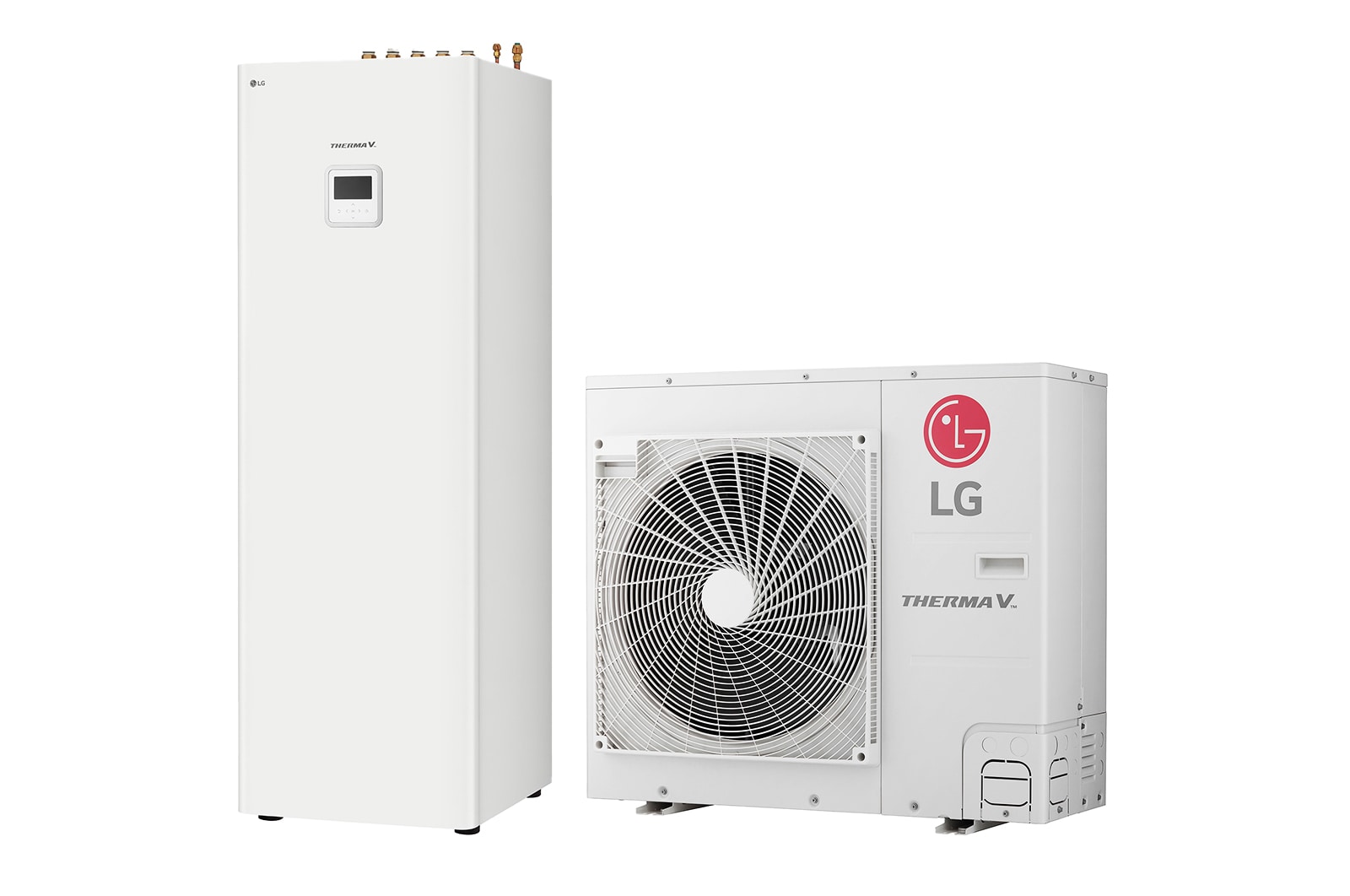

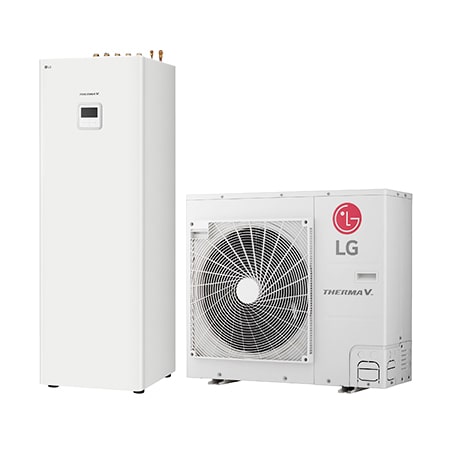

R32 Split 5/7/9 kW IWT, 1Ø, 9kW
Key Features
Refrigerant pipe robust to cold ensures no potential risk of pipe freezing even during prolonged blackouts.
Wide operation range ensures remarkable heating performance even in an extremely cold weather.
Noise reduction technology provides quieter and more comfortable experience, increasing installation flexibility in urban areas.
Rated (dB(A))
34
Rated / low noise mode (dB(A))
38 / 36
Seasonal space heating eff. class (35℃ / 55℃)
A+++/A++
Seasonal space heating efficiency (ηS) (35℃ / 55℃)
183 / 126
SCOP (35℃ / 55℃)
4.65 / 3.23
Declared load profile, average climate
XL
Water heating efficiency (ηWH), average climate
140
COPDHW, average climate
3.40
Water heating eff. class, average climate
A+
Heating capacity (kW)
9.00
COP
4.65
Heating capacity (kW)
5.40
COP
3.50
Heating capacity (kW)
5.50
COP
2.70
Cooling capacity (kW)
9.00
EER
4.20
Cooling capacity (kW)
9.00
EER
2.60
Heating & DHW (Min. ~ Max.) (℃)
-25 ~ 35
Cooling (Min. ~ Max.) (℃)
5 ~ 48
Heating (Min. ~ Max.) (℃)
15 ~ 65
Cooling (Min. ~ Max.) (℃)
5 ~ 27
DHW (Min. ~ Max.) (℃)
15 ~ 80
Type
R32
GWP
675
Precharged amount (g)
1,500
Gas (mm (inch))
Ø 15.88 (5/8)
Liquid (mm (inch))
Ø 9.52 (3/8)
Length standard / Max. (m)
5 / 50
Level difference Max. (m)
30
Max. length without additional charge (m)
10
Mass of additional ref. charge (g/m)
40
Indoor unit (Empty) (kg)
118.0
Outdoor unit (Empty) (kg)
60.0
Inlet diameter for DHW (inch)
Female G1"
Inlet diameter for space heating (inch)
Female G1"
Outlet diameter for DHW (inch)
Female G1"
Outlet diameter for space heating (inch)
Female G1"
Recirculation (inch)
Female G1"
Indoor unit (W × H × D) (mm)
600 × 1,750 × 660
Outdoor unit (W × H × D) (mm)
950 × 834 × 330
Indoor unit (Color / RAL code)
White / RAL 9016
Outdoor unit (Color / RAL code)
Warm gray / RAL 7044
Voltage, phase, frequency (V, Ø, Hz)
220-240, 1, 50
Rated (dB(A))
42
Rated / low noise mode (dB(A))
60 / 58
