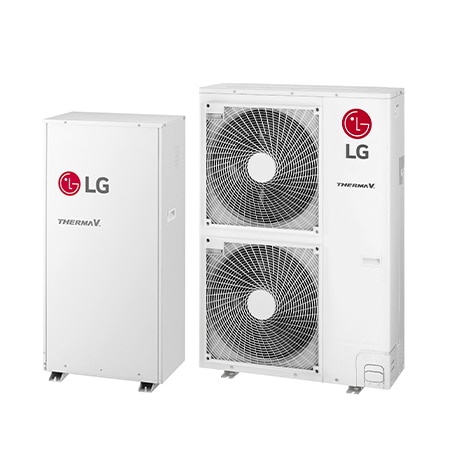

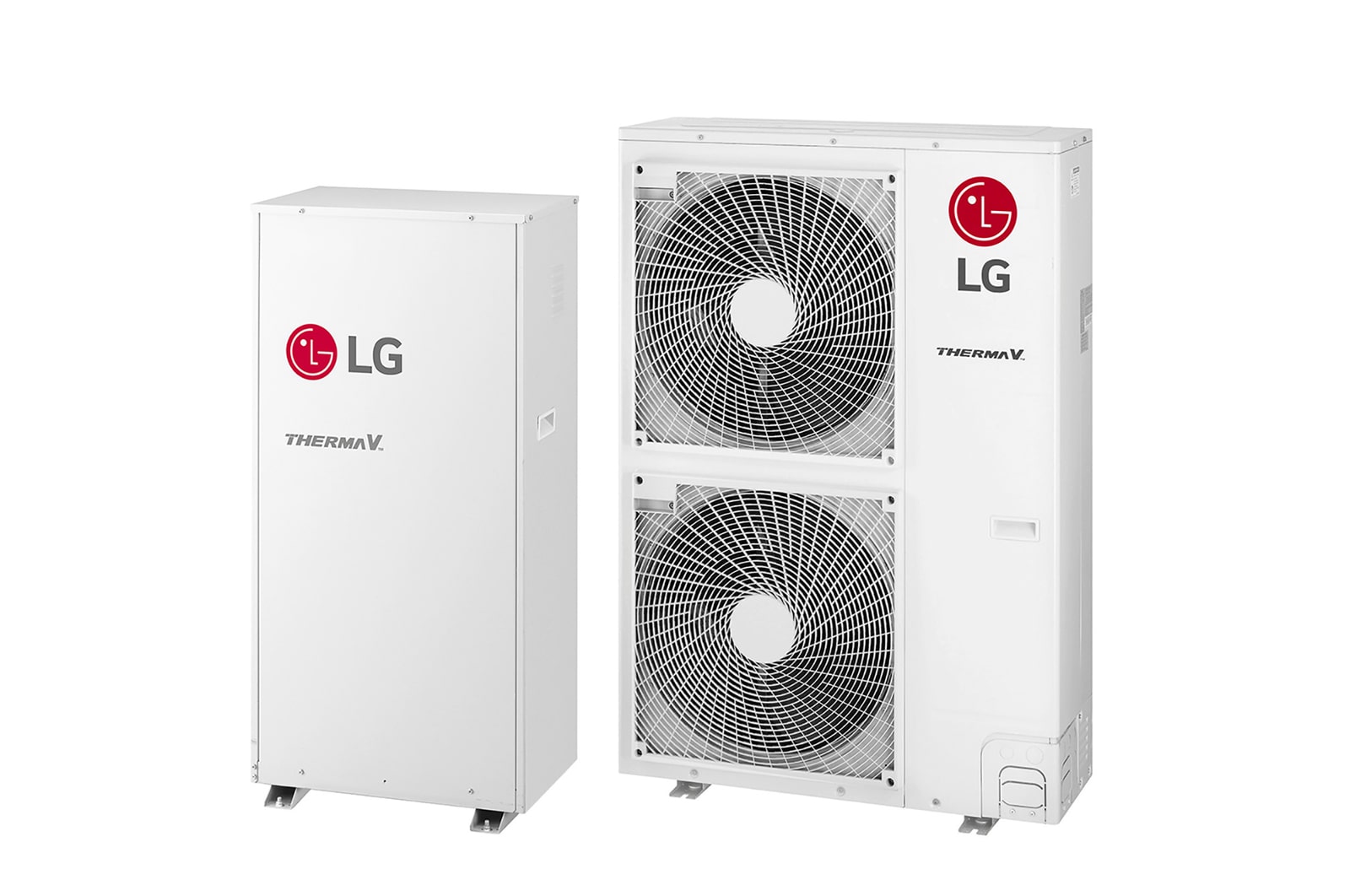

High Temperature, 1Ø, 16kW
Key Features
Refrigerant pipe robust to cold ensures no potential risk of pipe freezing even during prolonged blackouts.
Wide operation range ensures remarkable heating performance even in an extremely cold weather.
Noise reduction technology provides quieter and more comfortable experience, increasing installation flexibility in urban areas.
Seasonal space heating eff. class (35℃ / 55℃)
A+/A+
Seasonal space heating efficiency (ηS) (35℃ / 55℃)
126 / 117
SCOP (35℃ / 55℃)
3.23 / 3.01f
Heating capacity (kW)
16.00
COP
3.27
Heating capacity (kW)
16.00
COP
3.25
Heating capacity (kW)
14.00
COP
2.78
Heating & DHW (Min. ~ Max.) (℃)
-25 ~ 35
Heating (Min. ~ Max.) (℃)
25 ~ 80
DHW (Min. ~ Max.) (℃)
25 ~ 80
Type
(ODU) R410A / (IDU) R134a
GWP
(ODU) 2,088 / (IDU) 1,430
Precharged amount (g)
(ODU) 3,800 / (IDU) 1,800
Gas (mm (inch))
Ø 15.88 (5/8)
Liquid (mm (inch))
Ø 9.52 (3/8)
Length standard / Max. (m)
7.5 / 50
Level difference Max. (m)
30
Max. length without additional charge (m)
7.5
Mass of additional ref. charge (g/m)
40
Inlet diameter for space heating (inch)
Male PT 1"
Outlet diameter for space heating (inch)
Male PT 1"
Rated / low noise mode (dB(A))
63 / -
Rated (dB(A))
58
Rated / low noise mode (dB(A))
41 / -
Rated (dB(A))
50
Outdoor unit (W × H × D) (mm)
950 × 1,380 × 330
Indoor unit (W × H × D) (mm)
520 x 1,080 x 330
Outdoor unit (Empty) (kg)
89.0
Indoor unit (Empty) (kg)
84.0
Indoor unit (Color / RAL code)
Morning gray / RAL 7030
Outdoor unit (Color / RAL code)
Warm gray / RAL 7044
Voltage, phase, frequency (V, Ø, Hz)
220-240, 1, 50
