R410A Split Hydro Box, 3Ø, 14kW
UKEU
Product Information Sheet
Contact Us

R410A Split Hydro Box, 3Ø, 14kW

UKEU
Product Information Sheet

Share this content.

You can share the items you like with your friends.

R410A Split Hydro Box, 3Ø, 14kW

HN1636M NK5 + HU143MA U33

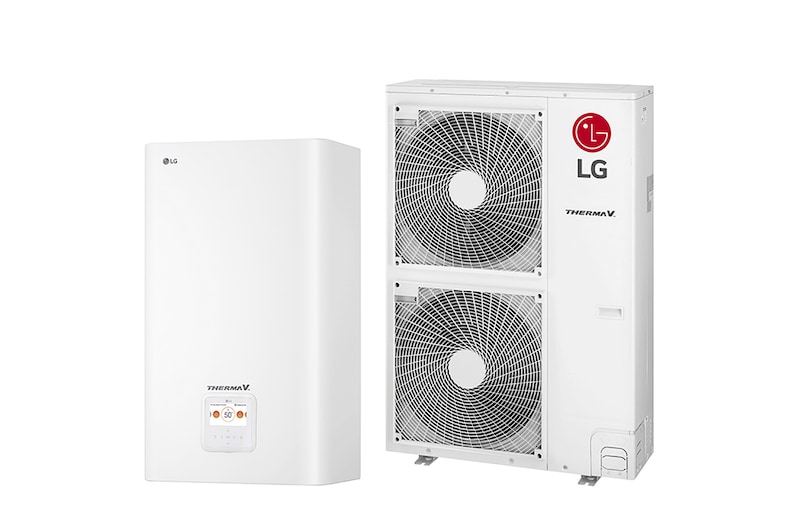

45 degree right side view of a white rectangular indoor unit and an outdoor unit with two round fans displayed side by side.
45 degree right side view of a white rectangular indoor unit and an outdoor unit with two round fans displayed side by side.

Key Features

  • Suitable for a large capacity building or applications subject to colder climate conditions
  • Reliable operation of hydronic parts and convenient wiring work thanks to the Hydro Box located in the indoor unit
  • Flexible refrigerant piping design
  • ErP energy label class LWT A+++/A++ (35°C/55°C)
  • Leaving water temperature up to 57°C and wide operating range down to -25°C ambient temperature
  • Connectivity with Wi-Fi control (ThinQ), smart grid and PV/ESS
More

  1. No risk of pipe freezing

    Refrigerant pipe robust to cold ensures no potential risk of pipe freezing even during prolonged blackouts.

  2. Remarkable performance in cold

    Wide operation range ensures remarkable heating performance even in an extremely cold weather.

  3. Low noise level

    Noise reduction technology provides quieter and more comfortable experience, increasing installation flexibility in urban areas.

Key Feature

  • Suitable for a large capacity building or applications subject to colder climate conditions
  • Reliable operation of hydronic parts and convenient wiring work thanks to the Hydro Box located in the indoor unit
  • Flexible refrigerant piping design
  • ErP energy label class LWT A+++/A++ (35°C/55°C)
  • Leaving water temperature up to 57°C and wide operating range down to -25°C ambient temperature
  • Connectivity with Wi-Fi control (ThinQ), smart grid and PV/ESS
Print

All Spec

SEASONAL EFFICIENCY DATA (HEATING)

  • Seasonal space heating eff. class (35℃ / 55℃)

    A+++/A++

  • Seasonal space heating efficiency (ηS) (35℃ / 55℃)

    182 / 132

  • SCOP (35℃ / 55℃)

    4.61 / 3.37

NOMINAL CAPACITY AND COP (A+7/W+35)

  • COP

    4.41

  • Heating capacity (kW)

    14.00

NOMINAL CAPACITY AND COP (A+2/W+35)

  • Heating capacity (kW)

    12.00

  • COP

    3.61

NOMINAL CAPACITY AND COP (A+7/W+55)

  • Heating capacity (kW)

    11.50

  • COP

    2.55

NOMINAL CAPACITY AND EER (A+35/W+18)

  • Cooling capacity (kW)

    12.00

  • EER

    3.90

NOMINAL CAPACITY AND EER (A+35/W+7)

  • Cooling capacity (kW)

    8.50

  • EER

    2.81

OPERATION RANGE (OUTDOOR AIR TEMPERATURE)

  • Heating & DHW (Min. ~ Max.) (℃)

    -25 ~ 35

  • Cooling (Min. ~ Max.) (℃)

    5 ~ 48

OPERATION RANGE (LEAVING WATER TEMPERATURE)

  • Heating (Min. ~ Max.) (℃)

    15 ~ 57

  • Cooling (Min. ~ Max.) (℃)

    5 ~ 27

  • DHW (Min. ~ Max.) (℃)

    15 ~ 80

REFRIGERANT

  • Type

    R410A

  • GWP

    2,088

  • Precharged amount (g)

    2,500

PIPING CONNECTIONS (REF./OUTDOOR UNIT)

  • Gas (mm (inch))

    Ø 15.88 (5/8)

  • Liquid (mm (inch))

    Ø 9.52 (3/8)

  • Length standard / Max. (m)

    7.5 / 30

  • Level difference Max. (m)

    30

  • Max. length without additional charge (m)

    7.5

  • Mass of additional ref. charge (g/m)

    40

PIPING CONNECTIONS (WATER/INDOOR UNIT)

  • Inlet diameter for space heating (inch)

    Male PT 1"

  • Outlet diameter for space heating (inch)

    Male PT 1"

SOUND POWER LEVEL (OUTDOOR UNIT)

  • Rated / low noise mode (dB(A))

    64 / 62

SOUND POWER LEVEL (INDOOR UNIT)

  • Rated (dB(A))

    44

SOUND PRESSURE LEVEL AT 5M (OUTDOOR UNIT, CONVERT USING SWL)

  • Rated / low noise mode (dB(A))

    42 / 40

SOUND PRESSURE LEVEL AT 1M (INDOOR UNIT, CONVERT USING SWL)

  • Rated (dB(A))

    36

DIMENSION

  • Outdoor unit (W × H × D) (mm)

    950 x 1,380 x 330

  • Indoor unit (W × H × D) (mm)

    490 × 850 × 315

WEIGHT

  • Outdoor unit (Empty) (kg)

    85.4

  • Indoor unit (Empty) (kg)

    41.5

EXTERIOR

  • Outdoor unit (Color / RAL code)

    Warm gray / RAL 7044

  • Indoor unit (Color / RAL code)

    Noble white / RAL 9016

POWER SUPPLY

  • Voltage, phase, frequency (V, Ø, Hz)

    380-415, 3, 50

COMPLIANCE INFORMATION
