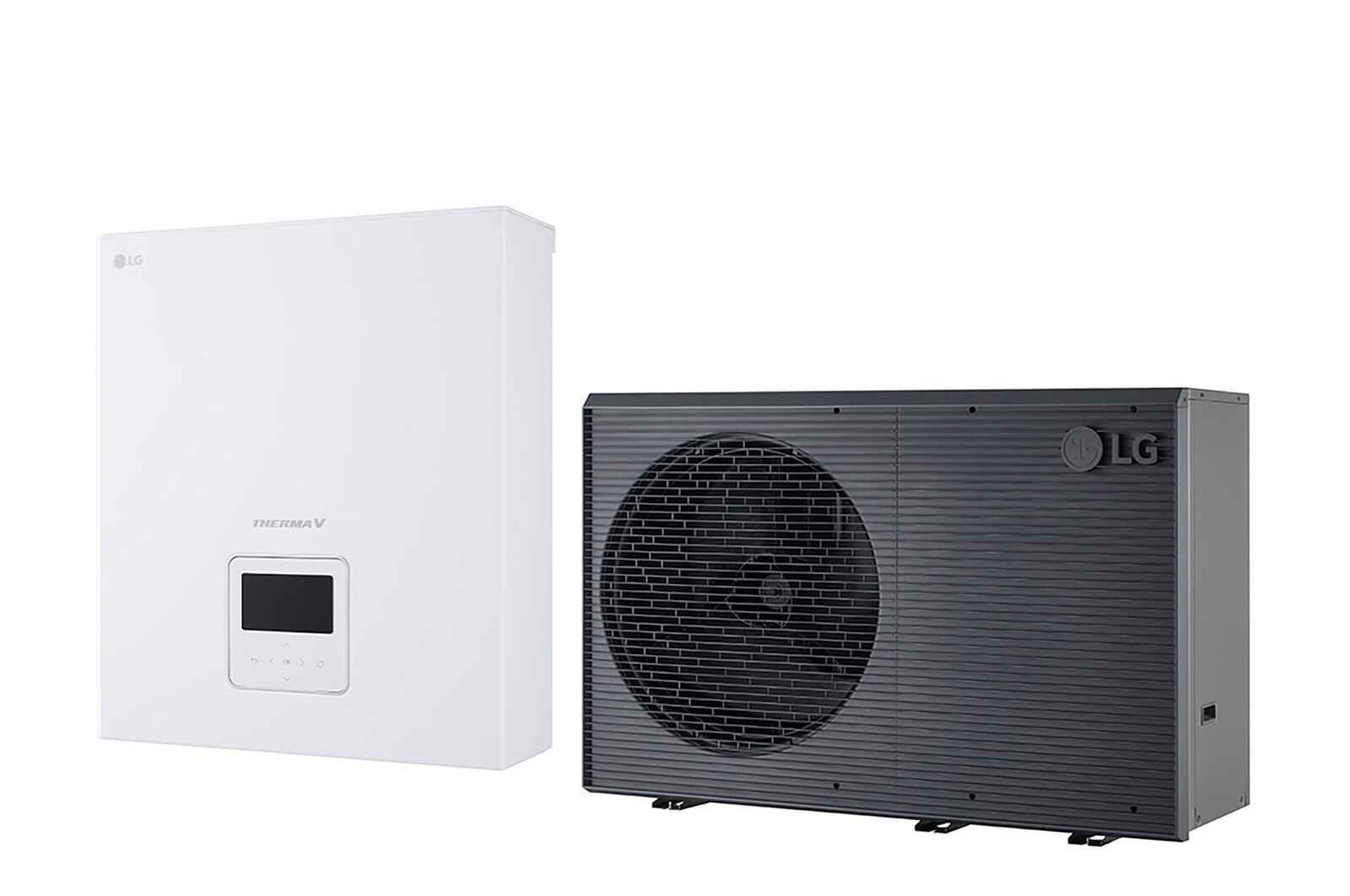

R290 Monobloc Control Unit, 1Ø, 16kW
HM161HF UB60 + PHCS0 ENCXLEU
Orders for the Scottish Islands and remote areas will be delivered by 3PL. The 3PL will contact you to arrange a suitable delivery date.
Delivery fees vary by postcode and may include additional charges for Highland or remote areas. Final shipping costs will be confirmed at checkout.
Further information regarding delivery can be found in our Delivery Terms and Conditions.
- Section 1
- Section 2
Are you sure you want to remove the coupon?

- Natural refrigerant R290 with low GWP (3)
- No refrigerant piping work
- ErP energy label class LWT A+++/A+++ (35°C/55°C)
- Refined gray design that adapts to various surroundings
- High leaving water temperature up to 75°C and wide operating range down to -28°C ambient temperature
- One of the quietest models on the market (49 dB(A) for 12 kW models)
All Spec
SEASONAL EFFICIENCY DATA (HEATING)
Seasonal space heating eff. class (35℃ / 55℃)
A+++/A+++
Seasonal space heating efficiency (ηS) (35℃ / 55℃)
201 / 154
SCOP (35℃ / 55℃)
5.11 / 3.92
NOMINAL CAPACITY AND COP (A+7/W+35)
Heating capacity (kW)
16.00
COP
4.30
NOMINAL CAPACITY AND COP (A+2/W+35)
Heating capacity (kW)
14.50
COP
3.49
NOMINAL CAPACITY AND COP (A-7/W+35)
Heating capacity (kW)
13.80
COP
3.17
NOMINAL CAPACITY AND COP (A+7/W+55)
Heating capacity (kW)
12.00
COP
3.30
NOMINAL CAPACITY AND COP (A-7/W+55)
Heating capacity (kW)
10.90
COP
2.26
NOMINAL CAPACITY AND EER (A+35/W+18)
Cooling capacity (kW)
12.50
EER
3.70
NOMINAL CAPACITY AND EER (A+35/W+7)
Cooling capacity (kW)
12.50
EER
2.95
OPERATION RANGE (OUTDOOR AIR TEMPERATURE)
Heating & DHW (Min. ~ Max.) (℃)
-28 ~ 35
Cooling (Min. ~ Max.) (℃)
5 ~ 48
OPERATION RANGE (LEAVING WATER TEMPERATURE)
Heating (Min. ~ Max.) (℃)
15 ~ 75
Cooling (Min. ~ Max.) (℃)
5 ~ 27
DHW (Min. ~ Max.) (℃)
15 ~ 80
REFRIGERANT
Type
R290
GWP
3
Precharged amount (g)
1,200
PIPING CONNECTIONS (WATER/OUTDOOR UNIT)
Inlet diameter (inch)
Male PT 1"
Outlet diameter (inch)
Male PT 1"
SOUND POWER LEVEL (OUTDOOR UNIT)
Rated / low noise mode (dB(A))
52 / 51
SOUND PRESSURE LEVEL AT 5M (OUTDOOR UNIT, CONVERT USING SWL)
Rated / low noise mode (dB(A))
30 / 29
DIMENSION
Outdoor unit (W × H × D) (mm)
1,560 x 1,019 x 520
Indoor unit (W × H × D) (mm)
420 x 490 x 141
WEIGHT
Outdoor unit (Empty) (kg)
181.0
Indoor unit (Empty) (kg)
6.7
EXTERIOR
Color of outdoor unit chassis (Color / RAL code)
Dawn gray / RAL 7037
Color of outdoor unit front grille (Color / RAL code)
Dark dawn gray / RAL 7012
Indoor unit (Color / RAL code)
Essence White / RAL 9003
POWER SUPPLY
Voltage, phase, frequency for outdoor unit (V, Ø, Hz)
220 ~ 240, 1, 50
Voltage, phase, frequency for indoor unit (V, Ø, Hz)
220 ~ 240, 1, 50
COMPLIANCE INFORMATION
