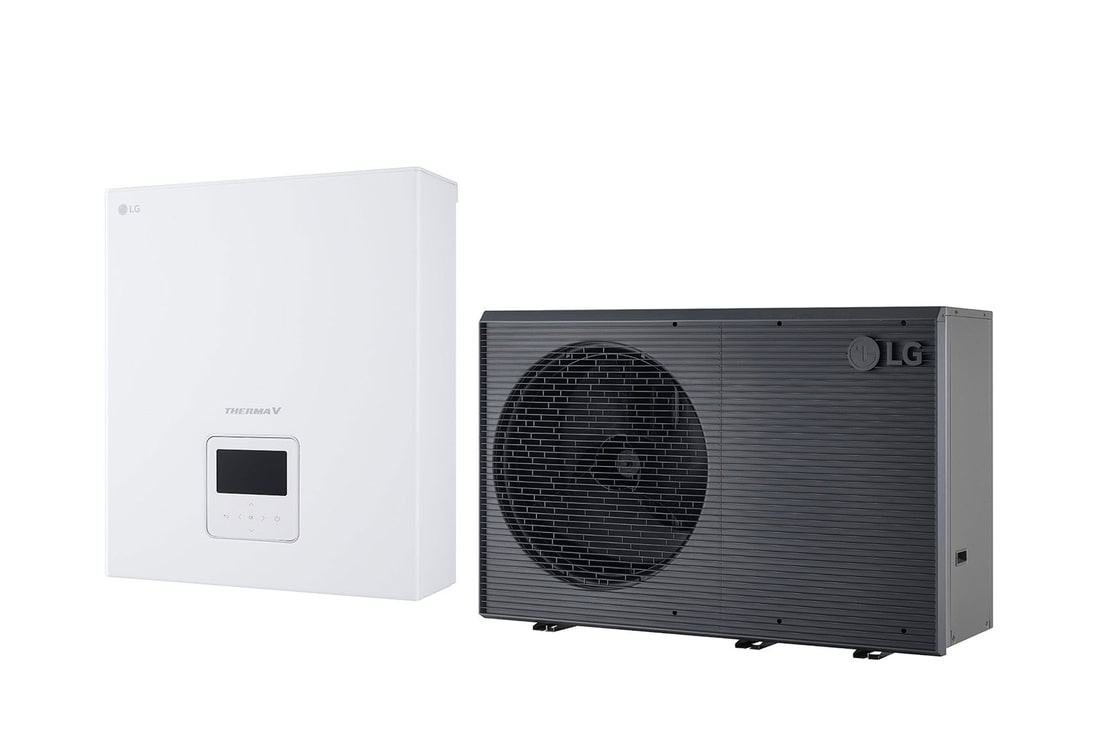

16kW R290 Monobloc Air to Water Heat Pump & Control Unit, 3 Phase, with low GWP & Quiet Operation, 75°C Max Heating
HM163HF UB60 + PHCS0 ENCXLEU
Orders for the Scottish Islands and remote areas will be delivered by 3PL. The 3PL will contact you to arrange a suitable delivery date.
Delivery fees vary by postcode and may include additional charges for Highland or remote areas. Final shipping costs will be confirmed at checkout.
Further information regarding delivery can be found in our Delivery Terms and Conditions.
Are you sure you want to remove the coupon?
Voltage, phase, frequency for indoor unit (V, Ø, Hz)
220 ~ 240, 1, 50
Voltage, phase, frequency for outdoor unit (V, Ø, Hz)
380 ~ 415, 3, 50
Indoor unit (W × H × D) (mm)
420 x 490 x 141
Outdoor unit (W × H × D) (mm)
1,560 x 1,019 x 520
Indoor unit (Empty) (kg)
6.7
Outdoor unit (Empty) (kg)
181.0
Color of outdoor unit chassis (Color / RAL code)
Dawn gray / RAL 7037
Color of outdoor unit front grille (Color / RAL code)
Dark dawn gray / RAL 7012
Indoor unit (Color / RAL code)
Essence White / RAL 9003
Type
R290
GWP
3
Precharged amount (g)
1,200
Rated / low noise mode (dB(A))
52 / 51
COP
3.17
Heating capacity (kW)
13.80
COP
2.26
Heating capacity (kW)
10.90
COP
3.49
Heating capacity (kW)
14.50
COP
4.30
Heating capacity (kW)
16.00
COP
3.30
Heating capacity (kW)
12.00
Cooling capacity (kW)
12.50
EER
3.70
Cooling capacity (kW)
12.50
EER
2.95
Cooling (Min. ~ Max.) (℃)
5 ~ 27
DHW (Min. ~ Max.) (℃)
15 ~ 80
Heating (Min. ~ Max.) (℃)
15 ~ 75
Cooling (Min. ~ Max.) (℃)
5 ~ 48
Heating & DHW (Min. ~ Max.) (℃)
-28 ~ 35
Inlet diameter (inch)
Male PT 1"
Outlet diameter (inch)
Male PT 1"
SCOP (35℃ / 55℃)
5.11 / 3.92
Seasonal space heating efficiency (ηS) (35℃ / 55℃)
201 / 154
Seasonal space heating eff. class (35℃ / 55℃)
A+++/A+++
Rated / low noise mode (dB(A))
30 / 29
