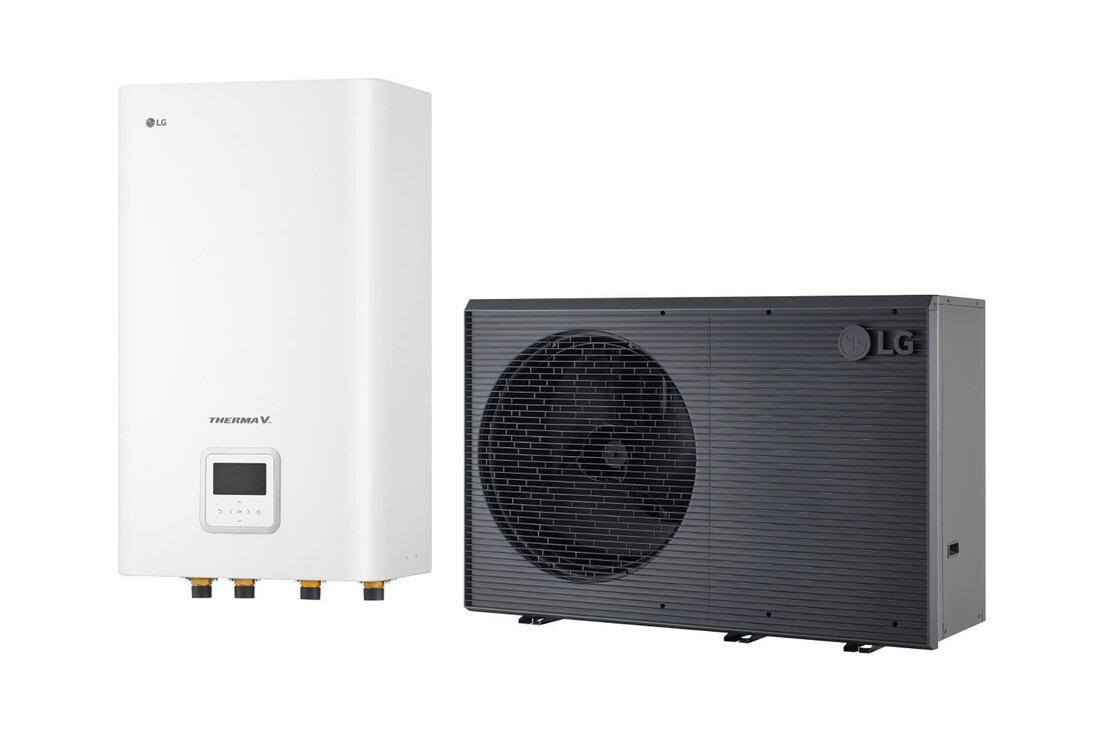

16kW R290 Monobloc Air to Water Heat Pump & Hydro Unit, 3 Phase, with low GWP & Quiet Operation, 75°C Max Heating
HN1639HC NK0 + HM163HF UB60
Orders for the Scottish Islands and remote areas will be delivered by 3PL. The 3PL will contact you to arrange a suitable delivery date.
Shipping options may vary by region.
Further information regarding delivery can be found in our Delivery Terms and Conditions.
Are you sure you want to remove the coupon?
Seasonal space heating eff. class (35℃ / 55℃)
A+++/A+++
Seasonal space heating efficiency (ηS) (35℃ / 55℃)
201 / 154
SCOP (35℃ / 55℃)
5.11 / 3.92
Heating capacity (kW)
16.00
COP
4.30
Heating capacity (kW)
14.50
COP
3.49
Heating capacity (kW)
13.80
COP
3.17
Heating capacity (kW)
12.00
COP
3.30
Heating capacity (kW)
10.90
COP
2.26
Cooling capacity (kW)
12.50
EER
3.70
Cooling capacity (kW)
12.50
EER
2.95
Heating & DHW (Min. ~ Max.) (℃)
-28 ~ 35
Cooling (Min. ~ Max.) (℃)
5 ~ 48
Heating (Min. ~ Max.) (℃)
15 ~ 75
Cooling (Min. ~ Max.) (℃)
5 ~ 27
DHW (Min. ~ Max.) (℃)
15 ~ 80
Type
R290
GWP
3
Precharged amount (g)
1,200
Inlet diameter (inch)
Male PT 1"
Outlet diameter (inch)
Male PT 1"
Inlet/outlet diameter for ODU connection (inch)
Male PT 1"
Inlet/outlet diameter for space heating (inch)
Male PT 1"
Rated / low noise mode (dB(A))
52 / 51
Rated (dB(A))
39
Rated / low noise mode (dB(A))
30 / 29
Rated (dB(A))
31
Outdoor unit (W × H × D) (mm)
1,560 x 1,019 x 520
Indoor unit (W × H × D) (mm)
490 x 850 x 315
Outdoor unit (Empty) (kg)
181.0
Indoor unit (Empty) (kg)
31.0
Color of outdoor unit chassis (Color / RAL code)
Dawn gray / RAL 7037
Indoor unit (Color / RAL code)
Noble white / RAL 9016
Color of outdoor unit front grille (Color / RAL code)
Dark dawn gray / RAL 7012
Voltage, phase, frequency for outdoor unit (V, Ø, Hz)
380 ~ 415, 3, 50
Voltage, phase, frequency for indoor unit (V, Ø, Hz)
220 ~ 240, 1, 50
