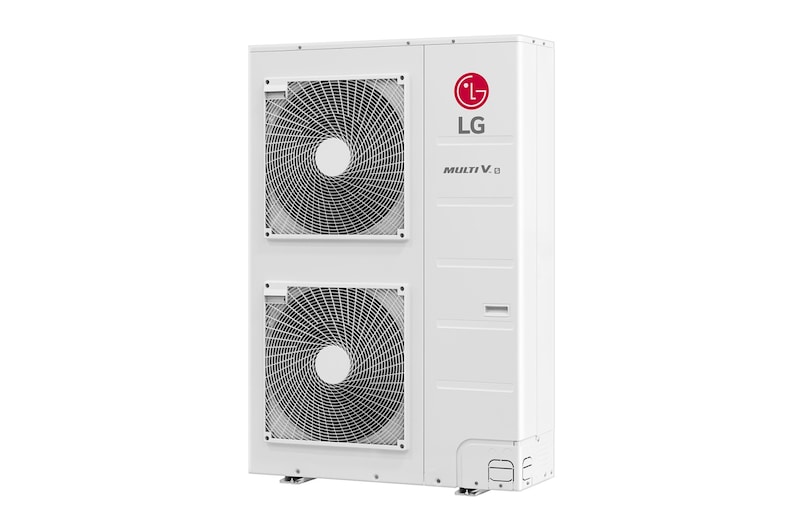

MULTI V S, Outdoor Unit, 10HP, R410A
In order to save operation energy consumption, it automatically controls the refrigerant temperature according to the outdoor temperature.
Efficiency is improved according to different heat exchanger paths for cooling and heating with the use of the Variable Heat Exchanger Circuit, which intelligently selects the optimal path.
Multi V S improved reliability by adopting a large volume accumulator. Reliability is enhanced by reducing the pressure drop due to the high efficiency spiral structure and by doubling the size.
The equipment size has been reduced, which creates savings in the purchase value, as well as the cost of installation and maintenance.
Precharged amount (kg)
4.5
t-CO₂ eq.
9.394
Control Type
Electronic Expansion Valve
GWP(Global Warming Potential)
2087.5
Type
R410A
EER(Rated) (W/W)
2.25
SEER (Wh/Wh)
6.28
COP(Rated) (W/W)
3.60
SCOP (Wh/Wh)
4.21
Cooling / Heating (dB(A))
58/58
Max. (Conditional) (EA)
16
Rated (kW)
12.44
Shipping (kg)
158
Net (kg)
142
Oil Type
FW68D(PVE)
Starting Method
Inverter
Motor Output (W x No.)
5,300 x 1
Piston Displacement (cm³/rev)
62.1
Type
Hermetically Sealed Scroll
Liquid (mm(inch))
Φ9.52 (3/8)
Gas (mm(inch))
Φ22.22 (7/8)
Shipping(W x H x D) (mm)
1210 x 1780 x 500
Net(W x H x D) (mm)
1090 x 1625 x 380
Color
Warm Gray
RAL (Classic)
RAL 7044
Rated (kW)
30.6
Air Flow Rate(High) (m³/min x No.)
190
Discharge direction(Side / Top)
Side
Type
Propeller fan
Drive
DC INVERTER
Output (W x No.)
250 x 2
#1
50 Hz 380-415 V 3N~
#2
60 Hz 380 V 3N~
Rated (kW)
28
Cooling / Heating (dB(A))
77/79
Communication Cable(VCTF-SB) (mm² × cores)
1.0~1.5 x 2
Rated (kW)
8.50
