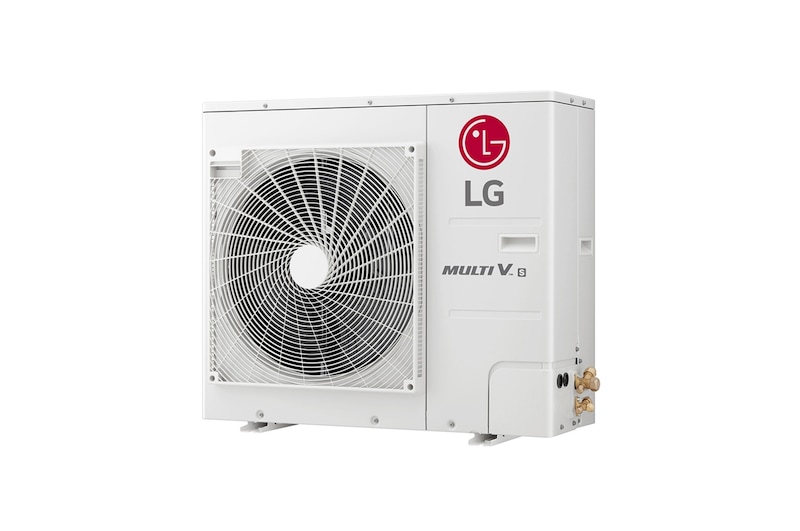

MULTI V S, Outdoor Unit, 4HP, R32
In order to save operation energy consumption, it automatically controls the refrigerant temperature according to the outdoor temperature.
Efficiency is improved according to different heat exchanger paths for cooling and heating with the use of the Variable Heat Exchanger Circuit, which intelligently selects the optimal path.
Multi V S improved reliability by adopting a large volume accumulator. Reliability is enhanced by reducing the pressure drop due to the high efficiency spiral structure and by doubling the size.
The equipment size has been reduced, which creates savings in the purchase value, as well as the cost of installation and maintenance.
#1
50 Hz 220-240 V~
Rated (kW)
12.1
Rated (kW)
12.1
Max (kW)
14.2
Max (Btu/h)
48400
Type (kg)
LG Inverter Scroll
Motor Output (W x No.)
3198 x 1
Starting Method
Inverter
Oil Type
FW68D(PVE)
Piston Displacement (cm³/rev)
31.6
Rated (kW)
4.26
Rated (kW)
3.03
EER(Rated) (W/W)
2.84
COP(Rated) (W/W)
4.00
SEER (Wh/Wh)
6.69
SCOP (Wh/Wh)
3.87
Pdesign(@-10℃, Heating) (kW)
8.4
Type
Propeller Fan
Discharge direction(Side / Top)
Side
Air Flow Rate(High) (m³/min x No.)
60
Drive
DC INVERTER
Output (W x No.)
124 x 1
Fin Type
Wide Louver Plus
Net(W x H x D) (mm)
950 x 834 x 330
Shipping(W x H x D) (mm)
1147 x 919 x 461
Net (kg)
64.7
Shipping (kg)
73.7
Color
WARM GRAY
RAL (Classic)
RAL 7044
Type
R32
Precharged amount (kg)
1.5
GWP(Global Warming Potential)
675
t-CO₂ eq.
1.013
Control Type
Electronic Expansion Valve
Liquid (mm(inch))
Φ9.52 (3/8)
Gas (mm(inch))
Φ15.88 (5/8)
Cooling / Heating (dB(A))
51 / 55
Cooling / Heating (dB(A))
67 / 71
Max. (Conditional) (EA)
8
Communication Cable(VCTF-SB) (mm² × cores)
2C x 1.0 ~ 1.5
