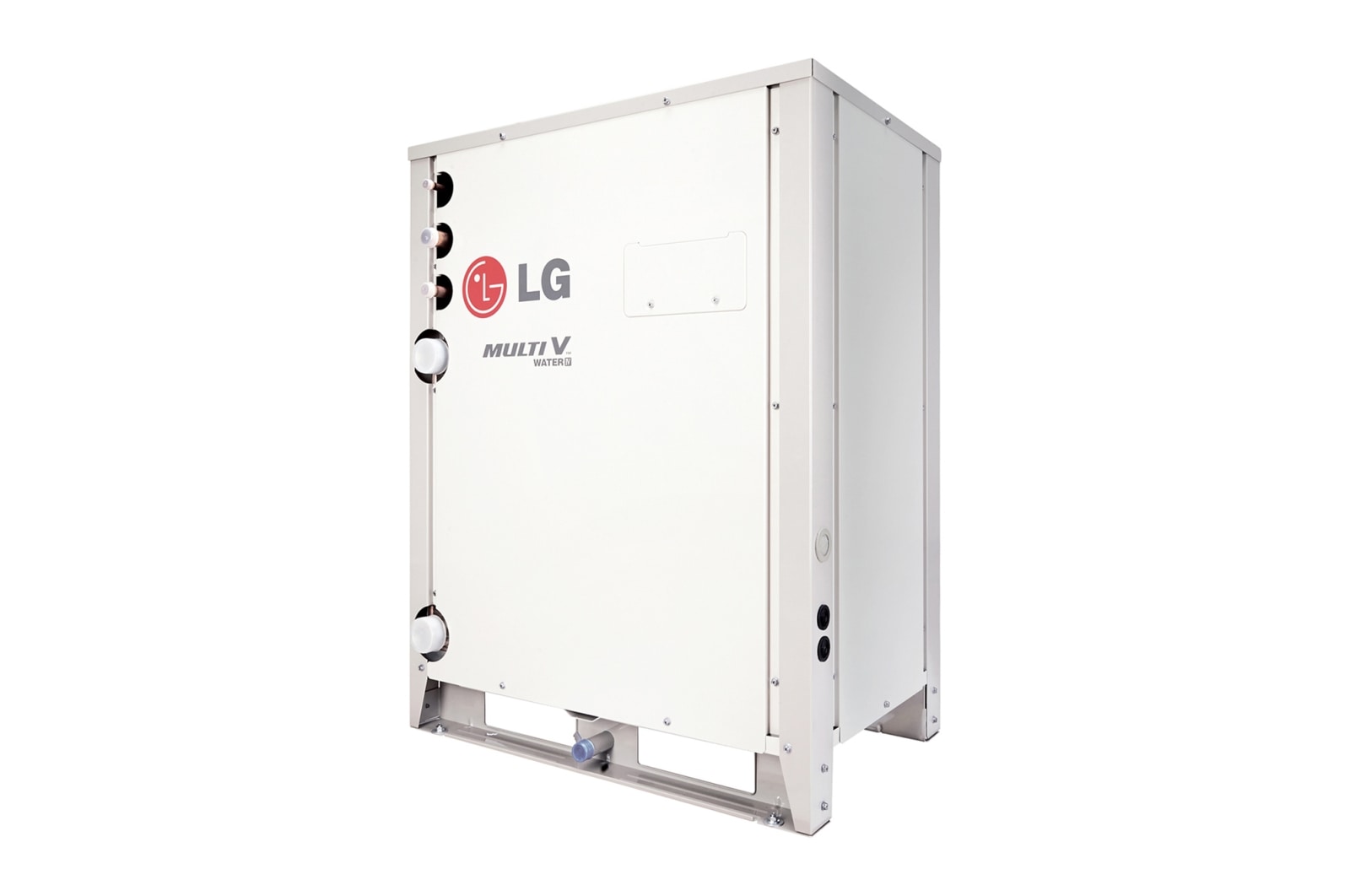

MULTI V WATER 5, Water Heat Recovery, Outdoor Unit, 10HP, R410A
With patent HiPOR™ technology, the efficiency of the compressor has been maximised by reducing energy loss due to oil circulation.
The compact shape allows for easy installation in various types of buildings. Additionally, units can be double-stacked, saving 50% of space needed.
Control and monitor the IDU with the LG ThinQ app. Monitor the status of your air conditioning and easily diagnose problems by connecting with your smartphone.
In addition to being able to use a cooling tower and boiler to source cooling and heating, the MULTI V WATER system is also able to add additional sources for heat.
#1
50 Hz 380-415 V 3N~
#2
380, 3, 60
Rated (kW)
28
Rated (kW)
31.5
Type (kg)
Hermetically Sealed Scroll
Model x No.
JQC068MAA x 1
Number of Revolution (rev./min)
3600
Oil Charging amount (cc x No.)
1,200 x 1
Motor Output (W x No.)
5300 x 1
Starting Method
Direct On Line
Oil Type
FW68D(PVE)
Piston Displacement (cm³/rev)
62.1
Rated (kW)
4.19
Rated (kW)
4.57
Rated Water Flow ( LPM )
96
Head loss ( kPa )
15.9
Type
Stainless Steel Plate
Maximum Pressure Resistance (kg/cm²)
45
Net(W x H x D) (mm)
772 x 1120 x 547
Inlet (mm)
PT 40 (Internal Thread)
Outlet (mm)
PT 40 (Internal Thread)
Net (kg)
149 x 1
Color
Morning Gray / Dawn Gray
RAL (Classic)
RAL 7038 / RAL 7037
Type
R410A
Precharged Amount (kg)
3.5
Control Type
Electronic expansion valve
Cooling (°C(WB))
15 ~ 40
Heating (°C(DB))
15 ~ 40
Cooling (°C(WB))
10 ~ 45
Heating (°C(DB))
-5 ~ 45
Liquid (mm(inch))
Φ9.52 (3/8)
Gas (mm(inch))
Φ22.22 (7/8)
Low Pressure Gas (Heat Recovery) (mm(inch))
Φ22.22 (7/8)
High Pressure Gas (Heat Recovery) (mm(inch))
Φ19.05 (3/4)
Cooling / Heating (dB(A))
48 / 48
Cooling / Heating (dB(A))
60 / 60
Communication Cable(VCTF-SB) (mm² × cores)
1.0 ~ 1.5 × 2C
