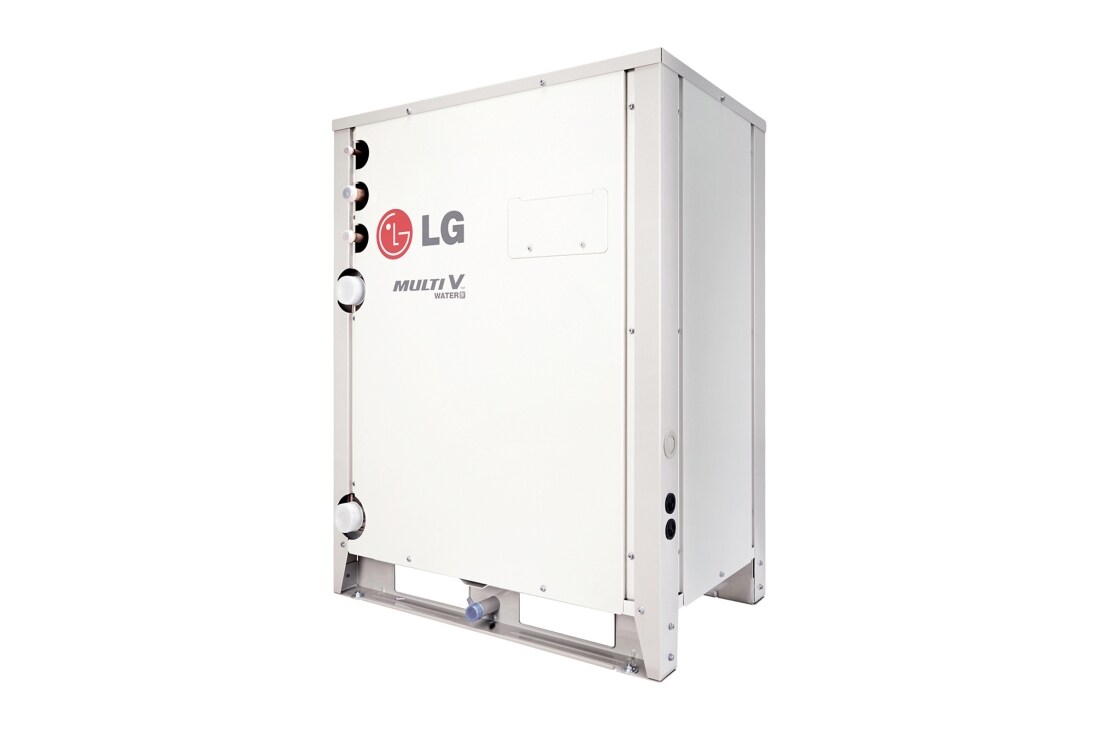

MULTI V WATER 5, Water Heat Recovery, Outdoor Unit, 10HP, R410A
ARWM100LAS5
Orders for the Scottish Islands and remote areas will be delivered by 3PL. The 3PL will contact you to arrange a suitable delivery date.
Shipping options may vary by region.
Further information regarding delivery can be found in our Delivery Terms and Conditions.
Are you sure you want to remove the coupon?
#1
50 Hz 380-415 V 3N~
#2
380, 3, 60
Rated (kW)
28
Rated (kW)
31.5
Type (kg)
Hermetically Sealed Scroll
Model x No.
JQC068MAA x 1
Number of Revolution (rev./min)
3600
Oil Charging amount (cc x No.)
1,200 x 1
Motor Output (W x No.)
5300 x 1
Starting Method
Direct On Line
Oil Type
FW68D(PVE)
Piston Displacement (cm³/rev)
62.1
Rated (kW)
4.19
Rated (kW)
4.57
Rated Water Flow ( LPM )
96
Head loss ( kPa )
15.9
Type
Stainless Steel Plate
Maximum Pressure Resistance (kg/cm²)
45
Net(W x H x D) (mm)
772 x 1120 x 547
Inlet (mm)
PT 40 (Internal Thread)
Outlet (mm)
PT 40 (Internal Thread)
Net (kg)
149 x 1
Color
Morning Gray / Dawn Gray
RAL (Classic)
RAL 7038 / RAL 7037
Type
R410A
Precharged Amount (kg)
3.5
Control Type
Electronic expansion valve
Cooling (°C(WB))
15 ~ 40
Heating (°C(DB))
15 ~ 40
Cooling (°C(WB))
10 ~ 45
Heating (°C(DB))
-5 ~ 45
Liquid (mm(inch))
Φ9.52 (3/8)
Gas (mm(inch))
Φ22.22 (7/8)
Low Pressure Gas (Heat Recovery) (mm(inch))
Φ22.22 (7/8)
High Pressure Gas (Heat Recovery) (mm(inch))
Φ19.05 (3/4)
Cooling / Heating (dB(A))
48 / 48
Cooling / Heating (dB(A))
60 / 60
Communication Cable(VCTF-SB) (mm² × cores)
1.0 ~ 1.5 × 2C
