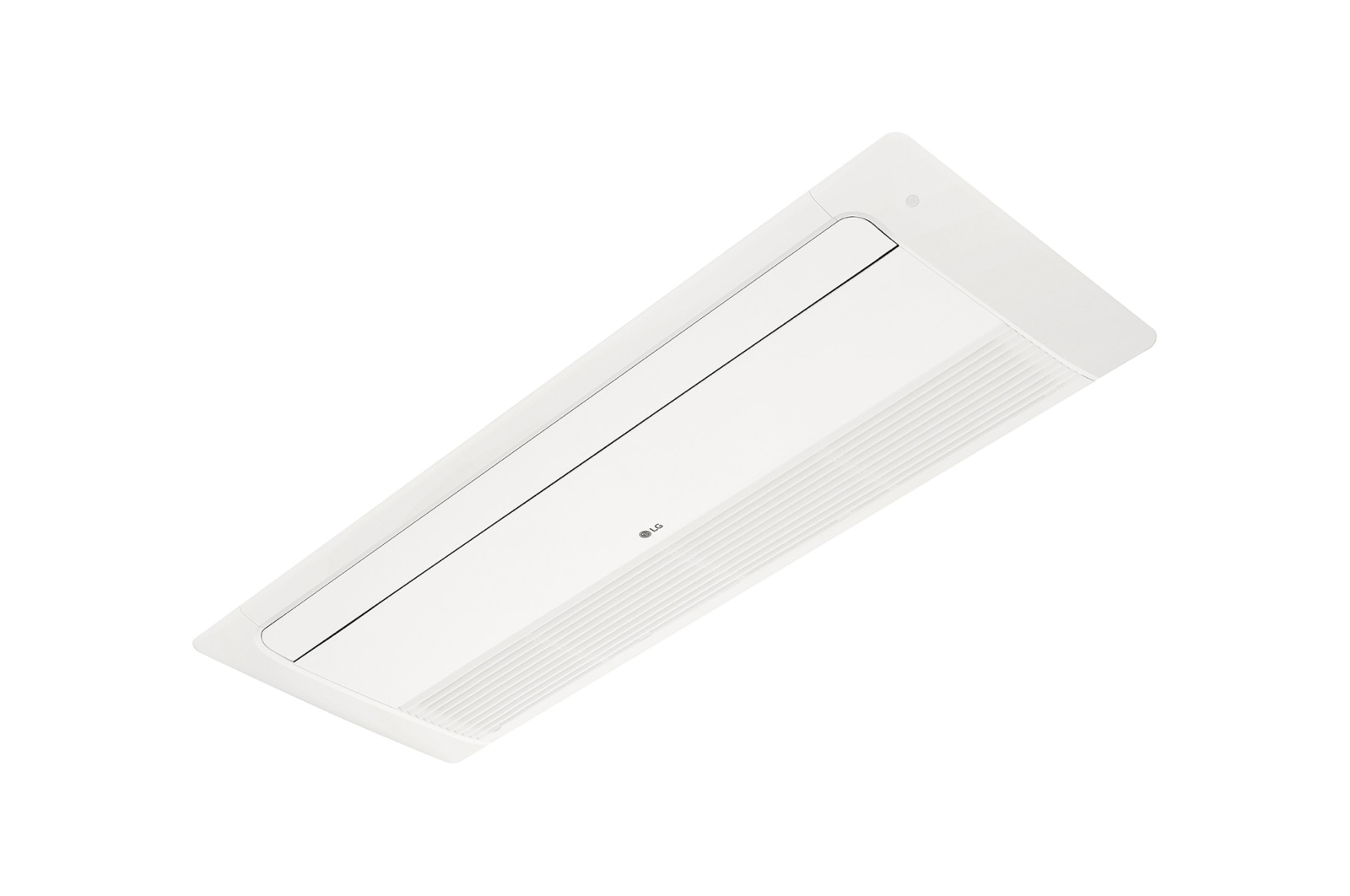

The height of 1 Way Cassette is 132mm, making it the ideal solution for installation in limited space. And The access for inspection at 1 Way Cassette does not require additional ducted space making the installation environment uncomplicated.
It can be monitored and controlled via your mobile device to conserve energy and ensure better air quality.
A powerful air purification* removes odor, germs, and invisible PM 1.0 fine dust. This filter can easily be cleaned with water, allowing semi-permanent usage.
Safe Plus Insulation is an antimicrobial treatment that is applied to LG MULTI V indoor unit’s internal insulation components to create resistance to bacterial growth, and provides cleaner and fresher airflow for the customer.
#1
50 Hz 220-240 V~
#2
60 Hz 220 V~
Nominal (kW)
2.20
Nominal (kW)
2.50
Net(W x H x D) (mm)
860 x 132 x 450
Net (kg)
12.2
Liquid (mm(inch))
Φ6.35 (1/4)
Gas (mm(inch))
Φ12.7 (1/2)
Model Name
PT-UUC(Grill), PT-UUD(Panel)
O.D / I.D (mm(inch))
25(1)
Air Flow Rate(Cooling,(SH)/H/M/L) (m³/min)
- / 8.2 / 7.3 / 6.4
Type
Ceiling Cassette
Cooling((SH)/H/M/L) (dB(A))
- / 47 / 44 / 41
Heating((SH)/H/M/L) (dB(A))
- / 47 / 44 / 41
Cooling((SH)/H/M/L) (dB(A))
- / 32 / 29 / 25
Heating((SH)/H/M/L) (dB(A))
- / 32 / 29 / 25
