43" UHD Digital Signage | Meeting Room

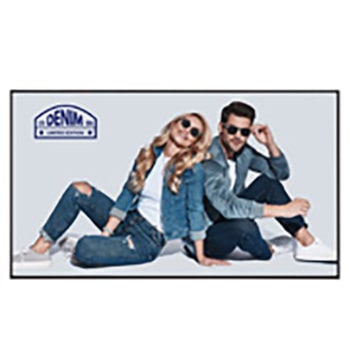

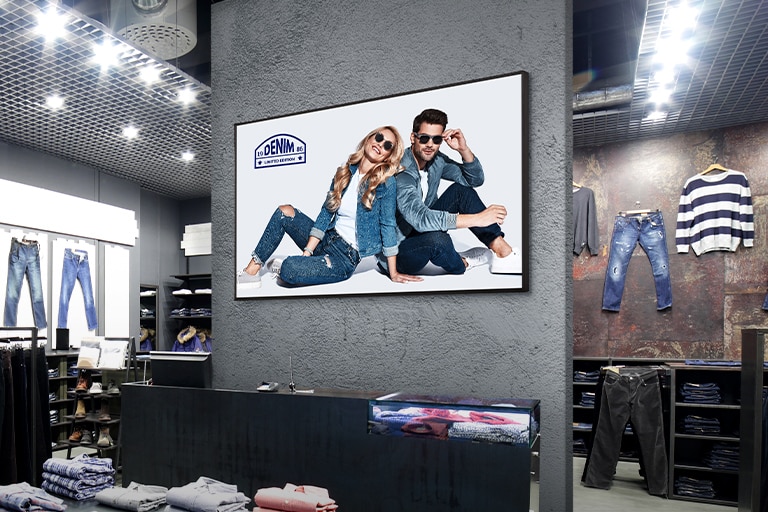

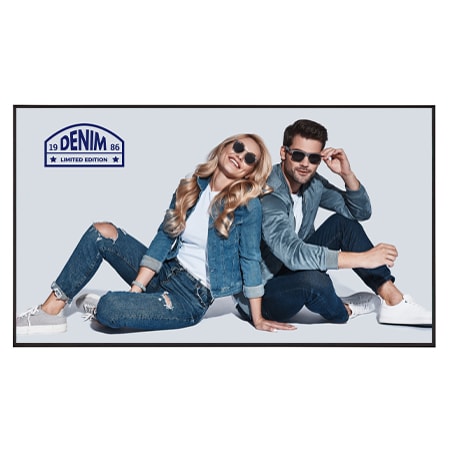

A signage display is installed on the central wall of the clothing store, displaying advertisements clearly and vividly.
* All images in this page are for illustrative purposes only.

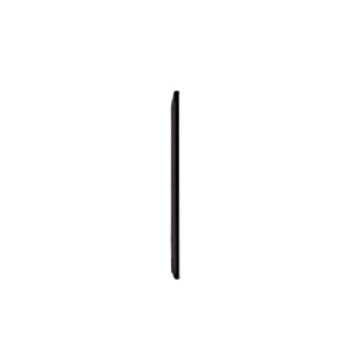

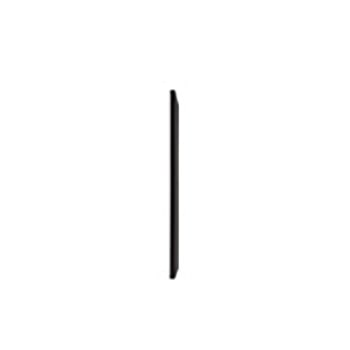

Designed with thin bezels and simple cable management, the UH5N-M saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.

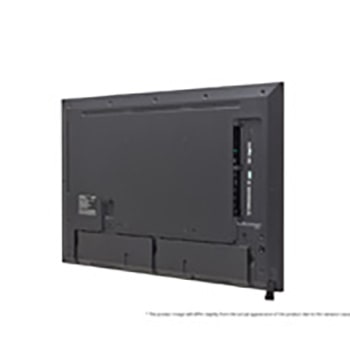

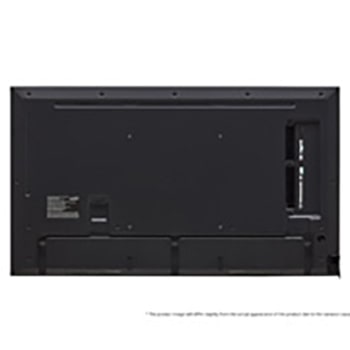

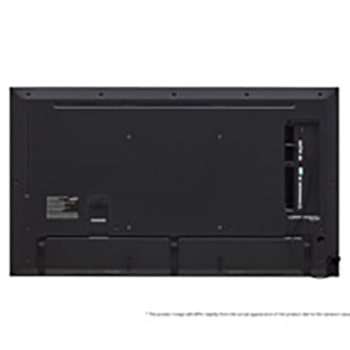

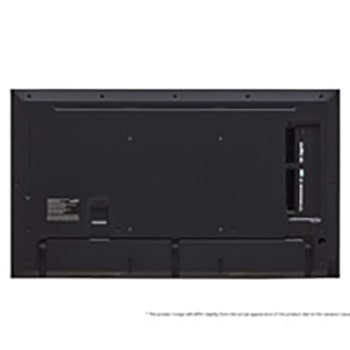

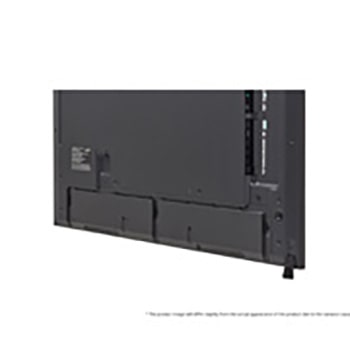

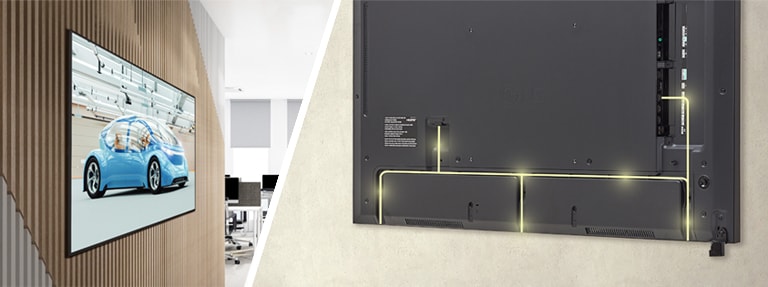

The UH5N-M, with slim bezels, is mounted close to the wall, showcasing a rear design optimized for space-saving with a simple cable management system.
*All images are for illustrative purposes only.
*The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.

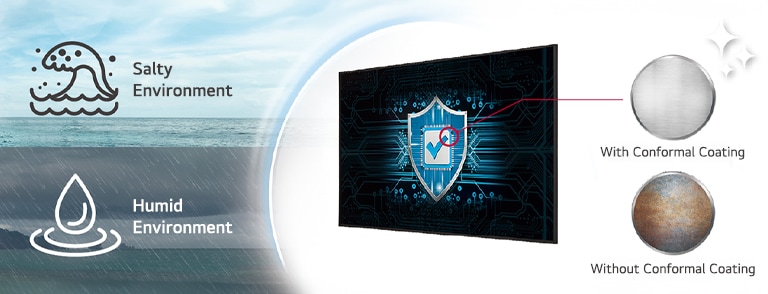

Optimized for business environments, the UH5N-M is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring, provide both reliability and satisfaction.
The UH5N-M has conformal coating to protect the display even in salty or humid environments.
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.
Screen Size (Inch)
43"
Panel Technology
ADS
Back Light Type
Edge
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness
500nit (Typ.)
Contrast Ratio
1,200:1
Dynamic CR
1,000,000:1
Color Gamut
BT709 95%
Viewing Angle (H x V)
178 X 178
Color Depth (Number of Colors)
1.07G (8bits + FRC)
Response Time
8m (G to G)
Surface Treatment (Haze)
25%
Life time
50,000Hrs (Min.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
Transparency
NO
QWP (Quarter Wave Plate)
NO
HDMI In
YES(3), 3840x2160@60Hz, HDCP 2.2/1.4
DP In
YES(1), 3840x2160@60Hz, HDCP2.2/1.3
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
YES(1), 4pin Phone-jack
RJ45(LAN) In
YES(1)
IR In
YES(1)
USB In
USB2.0 Type A(2)
HDMI Out
NO
DP Out
NO
Audio Out
YES(1)
External Speaker Out
NO
RS232C Out
YES(1), 4pin Phone-jack
RJ45(LAN) Out
NO
IR Out
NO (Support IR daisy chain via RS232C IN/OUT)
Daisy Chain
NO
Bezel Color
Black
Bezel Width
T/R/L: 8.9mm, B: 12.9mm
Weight (Head)
11.1 kg
Packed Weight
12.8 kg
Monitor Dimensions (W x H x D)
963.0 x 556.2 x 29.7mm (without IR)
Monitor Dimension with Stand (W x H x D)
NO
Handle
NO
VESA Standard Mount Interface
200 x 200
Carton Dimensions (W x H x D)
1055.0 x 660.0 x 142.0mm
Weight(Head+Stand)
NO
Internal Memory (eMMC)
16GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
YES
Auto Brightness Sensor
YES(외장 IR)
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
YES
Power Indicator
NO
Local Key Operation
YES
FAN (Built-in)
NO
OS Ver. (webOS)
webOS6.0
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
YES
No Signal Image
YES
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
NO
PIP
YES
PBP
YES(4)
Screen Share
YES
Video Tag
YES(4)
Play via URL
YES
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
YES (Max. 15x15)
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
(TBD)
Crestron Connected
YES
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
YES
Beacon
YES
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
83W
Max.
127W
BTU (British Thermal Unit)
283 BTU/Hr(Typ.), 433 BTU/Hr(Max)
DPM
0.5W
Power off
0.5W
Smart Enegy Saving(~70%)
58W
Speaker (Built-in)
YES (10W X 2)
Safety
CB / NRTL
EMC
FCC Class "B" / CE / KC
ERP / Energy Star
YES / YES
ePEAT(US only)
YES / Carbon "Reduced CO2" (TBD)
OPS Type compatible
NO
OPS Power Built-in
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
SuperSign Cloud
YES
Promota
NO
Mobile CMS
YES
Connected Care
YES
Tilt (Face up)
NO
Tilt (Face down)
YES(Max 15º degree, 40ºC temperature)
Conformal Coating (Power Board)
YES(Partial space coating)
Power Protection
NO
Direct Sunlight
NO
