Signage installed on the interior walls of the shopping mall displays advertisements vividly.
* All images in this page are for illustrative purposes only.
A large screen effectively captures people's attention. Especially, 86-inch model supports 120Hz, enabling smooth content operation.

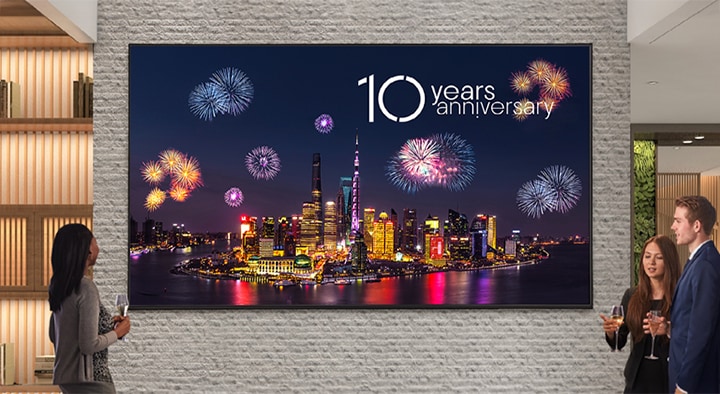

The company lounge features a sizable UH5N-M installed on the wall. The large screen vividly displays images, easily capturing people’s attention.

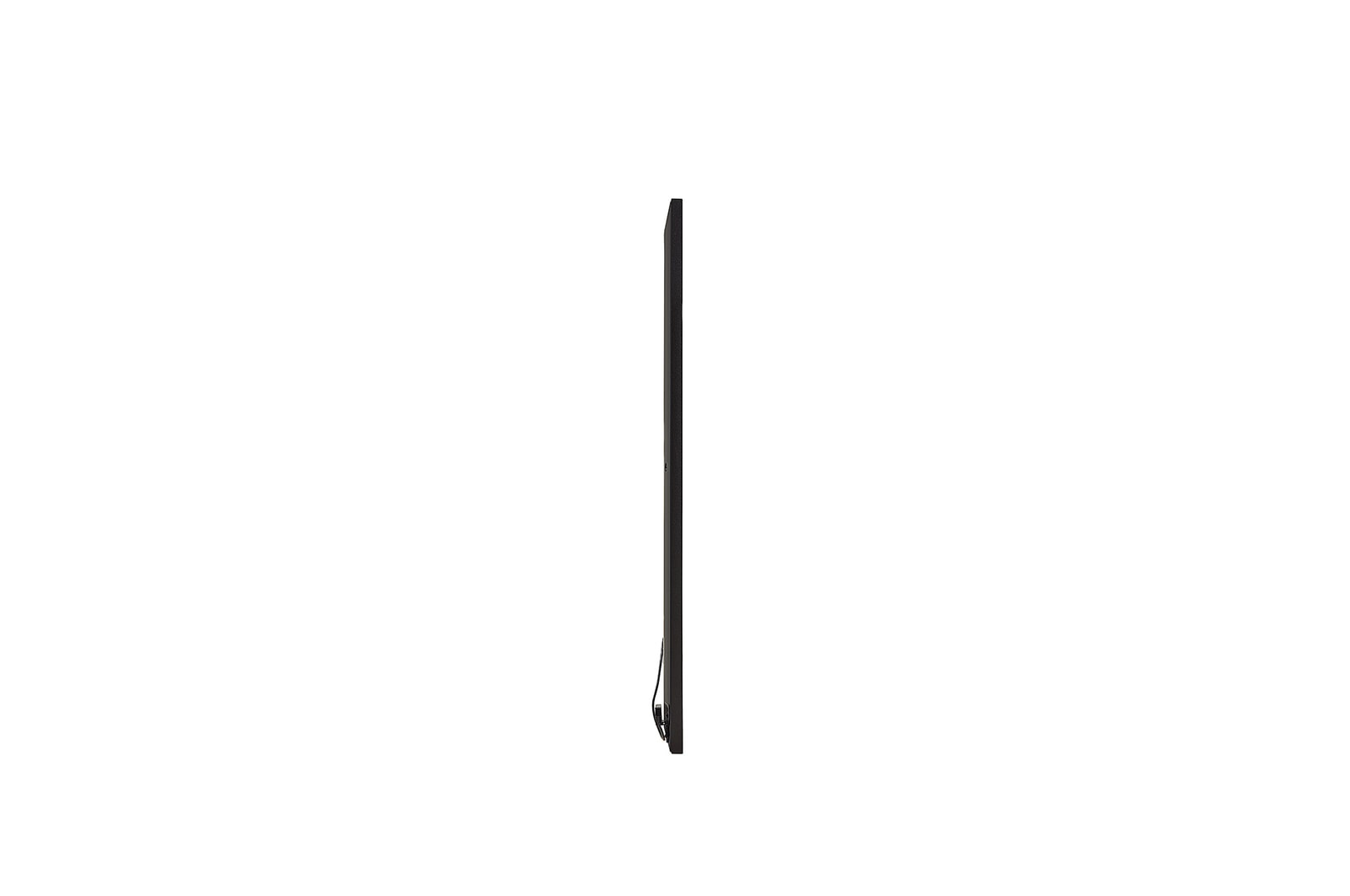

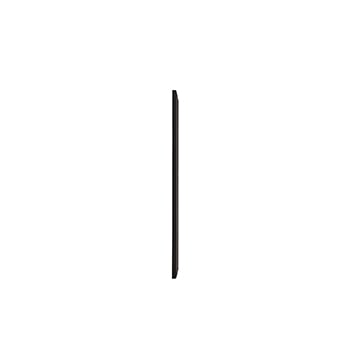

Despite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options.

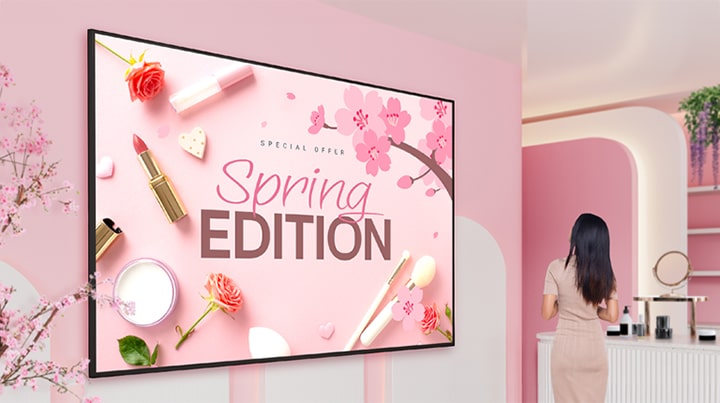

In the cosmetic shop, the UH5N-M is mounted on the wall, and its slim design and uniform bezel seamlessly blend with the interior.
With support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.
A man in the meeting room is conducting the meeting using both a mouse and keyboard, which are connected to the UH5N-M and used simultaneously.
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Optimised for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation.
The UH5N-M has conformal coating to protect the display even in salty or humid environments.
The UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
The UH5N-M provides security features to protect important data from external access or attacks.
SuperSign is an integrated and intuitive content management solution for creative and organised digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.
Screen Size (Inch)
86
Panel Technology
IPS
Back Light Type
Edge
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
120Hz
Brightness
500nit(Typ.)
Contrast Ratio
1,200:1
Dynamic CR
1,000,000:1
Color Gamut
BT709 95%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
25%
Life time
50,000Hrs (Typ.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
Transparency
X
QWP (Quarter Wave Plate)
N/A
HDMI In
YES (3ea)
HDMI In (HDCP Ver.)
2.2/1.4
DP In
YES (HDCP 2.2/1.3)
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (2ea)
HDMI Out
NO
DP Out
NO
Audio Out
YES
Touch USB
NO
External Speaker Out
NO
RS232C Out
YES
RJ45(LAN) Out
NO
IR Out
NO
Daisy Chain
NO
Bezel Color
Black
Bezel Width
13.4mm(Even)
Weight (Head)
52.7Kg(TBD)
Packed Weight
65.5Kg(TBD)
Monitor Dimensions (W x H x D)
1928.8 x 1099.8 x 29.7mm
Monitor Dimension with Stand (W x H x D)
N/A
Handle
YES
VESA Standard Mount Interface
600 x 400 mm
Carton Dimensions (W x H x D)
2100 x 1250 x 253(TBD)
Weight (Head+Stand)
N/A
Internal Memory (eMMC)
16GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
YES
Auto Brightness Sensor
YES
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
YES
Power Indicator
NO
Local Key Operation
YES
FAN (Built-in)
NO
OS Ver. (webOS)
webOS 6.0
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
YES
No Signal Image
YES
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
NO
PIP
YES
PBP
YES (4PBP)
Screen Share
YES
Video Tag
YES (4 Video Tag)
Play via URL
YES
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
YES
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
YES
Crestron Connected
YES
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
YES
Beacon
YES
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Typ.
197W (TBD)
Max.
297W (TBD)
BTU (British Thermal Unit)
672 BTU/Hr(Typ.), 1013 BTU/Hr(Max) (TBD)
DPM
0.5W
Power off
0.5W
Smart Energy Saving (70%)
138W (TBD)
Speaker (Built-in)
YES (10W x 2)
Safety
CB / NRTL
EMC
FCC Class "B" / CE / KC
ERP / Energy Star
NA /O
ePEAT(US only)
YES
OPS Type compatible
N/A
OPS Power Built-in
N/A
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
SuperSign Cloud
YES
Promota
YES
Mobile CMS
YES
Connected Care
YES
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(6EA), 7pin Holder(1EA)
Optional
일반 Wall Mount (LSW640A/B)
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face up)
N/A
Tilt (Face down)
N/A
IP Rating
IP5X
Conformal Coating (Power Board)
YES
Power Protection
N/A
Direct Sunlight
N/A
